ABB SDCS-POW-4 3ADT315100R10001 Spare Part for Factory Uptime

Overview

ABB SDCS-POW-4 3ADT315100R10001 Spare Part for Factory Uptime

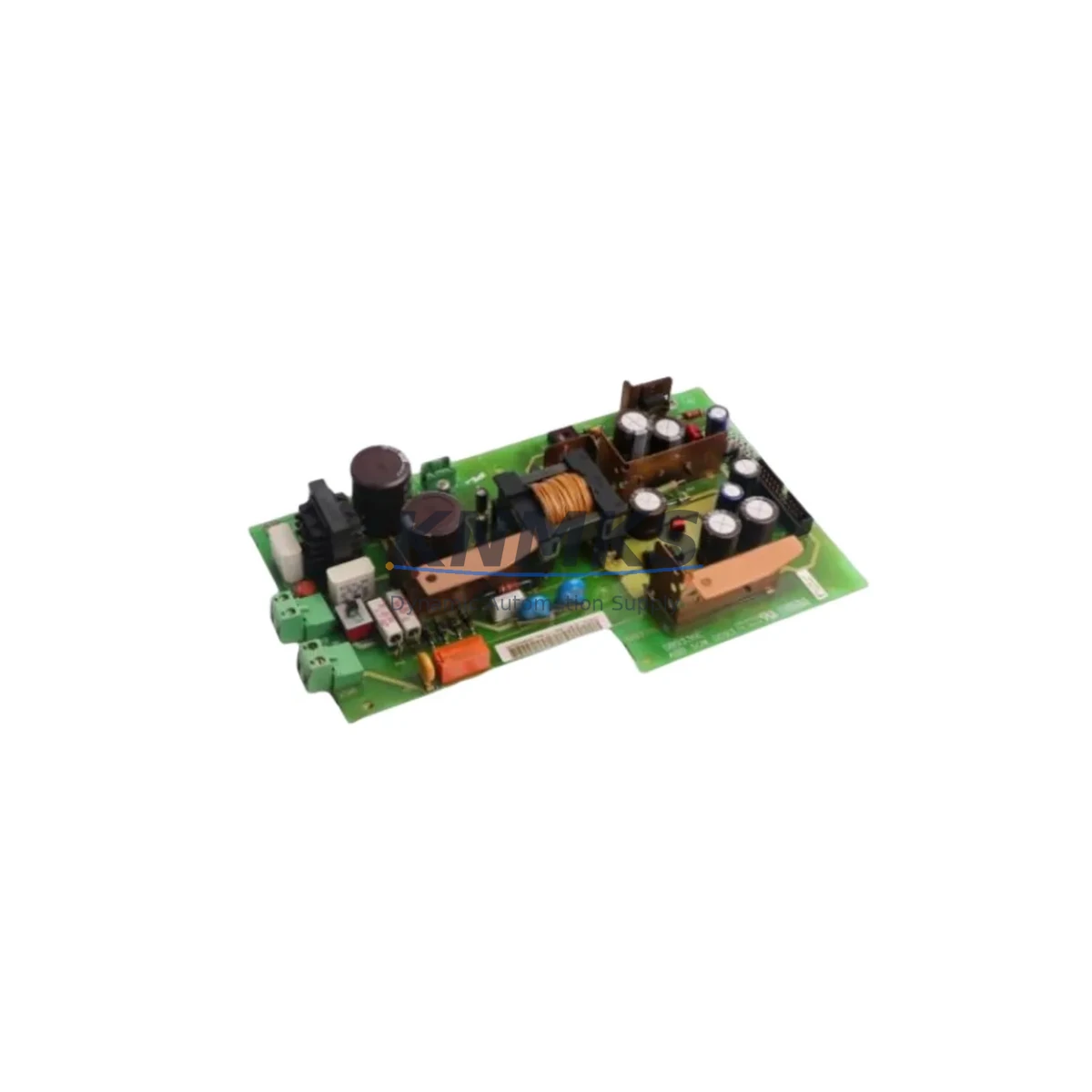

The ABB SDCS-POW-4 (part number 3ADT315100R10001) is the dedicated power supply board for the ABB DCS800 series DC drive platform — one of the most widely deployed DC drive families in heavy industrial environments including steel mills, paper machines, extruders, winding lines, and crane systems. When this board fails, the entire drive goes offline, halting production immediately. Maintaining a verified spare of the SDCS-POW-4 in your local inventory is the single most effective measure to reduce unplanned downtime on DCS800-equipped lines.

This unit is sourced as an original ABB component, fully tested prior to shipment, and backed by a support terms confirmed by quotation. Each board undergoes functional verification covering input voltage regulation, output rail stability, and protection circuit integrity before dispatch. Our stock is maintained specifically for maintenance engineers and procurement teams who require reliable, long-lead-time spare parts for legacy and active DC drive systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The SDCS-POW-4 sits at the heart of the DCS800 control architecture. Its output rails power the SDCS-CON-4 control board, the SDCS-IOB-3 I/O expansion board, and the gate drive circuits that fire the thyristor bridge. A degraded power supply board typically manifests as intermittent fault codes (F501, F502, or undervoltage trips) before complete failure — making it a prime candidate for condition-based replacement during scheduled shutdowns rather than reactive replacement during a production crisis.

When replacing the SDCS-POW-4, maintenance engineers should simultaneously inspect the following components to ensure the drive returns to full health:

• SDCS-CON-4 Control Board: The primary logic board that interfaces directly with the power supply rails. If the SDCS-POW-4 failed due to overvoltage or transient stress, the SDCS-CON-4 may have sustained secondary damage. Verify firmware integrity and parameter retention after board swap.
• SDCS-IOB-3 I/O Board: Handles analog and digital I/O signals for speed reference, current feedback, and interlock circuits. Connector oxidation and signal drift are common on boards that have experienced power supply instability.
• SDCS-FEX-2 / SDCS-FEX-4 Field Excitation Board: Manages DC motor field current. Power supply faults can cause field weakening errors; inspect field current feedback and excitation output after restoring the drive.
• 24 VDC Cabinet Power Supply (e.g., ABB CP-E or equivalent SITOP unit): The external 24 VDC supply feeding the DCS800 control terminals should be verified for output stability. A failing external PSU can stress the SDCS-POW-4 and cause repeat failures.
• Input Fuses and AC Line Reactor: Check the drive’s input fuse set and AC line reactor for signs of thermal stress. Fuse degradation or reactor saturation can introduce voltage spikes that damage internal power supply boards.
• Encoder and Tachometer Feedback Cables: Speed feedback wiring routed near high-voltage bus bars is susceptible to induced noise. After a power supply fault, verify encoder signal integrity using the DCS800 diagnostic tools before returning the drive to closed-loop speed control.

For sites running multiple DCS800 drives, a recommended stocking strategy is to maintain one SDCS-POW-4 per three to five drives, supplemented by one SDCS-CON-4 and one SDCS-IOB-3 as a complete control section spare set. This approach covers the majority of non-thyristor failure modes and enables same-shift restoration in most fault scenarios.

Site Replacement Workflow

Replacing the SDCS-POW-4 in the field is a structured process that, when followed correctly, minimizes downtime and eliminates the risk of parameter loss or incorrect configuration:

1. Isolate and lock out the drive: De-energize the DCS800, apply LOTO, and wait for the DC bus to discharge below 50 VDC before opening the cabinet.
2. Document existing parameter set: If the SDCS-CON-4 is still functional, upload the full parameter set via DriveWindow or the DCS800 keypad before removing any boards. Store the backup on a USB drive or engineering laptop.
3. Remove the faulty SDCS-POW-4: Disconnect all ribbon cables and power connectors. Note connector positions and cable routing with photographs before removal.
4. Install the replacement SDCS-POW-4 (3ADT315100R10001): Seat the board firmly, reconnect all cables in the documented sequence, and verify no connectors are partially engaged.
5. Power-up and verify output rails: Apply control power only (not main AC) and measure the SDCS-POW-4 output rails with a multimeter before enabling the drive. Confirm ±15 VDC and +24 VDC are within ±5% tolerance.
6. Restore parameters and perform no-load test: Reload the parameter backup, run the drive at no load, and verify speed reference tracking, current limits, and fault history are clear before reconnecting the mechanical load.
7. Return to production: Ramp the drive to operating speed under load, monitor current feedback and temperature for the first 30 minutes of operation, and log the replacement in the site maintenance record.

This workflow applies equally to first-time installations and like-for-like replacements on legacy DCS800 systems that have been in service for 10 or more years. The SDCS-POW-4 is a direct replacement for earlier power supply board revisions used in the DCS500 migration path, making it a practical upgrade option for sites transitioning from older ABB DC drive generations.

Spare Parts Support FAQ

Q1: Is this SDCS-POW-4 (3ADT315100R10001) compatible with all DCS800 drive sizes?
The SDCS-POW-4 is the standard internal power supply board across the DCS800 product family, covering the majority of current ratings from DCS800-S01-0020 through high-current variants. However, ABB released minor hardware revisions over the product lifecycle. Always cross-reference the board revision marking on your existing unit with the replacement before installation. Our team can assist with compatibility verification if you provide the drive nameplate data.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Every SDCS-POW-4 unit we ship has been functionally tested for output rail voltage accuracy, protection circuit response, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or contamination. Support requests are processed with a replacement-first policy to minimize your downtime.

Q3: Can you support long-term supply agreements for multi-site maintenance programs?
Yes. We support 12–36 month supply agreements for maintenance teams managing multiple DCS800 installations across different facilities. Blanket orders with scheduled releases allow you to lock in pricing, guarantee stock availability, and simplify procurement administration. Contact our sales team to discuss volume requirements and delivery scheduling.

Q4: What should I do if the replacement SDCS-POW-4 does not resolve the drive fault?
If installing a new SDCS-POW-4 does not clear the fault, the root cause is likely in an adjacent component — most commonly the SDCS-CON-4 control board, a failed external 24 VDC supply, or a shorted gate drive circuit in the thyristor bridge section. We recommend a systematic fault isolation approach: verify all output rails post-installation, check the SDCS-CON-4 for fault codes, and inspect the field excitation circuit before concluding the power supply board was not the primary failure point.
