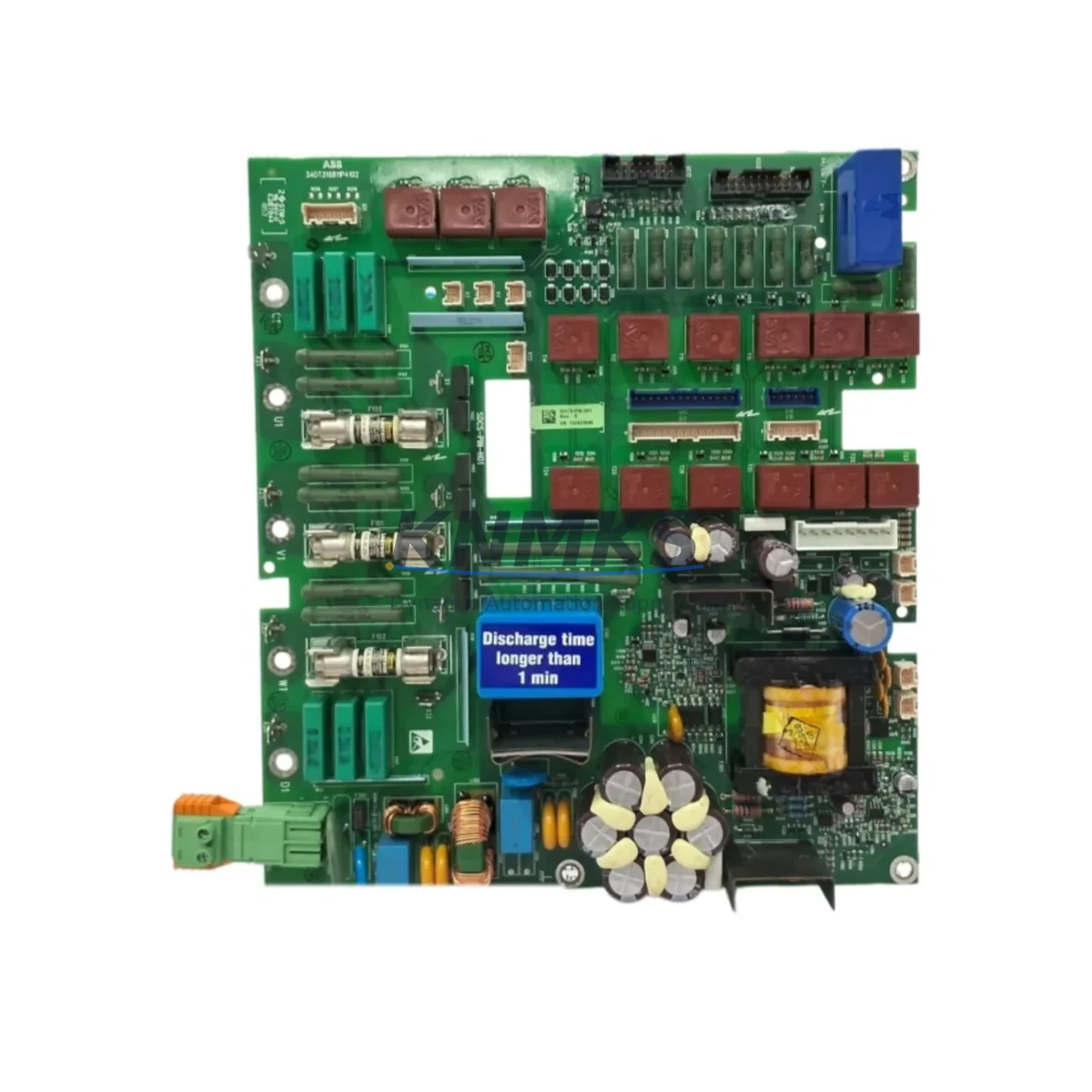

ABB SDCS-PIN-H01 Migration-Ready Power Interface

Overview

ABB SDCS-PIN-H01 Migration-Ready Power Interface for Legacy DC Drive Control Systems

The ABB SDCS-PIN-H01 is a Power Interface Board engineered for the DCS800 series DC drive platform, widely deployed across legacy industrial automation environments in energy, petrochemical, manufacturing, and infrastructure sectors. As original DCS800 components approach end-of-life and spare part availability tightens, the SDCS-PIN-H01 has become a critical replacement module for engineers managing retrofit projects, unplanned breakdowns, and planned system upgrades. This board serves as a direct interface between the drive’s control electronics and its power section, making it a foundational component in any DCS800 drive restoration or modernization effort.

Whether you are replacing a failed unit in an emergency shutdown scenario or executing a phased migration from an older DCS500 or DCS400 platform to the DCS800 architecture, the SDCS-PIN-H01 provides the electrical and mechanical compatibility required to minimize engineering rework. Engineers undertaking such migrations must verify power supply voltage levels at the board’s input terminals, confirm that the backplane connector pinout matches the existing drive chassis, and validate that the module address configuration aligns with the drive’s parameter set before energizing the system.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SDCS-PIN-H01 into an existing automation system requires a structured retrofit plan that accounts for the full scope of the drive’s control architecture. In a typical DCS800-based control cabinet, the power interface board operates alongside the SDCS-CON-H1 control board, which manages the drive’s closed-loop speed and current regulation. Engineers should confirm that the SDCS-CON-H1 firmware is compatible with the replacement SDCS-PIN-H01 hardware revision to avoid parameter mismatch faults on startup.

The drive’s I/O configuration must also be reviewed. If the existing system uses an SDCS-IOB-3 I/O extension board for additional digital and analog signal routing, the wiring assignments and parameter mappings should be documented before the board swap to ensure signal continuity after replacement. In applications where the DCS800 communicates with a supervisory PLC or DCS via a fieldbus adapter — such as the RDCO-02 DDCS communication module or an RPBA-01 PROFIBUS adapter — the communication link parameters must be preserved and re-verified after the new board is installed.

For systems that include an ACS800 or ACS880 drive in the same control network, engineers should note that while the SDCS-PIN-H01 is specific to the DCS800 DC drive platform, the broader migration strategy may involve coordinating parameter backups and HMI screen updates across multiple drive types. Panel View or ABB CP600 HMI terminals connected to the drive network will require screen validation to confirm that all drive status tags and fault displays remain correctly mapped after the hardware change. Additionally, if the control cabinet houses an ABB AC500 PLC managing the drive’s start/stop and speed reference signals, the PLC program logic should be reviewed to confirm that I/O addresses and communication polling cycles are unaffected by the board replacement.

Before ordering, engineers should also confirm the installation space within the drive chassis. The SDCS-PIN-H01 occupies a defined slot in the DCS800 backplane, and any additional modules such as a SDCS-DSL-H1 serial link board must remain accessible after the replacement is completed. Documenting the existing module layout with photographs prior to disassembly is a recommended practice that significantly reduces reassembly errors and commissioning time.

Downtime Control During System Migration

Minimizing production downtime during a DCS800 power interface board replacement requires preparation that begins well before the maintenance window opens. The first priority is to perform a full parameter backup of the drive using the ABB Drive Composer or DriveWindow software tool, saving the parameter file to a secure location. This backup preserves the drive’s tuning data, I/O configuration, fieldbus settings, and application-specific parameters, allowing rapid restoration if the replacement board requires a factory reset during initialization.

Where process continuity is critical, engineers should coordinate with the control room to implement a manual bypass or alternative control path for the affected drive during the replacement window. For conveyor, pump, or compressor applications, this may involve switching to a backup drive or temporarily reducing line speed to allow the affected drive to be taken offline safely. The replacement of the SDCS-PIN-H01 itself is a mechanical swap that typically requires less than one hour for an experienced technician, but the subsequent commissioning steps — including parameter restore, I/O signal check, communication link verification, and a no-load test run — should be allocated adequate time in the maintenance schedule.

After the new board is installed and parameters are restored, a controlled test sequence should be executed: first verify auxiliary power supply levels, then confirm communication link status with the supervisory system, then perform a low-speed test run under no load before returning the drive to full production duty. This staged approach protects the original program logic, maintains field control continuity, and reduces the risk of secondary faults caused by rushed commissioning. All units supplied by KNMKS are pre-tested prior to shipment, which further reduces on-site commissioning risk and supports a faster return to service.

Retrofit Support FAQ

Q1: Is the SDCS-PIN-H01 a direct replacement for the original ABB part in all DCS800 drive variants?
The SDCS-PIN-H01 is designed for use across the DCS800 series, but hardware revisions may exist. Customers should confirm the drive’s hardware revision and firmware version before ordering to ensure full compatibility. Our technical team can assist with cross-referencing the existing part number against the replacement unit.

Q2: What wiring changes are required when replacing the SDCS-PIN-H01?
In most cases, the SDCS-PIN-H01 is a direct plug-in replacement with no wiring changes required at the backplane connector. However, any field wiring connected to terminal blocks on or adjacent to the board should be documented and verified against the drive’s wiring diagram before and after replacement to confirm correct signal assignment.

Q3: How is the unit tested before shipment, and what support terms is provided?
Every SDCS-PIN-H01 unit supplied by KNMKS undergoes functional testing prior to shipment to verify electrical integrity and basic operational readiness. All units are covered by a support terms confirmed by quotation from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent breakdown situations.

Q4: What is the typical lead time, and do you maintain stock?
KNMKS maintains inventory of the SDCS-PIN-H01 to support urgent replacement and planned maintenance requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or long-term supply agreements, please contact our sales team to discuss availability and scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-PIN-H01
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-PIN-H01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
