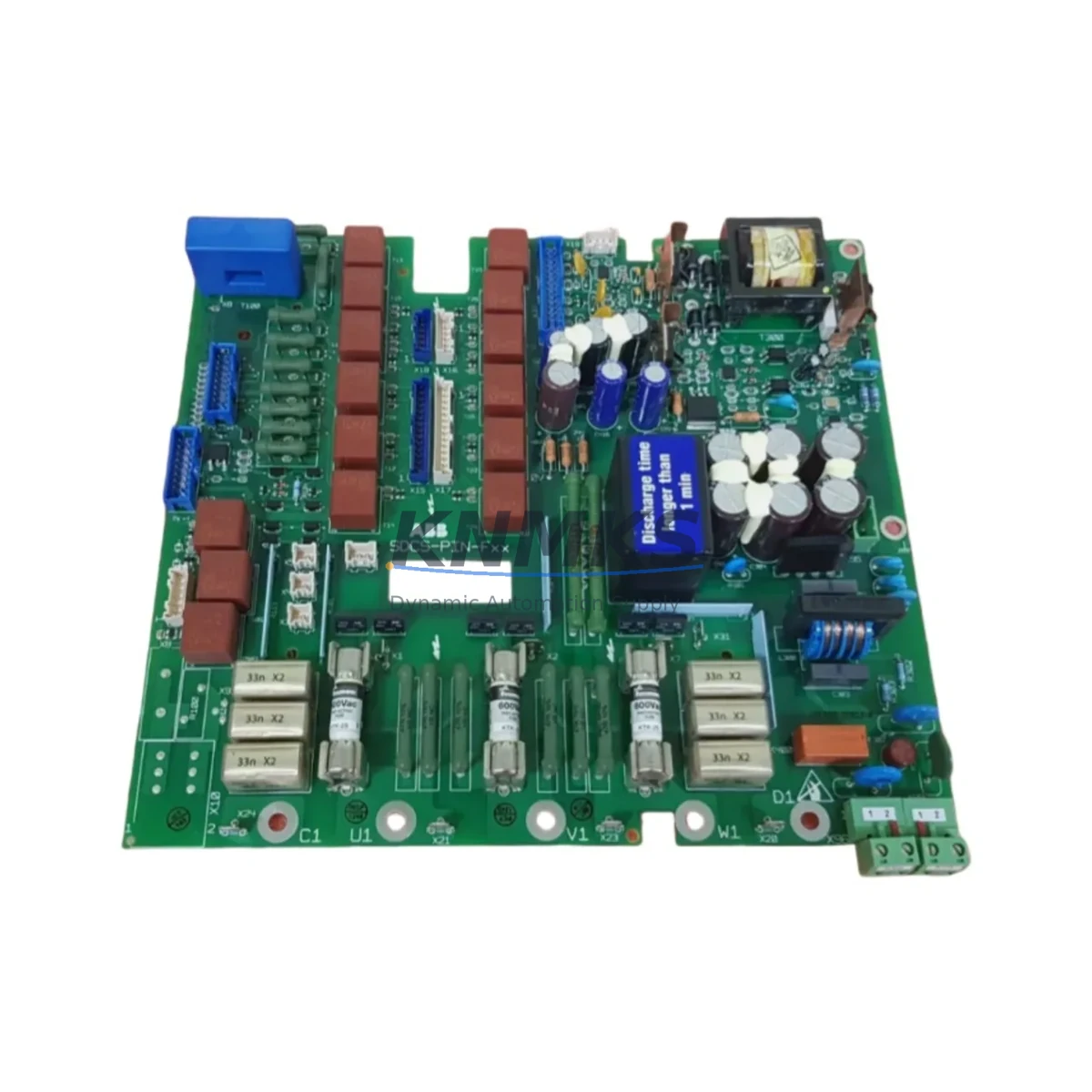

The ABB SDCS-PIN-F01A is a signal input module designed for the DCS800 series DC drive platform — one of ABB’s most widely deployed drive families in heavy industrial environments including steel mills, paper machines, extruders, and winding lines. As a maintenance-proven spare part, the SDCS-PIN-F01A plays a critical role in preserving drive signal integrity, enabling accurate speed and torque feedback, and ensuring the control loop remains stable under demanding production conditions. Sourced as an original ABB component, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock this module as a long-term reliability asset.

For facilities running DCS800 drives in continuous or semi-continuous production, unplanned downtime caused by a failed signal input module can cascade into significant production losses. Stocking the SDCS-PIN-F01A as a ready-to-deploy spare eliminates the lead time risk associated with last-minute procurement and supports a proactive maintenance strategy aligned with annual overhaul schedules and predictive maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS800 drive exhibits erratic speed control, encoder fault alarms, or loss of tachometer feedback, the SDCS-PIN-F01A is typically the first module to inspect and replace. However, experienced maintenance engineers know that a signal input failure rarely occurs in isolation. A thorough site assessment should extend to the surrounding electrical circuit and control cabinet components to prevent repeat failures and ensure a complete restoration of drive performance.

Begin by verifying the integrity of the encoder cable and its shielding — degraded cable insulation or improper grounding is a common root cause of signal noise that accelerates module wear. The SDCS-CON-F01A control board, which interfaces directly with the SDCS-PIN-F01A, should be inspected for contamination, loose connectors, and firmware version compatibility. If the drive has been in service for more than five years, it is advisable to simultaneously evaluate the SDCS-POW-F01A power supply board, as power rail instability can induce signal input errors that mimic module failure.

For drives integrated into a larger DCS or PLC architecture, check the communication module — such as the SDCS-COM-8 or FIELDBUS adapter — to confirm that drive status signals are being correctly transmitted upstream. A faulty communication link can mask underlying signal input issues and delay accurate fault diagnosis. In cabinet environments with multiple drives, inspect the shared DC bus connections, terminal blocks, and any signal isolators in the feedback loop. Fuse integrity on the control power circuit should also be verified, as a blown fuse on the 24VDC auxiliary supply can cause the signal input module to appear defective when the root cause is upstream.

For facilities managing aging DCS800 installations, maintaining a minimum stock of one SDCS-PIN-F01A per drive line — alongside critical companions such as the SDCS-CON-F01A and SDCS-POW-F01A — is a recognized best practice for reducing mean time to repair (MTTR) and supporting long-term system life extension beyond the original product lifecycle.

Site Replacement Workflow

Replacing the SDCS-PIN-F01A on-site is a straightforward procedure when the correct spare is available and the replacement workflow is followed systematically. Before beginning, ensure the DCS800 drive is fully de-energized and that all stored energy in the DC bus has dissipated — confirm with a calibrated multimeter before touching any internal components.

Document the existing encoder wiring configuration and take photographs of connector positions before disconnecting. Remove the faulty SDCS-PIN-F01A by releasing the board retaining clips and carefully extracting the module from its slot on the control board assembly. Install the replacement module, ensuring all connectors are fully seated and locking tabs are engaged. Restore encoder wiring according to the documented configuration and verify cable shielding is properly terminated at the drive chassis ground point.

After physical installation, power up the drive in local control mode and perform an encoder feedback test using the DCS800 commissioning tool (DriveWindow or equivalent). Verify that speed feedback values are stable and within expected tolerance before returning the drive to automatic production control. Log the replacement in the site maintenance record, noting the date, replaced part number, and post-replacement test results. This documentation supports support requests and provides traceability for future audits.

For legacy DCS800 installations where the original SDCS-PIN-F01A variant is no longer available through standard distribution channels, KNMKS maintains long-term supply capability with pre-shipment functional testing, ensuring compatibility and reducing the risk associated with sourcing from unverified secondary markets.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-F01A compatible with all DCS800 drive variants?
The SDCS-PIN-F01A is designed for the ABB DCS800 series DC drive platform. Compatibility depends on the specific DCS800 hardware revision and control board configuration. We recommend confirming the drive’s hardware version against the ABB DCS800 hardware manual before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data.

Q2: What is included in the support terms confirmed by quotation and what does pre-shipment testing cover?
Each SDCS-PIN-F01A unit undergoes functional testing prior to shipment to verify signal input integrity and connector condition. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Support requests are supported with replacement or refund, subject to inspection of the returned unit.

Q3: How should I manage long-term spare parts inventory for DCS800 drives?
For production-critical DCS800 installations, we recommend maintaining at least one SDCS-PIN-F01A per drive line as a ready-to-deploy spare. For facilities with multiple DCS800 drives, a consolidated spare parts kit — including the signal input module, control board, and power supply board — provides the most cost-effective protection against unplanned downtime. Annual inventory reviews aligned with planned maintenance shutdowns help ensure spare availability without excessive capital tied up availability confirmed by RFQ.

Q4: Can KNMKS support long-term supply for discontinued or end-of-life ABB DCS800 components?
Yes. KNMKS specializes in long-term supply of industrial automation spare parts, including components for platforms that have reached end-of-life or limited availability status. We maintain stock of DCS800 series modules and can support blanket order arrangements for facilities requiring guaranteed supply over a 12–36 month horizon. Contact our team to discuss your specific requirements and lead time expectations.
