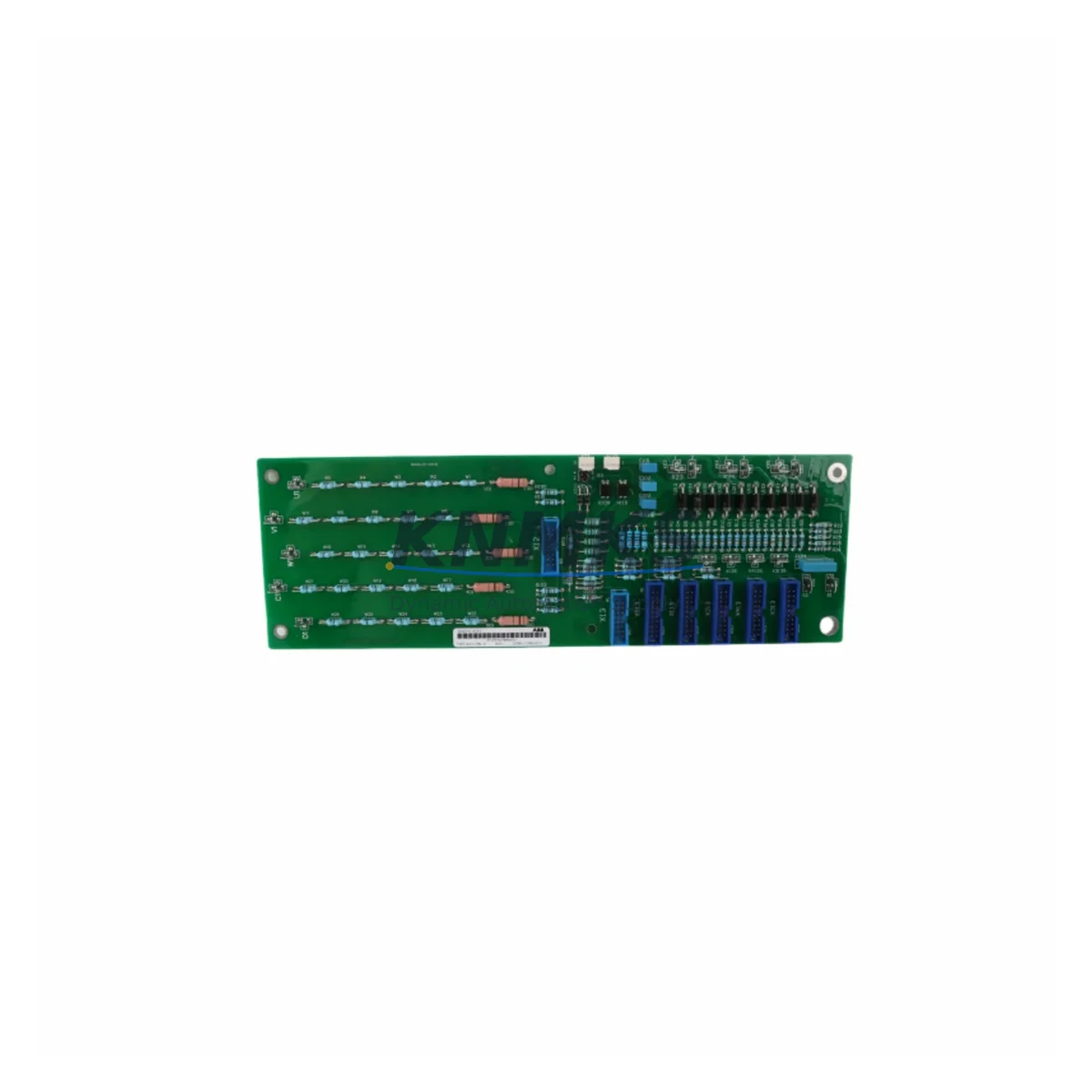

ABB SDCS-PIN-52 3BSE011316R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SDCS-PIN-52 3BSE011316R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB SDCS-PIN-52 (part number 3BSE011316R1) is an analog measurement and signal conditioning card designed for the ABB DCS800 series DC drive platform. This board handles critical current and voltage feedback signals that the drive controller relies on for closed-loop speed and torque regulation. When this card fails or degrades, the DCS800 drive loses accurate process feedback, triggering fault codes, erratic speed control, or complete drive shutdown — directly threatening production continuity in paper mills, metal rolling lines, extruders, winders, and other continuous-process industries.

KNMKS maintains verified stock of the SDCS-PIN-52 3BSE011316R1 sourced from authorized channels, pre-tested before dispatch, and backed by a support terms confirmed by quotation. Each unit is inspected for analog channel integrity, connector condition, and firmware compatibility before shipment. Our multi-region inventory supports emergency same-day dispatch and scheduled outage restocking for maintenance teams worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS800 drive trips on an analog feedback fault or exhibits unstable speed regulation, the SDCS-PIN-52 is a primary suspect — but experienced maintenance engineers know that a single card failure rarely occurs in isolation. A thorough site inspection should accompany any SDCS-PIN-52 replacement to prevent repeat failures and reduce the risk of a second unplanned shutdown.

Begin by auditing the SDCS-POW-1 power supply board, which provides regulated DC rails to the control electronics including the SDCS-PIN-52. A degraded power supply can cause intermittent analog errors that mimic a faulty measurement card. Simultaneously, inspect the SDCS-CON-4 control board — the main processor that interprets the analog signals from the PIN-52; connector wear or firmware corruption on the CON-4 can produce identical fault symptoms.

Check all current transducer wiring and shielding in the feedback loop. Loose or corroded connections between the armature current transducers and the SDCS-PIN-52 input terminals are a common root cause of analog noise and measurement drift. Verify that cable shields are grounded at one end only, per ABB DCS800 installation guidelines.

For drives integrated into a larger automation architecture, inspect the SDCS-COM-8 or SDCS-COM-81 fieldbus communication module to confirm that drive status and speed reference signals are being transmitted correctly to the upstream PLC or DCS. A communication module fault can mask or amplify analog measurement errors at the supervisory level.

Review the main contactor and pre-charge circuit components. Repeated inrush events caused by a failing pre-charge resistor or contactor can stress the analog measurement circuitry over time. If the drive has experienced multiple nuisance trips, include the SDCS-FEX-2 field excitation module in your inspection checklist — field current instability directly affects the armature current feedback that the SDCS-PIN-52 monitors.

Finally, verify the condition of terminal blocks, fuse holders, and surge protection devices on the drive input and output circuits. Blown fuses or degraded surge suppressors can introduce ground loops that corrupt analog signals. Maintaining a stocked set of these consumable components alongside the SDCS-PIN-52 ensures your team can complete a full corrective maintenance cycle without waiting for additional parts.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes from the DCS800 control panel or via the DriveWindow commissioning tool. Analog feedback faults (e.g., F507, F508 current measurement errors) point directly to the SDCS-PIN-52 or its wiring harness.

Step 2 — Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. Isolate the drive from the AC supply and discharge the DC bus capacitors per ABB DCS800 safety guidelines before opening the drive cabinet.

Step 3 — Visual Inspection: Before removing the SDCS-PIN-52, inspect the board for visible burn marks, swollen capacitors, or damaged connectors. Document the existing board’s position and connector routing with photographs.

Step 4 — Board Swap: Remove the faulty SDCS-PIN-52 by releasing the board retaining clips and disconnecting the ribbon and signal connectors. Install the replacement 3BSE011316R1 in the same orientation. Reconnect all connectors and verify secure seating.

Step 5 — Commissioning Check: Power up the drive in local control mode. Use DriveWindow or the drive keypad to verify that current and voltage feedback readings are within expected range before returning the drive to automatic/remote control.

Step 6 — Documentation: Update your CMMS with the replacement date, new board serial number, and any associated findings. Schedule a follow-up inspection of the SDCS-POW-1 and wiring harness within the next planned maintenance window.

This structured workflow minimizes downtime, ensures system compatibility, and creates an auditable maintenance record — critical for ISO-certified production environments and insurance compliance.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-52 3BSE011316R1 compatible with all DCS800 frame sizes?
The SDCS-PIN-52 is designed for the ABB DCS800 DC drive platform and is compatible across the standard DCS800 frame range. Always cross-reference your drive’s hardware revision and software version using the nameplate data and ABB DCS800 hardware manual before installation. KNMKS technical support can assist with compatibility verification prior to dispatch.

Q2: How is each unit tested before shipment?
Every SDCS-PIN-52 3BSE011316R1 dispatched by KNMKS undergoes pre-shipment functional testing covering analog channel signal integrity, connector condition, and board-level power rail verification. A test report is available upon request. Units are packed in anti-static ESD-safe packaging with humidity indicators for safe long-distance transport.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of dispatch. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. KNMKS provides direct RMA support — no third-party intermediary — to minimize resolution time for support requests.

Q4: Can KNMKS support long-term supply agreements for the SDCS-PIN-52?
Yes. KNMKS offers long-term supply agreements (LTSAs) for critical DCS800 spare parts including the SDCS-PIN-52 3BSE011316R1. LTSAs include reserved stock allocation, priority dispatch, fixed pricing for the agreement term, and quarterly stock reporting. Contact our sales team to discuss your annual consumption requirements and outage schedule.
