ABB SDCS-PIN-51 3BSE004940R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SDCS-PIN-51 3BSE004940R1 Maintenance-Proven Spare Part for Factory Uptime

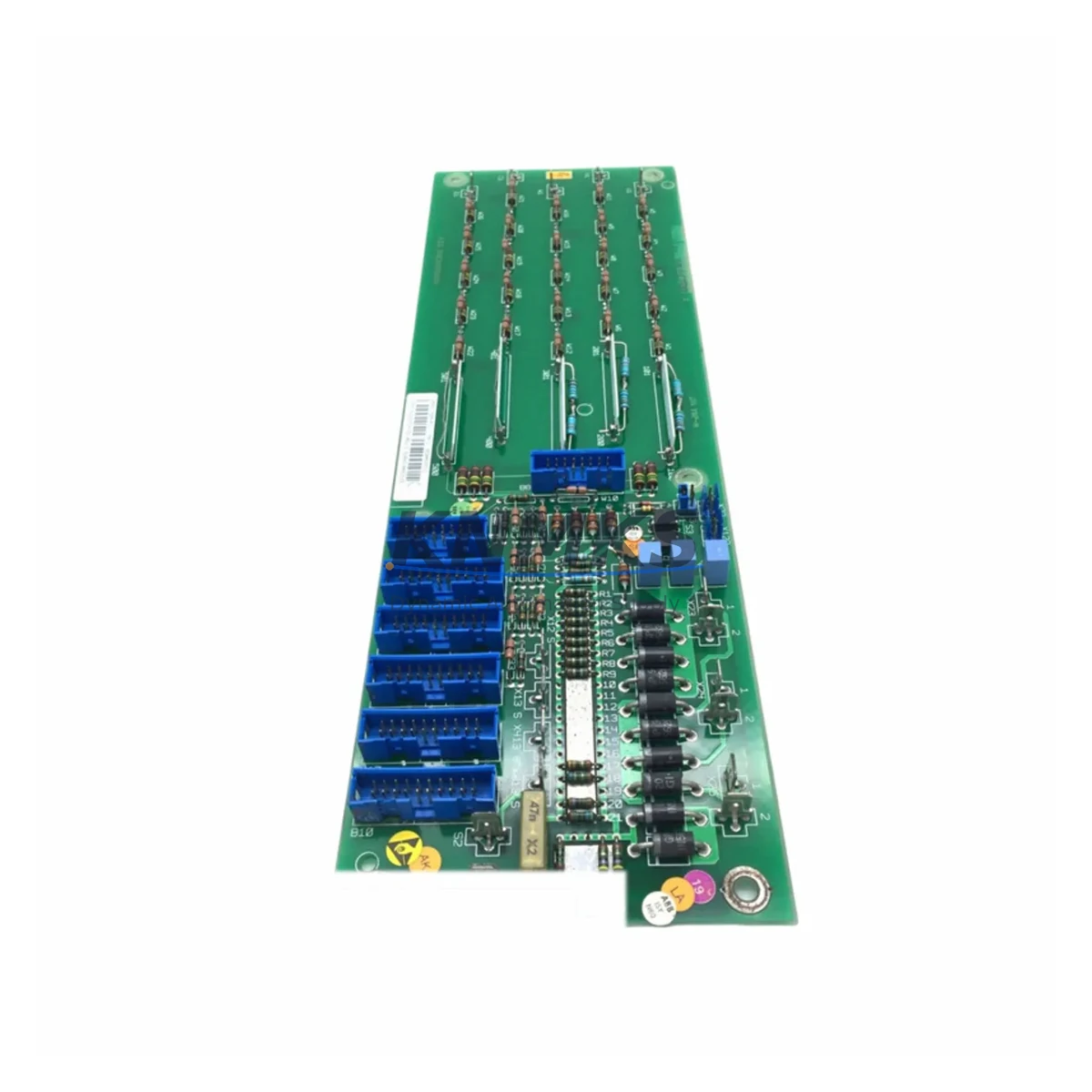

The ABB SDCS-PIN-51 (part number 3BSE004940R1) is a pulse interface board engineered for the DCS800 series DC drive platform. In high-demand industrial environments — from paper mills and steel rolling lines to marine propulsion and mining hoists — the SDCS-PIN-51 serves as the critical signal bridge between the encoder feedback circuit and the drive’s control logic. When this board degrades or fails, the drive loses accurate speed and position feedback, triggering fault codes, uncontrolled deceleration, or full drive shutdown. Holding a verified, pre-tested replacement in your spare parts cabinet is the single most effective way to compress mean time to repair (MTTR) and protect production continuity.

KNMKS stocks the SDCS-PIN-51 3BSE004940R1 as an original ABB component, sourced through authorized supply channels, individually tested before dispatch, and covered by a support terms confirmed by quotation. Multi-region inventory ensures global delivery details confirmed by RFQ to support both emergency callouts and planned annual overhauls.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A pulse interface board failure rarely occurs in isolation. When the SDCS-PIN-51 3BSE004940R1 is flagged during a fault investigation or routine inspection, experienced maintenance engineers treat it as a trigger to audit the entire encoder feedback loop and surrounding drive components before returning the system to service.

Begin with the encoder itself and its cabling. A degraded HTL or TTL encoder, or a shielded encoder cable with compromised grounding, can induce the same fault signatures as a failed SDCS-PIN-51 — intermittent speed feedback errors, oscillation at low speed, or F-507/F-508 fault codes on the DCS800 panel. Replacing the board without inspecting the encoder and cable often results in repeat failures within weeks.

Next, verify the SDCS-CON-4 control board, which hosts the SDCS-PIN-51 and manages the full closed-loop speed regulation of the DCS800. If the CON-4 shows signs of capacitor aging, corrupted firmware, or damaged I/O connectors, a new pulse interface board will not restore stable operation. Both boards should be assessed together during any planned outage.

The 24 VDC auxiliary power supply feeding the control section is another common failure point. Voltage ripple or dropout on this rail can corrupt encoder pulse counting and mimic a board-level fault. Use a calibrated multimeter or oscilloscope to confirm supply stability before and after board replacement.

For drives equipped with fieldbus communication — Profibus-DP, Modbus RTU, or DeviceNet — inspect the SDCS-COM-8 or equivalent communication module for loose connectors or firmware mismatches that may have been masked by the drive fault. Restoring the drive without verifying communication integrity can cause PLC-side timeout faults immediately after restart.

Finally, check the drive’s main contactor, pre-charge resistor circuit, and DC bus fuses. A nuisance trip caused by a weakening contactor or a partially blown fuse can stress the control electronics over time, accelerating board-level degradation. Including these components in your annual inspection checklist — alongside the SDCS-PIN-51 — significantly reduces unplanned downtime across the full DCS800 drive lifecycle.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow your site LOTO procedure. Confirm DC bus voltage has discharged to safe levels before opening the drive cabinet. The DCS800 DC bus can retain hazardous voltage for several minutes after mains disconnection.

Step 2 — Document existing configuration. Record all DCS800 parameter groups (Group 50 encoder settings, Group 99 start-up data) using the drive’s keypad or DriveWindow Light software. Photograph connector positions on the SDCS-PIN-51 and SDCS-CON-4 before removal.

Step 3 — Remove the faulty board. Release the board retaining clips, disconnect the ribbon cable and encoder terminal block, and extract the SDCS-PIN-51 from the backplane. Handle by edges only — ESD precautions apply.

Step 4 — Install the replacement SDCS-PIN-51 3BSE004940R1. Seat the new board firmly onto the backplane connector. Reconnect the encoder terminal block and ribbon cable in the documented positions. Verify no bent pins or unseated connectors.

Step 5 — Restore parameters and test. Re-enter encoder parameters (pulse count, signal type) per the original documentation. Power up the drive in local control mode and run a no-load speed ramp to confirm stable feedback. Check for fault codes before returning to automatic/remote control.

Step 6 — Commission and log. Record the replacement in your maintenance management system (CMMS) with the board serial number, installation date, and test results. Update your spare parts inventory to trigger reorder of a replacement SDCS-PIN-51 for the next event.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-51 3BSE004940R1 compatible with all DCS800 frame sizes?
Yes. The SDCS-PIN-51 is the standard pulse interface board for the DCS800 series across all frame sizes (D1 through D8). Compatibility is determined by the SDCS-CON-4 control board revision installed in your drive. Confirm your CON-4 revision against the DCS800 hardware manual (3ADW000379) before ordering if you are unsure.

Q2: How do I verify the board is genuine ABB before installation?
All KNMKS-supplied SDCS-PIN-51 boards carry the original ABB part label with the 3BSE004940R1 part number, manufacturing date code, and CE/UL markings. Each unit undergoes pre-shipment functional testing. A test report is available on request. If the label is absent or the part number does not match, do not install — contact [email protected] before proceeding.

Q3: What is the recommended spare parts holding strategy for DCS800 drives?
For critical production drives (single-point-of-failure), maintain at minimum one SDCS-PIN-51 and one SDCS-CON-4 on-site. For fleets of five or more DCS800 drives, a pooled spare of two SDCS-PIN-51 boards is cost-effective. KNMKS offers long-term supply agreements and consignment stock arrangements to support multi-site maintenance programs.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of dispatch. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental range. KNMKS provides direct support terms support — contact [email protected] with your order reference and fault description for rapid resolution.
