ABB SDCS-PIN-51 3BSE004940R0001 Maintenance-Proven Spare Part

Overview

ABB SDCS-PIN-51 3BSE004940R0001 Maintenance-Proven Spare Part for Factory Uptime

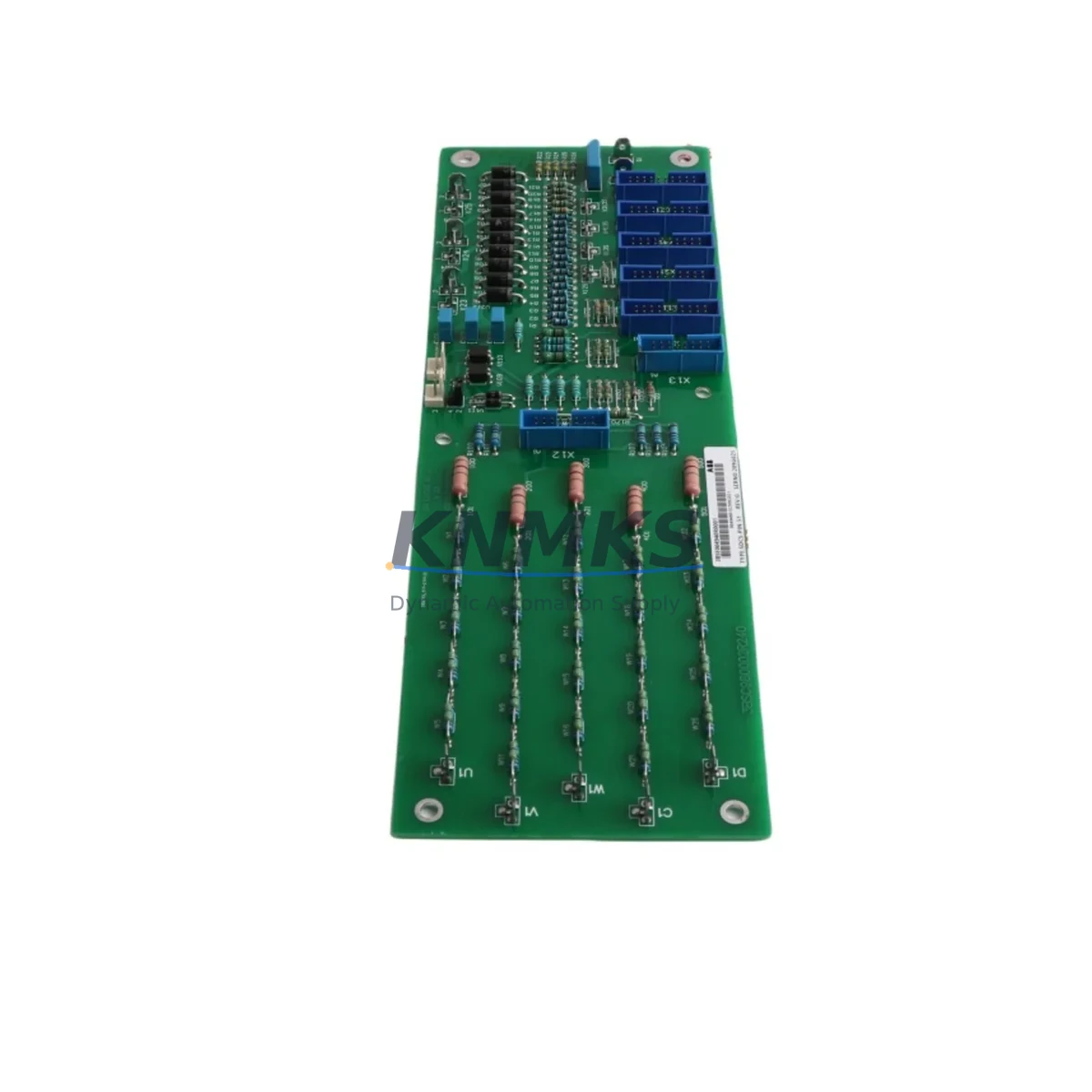

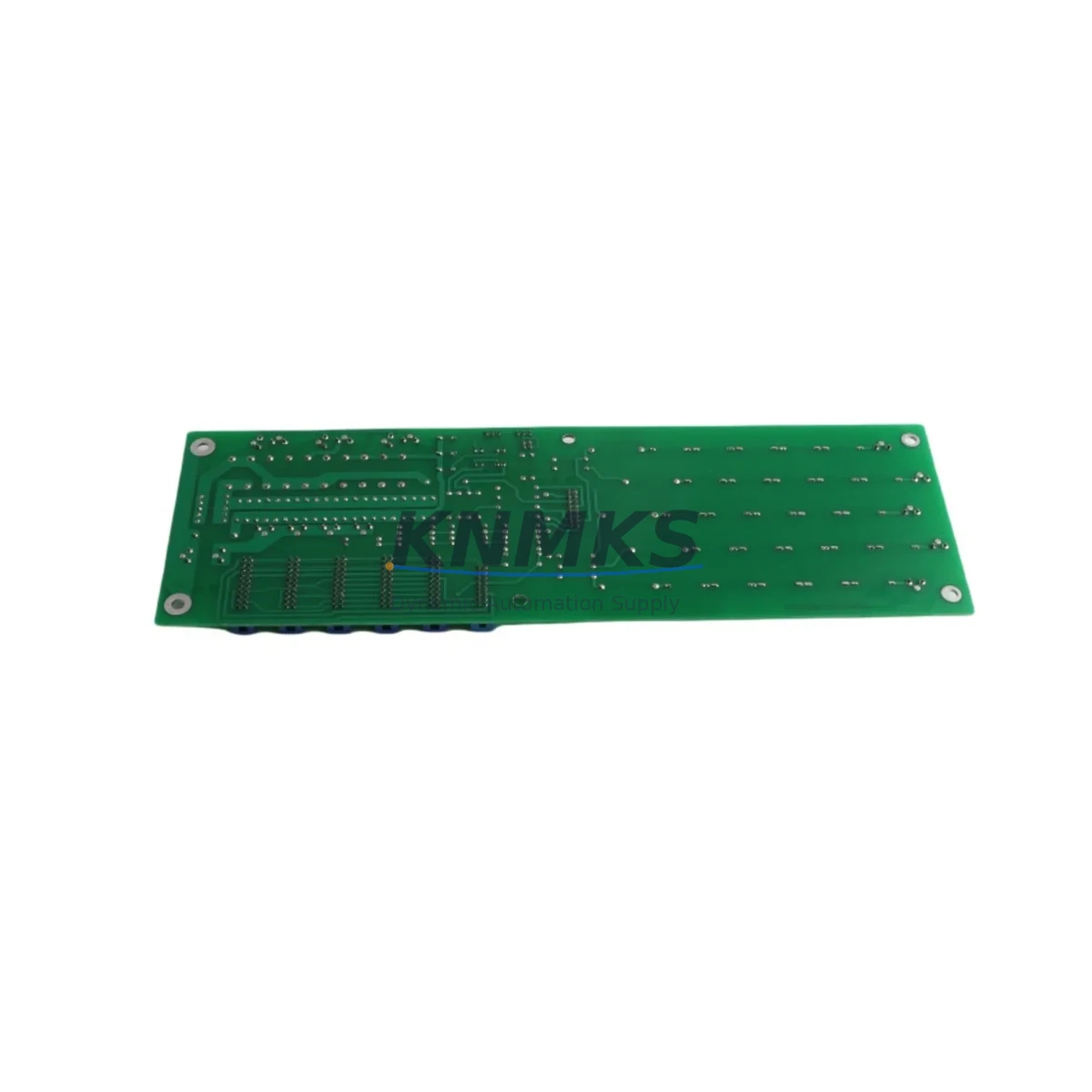

The ABB SDCS-PIN-51 (part number 3BSE004940R0001) is a DC drive measurement card designed for use in ABB DCS 400 and DCS 600 series DC drive systems. As a critical signal-conditioning and feedback interface module, it handles armature current measurement, speed feedback processing, and analog I/O interfacing within the drive’s closed-loop control architecture. When this card fails or degrades, the entire DC drive axis becomes inoperable — making fast, verified spare availability a non-negotiable requirement for any maintenance program covering motor-driven production lines, winding machines, extruders, or crane drives.

KNMKS stocks the SDCS-PIN-51 3BSE004940R0001 as a ready-to-ship, original ABB spare part. Each unit is inspected and function-tested prior to dispatch. A support terms confirmed by quotation is included as standard, covering manufacturing defects and operational failures under normal industrial service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DC drive axis trips on a measurement fault or produces unstable speed regulation, the SDCS-PIN-51 is frequently the root cause — but experienced maintenance engineers know that a single card failure rarely occurs in isolation. A thorough site inspection should accompany any SDCS-PIN-51 replacement to prevent repeat downtime within the same maintenance cycle.

Begin by verifying the integrity of the SDCS-POW-1 power supply board, which provides regulated DC voltages to the measurement card. A degraded power supply can cause intermittent measurement errors that mimic a faulty SDCS-PIN-51. Simultaneously, inspect the SDCS-CON-2 or SDCS-CON-3 control board — the primary processor that interprets the feedback signals from the PIN-51; firmware corruption or capacitor aging on the control board can produce identical fault signatures.

Check the tachometer or encoder feedback wiring between the motor and the drive. Shielding breaks, loose terminal connections on the SDCS-FEX-2 field excitation module, or corroded terminals on the drive’s X1/X2 connector strip can introduce noise that overwhelms the measurement card’s signal conditioning. Terminal blocks and cable shields should be torqued and continuity-verified before the new card is powered up.

For drives operating in regenerative or four-quadrant mode, also inspect the SDCS-DSL-4 or SDCS-DSL-5 digital serial link board if the drive communicates with an upstream PLC or DCS via fieldbus. A communication board fault can mask itself as a measurement anomaly in the drive’s diagnostic log. If the plant uses an ABB AC500 PLC or a third-party SCADA system for speed setpoint transmission, verify the analog output signal chain from the controller to the drive’s reference input terminals.

Finally, inspect the drive cabinet’s fuse protection on the armature and field circuits. Blown or weakened fuses on the armature DC bus can cause the SDCS-PIN-51 to report out-of-range current values, triggering false overcurrent faults. Replacing the measurement card without addressing a marginal fuse will result in a repeat fault within hours of restart.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the DCS 400/600 drive, apply LOTO, and discharge the DC bus capacitors per ABB service manual 3ADW000379. Confirm bus voltage below 50 V DC before opening the drive cabinet.

Step 2 — Fault Code Documentation: Before removing the card, record all active and historical fault codes from the drive’s keypad or connected HMI (e.g., ABB CDP312R control panel). Fault codes F-11 (current measurement), F-12 (speed feedback), and F-21 (analog reference) directly implicate the SDCS-PIN-51.

Step 3 — Card Removal: Disconnect the ribbon cable and all signal connectors from the SDCS-PIN-51. Note connector orientation and label positions. Remove the card from its slot using the extraction handles — avoid flexing the PCB.

Step 4 — Visual Inspection: Inspect the removed card for burnt components, swollen capacitors, or corrosion on the edge connector. Photograph for maintenance records before disposal.

Step 5 — New Card Installation: Insert the replacement SDCS-PIN-51 3BSE004940R0001 into the correct slot. Reconnect all signal cables and ribbon connectors. Verify that the card’s DIP switch settings (if applicable) match the original configuration documented in the drive’s commissioning record.

Step 6 — Parameter Verification: Power up the drive and navigate to the measurement calibration parameters (parameter group 50 in DCS 400 firmware). Verify current scaling, speed feedback source selection, and encoder pulse count match the motor nameplate and commissioning data.

Step 7 — Test Run: Perform a no-load test run at low speed setpoint. Confirm stable speed feedback, zero current measurement offset, and no active fault codes before returning the drive to production service.

This workflow minimizes total downtime to under 2 hours for a prepared maintenance team and eliminates the risk of re-commissioning errors that extend outages on legacy DCS 400 installations.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-51 3BSE004940R0001 compatible with both DCS 400 and DCS 600 drives?
The SDCS-PIN-51 is primarily designed for the DCS 400 series. Compatibility with DCS 600 variants depends on the specific drive model and firmware revision. KNMKS recommends providing your full drive nameplate data (model, firmware version, and serial number) so our technical team can confirm cross-compatibility before shipment.

Q2: How is each unit tested before shipment?
Every SDCS-PIN-51 unit shipped by KNMKS undergoes a pre-dispatch functional inspection covering visual PCB integrity, connector condition, and where test fixtures are available, signal output verification. Units that do not pass inspection are quarantined and not offered for sale. The support terms confirmed by quotation cover failures attributable to the component itself under normal operating conditions.

Q3: What is the recommended inventory strategy for this card?
For plants operating more than two DCS 400 drive axes, KNMKS recommends maintaining a minimum of one SDCS-PIN-51 on-site as a cold standby spare. Given that ABB has phased out active production of DCS 400 series components, market availability is allocation-dependent. Securing a buffer stock of 2–3 units reduces exposure to lead-time risk during peak demand periods or supplier allocation constraints.

Q4: Can KNMKS support long-term supply for multi-site maintenance programs?
Yes. KNMKS maintains regional warehouse stock and can support blanket purchase orders for multi-site industrial maintenance programs. Long-term supply agreements with fixed pricing and priority allocation are available for customers managing fleets of DCS 400/600 drives across multiple facilities. Contact admin@knmks.com to discuss program terms.
