ABB SDCS-PIN-51 3ADT220090R0006 Fail-Safe Pulse Interface

Overview

ABB SDCS-PIN-51 3ADT220090R0006 Fail-Safe Pulse Interface: Fault Protection and Critical Industrial Field Reliability

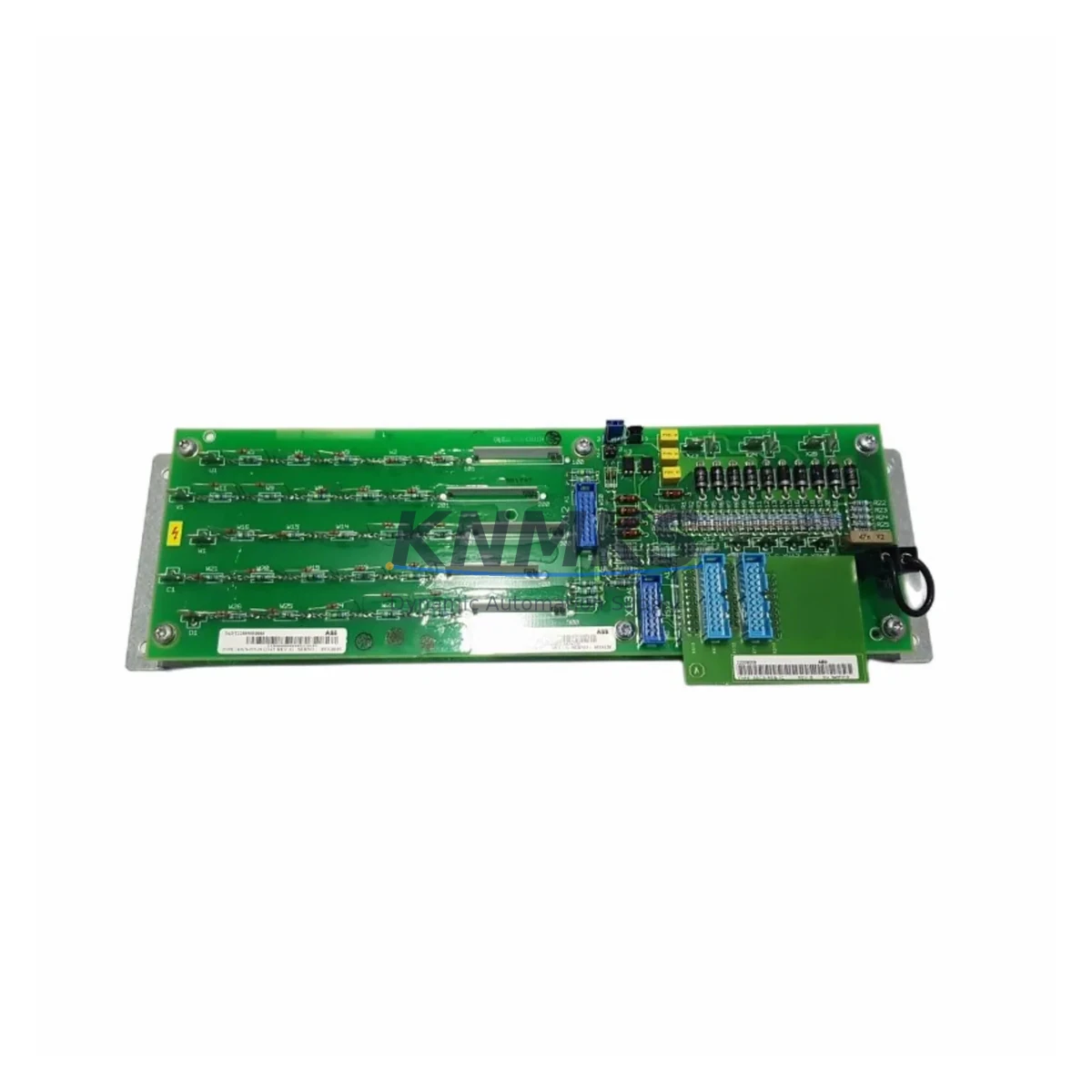

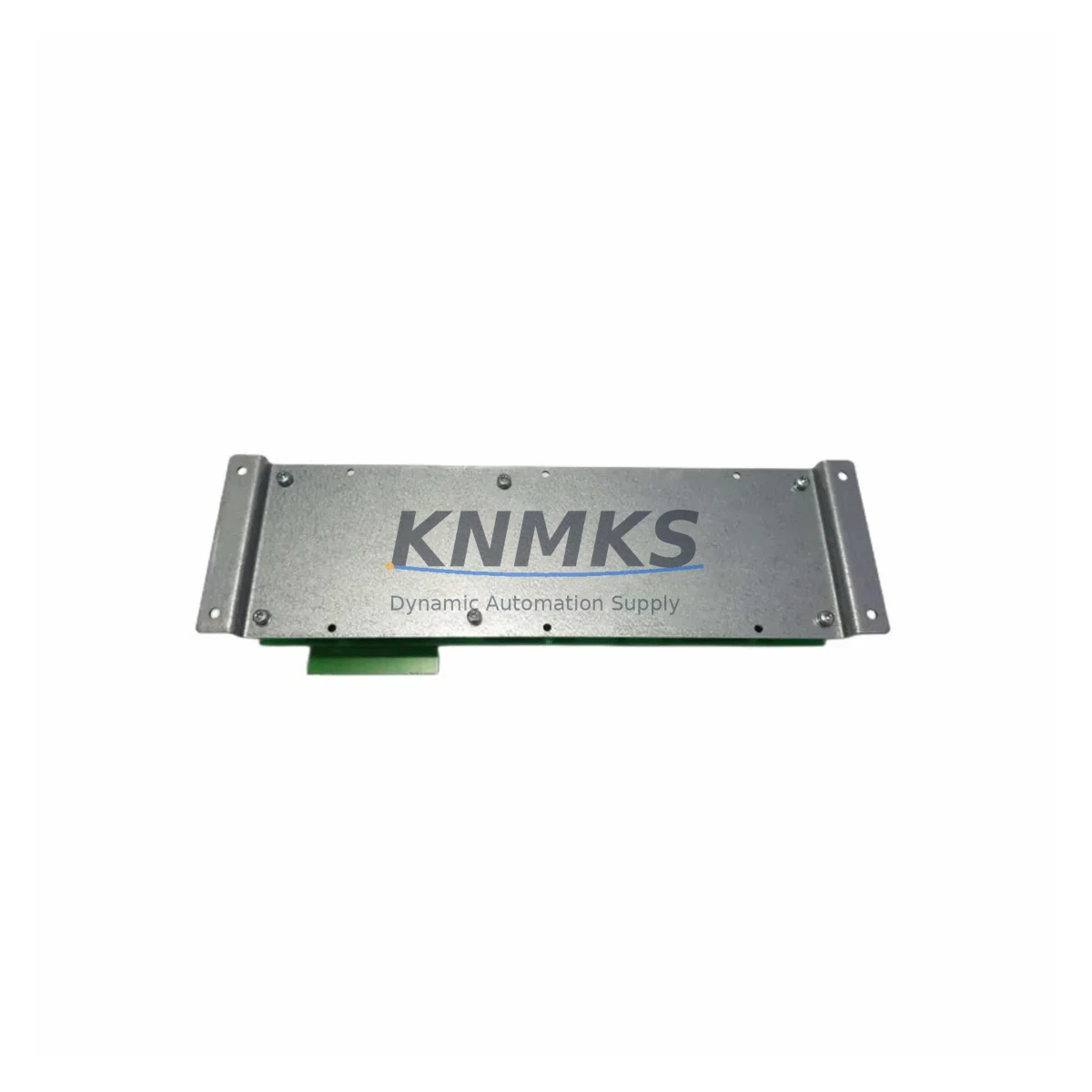

The ABB SDCS-PIN-51 (part number 3ADT220090R0006) is a precision pulse interface module engineered for the ABB DCS 400 and DCS 500 series DC drive platforms. In continuous production environments where unplanned downtime carries severe operational and safety consequences, this module serves as a critical link between the encoder feedback circuit and the drive control board — ensuring accurate speed and position signals are maintained even under demanding field conditions.

Designed to operate within high-density control cabinets, the SDCS-PIN-51 delivers stable pulse signal conditioning in the presence of strong electromagnetic interference (EMI), common in heavy motor drive installations, variable frequency drive (VFD) banks, and large transformer switchgear rooms. Signal drift caused by ground loops, capacitive coupling, or conducted noise is actively suppressed, protecting the integrity of closed-loop speed regulation and preventing nuisance trips or erratic drive behavior during critical production cycles.

In applications involving high-inrush loads, regenerative braking, or frequent start-stop cycles — such as those found in steel rolling mills, cement kilns, paper machine drives, and port crane hoisting systems — the SDCS-PIN-51 maintains pulse fidelity across the full operating speed range. This directly reduces the risk of control loop instability, motor runaway, and uncontrolled deceleration events that can compromise both equipment integrity and personnel safety.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable DC drive operation depends on more than a single module — it requires a coordinated protection architecture across the entire control cabinet. The SDCS-PIN-51 works in conjunction with the SDCS-CON-4 control board, which processes the conditioned pulse signals to execute precise torque and speed regulation. In cabinets where power quality is a concern, the SDCS-POW-4 power supply board provides regulated internal voltages, ensuring that signal processing circuits remain stable during mains fluctuations or momentary voltage dips.

For applications requiring expanded I/O or safety interlock integration, the SDCS-IOB-3 I/O extension board complements the pulse interface by managing digital and analog field signals within the same drive chassis. Where communication with supervisory control systems is required, the SDCS-COM-8 fieldbus adapter enables reliable data exchange over PROFIBUS or other industrial protocols, maintaining system-wide visibility without introducing additional noise into the signal chain.

In environments with elevated dust ingress, moisture, or thermal cycling — such as outdoor substations, coastal facilities, or foundry control rooms — supplementary cabinet climate control components and conformal-coated board variants should be considered alongside the SDCS-PIN-51 to extend service life and reduce maintenance intervals. Proper cable segregation between encoder signal cables and power wiring, combined with shielded twisted-pair connections terminated at a single grounding point, further enhances the fault-protection capability of the overall drive system.

Critical Industrial Safety Applications

The SDCS-PIN-51 3ADT220090R0006 is deployed across a wide range of safety-critical and continuous-process industries where DC drive reliability is non-negotiable:

Petrochemical and Refining: In compressor drives and pump control systems, accurate speed feedback prevents overspeed conditions and ensures safe shutdown sequences are executed correctly during emergency stops.

Electric Power Generation: Exciter and auxiliary drive systems in power plants rely on stable pulse feedback to maintain generator output within safe operating bands, particularly during load transients.

Mining and Mineral Processing: Hoist drives, conveyor systems, and crusher drives in underground and surface mining operations demand fault-tolerant speed control to prevent uncontrolled load movement and protect personnel.

Water and Wastewater Treatment: Pump and blower drives in treatment facilities operate continuously; signal integrity from the pulse interface directly supports consistent flow control and prevents process upsets.

Metallurgy and Steel Production: Rolling mill main drives and coiler systems require precise speed synchronization across multiple drive axes — a function that depends entirely on the accuracy and noise immunity of the pulse interface module.

Port and Marine Applications: Crane hoisting and slewing drives in port terminals and aboard vessels face extreme vibration, salt-laden air, and wide temperature swings; the SDCS-PIN-51’s robust construction supports reliable operation in these demanding conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the SDCS-PIN-51 3ADT220090R0006?
A: Every unit is covered by a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions and includes replacement or repair support for verified defects.

Q2: Is pre-shipment testing performed on each unit?
A: Yes. Each SDCS-PIN-51 undergoes a full functional test prior to dispatch, verifying pulse signal conditioning performance, power supply integrity, and connector condition. A test record is available upon request.

Q3: Is this module compatible with both DCS 400 and DCS 500 drive platforms?
A: The SDCS-PIN-51 3ADT220090R0006 is designed for use within the ABB DCS 400 and DCS 500 DC drive families. Compatibility should be confirmed against the specific drive firmware version and hardware revision in your installation before replacement.

Q4: Can long-term supply be guaranteed for maintenance and spare parts planning?
A: Stock is maintained with a long-term supply commitment to support planned maintenance schedules, emergency replacements, and multi-unit project requirements. Contact our team for volume availability and lead time confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-PIN-51 3ADT220090R0006

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-PIN-51 3ADT220090R0006
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
