ABB SDCS-PIN-48-SD Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SDCS-PIN-48-SD Maintenance-Proven Spare Part for Factory Uptime

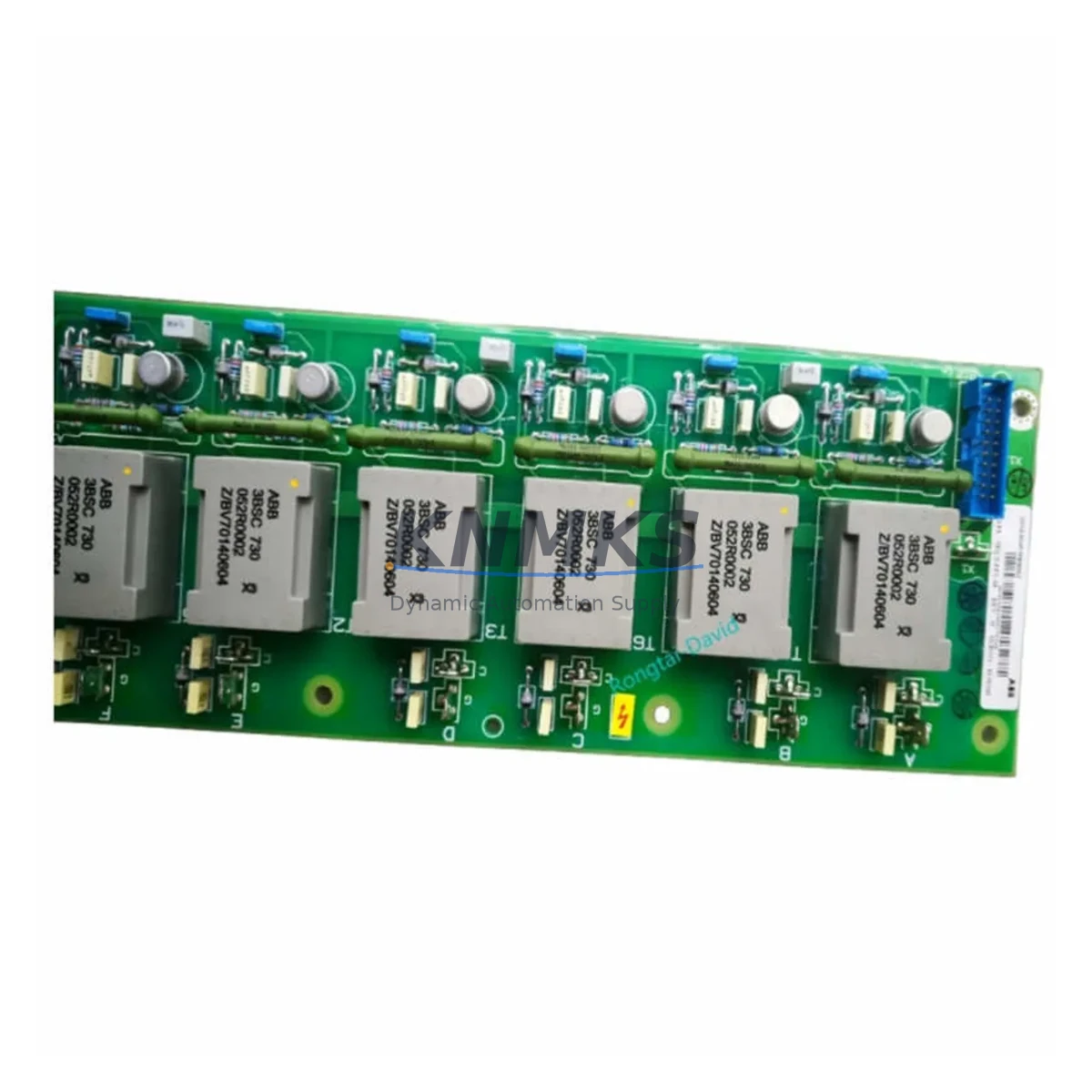

The ABB SDCS-PIN-48-SD is an original pulse transformer board designed for ABB DCS800 and SDCS series DC drive systems. As a critical gate-firing interface component, it transmits isolated trigger pulses from the control board to the thyristor/SCR power bridge, ensuring precise phase-angle control and stable motor torque regulation. For maintenance engineers managing aging DC drive infrastructure, keeping a verified SDCS-PIN-48-SD in the spare parts cabinet is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

This board is sourced as an original ABB spare, inspected and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation, providing procurement teams with a reliable, low-risk replenishment path for long-lifecycle drive systems that remain in service well beyond standard product support windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS800 drive trips on a gate-firing fault or exhibits erratic thyristor firing — symptoms often traced to a degraded SDCS-PIN-48-SD — the replacement workflow should extend beyond the board itself. A thorough site inspection at the time of replacement significantly reduces the risk of repeat failures and secondary damage.

Begin by verifying the SDCS-CON-F control board, which generates the firing pulses that the SDCS-PIN-48-SD transforms and routes to the SCR bridge. A faulty control board can destroy a new pulse transformer board within hours if left unaddressed. Simultaneously, inspect the SDCS-POW-F power interface board for signs of thermal stress, cracked solder joints, or burnt traces around the thyristor gate connections.

Check the 24 VDC auxiliary power supply feeding the control section — voltage ripple or dropout events are a common root cause of intermittent gate-firing anomalies that are misdiagnosed as board failures. If the drive cabinet uses an SDCS-FEX-2 or similar field excitation module, verify its output stability, as field current instability can produce torque oscillations that stress the entire firing chain.

Inspect all ribbon cable connectors and backplane edge connectors between the SDCS-PIN-48-SD and the power board. Oxidized or loose connectors are a frequent cause of intermittent pulse loss. For drives in high-vibration environments such as rolling mills or crane hoists, consider applying conformal coating to connector interfaces during the maintenance window.

Review the SDCS-DSL-4 or equivalent serial communication link board if the drive is integrated into a DCS or SCADA system — communication faults during a drive restart can mask underlying hardware issues. Finally, confirm that all fuses on the control power rail (typically F1–F4 on the power board) are within specification, and replace any that show signs of thermal discoloration even if they have not blown.

Maintaining a minimum stock of one SDCS-PIN-48-SD per drive line, alongside a spare SDCS-CON-F and a set of control power fuses, represents a cost-effective insurance policy against extended production halts in facilities where DC drive replacement is not a viable short-term option.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the DCS800 drive and apply LOTO (Lockout/Tagout) per site safety procedures. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power-off; verify with a calibrated voltmeter before touching internal components).

Step 2 — Document Existing Configuration: Photograph the existing board orientation, connector positions, and any DIP switch or jumper settings on the SDCS-PIN-48-SD before removal. Cross-reference with the DCS800 Hardware Manual (3ADW000379) to confirm correct jumper configuration for your drive frame size.

Step 3 — Board Removal: Carefully disconnect the ribbon cables and release the board from the backplane. Handle by the edges only — avoid contact with transformer windings or PCB traces. Place the removed board in an anti-static bag for return or failure analysis.

Step 4 — Inspect & Clean: Before installing the replacement, inspect the backplane connector for bent pins or debris. Clean with isopropyl alcohol (IPA 99%) if contamination is present. Verify that the replacement SDCS-PIN-48-SD matches the revision level required for your drive firmware version.

Step 5 — Installation & Verification: Seat the new board firmly into the backplane, reconnect all ribbon cables, and restore power. Monitor the drive’s diagnostic panel or DCS800 DriveWindow software for gate-firing status codes. Perform a no-load test run before resuming production load.

Step 6 — Log & Update Spare Inventory: Record the replacement in the maintenance log with date, drive tag number, and new board serial number. Reorder a replacement spare to restore minimum stock levels.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-48-SD compatible with all DCS800 frame sizes?
The SDCS-PIN-48-SD is used across multiple DCS800 frame sizes, but jumper configuration may vary by frame. Always cross-reference the drive’s hardware manual (3ADW000379) and confirm the board revision level before installation. Contact our technical team with your drive nameplate data for confirmation prior to ordering.

Q2: How is the board tested before shipment?
Each SDCS-PIN-48-SD undergoes functional verification including continuity checks, insulation resistance testing, and pulse transformer ratio verification before packaging. A test report is available upon request. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions.

Q3: What is the long-term supply outlook for this part?
The SDCS-PIN-48-SD is a legacy ABB spare with limited new production. We maintain dedicated stock to support facilities running DCS800 systems beyond the standard product lifecycle. For facilities with multiple drives, we recommend a blanket order or consignment stock arrangement to secure supply continuity over a 12–24 month horizon.

Q4: Can this board be used as a direct replacement for older SDCS series drives?
The SDCS-PIN-48-SD is designed for the DCS800/SDCS platform. Compatibility with earlier SDCS-A or DCS400 series drives depends on the specific hardware revision and backplane interface. We recommend providing your full drive model number and existing board part number for a compatibility confirmation before purchase.
