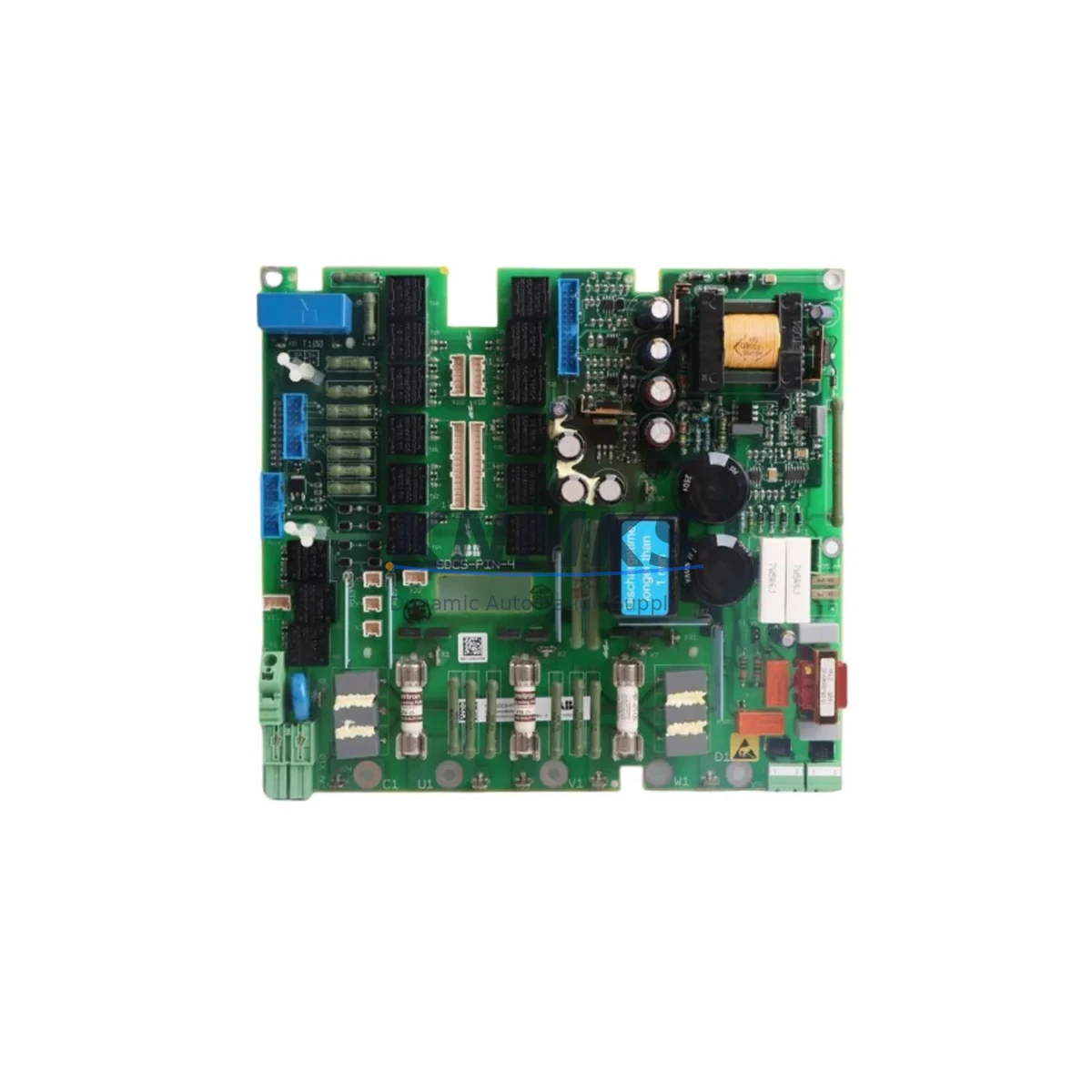

ABB SDCS-PIN-4-COAT 3ADT314100R1001 DCS800 Spare Part

Overview

ABB SDCS-PIN-4-COAT 3ADT314100R1001 DCS800 Spare Part: Maintenance-Proven Power Interface Board for Factory Uptime

The ABB SDCS-PIN-4-COAT (Part No. 3ADT314100R1001) is a conformal-coated power interface board designed for the ABB DCS800 series DC drive platform. As a critical internal component responsible for power signal routing and interface conditioning between the drive’s control and power sections, this board is a high-priority spare for any facility operating DCS800 drives in continuous-duty or safety-critical applications. Whether you are managing a scheduled annual overhaul, responding to an unplanned drive fault, or building a strategic spare parts inventory for aging DC drive systems, the SDCS-PIN-4-COAT is an essential line item in your maintenance BOM.

Sourced from verified supply channels and subject to pre-shipment functional testing, each unit ships with a support terms confirmed by quotation and full traceability documentation. Conformal coating provides enhanced protection against humidity, condensation, and airborne contaminants — a critical feature for drives installed in harsh industrial environments such as petrochemical plants, steel mills, port cranes, and water treatment facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SDCS-PIN-4-COAT during a DCS800 drive overhaul or fault-driven intervention, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the entire drive cabinet.

Begin with the SDCS-CON-F power supply board, which provides regulated DC voltages to the control electronics — a degraded supply rail can stress the power interface board and cause premature failure. Inspect the SDCS-DSL-4 digital signal link board for communication integrity between the control and power sections, as signal corruption here often mimics interface board faults. Check the SDCS-FEX-2 field excitation module if the drive controls a separately excited DC motor; field circuit anomalies frequently co-occur with power interface board degradation.

Review the SDCS-IOB-3 I/O extension board for any damaged analog or digital I/O channels that may have been exposed to the same transient event that caused the original fault. Inspect all DC bus fuses and semiconductor protection fuses within the drive cabinet — these are consumable protection components that should be replaced as a matter of course during any major board swap. Verify the condition of the SDCS-AMC-DC control board, which hosts the drive’s main firmware and parameter memory; if the power interface board failure was caused by a voltage spike, the AMC board may have sustained latent damage.

For drives interfaced with external systems, confirm the integrity of the fieldbus adapter module (e.g., RDNA-01 for DeviceNet or RPBA-01 for PROFIBUS) and any signal isolators on analog reference and feedback channels. Terminal block condition, cable insulation, and grounding continuity should also be verified before commissioning the repaired drive. A structured pre-commissioning checklist covering all these components reduces the risk of a second unplanned outage and supports a confident return-to-service sign-off.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the DCS800 drive’s onboard diagnostics and fault history log to confirm the SDCS-PIN-4-COAT as the root cause. Cross-reference with ABB DCS800 Hardware Manual fault codes related to power interface communication errors.

Step 2 — Safe Isolation: De-energize the drive following your site LOTO (Lockout/Tagout) procedure. Allow the DC bus capacitors to fully discharge (minimum 5 minutes after power-off) before opening the drive cabinet.

Step 3 — Board Removal: Document connector positions and cable routing with photographs before disconnecting. Remove the SDCS-PIN-4-COAT by releasing the board retaining clips and carefully disconnecting all ribbon and power connectors.

Step 4 — Inspection & Cleaning: Inspect the drive interior for signs of overheating, carbonization, or moisture ingress. Clean the board slot and connector housings with appropriate electronics-safe solvent before installing the replacement.

Step 5 — Installation: Install the new SDCS-PIN-4-COAT, ensuring all connectors are fully seated. Restore all cables to their documented positions. Do not power up until all connections are verified.

Step 6 — Commissioning: Restore power and perform a no-load test run. Verify drive parameter set (upload from backup if available) and confirm all I/O signals, speed references, and feedback channels are operating correctly before returning the drive to production load.

Step 7 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), update the spare parts inventory, and flag the next scheduled inspection interval for this drive.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-4-COAT a direct replacement for the non-coated SDCS-PIN-4?
Yes. The SDCS-PIN-4-COAT is the conformal-coated variant of the SDCS-PIN-4 and is a direct functional replacement. The conformal coating adds protection against humidity and contamination, making it the preferred choice for drives in harsh or outdoor-adjacent environments. No parameter changes or firmware updates are required when substituting the coated variant.

Q2: How is the board tested before shipment?
Each SDCS-PIN-4-COAT unit undergoes pre-shipment functional verification to confirm board integrity and connector condition. A test report is available on request. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

Q3: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. Our technical team is available to support support requests and provide replacement units with minimal lead time.

Q4: Can you support long-term or repeat procurement for DCS800 spare parts?
Yes. We maintain stock of key DCS800 spare boards and modules to support multi-site maintenance programs and annual overhaul schedules. Procurement engineers are welcome to contact us to discuss framework agreements, reserved stock arrangements, and consolidated shipments for multiple SKUs. Long-term supply continuity is a core part of our service model for aging DC drive platforms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-PIN-4-COAT 3ADT314100R1001
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-PIN-4-COAT 3ADT314100R1001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
