ABB SDCS-PIN-4 3ADT314100R1001 Migration-Ready Power Interface – Model SDCS-PIN-4

Overview

ABB SDCS-PIN-4 3ADT314100R1001 Migration-Ready Power Interface for Legacy Control Systems

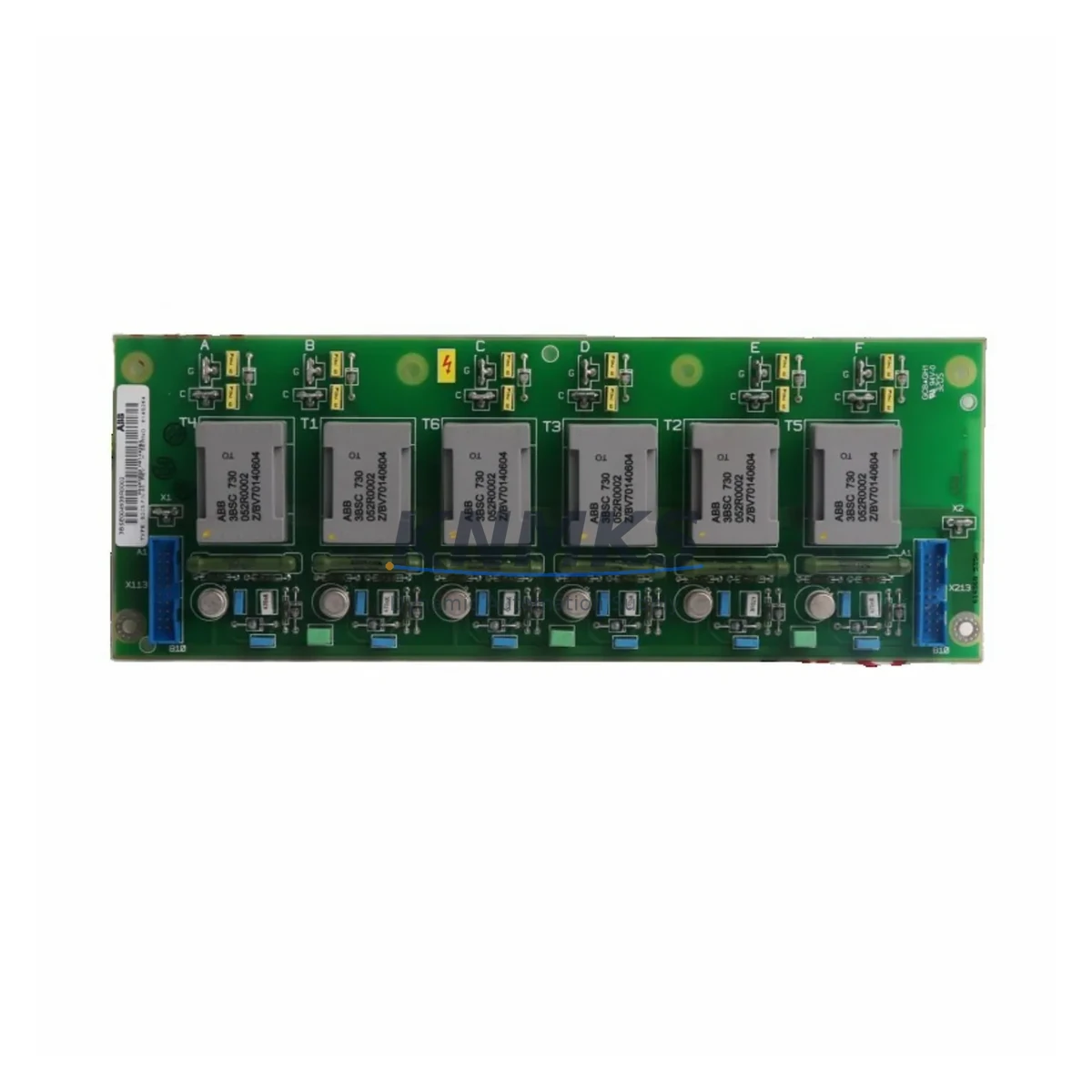

The ABB SDCS-PIN-4 (part number 3ADT314100R1001) is a Power Interface Board designed for the ABB DCS800 series DC drive platform. As legacy DCS500 and DCS400 installations reach end-of-service milestones, the SDCS-PIN-4 serves as a critical migration component enabling engineers to modernize power conversion and control architecture without full drive replacement. This board manages the interface between the control electronics and the power stage, handling firing pulse distribution, feedback signal conditioning, and protection logic that are essential to maintaining drive integrity during and after a retrofit.

For facilities running aging ABB DCS500B or DCS400 drives, the transition to DCS800 architecture typically involves re-evaluating the power interface layer. The SDCS-PIN-4 is the correct replacement board for this function within the DCS800 platform, and its availability in pre-tested, in-stock condition significantly reduces the risk of extended downtime during unplanned failures or scheduled upgrades. Each unit undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation, providing procurement teams with the confidence needed for critical spare parts planning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-PIN-4 retrofit begins well before the board arrives on site. Engineers should first audit the existing DCS800 control section to confirm the installed SDCS-CON-4 control board revision, as the power interface board communicates directly with the control board over the internal bus. If the site is migrating from a DCS500B platform, the SDCS-PIN-3 or earlier power interface variants will need to be decommissioned, and the wiring harness connecting to the X1 and X2 terminal blocks must be re-mapped to match the DCS800 pinout standard.

Power supply capacity is a frequent oversight during DC drive retrofits. The 24 VDC auxiliary supply feeding the control section should be verified against the SDCS-PIN-4 current draw specification, particularly in cabinets where an SDCS-POW-4 power supply board is shared across multiple control boards. In multi-drive installations, the backplane loading across the DCS800 rack must be recalculated to avoid supply margining issues that can cause intermittent faults post-commissioning.

For sites using PROFIBUS DP or DeviceNet fieldbus, the SDCS-COM-8 or SDCS-COM-81 communication adapter must remain seated and its node address preserved during the board swap. Loss of fieldbus node configuration is a common cause of post-retrofit communication faults that delay restart. Similarly, if the drive is integrated with an ABB AC500 PLC or a third-party SCADA system via Modbus RTU, the drive parameter dataset — including speed reference scaling, torque limits, and fault response configuration — should be backed up using DriveWindow software before any hardware change is initiated.

HMI screens linked to DCS800 drive status words should be reviewed for any hardcoded parameter addresses that may shift between firmware versions. If the site uses an ABB CP600 or CP400 series HMI panel, verify that the drive communication object library version is compatible with the firmware running on the DCS800 after the SDCS-PIN-4 installation. Signal isolators on analog feedback loops — particularly tachometer and current feedback channels — should also be inspected, as degraded isolation can introduce noise that mimics board faults in the new configuration.

Downtime Control During System Migration

Minimizing downtime during a power interface board replacement on a DCS800 drive requires a structured pre-work protocol. Before de-energizing the drive, a full parameter backup should be completed using DriveWindow or the DCS800 assistant control panel. This backup captures the complete parameter set including application macros, speed controller tuning, and I/O configuration, ensuring that the commissioning team can restore the drive to its pre-outage operating state within minutes of the new SDCS-PIN-4 being installed.

The physical swap itself is low-risk when the correct ESD precautions are observed and the drive is fully isolated from both the AC supply and the DC bus before the control section is accessed. The SDCS-PIN-4 is a direct mechanical fit into the DCS800 control section slot, eliminating the need for bracket modifications or cable extensions that would otherwise extend the outage window. Once installed, the firing angle calibration routine should be run before the drive is loaded, as this step is frequently skipped under time pressure and results in suboptimal current waveform quality that can trigger nuisance overcurrent trips during the first production run.

For critical production lines where even a brief unplanned stop carries significant cost, maintaining a spare SDCS-PIN-4 in the local stores inventory is the most effective downtime mitigation strategy. With pre-tested units available from stock and global dispatch capability, replenishment lead times are predictable, allowing maintenance planners to sustain a one-unit buffer without tying up excessive capital in spare parts inventory.

Retrofit Support FAQ

Q: Is the SDCS-PIN-4 a direct drop-in replacement for the SDCS-PIN-3 used in DCS500B drives?
A: The SDCS-PIN-4 is the correct power interface board for the DCS800 platform and is not a direct plug-in replacement for the SDCS-PIN-3 used in DCS500B drives. A DCS500B to DCS800 migration requires replacing the full control section, including the SDCS-CON-4 control board and associated wiring adaptation. The SDCS-PIN-4 is the correct power interface component within that upgraded DCS800 control section.

Q: What commissioning steps are required after installing the SDCS-PIN-4?
A: After installation, restore the parameter backup via DriveWindow or the keypad assistant. Run the firing angle auto-calibration routine (parameter group 99 on DCS800). Verify fieldbus communication node address and confirm analog I/O scaling before returning the drive to automatic control. A no-load test run is recommended before full production load is applied.

Q: Has the SDCS-PIN-4 been tested before shipment?
A: Yes. Every SDCS-PIN-4 unit dispatched undergoes pre-shipment functional testing to verify board integrity and signal path continuity. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical availability and lead time for the SDCS-PIN-4?
A: The SDCS-PIN-4 (3ADT314100R1001) is held in multi-region stock and is available for rapid global dispatch. For emergency replacement requirements, same-day or next-business-day dispatch is available subject to stock confirmation. Contact the sales team to verify current inventory levels and shipping options for your region.
