ABB SDCS-PIN-4 3ADT314100R1001 Migration-Ready Power Interface – Model SDCS-PIN-4 3ADT314100R1001

Overview

ABB SDCS-PIN-4 3ADT314100R1001 Migration-Ready Power Interface for Legacy Control Systems

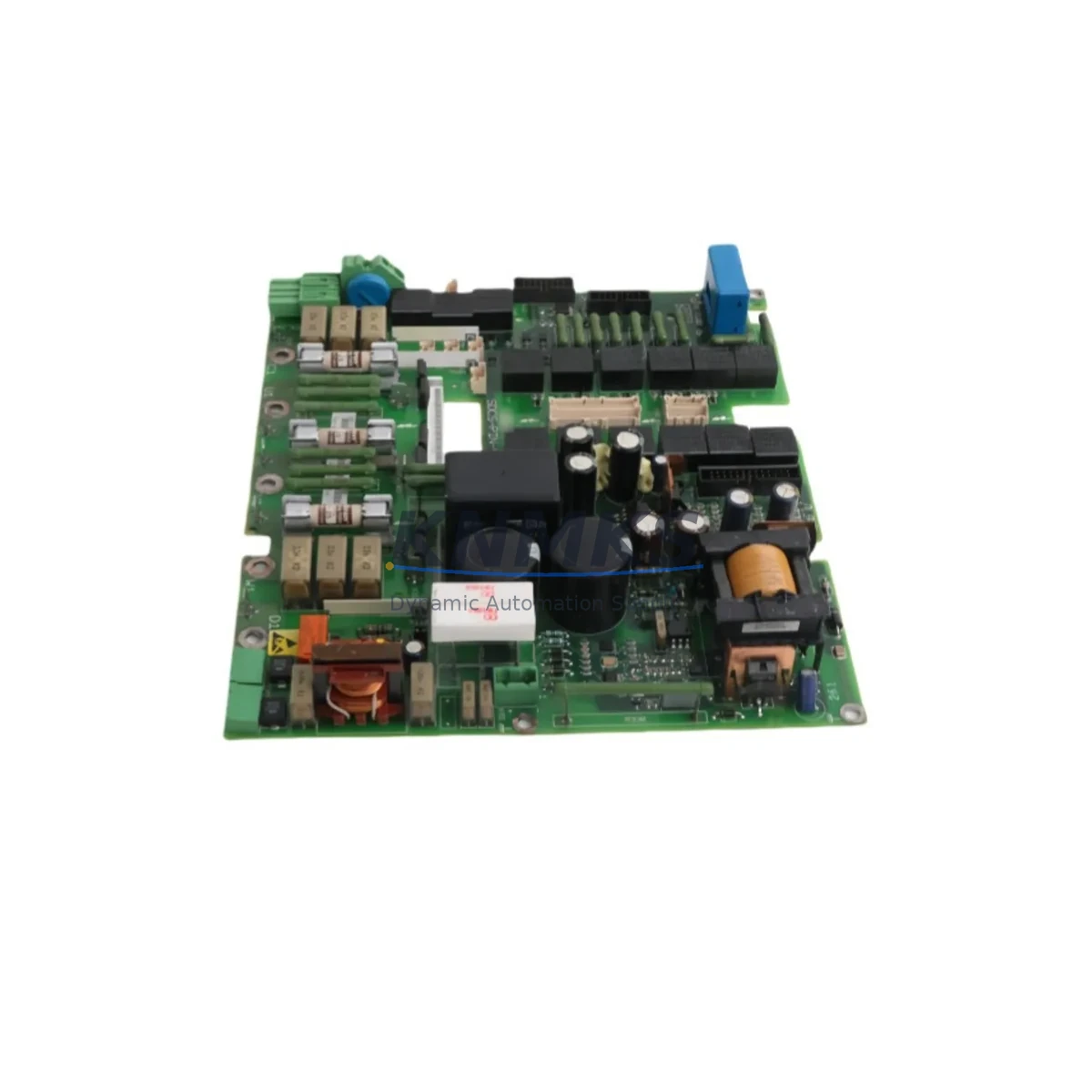

The ABB SDCS-PIN-4 (part number 3ADT314100R1001) is a power interface board engineered for the DCS800 series DC drive platform. As legacy DCS500 and DCS400 installations reach end-of-life and original spare parts become increasingly scarce, the SDCS-PIN-4 3ADT314100R1001 serves as a verified, migration-ready replacement that enables engineers to restore drive functionality, extend system service life, and execute controlled platform upgrades without full cabinet redesign.

This board handles the critical interface between the drive’s control electronics and its power conversion stage. Before installation, engineers must confirm DC bus voltage rating, gate drive signal compatibility, and the physical footprint against the existing DCS800 chassis. The SDCS-PIN-4 mounts directly to the standard DCS800 backplane, but technicians should verify that the firmware version loaded on the SDCS-CON-F control board is compatible with this hardware revision — mismatched firmware can cause fault codes F501 or F502 at startup.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the SDCS-PIN-4 3ADT314100R1001 requires a systematic review of the surrounding control architecture. In most DCS800 installations, the power interface board works in close coordination with the SDCS-CON-F control board, which handles speed regulation, current loop control, and fieldbus communication. Engineers replacing the SDCS-PIN-4 should simultaneously audit the SDCS-CON-F for firmware currency and capacitor aging, as both boards share the same DC bus measurement path.

On the I/O side, the SDCS-IOB-3 I/O extension board is commonly installed alongside the SDCS-PIN-4 in multi-drive cabinets to handle digital and analog signal expansion. Confirm that all terminal assignments on the SDCS-IOB-3 remain consistent with the existing PLC program — particularly any speed reference, torque limit, and enable signals routed from the upstream Siemens S7-300 or Allen-Bradley ControlLogix controller. If the site uses a PROFIBUS network, the SDCS-COM-8 communication module must be re-addressed after the board swap to ensure the drive node address matches the GSD file configured in the SCADA or DCS host.

Power supply integrity is another critical checkpoint. The 24 VDC auxiliary supply feeding the DCS800 control electronics should be verified with a calibrated meter before and after the swap — voltage sag below 21.6 V during motor start can cause spurious resets of the new board. In older installations, the SDCS-DSL-4 power supply board may itself be approaching end-of-life and should be inspected as part of the same maintenance window. Where cabinet space allows, installing a dedicated DIN-rail 24 VDC redundant power supply alongside the existing unit provides an additional layer of protection against nuisance trips during the commissioning phase.

For sites migrating from legacy DCS500 platforms, the physical wiring harness between the power interface board and the thyristor firing circuit will require adaptation. The DCS500 used a different gate pulse connector pinout, and a wiring adapter or re-termination at the firing board is necessary. Document all existing wire labels before disconnection, and photograph the terminal block layout — this significantly reduces re-commissioning time and protects against wiring errors that could damage the new SDCS-PIN-4 during first power-up.

Downtime Control During System Migration

Minimizing production downtime during a power interface board replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure and bench-test the replacement SDCS-PIN-4 3ADT314100R1001 off-line using a DCS800 test rig or a spare drive chassis. Load the correct firmware onto the SDCS-CON-F, verify that the board powers up cleanly, and confirm that all diagnostic LEDs indicate normal status before the board enters the plant.

On the day of the swap, back up the full drive parameter set using DriveWindow Light or the ABB Drive Composer tool connected via the SDCS-COM-8 or a direct USB-to-serial programming cable. This parameter backup protects the motor tuning data, speed ramp settings, current limits, and fieldbus node configuration — all of which would otherwise need to be re-entered manually. After the physical board replacement, restore the parameter set, then perform a controlled no-load test run before reconnecting the mechanical load. Monitor the drive’s fault log for the first 30 minutes of loaded operation to catch any latent issues with gate drive timing or feedback signal noise.

For critical production lines where even a planned outage carries significant cost, consider maintaining a pre-configured spare SDCS-PIN-4 3ADT314100R1001 in the site’s spare parts inventory. With a pre-loaded parameter backup and a documented wiring checklist, a trained technician can complete the board swap and return the drive to service in under two hours — a significant improvement over waiting for emergency procurement of an unfamiliar replacement part. All units supplied by KNMKS are shipped with a support terms confirmed by quotation and undergo functional testing prior to dispatch, reducing the risk of receiving a non-functional board during an emergency repair.

Retrofit Support FAQ

Q1: Is the SDCS-PIN-4 3ADT314100R1001 a direct drop-in replacement for the SDCS-PIN-3?
In most DCS800 installations, yes — the SDCS-PIN-4 uses the same backplane connector and mounting footprint as the SDCS-PIN-3. However, you should verify the firmware version on the SDCS-CON-F control board before installation. Some early DCS800 units shipped with firmware that does not fully support the SDCS-PIN-4 hardware revision. A firmware update via DriveWindow or Drive Composer resolves this in most cases.

Q2: What wiring checks are required before powering up the replacement board?
Confirm that all gate drive signal cables are correctly seated and that the DC bus feedback wiring matches the terminal assignments in DCS800 hardware manual 3ADW000379. Pay particular attention to the polarity of the tachometer or encoder feedback signal — reversed polarity will cause the drive to run away at startup. Also verify that the 24 VDC auxiliary supply is within the 21.6–26.4 V tolerance range before applying power to the new board.

Q3: Will my existing PLC program and HMI screens need to be modified after the board swap?
In a like-for-like SDCS-PIN-4 replacement, no changes to the upstream PLC program or HMI screens are required, provided the drive’s PROFIBUS or Modbus node address and parameter dataset are restored correctly. If you are simultaneously upgrading the communication module from SDCS-COM-8 to a newer fieldbus adapter, you may need to update the GSD or EDS file in your PLC configuration and adjust any drive-specific function blocks in the control program.

Q4: What does the support terms confirmed by quotation cover, and how quickly can replacement stock be shipped?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. KNMKS maintains ready stock of the SDCS-PIN-4 3ADT314100R1001 and can ship within 1–3 business days for standard orders. Express shipping options are available for emergency breakdown situations. Contact [email protected] or call +86 18359268345 to confirm current stock availability and lead time before placing your order.
