ABB SDCS-PIN-3B Maintenance-Proven Spare Part for Factory Uptime

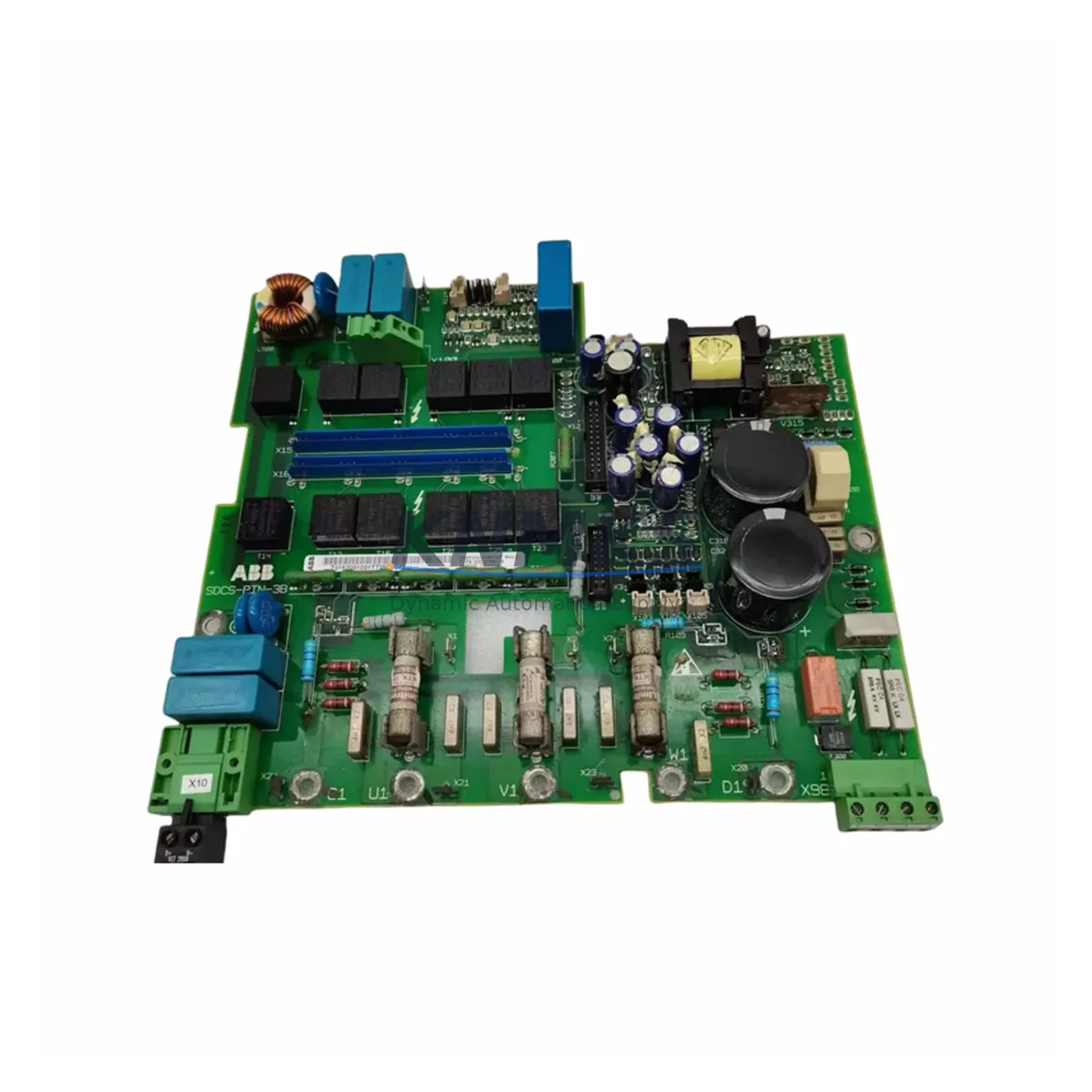

The ABB SDCS-PIN-3B is a Power Interface Board designed for the ABB DCS 500 series DC drive systems — one of the most widely deployed DC drive platforms in heavy industrial environments including steel mills, paper machines, extruders, and large-scale conveyor systems. As a direct original spare, the SDCS-PIN-3B serves as a critical interface between the drive’s control electronics and its power conversion stage, managing gate pulse distribution, feedback signal conditioning, and protective interlocking functions that are essential to safe and continuous motor operation.

For maintenance engineers managing aging DCS 500 installations, the SDCS-PIN-3B is a high-priority spare. Its failure mode — typically manifesting as erratic firing pulses, overcurrent trips, or loss of speed regulation — can cause unplanned production stops that are difficult to diagnose without a verified replacement on hand. Stocking this board as part of a planned spare parts inventory is a proven strategy for reducing mean time to repair (MTTR) and protecting production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SDCS-PIN-3B during a scheduled or emergency maintenance event, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure the drive returns to full specification. Maintenance engineers should begin by verifying the integrity of the SDCS-CON-3 or SDCS-CON-4 control board, which works in close coordination with the PIN-3B to manage the drive’s closed-loop speed and current regulation. A degraded control board can stress the power interface board and cause premature failure of the replacement part.

The 24 VDC auxiliary power supply feeding the drive’s control electronics should be measured and confirmed within tolerance before the new board is energized. Fluctuations or ripple on this supply — often sourced from a dedicated SITOP or equivalent DIN-rail PSU — are a common root cause of interface board damage that goes undetected during fault diagnosis. Similarly, the SDCS-FEX-2 or SDCS-FEX-4 field excitation module should be inspected for output stability, as field supply irregularities can induce abnormal feedback signals that the PIN-3B must process.

I/O wiring integrity at the drive’s terminal strip deserves careful attention. Loose or corroded connections on the analog speed reference input, digital enable signals, and fault relay outputs can introduce noise that corrupts the gate pulse timing managed by the SDCS-PIN-3B. Terminal blocks should be re-torqued to specification and inspected for signs of thermal stress or insulation breakdown. Where signal isolation is a concern — particularly in environments with high electromagnetic interference from large motors or variable frequency drives — the addition of a signal isolator on the speed reference circuit is a worthwhile preventive measure.

The drive’s fuse protection should also be reviewed. The DC bus fuses and the AC input fuses protecting the thyristor bridge are wear items that should be replaced on a defined interval or whenever a power fault has occurred. Continuing to operate with marginal fuses after a board replacement introduces unnecessary risk of a repeat fault event. Finally, if the DCS 500 cabinet includes an ABB ACS 800 or ACS 600 series drive in an adjacent bay sharing the same control bus, the communication module (e.g., RDCO or RPBA adapter) should be checked for firmware compatibility and communication integrity before the system is returned to service.

Site Replacement Workflow

The SDCS-PIN-3B is a direct replacement for earlier revisions of the power interface board used across the DCS 500 platform. Before installation, confirm the drive firmware version using the CDP control panel or the DriveWindow PC tool to ensure compatibility with the board revision being installed. Document the existing parameter set — particularly the motor data, speed controller tuning, and protection thresholds — using DriveWindow or a parameter backup file, as some parameter values may need to be re-entered after a board swap.

Power down the drive following the full lockout/tagout procedure, discharge the DC bus capacitors, and allow a minimum of five minutes before accessing the drive interior. Remove the existing SDCS-PIN-3B by releasing the board retaining clips and disconnecting the ribbon cable and connector harnesses. Install the replacement board, reconnect all harnesses in the correct orientation, and perform a visual inspection before re-energizing. On first power-up, monitor the drive’s diagnostic LEDs and fault log for any residual fault codes. Run the drive at reduced load for a commissioning period before returning to full production speed.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement board is operating correctly before the production line is released. For sites managing multiple DCS 500 drives, maintaining one SDCS-PIN-3B per drive frame size in the local spare parts cabinet is the recommended inventory strategy to support same-shift fault recovery.

Spare Parts Support FAQ

Q: Is the SDCS-PIN-3B compatible with both DCS 500 and DCS 550 drives?
A: Yes. The SDCS-PIN-3B is compatible with the ABB DCS 500, DCS 500B, and DCS 550 DC drive series. Always verify the board revision against your drive’s hardware documentation or contact our technical team with your drive nameplate data for confirmation before ordering.

Q: How is the SDCS-PIN-3B tested before shipment?
A: Every unit undergoes functional verification prior to dispatch. This includes power-on testing, gate pulse output verification, and visual inspection for component condition. A test report is available on request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: Can you support long-term supply agreements for the SDCS-PIN-3B?
A: Yes. We support 12–36 month supply agreements for maintenance teams managing multiple DCS 500 installations. Long-term agreements provide price stability, guaranteed stock reservation, and priority dispatch — reducing procurement risk for critical spare parts that are increasingly difficult to source through standard distribution channels.

Q: What information should I provide when ordering to ensure I receive the correct board revision?
A: Please provide the drive model number, drive serial number, and the existing board part number including any revision suffix (e.g., SDCS-PIN-3B Rev D). If available, a photo of the existing board’s label is the most reliable way to confirm the correct replacement. Our team will verify compatibility before confirming the order.

—
