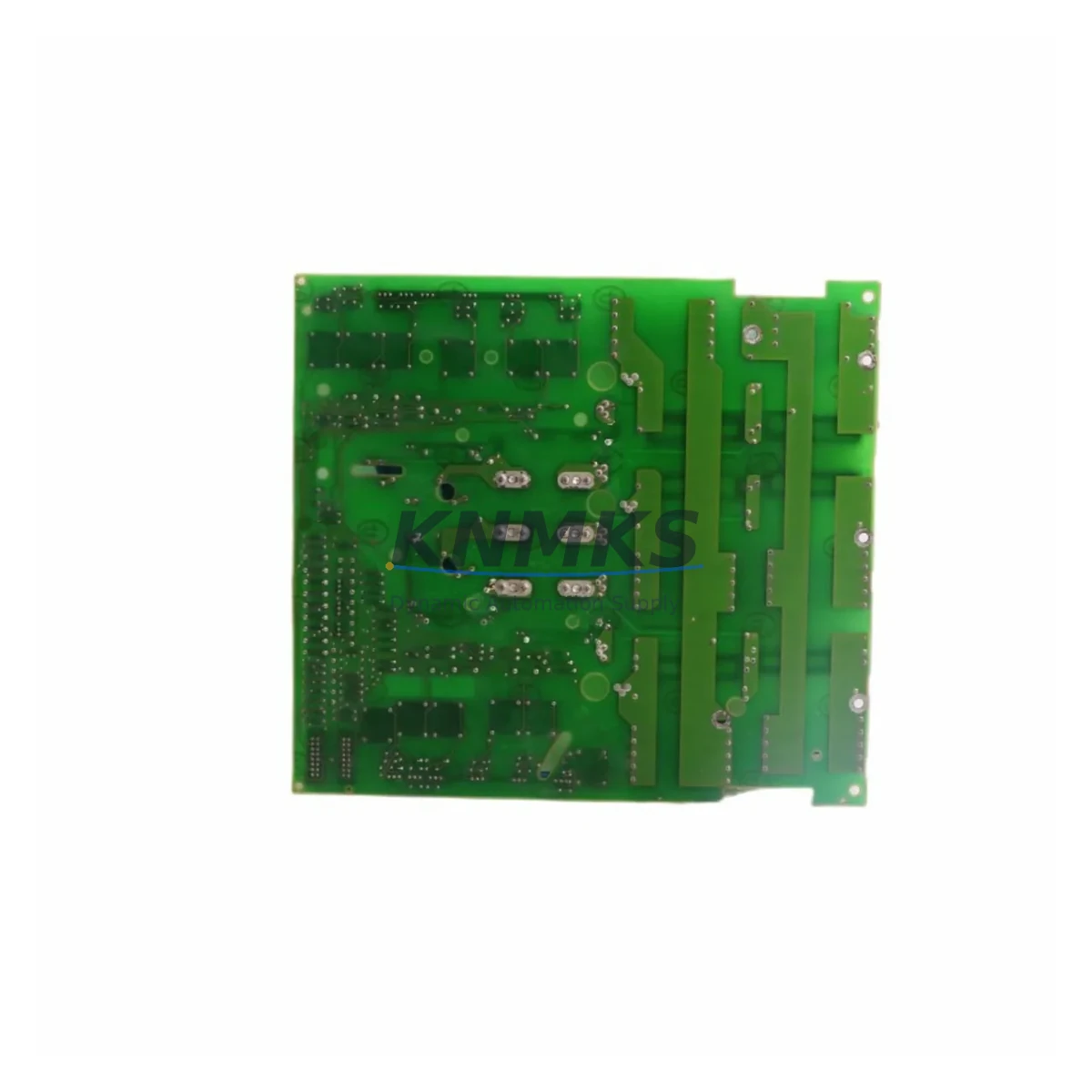

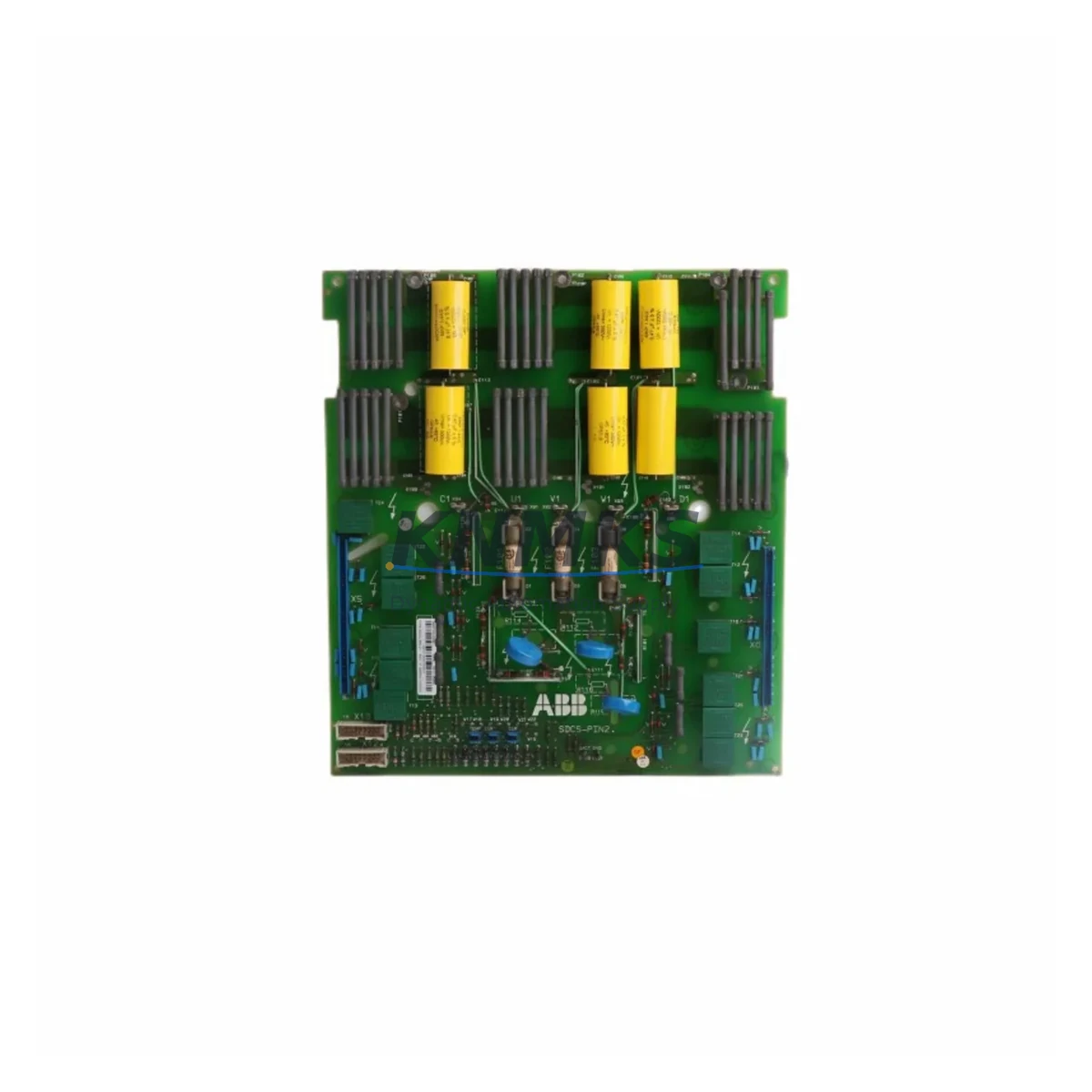

ABB SDCS-PIN-21 Fail-Safe DC Drive Power Interface

Overview

ABB SDCS-PIN-21 Fail-Safe DC Drive Power Interface

The ABB SDCS-PIN-21 is a precision-engineered DC drive power interface module designed for the ABB DCS400, DCS500, and DCS600 series of industrial DC drive systems. Built to meet the demanding requirements of continuous production environments, this module provides a robust, fail-safe power interface layer between the drive control electronics and the power conversion stage. In critical industrial applications where unplanned downtime carries significant operational and safety consequences, the SDCS-PIN-21 delivers the electrical isolation, surge suppression, and signal integrity needed to maintain reliable drive operation under adverse conditions.

Industrial DC drive systems are routinely exposed to power grid fluctuations, high-frequency switching transients, ground faults, and electromagnetic interference generated by adjacent variable-frequency drives, contactors, and high-current bus bars. The SDCS-PIN-21 is specifically designed to withstand these conditions, providing a stable, conditioned power interface that protects the sensitive control circuitry of the DCS series drives. Its fail-safe architecture ensures that in the event of a power anomaly or module fault, the drive system defaults to a safe state rather than triggering an uncontrolled stop or hazardous runaway condition — a critical requirement in applications such as mine hoists, rolling mill main drives, and paper machine section drives.

In high-electromagnetic-interference environments such as steel plant motor control centers, port crane drive rooms, and petrochemical compressor control cabinets, the SDCS-PIN-21’s shielded signal paths and robust PCB layout minimize signal drift and false triggering. When paired with the ABB SDCS-CON-2 control board and SDCS-FEX-2 field excitation module, the complete drive control stack achieves a level of coordinated fault tolerance that is essential for continuous, uninterrupted production. The power interface module acts as the first line of defense against voltage spikes and surge events that would otherwise propagate into the control layer and cause drive trips or permanent component damage.

For control cabinet integrators managing multi-drive installations, the SDCS-PIN-21 simplifies the power distribution architecture by providing standardized interface points compatible with the DCS500 and DCS600 drive families. This compatibility reduces the risk of wiring errors during commissioning and simplifies spare parts management across a fleet of drives. In facilities operating multiple ABB DC drives — such as water treatment pump stations, cement kiln drives, or offshore platform drilling systems — maintaining a standardized spare module inventory based on the SDCS-PIN-21 significantly reduces mean time to repair (MTTR) following a drive fault event.

The module is also relevant in retrofit and modernization projects where aging DC drive systems are being brought back to full operational specification without a full drive replacement. In these scenarios, the SDCS-PIN-21 is frequently replaced alongside the SDCS-DSL-4 serial link board and SDCS-IOB-3 I/O extension board to restore full drive functionality. This targeted component-level replacement strategy is far more cost-effective than full drive replacement and allows facilities to extend the operational life of their existing DCS series drives by five to ten years, deferring capital expenditure while maintaining production reliability.

In dusty, humid, or high-vibration environments — such as mining conveyor drives, quarry crusher drives, or shipboard propulsion control systems — the SDCS-PIN-21’s conformal-coated PCB construction provides additional protection against environmental ingress and corrosion. This makes it suitable for deployment in control cabinets that do not maintain full IP54 or higher enclosure integrity, a common reality in legacy industrial installations. The module’s operating temperature range and vibration tolerance are aligned with the environmental specifications of the DCS series drives, ensuring that the power interface does not become the weakest link in the drive system’s environmental resilience.

Every SDCS-PIN-21 unit supplied by KNMKS undergoes pre-shipment functional testing to verify power interface integrity, signal path continuity, and protection circuit operation. This testing protocol ensures that replacement modules are field-ready upon arrival, minimizing the time required for drive restoration and reducing the risk of commissioning failures caused by latent module defects. All units are covered by a support terms confirmed by quotation from the date of shipment, providing procurement teams and maintenance engineers with the assurance needed to include this module in their critical spare parts programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DC drive control cabinet is built on a coordinated stack of protection and control modules, not a single component. The SDCS-PIN-21 functions most effectively when integrated with a complete set of SDCS series boards. The SDCS-CON-2 main control board provides the closed-loop speed and current regulation that depends on clean, stable power delivery from the PIN-21 interface. The SDCS-FEX-2 field excitation module manages the motor field current, and any power disturbance that bypasses the PIN-21 can cause field weakening faults that result in uncontrolled motor overspeed — a critical safety hazard in hoist and winder applications.

For cabinet-level surge and overvoltage protection upstream of the drive, the installation of appropriately rated surge protective devices (SPDs) on the incoming AC supply is strongly recommended. Within the drive cabinet, the SDCS-DSL-4 serial link board handles drive-to-drive and drive-to-PLC communications; maintaining signal integrity on this board depends on the stable DC bus and reference voltages provided by the SDCS-PIN-21. In multi-drive cabinets where several DCS500 or DCS600 units share a common DC bus, the power interface module on each drive must be in full operational condition to prevent cross-drive interference and bus voltage instability.

Cabinet thermal management is equally critical. In high-ambient-temperature environments, the SDCS-IOB-3 I/O extension board and other control modules depend on adequate airflow and heat dissipation to maintain their operating temperature within specification. A failed or degraded SDCS-PIN-21 that causes excessive power dissipation within the control section can accelerate thermal aging of adjacent boards, leading to cascading failures across the drive control stack. Proactive replacement of the power interface module at the first sign of degradation — rather than waiting for a complete failure — is the recommended maintenance strategy for critical production drives.

Critical Industrial Safety Applications

The ABB SDCS-PIN-21 is deployed across a wide range of critical industrial sectors where DC drive reliability directly impacts operational safety and production continuity. In petrochemical and refinery environments, DC drives control compressor and pump systems that must maintain continuous operation to prevent process upsets and hazardous pressure buildup. A drive trip caused by a power interface failure in these applications can trigger emergency shutdown sequences with significant safety and financial consequences.

In electric power generation and transmission facilities, DC drives are used for excitation control, valve actuation, and auxiliary system drives. The fail-safe characteristics of the SDCS-PIN-21 ensure that these drives remain operational during grid disturbances and switching transients that are inherent to power system operation. In mining and mineral processing applications — including mine hoists, conveyor drives, and crusher main drives — the SDCS-PIN-21’s surge protection and EMI immunity are essential for maintaining drive availability in environments characterized by heavy electrical noise from large motors, blasting operations, and variable power quality.

In water and wastewater treatment plants, DC drives control primary and secondary pump systems that must operate continuously to maintain treatment capacity and regulatory compliance. The SDCS-PIN-21’s reliable power interface ensures that these drives remain online during the power quality events that are common in facilities with large variable loads. In metallurgical and steel production facilities, rolling mill main drives and auxiliary drives operate in some of the most electrically hostile environments in industry; the SDCS-PIN-21’s robust design makes it a trusted component in these demanding applications. Port and maritime applications — including crane drives and shipboard propulsion control — similarly benefit from the module’s environmental resilience and fail-safe design.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the SDCS-PIN-21?
All SDCS-PIN-21 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis assistance throughout the confirmed support period.

Q2: What pre-shipment testing is performed on each unit?
Every SDCS-PIN-21 undergoes a full functional test prior to shipment, including verification of power interface integrity, signal path continuity, and protection circuit operation. This testing ensures that each module is field-ready upon arrival and reduces the risk of commissioning delays caused by latent defects.

Q3: Is the SDCS-PIN-21 compatible with both DCS500 and DCS600 series drives?
Yes. The SDCS-PIN-21 is designed for use across the ABB DCS400, DCS500, and DCS600 drive families. It provides a standardized power interface that is compatible with the SDCS series control board architecture used across these drive generations, simplifying spare parts management in multi-drive installations.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains stock of the SDCS-PIN-21 and related SDCS series modules to support both planned maintenance programs and emergency replacement requirements. Fast dispatch is available for urgent orders. Our procurement team can assist with long-term supply agreements for facilities that require guaranteed availability of critical spare modules.
