ABB SDCS-PIN-205B-COAT Migration-Ready Pulse Interface Board for Legacy Control Systems

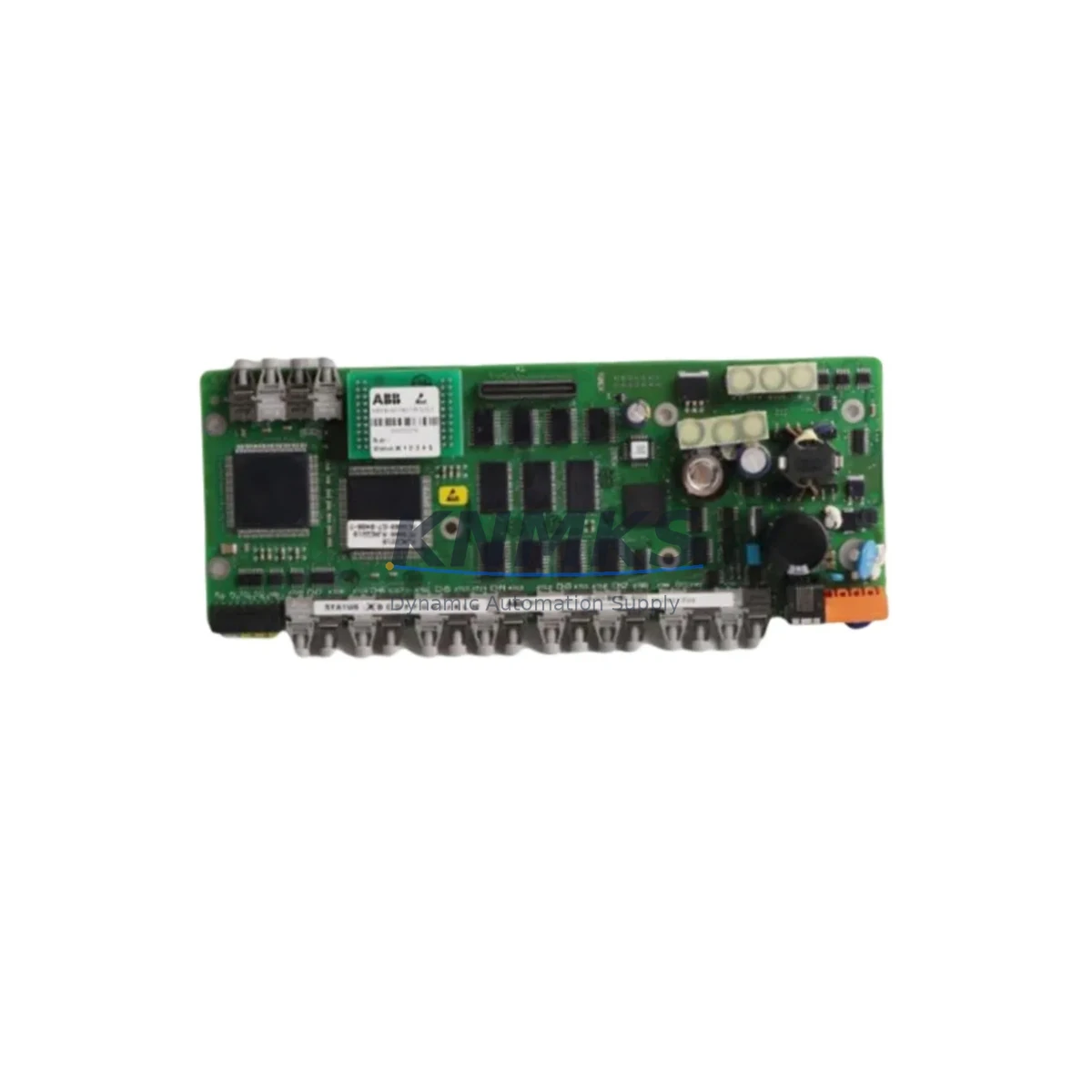

The ABB SDCS-PIN-205B-COAT (part number 3ADT220090R0035) is a conformal-coated pulse interface board engineered for the ABB DCS800 series DC drive platform. As legacy DC drive installations age beyond their supported lifecycle, the SDCS-PIN-205B-COAT serves as a critical migration-ready replacement component — enabling engineers to restore full drive functionality, extend system service life, and defer costly full-drive replacements. Whether you are managing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts inventory, this board delivers the signal integrity and environmental protection required for demanding industrial environments.

The conformal coating on the SDCS-PIN-205B-COAT provides enhanced resistance to moisture, dust, and chemical contaminants — a key consideration for installations in paper mills, steel plants, chemical processing facilities, and marine environments where uncoated boards are prone to premature failure. This makes it a preferred choice over standard uncoated variants when operating conditions are harsh or when long-term reliability is a priority.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SDCS-PIN-205B-COAT within an existing DCS800 installation requires a structured approach to avoid introducing new faults during the changeover. Before removing the failed board, engineers should document all active parameter settings using DriveWindow Light — particularly encoder feedback parameters in Group 50, speed reference scaling in Group 01, and any application-specific macro configurations stored in the SDCS-CON control board.

The DCS800 drive cabinet typically houses the control board (SDCS-CON-F or SDCS-CON-G), the pulse interface board (SDCS-PIN-205B-COAT), and optionally a fieldbus adapter such as the SDCS-COM-8 for PROFIBUS DP communication. When the pulse interface board is replaced, the fieldbus adapter and its node address settings remain unaffected — however, the communication link should be verified after power-up to confirm that the PLC or DCS master (such as an ABB AC500 controller or a Siemens S7-300 series PLC) is receiving valid speed feedback signals.

For installations where the DCS800 drive is paired with an ABB ACS800 or ACS880 AC drive in a coordinated drive system, the pulse feedback chain is especially critical. Any interruption in encoder signal integrity can cause speed regulation errors that propagate across the entire drive train. The SDCS-PIN-205B-COAT’s conformal coating helps maintain signal stability in environments where condensation or airborne contaminants could otherwise degrade connector integrity over time.

Terminal wiring for the encoder input should be verified against the original installation drawings. Encoder cable shielding must be maintained and grounded at a single point to prevent ground loop interference. If the existing encoder is a legacy HTL (High Threshold Logic) type operating at 24V, confirm that the SDCS-PIN-205B-COAT input channel is configured for the correct voltage level — mismatched voltage levels are a common commissioning error during retrofit projects.

In larger retrofit projects involving multiple DCS800 drives, it is common to simultaneously replace the SDCS-FEX-2 field excitation board and the SDCS-DSL-4 digital signal link board alongside the pulse interface board, particularly when the drive has been in service for more than ten years. Proactive replacement of these boards during a planned shutdown reduces the risk of secondary failures during the post-retrofit commissioning phase and minimizes total downtime exposure.

Downtime Control During System Migration

Minimizing downtime during a pulse interface board replacement on a DCS800 drive requires preparation before the maintenance window begins. The most effective approach is to pre-configure the replacement SDCS-PIN-205B-COAT board offline using DriveWindow, loading the parameter set exported from the original drive. This eliminates the need for on-site parameter entry during the maintenance window and reduces the risk of transcription errors under time pressure.

Before powering down the drive, capture a full parameter backup and record the current fault history log. This provides a baseline for post-replacement verification and helps distinguish pre-existing faults from any issues introduced during the board swap. The drive’s DC bus capacitors retain charge after power-down — always follow the DCS800 hardware manual discharge waiting time (typically 5 minutes minimum) before opening the cabinet and handling internal boards.

After installing the SDCS-PIN-205B-COAT, perform a controlled no-load test run before reconnecting the mechanical load. Verify encoder feedback direction, speed scaling, and current limit parameters before applying full load. If the drive is integrated into a PLC-controlled process line — for example, a paper machine drive section controlled via PROFIBUS from an ABB AC500 or Allen-Bradley ControlLogix PLC — coordinate the test sequence with the control room operator to ensure that the PLC program’s drive status monitoring logic does not trigger an unintended process interlock during the commissioning phase.

For critical production lines where even a brief unplanned stop carries significant cost, maintaining a pre-configured spare SDCS-PIN-205B-COAT board in the local spare parts inventory is strongly recommended. Our stock is available for immediate dispatch with pre-shipment functional testing, supporting same-day or next-day delivery to major industrial regions.

Retrofit Support FAQ

Q: Is the SDCS-PIN-205B-COAT a direct drop-in replacement for the non-coated SDCS-PIN-205B?
A: Yes. The SDCS-PIN-205B-COAT is mechanically and electrically compatible with the standard SDCS-PIN-205B. The conformal coating is an environmental protection upgrade and does not affect the board’s electrical interface or parameter configuration. No wiring changes are required.

Q: What pre-shipment testing is performed on the SDCS-PIN-205B-COAT?
A: Each unit undergoes functional verification prior to dispatch, including visual inspection, connector integrity check, and where applicable, powered board-level testing. A test report is available upon request. All units are shipped with a support terms confirmed by quotation from the date of shipment.

Q: How do I confirm firmware compatibility between the SDCS-PIN-205B-COAT and my existing DCS800 drive firmware?
A: Refer to the DCS800 firmware release notes and the SDCS-PIN-205B hardware compatibility matrix available in the ABB DCS800 Hardware Manual (3ADW000379). If your drive is running an older firmware version, contact our technical support team with your drive nameplate data and current firmware version for a compatibility confirmation before ordering.

Q: What is your stock availability and lead time?
A: We maintain ready stock of the SDCS-PIN-205B-COAT 3ADT220090R0035 for immediate dispatch. Standard lead time is 1–3 business days for most regions. For urgent requirements, expedited shipping options are available. Contact us at [email protected] or +86 18359268345 to confirm current stock levels and delivery timelines.
