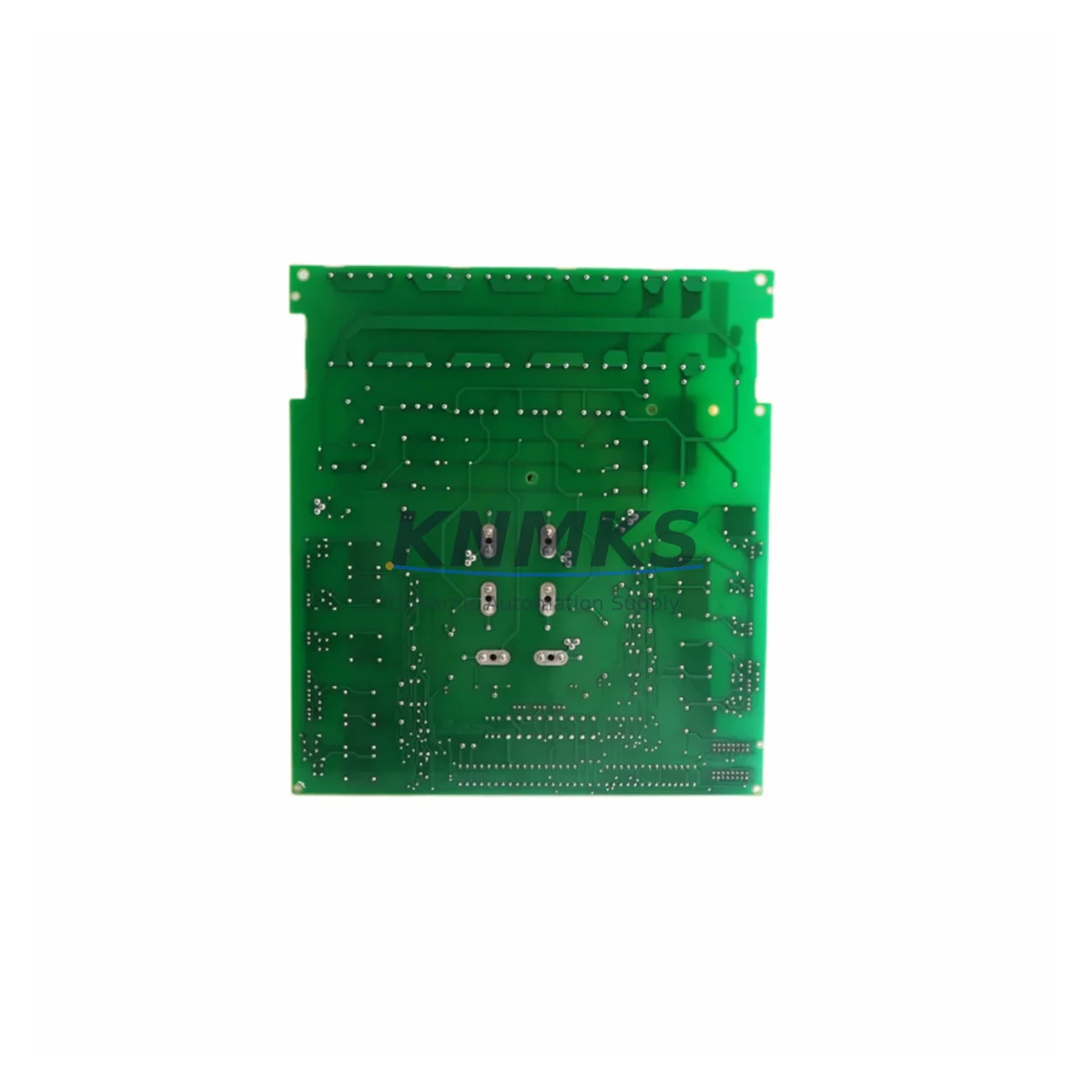

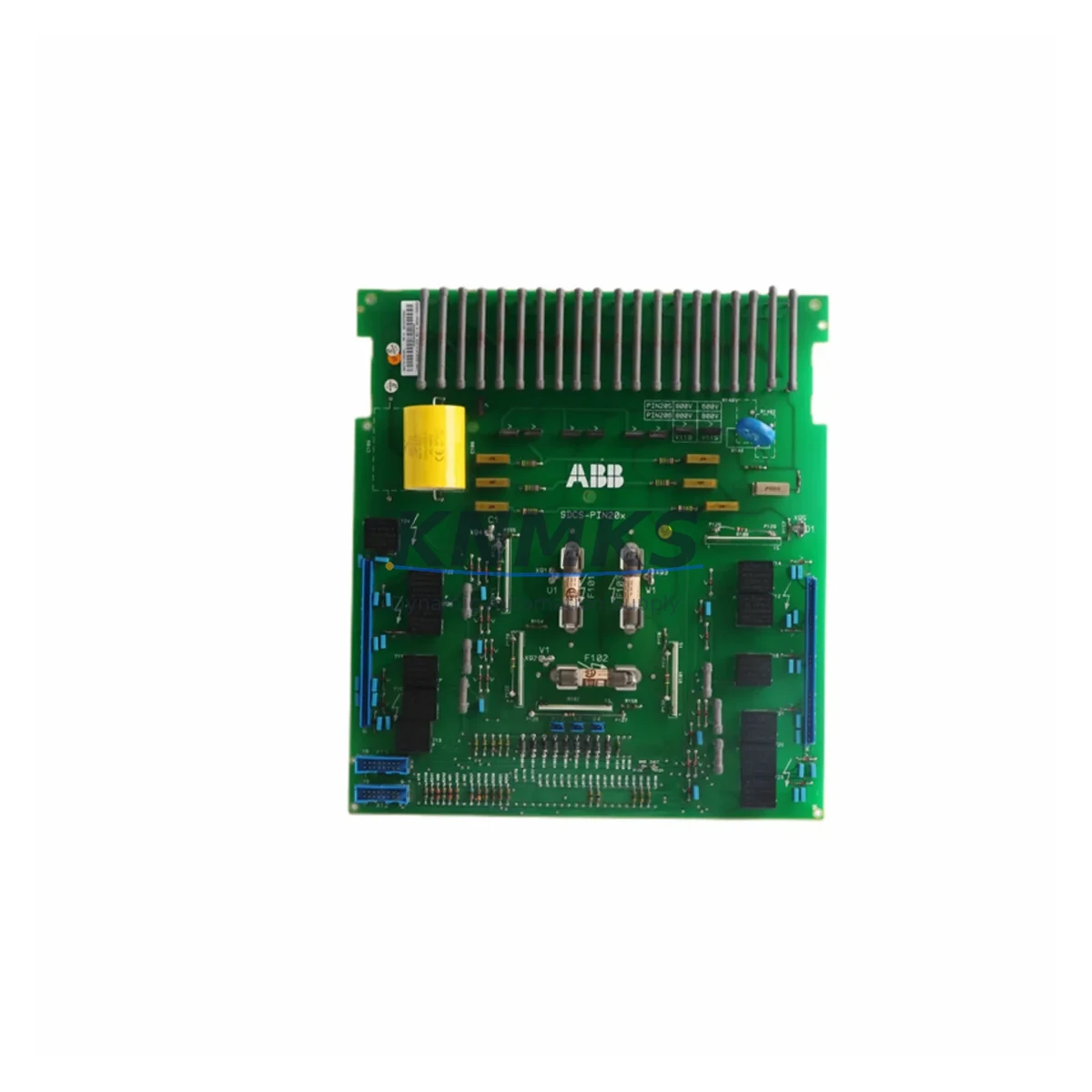

ABB SDCS-PIN-205 3ADT310500R1 Fail-Safe Power Interface Board

Overview

ABB SDCS-PIN-205 3ADT310500R1 Fail-Safe Power Interface Board: Fault Protection and Critical Industrial Field Reliability

The ABB SDCS-PIN-205 (Part No. 3ADT310500R1) is a dedicated power interface board engineered for the ABB DCS500 series DC drive platform. In continuous production environments — from petrochemical refineries and metallurgical smelters to port crane systems and water treatment facilities — unplanned drive shutdowns translate directly into safety incidents, production losses, and costly emergency maintenance. The SDCS-PIN-205 addresses this risk at the hardware level, providing a robust, fail-safe power conditioning and signal interface layer between the drive’s control electronics and the field power supply.

Designed to operate reliably under the demanding conditions of heavy industrial control cabinets, this board delivers stable, conditioned power to the DCS500 drive’s logic and firing circuits. Its architecture is optimized to suppress voltage transients, filter high-frequency EMI noise, and maintain signal integrity even in environments characterized by heavy motor switching, variable-frequency interference, and fluctuating grid supply. For facilities running continuous processes where a single control interruption can trigger a cascade of safety interlocks, the SDCS-PIN-205 provides the foundational power reliability that keeps the drive online and the process under control.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a DCS500-based DC drive cabinet, the SDCS-PIN-205 does not operate in isolation — it is one node in a layered protection architecture. The board works in close coordination with the SDCS-CON-2 control board, which handles the drive’s closed-loop speed and current regulation. Any instability in the power interface layer directly compromises the CON-2’s ability to maintain accurate firing angle control, leading to torque ripple, speed deviation, or — in worst cases — a drive trip that activates downstream safety interlocks.

Upstream of the SDCS-PIN-205, the cabinet’s 24VDC auxiliary power supply (typically an ABB CP series or equivalent DIN-rail PSU) must deliver clean, regulated voltage. Power supply brownouts or ripple that exceed the board’s input tolerance are a leading cause of spurious drive faults in heavy industrial sites. Pairing the SDCS-PIN-205 with a high-quality, redundant auxiliary PSU significantly reduces this failure mode.

On the field side, the SDCS-FEX-2 field excitation board works alongside the PIN-205 to regulate DC motor field current. In applications such as mine hoist drives or steel rolling mill main drives, field current instability caused by a degraded power interface board can result in motor flux collapse — a serious safety condition. Maintaining the SDCS-PIN-205 in good working order is therefore a prerequisite for safe field excitation control.

For communication integrity, the SDCS-COM-8 fieldbus adapter (PROFIBUS or other protocol variants) relies on stable board-level power to maintain deterministic cycle times on the control network. In safety-critical interlock loops — for example, emergency stop circuits in a chemical plant or a port crane anti-collision system — communication latency or dropout caused by power board degradation can prevent a safety command from reaching the drive in time. The SDCS-PIN-205 supports the communication subsystem’s reliability by ensuring the drive’s internal power rails remain within specification.

Finally, in cabinets where thermal management is a concern — particularly in high-ambient-temperature environments such as steel plant electrical rooms or offshore platform drive rooms — the SDCS-DSL-4 diagnostic and status board provides real-time monitoring of drive health parameters. Integrating diagnostic monitoring with a reliable power interface board creates a complete predictive maintenance loop, enabling maintenance teams to identify degradation trends before they result in unplanned downtime.

Critical Industrial Safety Applications

Petrochemical & Refinery: In refinery pump and compressor drives, continuous operation is a process safety requirement. A power interface board failure that causes an unplanned drive trip can trigger pressure relief events or require emergency flaring. The SDCS-PIN-205’s surge suppression and stable logic supply directly support the drive’s ability to remain online through grid disturbances common in heavy industrial power systems.

Electric Power Generation & Transmission: Coal-fired and hydroelectric plant auxiliary drives — including induced draft fans, boiler feed pumps, and exciter systems — rely on DCS500 drives for precise speed control. In these applications, a drive fault during peak load can force a unit derating or emergency shutdown. The SDCS-PIN-205 provides the power conditioning foundation that keeps these critical auxiliary drives running through electrical noise events.

Mining & Mineral Processing: Mine hoist and conveyor drives operate in environments with extreme dust loading, high vibration, and frequent motor switching transients. The SDCS-PIN-205’s EMI hardening and transient suppression are directly relevant to these conditions, reducing the risk of nuisance trips that halt ore production and require manual reset procedures in hazardous underground or open-pit locations.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities depend on continuous pump operation. A drive fault on a primary effluent pump or a sludge transfer drive can result in regulatory non-compliance or environmental incidents. The SDCS-PIN-205 supports uninterrupted drive operation in the variable-load, variable-supply conditions typical of water utility electrical systems.

Metallurgy & Steel Production: Rolling mill main drives and ladle crane drives in steel plants are among the most demanding DC drive applications. High motor currents, rapid acceleration/deceleration cycles, and intense electromagnetic interference from arc furnaces create a severe operating environment for drive electronics. The SDCS-PIN-205’s robust power interface design is well-suited to these conditions, supporting reliable firing circuit operation under continuous heavy-duty cycling.

Port & Marine: Port crane drives and ship propulsion control systems require high availability and fault tolerance. In container terminal operations, a drive fault on a quay crane hoist can halt vessel loading operations, with significant commercial and logistical consequences. The SDCS-PIN-205 supports the drive’s fault-free operation in the salt-air, high-humidity, and vibration-intensive environments of port and marine installations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SDCS-PIN-205 3ADT310500R1?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the board fails to perform its specified power interface function within the confirmed support period, we provide replacement or repair support. Support requests are processed promptly to minimize your site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every SDCS-PIN-205 unit undergoes a full functional test prior to shipment, verifying power supply output levels, signal conditioning performance, and board integrity. Units that do not pass inspection are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all DCS500 drive variants, and how do I confirm fitment?
The SDCS-PIN-205 (3ADT310500R1) is designed for the ABB DCS500 series DC drive platform. Compatibility depends on your specific drive variant and firmware revision. We recommend confirming your drive’s existing board part number and revision against the ABB DCS500 hardware manual before ordering. Our technical team can assist with compatibility verification — contact us with your drive nameplate data.

Q4: Can you support long-term supply for ongoing maintenance and spare parts programs?
Yes. We maintain stock of the SDCS-PIN-205 3ADT310500R1 to support both immediate replacement needs and planned spare parts programs. For facilities managing multiple DCS500 drives, we can discuss scheduled supply arrangements to ensure critical spare availability without requiring large upfront inventory commitments. Contact our sales team to discuss your site’s long-term support requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-PIN-205 3ADT310500R1

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-PIN-205 3ADT310500R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
