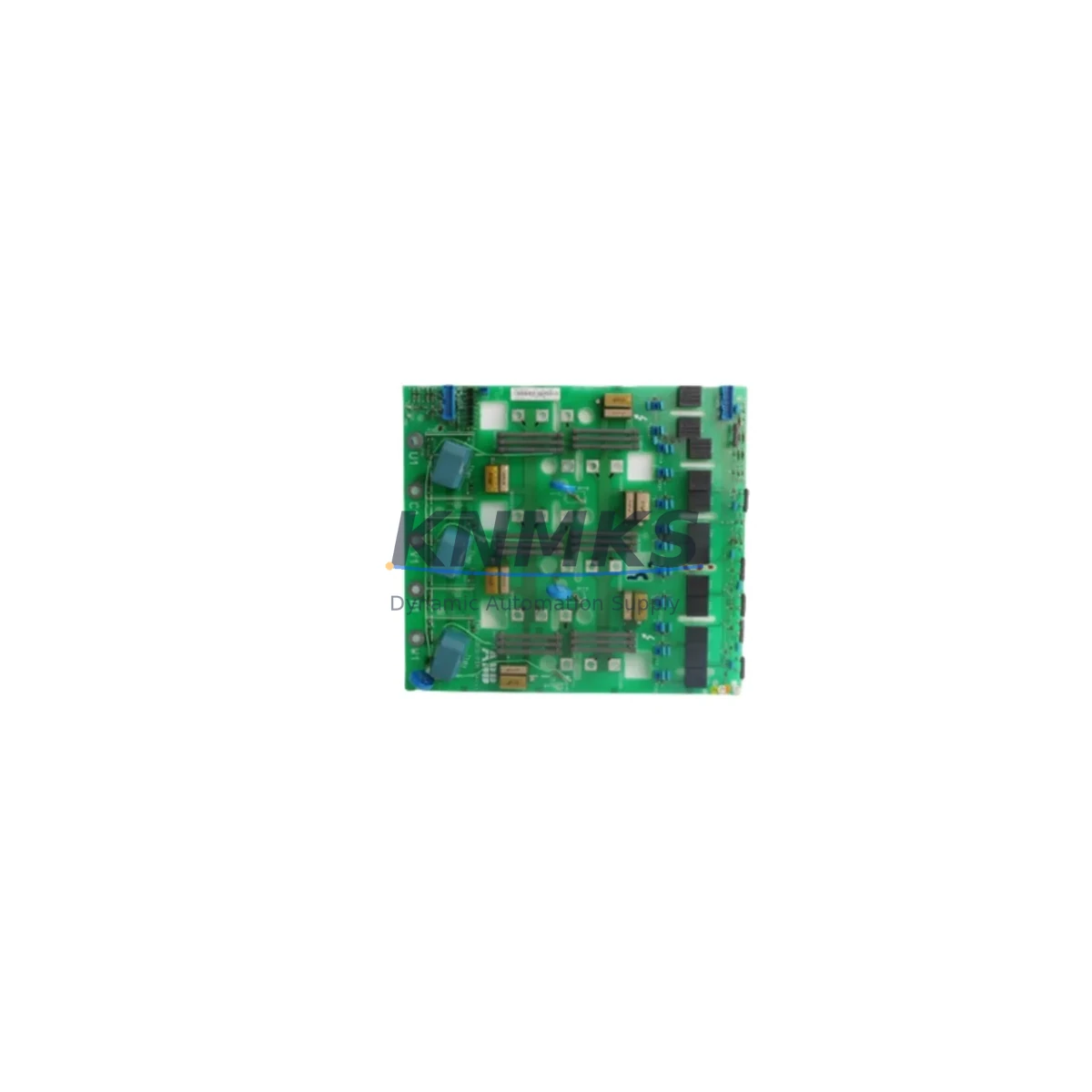

ABB SDCS-PIN-11 Fail-Safe Gate Drive for Industrial Control

Overview

ABB SDCS-PIN-11 Fail-Safe Gate Drive for Industrial Control Reliability

The ABB SDCS-PIN-11 is a gate drive power interface board engineered for the ABB DCS800 series DC drive platform. Designed to operate reliably in the most demanding industrial environments — including high electromagnetic interference zones, dusty and humid process areas, high-temperature motor control cabinets, and continuous-duty production lines — the SDCS-PIN-11 delivers the fault-tolerant gate signal conditioning that modern industrial safety architectures demand.

In critical control applications where unplanned downtime carries significant operational and safety consequences, the integrity of the gate drive circuit is non-negotiable. The SDCS-PIN-11 provides stable, isolated gate pulse transmission to the thyristor or IGBT bridge, ensuring that firing angle commands from the DCS800 control board are executed with precision and without signal drift. This directly reduces the risk of misfiring events, torque irregularities, and uncontrolled motor runaway — failure modes that can cascade into equipment damage or personnel hazards in heavy industrial settings.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The SDCS-PIN-11 does not operate in isolation — it is one node in a layered control cabinet protection architecture. In a properly configured DCS800 drive cabinet, the gate drive board works in concert with the SDCS-CON-4 control board, which manages speed and current regulation loops. Upstream, the SDCS-POW-4 power supply board provides the stabilized low-voltage DC rails that the SDCS-PIN-11 depends on for consistent gate pulse generation. Any instability in the POW-4 output — whether from mains fluctuation, inrush events, or aging capacitors — will directly compromise gate drive timing accuracy, making the power supply board a critical companion component for preventive maintenance.

For applications where the DCS800 drive is integrated into a safety interlock loop, the SDCS-FEX-2 field excitation board and associated feedback modules must also be maintained to the same reliability standard. In high-load reversing drives common in rolling mills or crane hoists, the gate drive board is subjected to repetitive high-current switching cycles. Pairing the SDCS-PIN-11 replacement with a concurrent inspection of the SDCS-DSL-4 serial link board ensures that encoder feedback and fieldbus communication remain synchronized with the new gate drive timing baseline.

In cabinets operating near high-power transformers or variable frequency drives, additional EMC shielding and the use of ABB DCS800 surge suppression kits are recommended to protect the SDCS-PIN-11’s signal lines from conducted interference. Proper cabinet grounding, cable segregation between power and signal wiring, and periodic thermal imaging of the gate drive section are all practices that extend the service life of this board beyond its rated operating cycle.

Critical Industrial Safety Applications

The ABB SDCS-PIN-11 is deployed across a wide range of safety-critical and continuous-process industries where DC drive reliability is directly linked to operational safety and production continuity.

In petrochemical and refinery facilities, DCS800 drives equipped with SDCS-PIN-11 boards control compressor trains, pump stations, and agitator drives in classified hazardous areas. Gate drive failure in these environments can trigger emergency shutdown sequences, process upsets, and potential release events. Maintaining a verified spare SDCS-PIN-11 on-site is a standard element of the site’s critical spare parts inventory strategy.

In power generation and grid infrastructure, DC drives are used for excitation control, auxiliary motor drives, and black-start systems. The SDCS-PIN-11’s role in maintaining precise thyristor firing angles is essential for voltage regulation stability. Any gate drive anomaly that introduces firing asymmetry can produce torque ripple, harmonic distortion, and — in worst cases — drive trip events during peak load periods.

In mining and mineral processing, DCS800 drives power conveyor systems, ball mills, and hoisting equipment operating under continuous heavy load. The SDCS-PIN-11 must withstand elevated ambient temperatures, pervasive conductive dust, and mechanical vibration. Pre-shipment functional testing and a support terms confirmed by quotation provide the assurance required for remote mine site procurement decisions where replacement lead times are measured in weeks.

In water and wastewater treatment, pump drives running on DCS800 platforms with SDCS-PIN-11 gate drive boards maintain consistent flow rates in treatment processes where interruption affects regulatory compliance. In port and marine applications, crane drives and winch systems depend on the SDCS-PIN-11 for precise load control during cargo handling operations where drive faults carry direct safety implications for personnel and equipment.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SDCS-PIN-11?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance deviations from ABB’s published specifications for the SDCS-PIN-11. Support requests are supported with direct technical assistance and replacement dispatch. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each SDCS-PIN-11 unit?
Every SDCS-PIN-11 board undergoes full functional verification prior to shipment, including gate signal output testing, isolation resistance measurement, and visual inspection for component integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the SDCS-PIN-11 compatible with all DCS800 drive variants and firmware revisions?
The SDCS-PIN-11 is designed for the ABB DCS800 series platform. Compatibility is confirmed for standard DCS800 variants across the common power range. For specific drive configurations, frame sizes, or firmware versions outside the standard range, our technical team can verify compatibility prior to order confirmation.

Q4: Can long-term supply agreements be arranged for the SDCS-PIN-11 as a critical spare?
Yes. For facilities requiring guaranteed availability of the SDCS-PIN-11 over a 12–36 month horizon — including multi-site operations and OEM service contracts — long-term supply commitments with reserved stock allocation are available. Contact our sales team to discuss volume, lead time, and consignment stocking options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-PIN-11
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-PIN-11
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
