ABB SDCS-IOE-1 Maintenance-Proven Spare Part for Factory Uptime

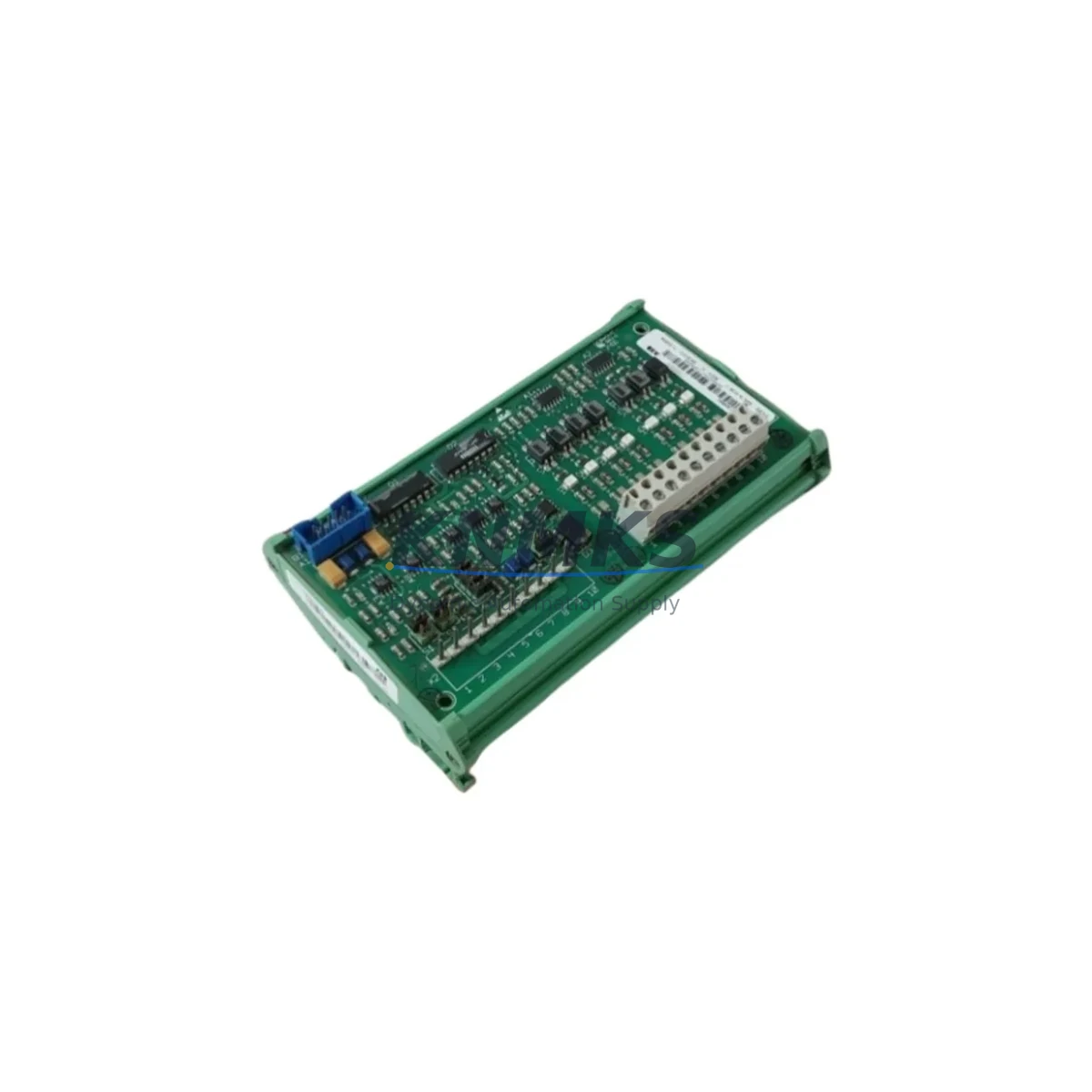

The ABB SDCS-IOE-1 is an original I/O expansion module engineered for the DCS800 series DC drive platform — one of ABB’s most widely deployed variable-speed drive families in heavy industrial environments. For maintenance engineers managing aging drive cabinets, paper mills, steel rolling lines, crane systems, or extruder drives, the SDCS-IOE-1 represents a critical interface layer between the drive controller and field-level signals. Its failure or degradation directly impacts process continuity, making verified spare availability a non-negotiable element of any preventive maintenance program.

KNMKS supplies the SDCS-IOE-1 as an original ABB spare part, sourced through established industrial channels, individually tested prior to shipment, and backed by a support terms confirmed by quotation. Each unit is dispatched with full traceability documentation to support your incoming inspection and maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the SDCS-IOE-1 is flagged during a routine drive cabinet inspection or after a process fault, experienced maintenance engineers know that replacing the I/O expansion module in isolation is rarely sufficient for a durable repair. The DCS800 drive architecture integrates the SDCS-IOE-1 tightly with the main control board — typically the SDCS-CON-4 — which handles speed regulation, field current control, and drive parameter management. If the CON-4 board shows any sign of firmware corruption, capacitor aging, or communication fault alongside the IOE-1 failure, both boards should be evaluated together to avoid repeat downtime within the same maintenance cycle.

Field wiring connected to the SDCS-IOE-1’s terminal blocks should be inspected for insulation breakdown, loose crimps, and ground loop issues — particularly on analog input channels, where signal noise from adjacent power cables can cause erratic speed references or torque limit faults. The SDCS-FEX-2 field excitation board, which governs DC motor field current, is another component that maintenance teams frequently replace in the same service window, as field circuit instability often presents alongside I/O anomalies in aging DCS800 installations.

For drives operating in dusty or high-humidity environments, the SDCS-PIN-48 power interface board and associated DC bus fuses should be checked during the same cabinet opening. Blown or weakened fuses in the armature or field circuit can cause misleading I/O fault codes that initially point to the expansion module. Similarly, the SDCS-DSL-4 fiber optic communication link — used in multi-drive or DCS-networked configurations — should be tested for signal integrity if the IOE-1 replacement does not fully resolve communication-related alarms.

Procurement engineers building annual spare parts budgets for DCS800-equipped lines should also consider stocking the NDIO-01C digital I/O extension module and relevant NETA-21 remote monitoring adapters, which are increasingly specified in modernized DCS800 retrofit projects. Maintaining at least one SDCS-IOE-1 per drive cabinet in critical process lines — paper machines, rolling mills, winding systems — is a widely adopted strategy to reduce mean time to repair (MTTR) from days to hours.

Site Replacement Workflow

Replacing the SDCS-IOE-1 on-site is a structured process that, when followed correctly, minimizes drive downtime and eliminates the risk of parameter loss or wiring errors:

1. Pre-replacement documentation: Before powering down the drive, record all active parameter sets using the DCS800 keypad or DriveWindow Light software. Export the parameter file to a USB or laptop. Photograph the existing wiring on the IOE-1 terminal blocks — particularly AI/AO channel assignments and DI/DO wiring polarity.

2. Safe isolation: Follow your site LOTO (Lockout/Tagout) procedure. Confirm that the DC bus has fully discharged (typically 5–10 minutes after main contactor open) before opening the drive cabinet. Use a calibrated voltmeter to verify zero voltage on the DC bus terminals.

3. Module removal: Disconnect the ribbon cable and terminal block connectors from the SDCS-IOE-1. Note the board orientation and any DIP switch settings before removal. Remove the four mounting screws and extract the board carefully.

4. New module installation: Inspect the replacement SDCS-IOE-1 for any transit damage. Match DIP switch settings to the removed board (or to the drive’s parameter documentation). Seat the board firmly, reconnect the ribbon cable, and re-terminate all field wiring per your documented wiring diagram.

5. Commissioning and verification: Power up the drive in local control mode. Verify all DI/DO and AI/AO channels respond correctly using the drive’s I/O diagnostics menu. Restore the parameter file if required. Run the drive at low speed under no-load conditions before returning to full production.

This workflow is compatible with DCS800 firmware versions from 5.x onward and applies equally to single-drive and multi-drive (master/follower) configurations. For legacy DCS500 or DCS400 installations being migrated to DCS800, the SDCS-IOE-1 provides a direct I/O expansion path without requiring external signal converters in most standard wiring topologies.

Spare Parts Support FAQ

Q1: Is the SDCS-IOE-1 supplied by KNMKS an original ABB part or a compatible replacement?
All SDCS-IOE-1 units supplied by KNMKS are original ABB spare parts. We do not supply third-party compatible or remanufactured alternatives unless explicitly requested and agreed in writing. Each unit is individually function-tested before shipment and ships with a support terms confirmed by quotation from the dispatch date.

Q2: How do I verify compatibility with my specific DCS800 drive variant before ordering?
The SDCS-IOE-1 is compatible with all standard DCS800 variants (DCS800-S01, S02, S03, and S04 frame sizes) that use the SDCS-CON-4 control board. If your drive uses an earlier control board revision or a customized hardware configuration, please share your drive nameplate data and existing board part numbers with our technical team at [email protected] before placing an order. We will confirm compatibility at no charge.

Q3: What is your lead time and can you support emergency orders for unplanned downtime?
For in-stock units, standard dispatch is within 1–2 business days. Emergency orders with same-day or next-day dispatch are available for critical production downtime situations — please contact us directly at +86 18359268345 to confirm stock availability and arrange priority shipping. We support DDP, DAP, and EXW Incoterms for international shipments.

Q4: Can KNMKS support long-term supply agreements for the SDCS-IOE-1 and related DCS800 spare parts?
Yes. We offer blanket order arrangements and annual supply agreements for maintenance teams managing multiple DCS800 drives or planning multi-year spare parts budgets. Long-term agreements include price stability commitments, reserved stock allocation, and priority dispatch. Contact [email protected] to discuss your requirements.
