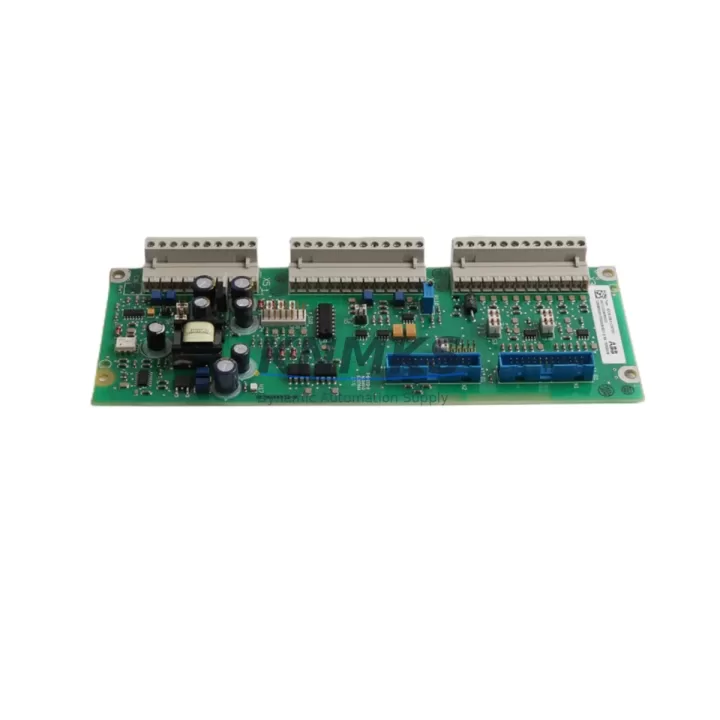

ABB SDCS-IOB-23-COAT Fail-Safe I/O Board for DCS800 Control

Overview

ABB SDCS-IOB-23-COAT Fail-Safe I/O Board for DCS800 Control

The ABB SDCS-IOB-23-COAT (part number 3ADT220090R0023) is a conformal-coated I/O connection board engineered for ABB DCS800 series DC drives deployed in demanding industrial environments. Designed to maintain uninterrupted signal integrity across analog and digital I/O channels, this board is a critical component in drive control architectures where signal drift, moisture ingress, corrosive atmospheres, and high electromagnetic interference represent constant operational threats. Its conformal coating provides a robust barrier against condensation, dust, and chemical vapors — conditions routinely encountered in steel mills, chemical processing plants, paper mills, and port crane installations.

In continuous production environments, a single I/O board failure can cascade into unplanned drive shutdown, process interruption, and costly restart sequences. The SDCS-IOB-23-COAT is engineered to eliminate this risk. Its reinforced signal isolation architecture prevents ground loops and cross-channel interference, ensuring that speed reference signals, torque feedback, and digital interlock commands remain stable even when adjacent high-power contactors or variable frequency drives generate transient voltage spikes. This makes it an essential spare for any facility operating DCS800 drives in critical torque or speed control loops.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including I/O channel continuity checks, isolation resistance testing, and visual inspection of the conformal coating layer. This testing protocol ensures that the board arrives ready for immediate installation, reducing commissioning time and eliminating the risk of receiving a latent-defect component during an emergency breakdown. All units are covered by a support terms confirmed by quotation from the date of shipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The SDCS-IOB-23-COAT does not operate in isolation — it functions as part of a layered drive control and protection architecture. In a well-designed DCS800 drive cabinet, the I/O board works in conjunction with the SDCS-CON-2 control board, which manages the core speed and current regulation loops. Signal integrity between these two boards is paramount: any noise coupling or connector degradation at the I/O interface will directly affect drive response and may trigger nuisance trips in safety-critical applications.

Power supply stability is equally important. The SDCS-POW-1 power supply board provides the regulated internal voltages that the I/O board relies on for accurate analog signal processing. In sites with unstable incoming power or frequent voltage sags — common in heavy industrial facilities with large motor loads — pairing the SDCS-IOB-23-COAT with a verified SDCS-POW-1 ensures that I/O reference levels remain accurate even during grid disturbances. For applications requiring additional analog I/O capacity, the SDCS-IOB-21 provides complementary channel expansion within the same DCS800 control architecture.

In high-vibration environments such as rolling mills or mining hoists, connector seating and PCB mechanical integrity are critical failure modes. The conformal coating on the SDCS-IOB-23-COAT provides additional mechanical protection against micro-fractures caused by vibration-induced stress. When combined with the SDCS-FEX-2 field excitation board and the NTAC-02 pulse encoder interface module, the complete DCS800 control stack achieves the signal fidelity and feedback accuracy required for precise tension control, positioning, and regenerative braking in demanding applications. For communication-layer protection, the RDCO-02 DDCS fiber optic communication module eliminates galvanic coupling between the drive and the control system, further reducing EMI-induced signal errors at the I/O level.

Critical Industrial Safety Applications

The SDCS-IOB-23-COAT is deployed across a wide range of safety-critical and continuous-process industrial applications where DC drive reliability is non-negotiable.

In steel and metals processing, DCS800 drives control rolling mill main drives, coiler tension reels, and runout table conveyors. The I/O board manages speed reference inputs and torque feedback signals that directly govern strip tension and thickness. A signal fault at this level can cause strip breaks, cobbles, or uncontrolled acceleration — all of which represent serious safety and production risks. The conformal coating ensures reliable operation in the high-temperature, scale-dust, and steam-laden atmosphere of a hot strip mill.

In mining and mineral processing, DCS800 drives power hoist motors, conveyor drives, and crusher main drives. These applications demand fail-safe interlock signal handling: the I/O board must reliably transmit emergency stop commands, overload signals, and position feedback without degradation. Underground environments with high humidity, diesel exhaust particulates, and vibration make the conformal-coated variant the only appropriate choice for long-term reliability.

In water and wastewater treatment, pump and blower drives must maintain continuous operation to meet environmental discharge standards. Unplanned drive downtime can result in regulatory violations and environmental incidents. The SDCS-IOB-23-COAT’s resistance to condensation and chemical vapors makes it well-suited for pump station drive cabinets where temperature cycling causes repeated condensation events.

In port and marine applications, crane hoist and slew drives require precise torque control and reliable emergency stop signal transmission. Salt air, humidity, and vibration are constant environmental stressors. The conformal coating provides the corrosion resistance necessary for reliable long-term operation in these coastal and offshore environments.

In petrochemical and power generation facilities, DCS800 drives are used in induced draft fan drives, boiler feed pump drives, and compressor control applications. These are classified as critical assets where unplanned downtime has direct safety and financial consequences. Maintaining a verified spare SDCS-IOB-23-COAT in the site spare parts inventory is a standard risk mitigation practice for facilities operating to IEC 61511 or IEC 62061 functional safety standards.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SDCS-IOB-23-COAT?
The support terms confirmed by quotation cover all functional defects arising from manufacturing or component failure under normal operating conditions. If the board fails to perform its specified I/O functions within the confirmed support period, KNMKS will provide a replacement unit at no additional cost. The confirmed support period begins from the confirmed shipment date and applies to all units regardless of order quantity.

Q2: What pre-shipment testing is performed before dispatch?
Every SDCS-IOB-23-COAT unit undergoes a pre-shipment inspection protocol that includes visual inspection of the conformal coating for coverage integrity, I/O channel continuity verification, isolation resistance measurement between signal channels and ground, and connector pin inspection. This ensures that no latent defects are shipped to site, reducing the risk of a failed installation during an emergency breakdown repair.

Q3: Is the SDCS-IOB-23-COAT compatible with all DCS800 drive variants?
The SDCS-IOB-23-COAT is designed for use within the ABB DCS800 series DC drive platform. Compatibility depends on the specific drive variant, firmware version, and control board configuration. KNMKS recommends confirming the drive’s existing I/O board part number and control board revision before ordering. Our technical team can assist with compatibility verification based on your drive nameplate data and existing board configuration.

Q4: Can KNMKS support long-term supply agreements for this spare part?
Yes. KNMKS maintains stock of the SDCS-IOB-23-COAT and can support scheduled supply agreements for facilities requiring guaranteed spare parts availability over 12–36 month horizons. Long-term supply agreements are available for multi-site operations and include priority allocation, fixed pricing, and dedicated inventory reservation. Contact our sales team to discuss your site’s spare parts strategy and annual consumption requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-IOB-23-COAT 3ADT220090R0023
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-IOB-23-COAT 3ADT220090R0023
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
