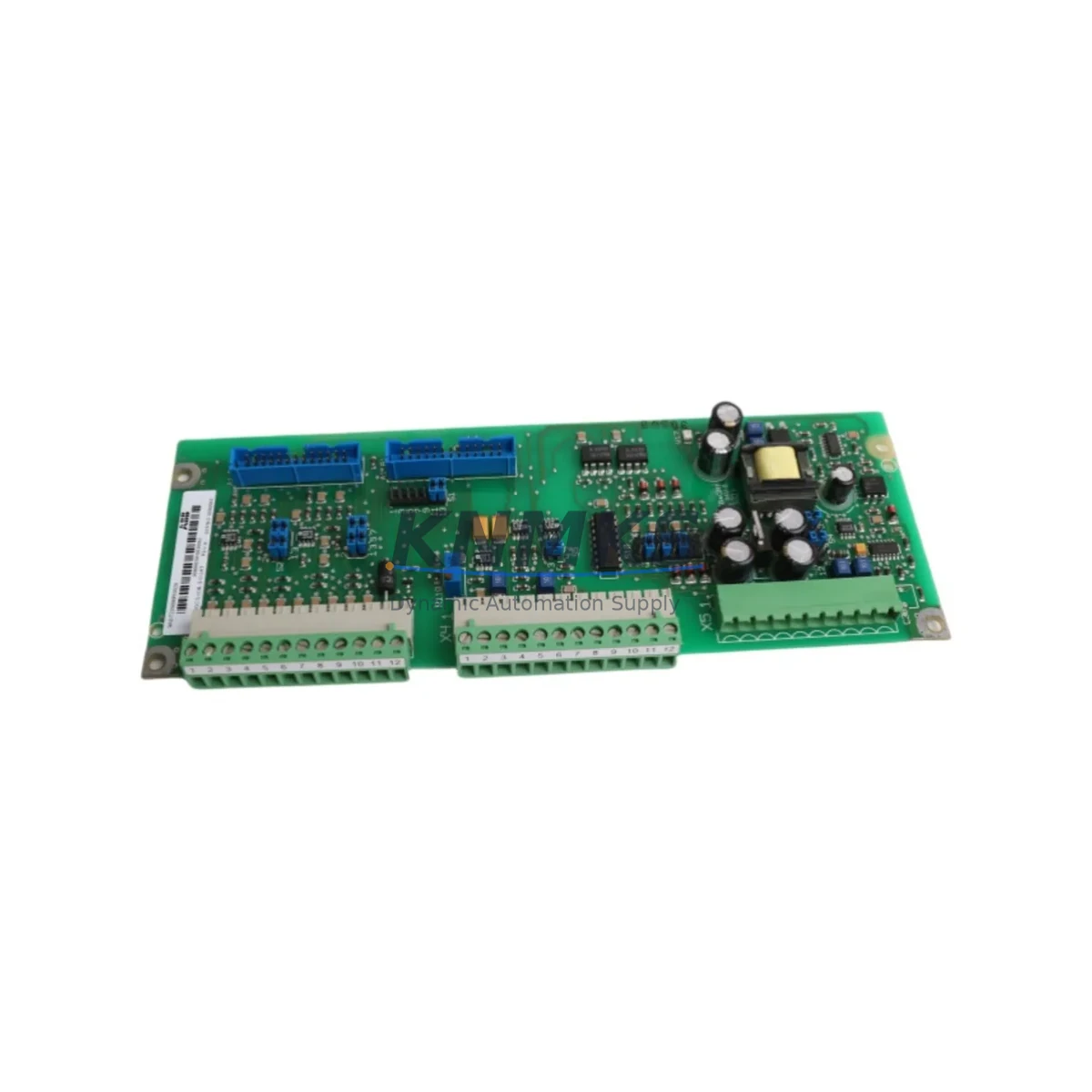

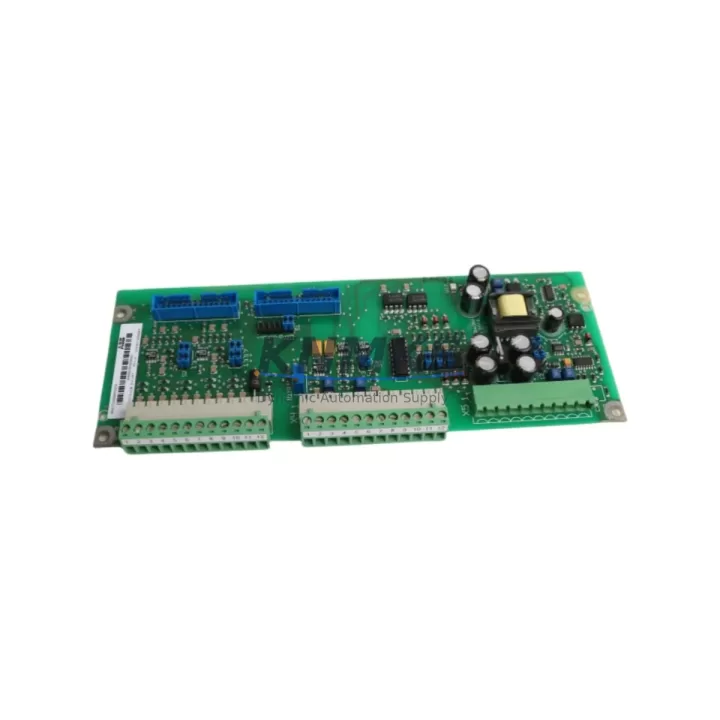

ABB SDCS-IOB-21-COAT Migration-Ready I/O Module for Legacy DCS

Overview

ABB SDCS-IOB-21-COAT Migration-Ready I/O Module for Legacy DCS800 Control Systems

The ABB SDCS-IOB-21-COAT (part number 3ADT220090R0014) is a conformal-coated I/O expansion module engineered for the ABB DCS800 series DC drive platform. As legacy DC drive systems approach end-of-life and spare part availability tightens, the SDCS-IOB-21-COAT has become a critical component in retrofit projects, planned maintenance windows, and emergency replacement scenarios across paper mills, steel processing lines, crane systems, and extruder control cabinets.

This module provides additional analog and digital I/O capacity to the DCS800 drive, interfacing directly with the drive’s internal backplane via the dedicated option slot. Engineers undertaking a control system modernization project will find that the SDCS-IOB-21-COAT integrates without firmware re-flashing in most DCS800 firmware revisions, significantly reducing commissioning time and minimizing unplanned downtime during the changeover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the SDCS-IOB-21-COAT into an existing DCS800-based control system requires a structured pre-installation review. Before removing the legacy I/O board, maintenance engineers should document all active parameter settings using ABB DriveWindow Light or DriveStudio software, saving a full parameter backup to a PC or USB drive. This backup protects the original control logic and eliminates the risk of losing speed reference scaling, torque limit configurations, and PID tuning values accumulated over years of field operation.

Power supply capacity is the first hardware checkpoint. The DCS800’s internal 24 VDC auxiliary supply feeds the option board slot; confirm that the total current draw of all installed option boards — including the SDCS-IOB-21-COAT alongside any SDCS-COM-8 Profibus adapter or SDCS-COM-81 DeviceNet module — does not exceed the drive’s auxiliary supply rating. Overloading the internal supply is a common cause of intermittent faults during post-retrofit commissioning.

Terminal wiring adaptation is the next critical step. The SDCS-IOB-21-COAT uses the same terminal block layout as the SDCS-IOB-21, so existing field cables can typically be re-terminated without re-labeling. However, engineers should verify signal polarity on analog input channels — particularly for 4–20 mA process feedback signals from flow transmitters or tension sensors — and confirm that digital input voltage levels match the module’s 24 VDC logic threshold. If the legacy system used a SDCS-IOB-3 analog I/O board in a different slot configuration, a wiring adapter or re-routing of field cables may be required.

Backplane slot assignment and module address configuration must be confirmed in the DCS800 parameter set. The drive’s parameter group for option board configuration (typically parameter group 98 in DCS800 firmware) must reflect the correct board type in the correct slot. Incorrect slot assignment will cause the drive to fault on startup with an option board configuration error. If the system also includes a SDCS-FEX-2 field excitation module or a SDCS-PIN-51 pulse encoder interface, verify that their slot assignments are not displaced by the new I/O board installation.

HMI screen updates are often overlooked in retrofit planning. If the plant uses an ABB Panel PC or a third-party SCADA system communicating with the DCS800 via Modbus RTU or Profibus DP, the I/O channel addresses exposed to the HMI may shift after the board replacement. Coordinate with the controls engineer to update any HMI tag mappings that reference the I/O expansion channels before returning the drive to automatic operation.

Finally, confirm that the installation space within the control cabinet allows for proper airflow around the DCS800 drive after the option board is installed. The conformal coating on the SDCS-IOB-21-COAT provides additional protection in environments with condensation or chemical vapors, making it the preferred choice for retrofit projects in coastal facilities, food processing plants, or chemical handling areas.

Downtime Control During System Migration

Minimizing production downtime is the primary concern for any maintenance team executing a DCS800 I/O board replacement. A well-prepared retrofit can be completed within a single planned maintenance window — typically two to four hours — if all preparatory steps are completed in advance.

Begin by staging the replacement SDCS-IOB-21-COAT alongside all required tools: a parameter backup file, the DCS800 hardware manual, a laptop with DriveWindow or DriveStudio installed, and a copy of the existing wiring diagram. Confirm that the replacement module has been visually inspected and that the conformal coating is intact with no signs of physical damage from shipping.

During the shutdown sequence, follow the DCS800 safe torque off procedure and isolate the drive from the AC supply before opening the drive cabinet. Remove the legacy I/O board carefully, noting the orientation of any ribbon cables or fiber-optic connections to the DDCS communication link. Install the SDCS-IOB-21-COAT in the same slot, reconnect all field wiring per the documented terminal layout, and restore power to the drive.

On first power-up, the DCS800 will perform an option board detection routine. If the parameter backup was correctly restored, the drive should recognize the new board without requiring manual parameter entry. Run a dry-cycle test — energizing the drive without connecting to the mechanical load — to verify that all I/O channels respond correctly to test signals before resuming production. This step protects both the drive and the connected machinery from unexpected behavior caused by incorrect parameter settings or wiring errors.

For systems where even a brief production interruption is unacceptable, consider pre-configuring a spare DCS800 drive with the SDCS-IOB-21-COAT already installed and parameters pre-loaded, enabling a hot-swap replacement that reduces field exposure time to under 30 minutes.

Retrofit Support FAQ

Q1: Is the SDCS-IOB-21-COAT a direct drop-in replacement for the SDCS-IOB-21?
Yes. The SDCS-IOB-21-COAT is the conformal-coated variant of the SDCS-IOB-21 and is mechanically and electrically identical. It fits the same DCS800 option slot, uses the same terminal block layout, and is recognized by the same firmware parameter settings. No parameter changes are required when replacing SDCS-IOB-21 with SDCS-IOB-21-COAT.

Q2: What commissioning steps are required after installation?
After installing the module and restoring power, restore the parameter backup using DriveWindow or DriveStudio and verify that parameter group 98 correctly identifies the board type and slot. Perform an I/O channel test by applying known test signals to each analog and digital input and confirming the drive’s parameter display reflects the correct values. Check communication link status if a SDCS-COM fieldbus adapter is also installed.

Q3: Does the unit ship pre-tested?
Yes. Each SDCS-IOB-21-COAT unit undergoes functional testing prior to shipment. A test report is available upon request. Units are shipped in anti-static packaging with physical protection to prevent damage during transit. Inspect the module upon receipt and report any shipping damage within 48 hours.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or operation outside the module’s specified environmental ratings. Support requests are processed through our sales team with a fault description and photographic evidence of the defect.
