ABB SDCS-IOB-21 3BSE005176R1 Migration-Ready I/O Board

Overview

ABB SDCS-IOB-21 3BSE005176R1 Migration-Ready I/O Board: Legacy DCS 500 System Retrofit & Upgrade

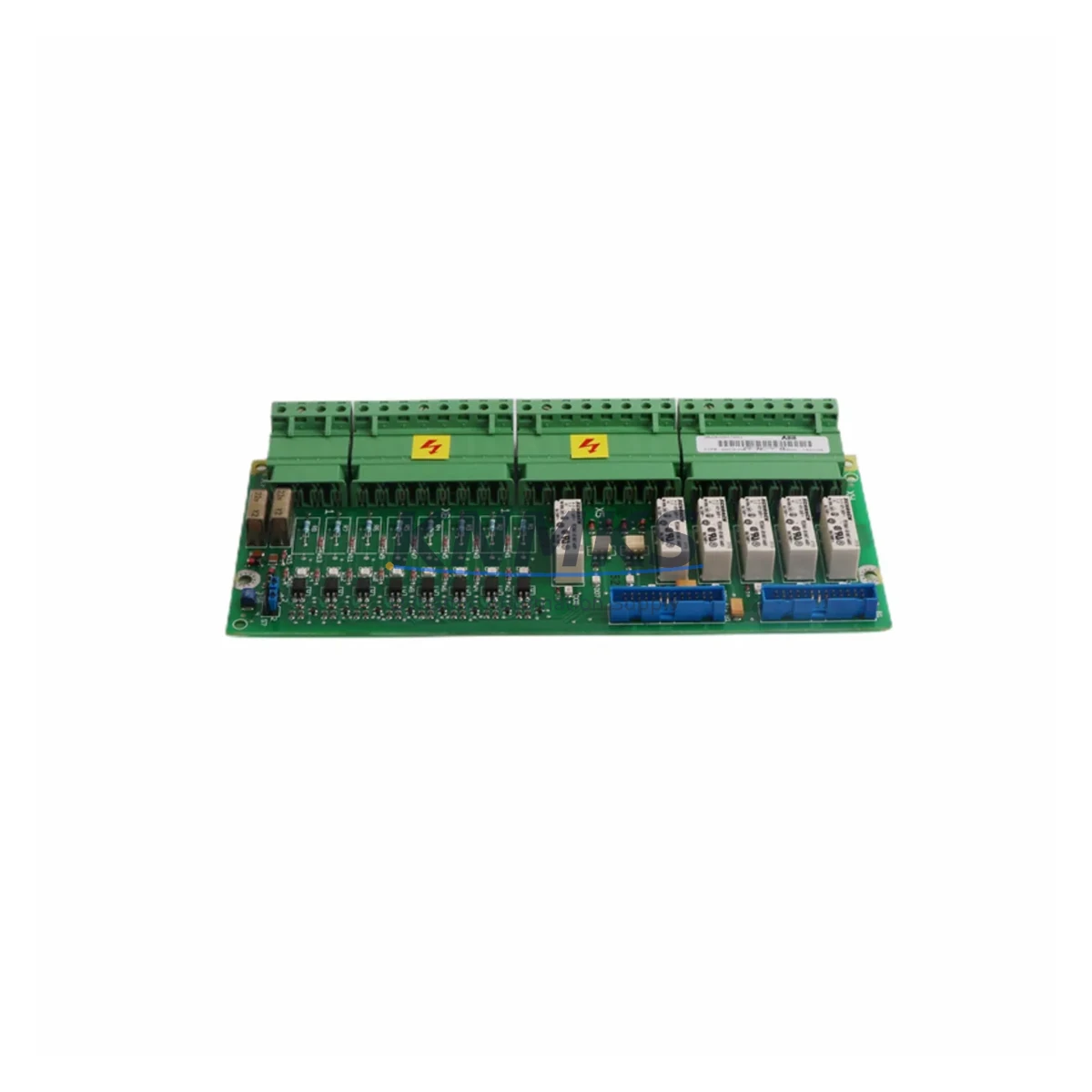

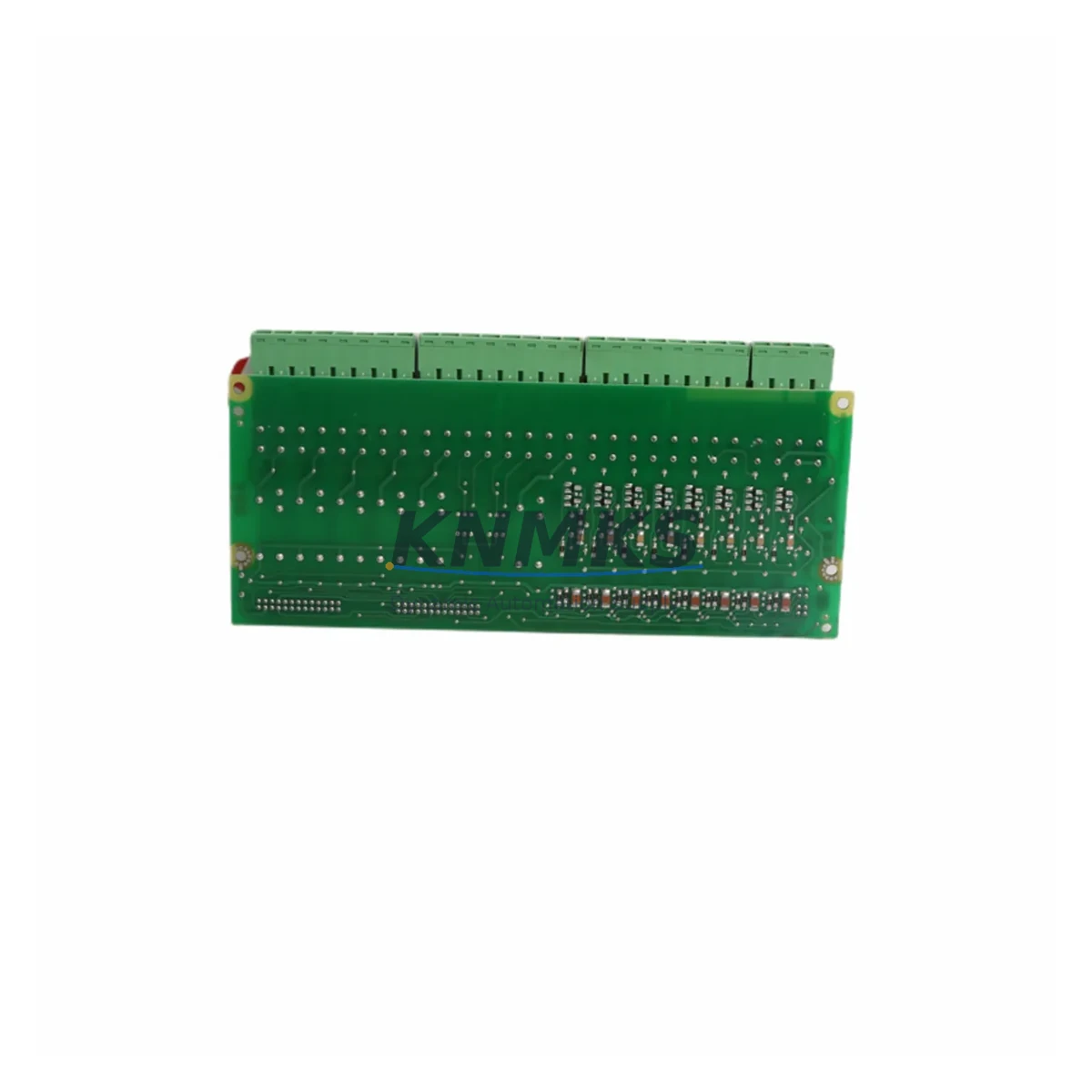

The ABB SDCS-IOB-21 (part number 3BSE005176R1) is a dedicated I/O expansion board engineered for the ABB DCS 500 series DC drive platform. As legacy DCS 500 installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement modules like the SDCS-IOB-21 to extend operational life, bridge the gap to next-generation control architectures, and avoid costly full-system overhauls. Whether you are executing a phased migration from an aging DCS 500 drive cabinet to a modern ACS880 or ACS580 platform, or simply restoring a critical production line with a like-for-like spare, the SDCS-IOB-21 3BSE005176R1 delivers the electrical and functional compatibility your retrofit project demands.

This board provides expanded analog and digital I/O capacity within the DCS 500 drive’s internal slot architecture. It interfaces directly with the SDCS-CON-2 or SDCS-CON-4 main control boards via the drive’s internal ribbon connector, eliminating the need for external signal conditioning in most retrofit scenarios. Engineers replacing a failed or obsolete SDCS-IOB-21 should verify the firmware revision on the host SDCS-CON board, as certain early firmware builds impose I/O mapping constraints that affect channel addressing during commissioning. Confirming firmware compatibility before installation reduces the risk of I/O address conflicts and shortens on-site debugging time significantly.

Terminal wiring on the SDCS-IOB-21 follows the standard DCS 500 I/O terminal block layout. When migrating from an earlier SDCS-IOB-11 or SDCS-IOB-12 variant, technicians must audit the existing field wiring schedule against the 3BSE005176R1 terminal map, as analog input channel assignments and signal reference grounds differ between board revisions. Failure to reconcile these differences before energizing the drive can result in incorrect speed reference scaling or erroneous fault signals propagating to the supervisory PLC — typically a legacy S7-300 or ABB AC500 controller managing the broader production cell.

Power budget verification is a mandatory pre-installation step. The SDCS-IOB-21 draws its operating power from the DCS 500 drive’s internal 24 VDC auxiliary supply rail. In retrofit scenarios where additional I/O modules such as the SDCS-IOB-31 or SDCS-FRA-401 fieldbus adapter have already been installed, the cumulative current draw must be calculated against the drive’s auxiliary supply capacity. Exceeding this budget causes intermittent board resets that are difficult to diagnose in the field and are frequently misattributed to firmware or communication faults.

For installations involving communication protocol migration — for example, transitioning from a legacy PROFIBUS DP link managed by an SDCS-COM-8 adapter to a PROFINET or Modbus TCP architecture — the SDCS-IOB-21 I/O channel configuration must be re-mapped in the drive’s parameter set using DriveWindow or DriveWindow Light. HMI screens built on Panel Builder or third-party SCADA systems referencing legacy I/O tags will require tag remapping to reflect the new channel assignments. Coordinating this remapping activity with the HMI engineering team before the maintenance window opens is critical to minimizing unplanned downtime.

Physical installation requires confirming available slot space within the DCS 500 drive chassis. The SDCS-IOB-21 occupies a dedicated option slot on the SDCS-PIN-51 or SDCS-PIN-48 power interface board assembly. In compact drive enclosures where space is constrained, the board’s connector orientation and ribbon cable routing must be verified against the enclosure layout before ordering. Weight is approximately 340 g, and the board ships in ESD-protective packaging to prevent electrostatic damage during handling and storage.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-IOB-21 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing DCS 500 drive configuration: export the complete parameter set using DriveWindow, document all I/O channel assignments, and photograph the existing terminal wiring before disconnecting any field cables. This documentation becomes the reference baseline for post-installation verification and significantly reduces commissioning time.

In multi-drive installations — common in paper mills, steel processing lines, and water treatment facilities — the SDCS-IOB-21 replacement is often performed alongside broader control cabinet upgrades. Engineers frequently encounter scenarios where the DCS 500 drive communicates with a legacy S7-300 or AC500 PLC via PROFIBUS DP through an SDCS-COM-8 adapter. If the migration roadmap includes transitioning this communication link to PROFINET, the SDCS-IOB-21 installation should be sequenced after the PLC communication module upgrade to avoid a double-outage scenario.

Signal isolation is another consideration in aging control cabinets. Where field sensors connect to the SDCS-IOB-21 analog inputs via long cable runs, installing signal isolators between the field junction box and the drive terminal block reduces common-mode noise pickup — a frequent source of nuisance faults in retrofitted systems. Similarly, if the existing installation uses a SDCS-FRA-401 resolver feedback adapter alongside the I/O board, verify that the resolver cable shielding and grounding scheme meets the DCS 500 installation guidelines to prevent speed feedback interference after the board swap.

For sites where the DCS 500 drive interfaces with an operator panel or HMI — whether a legacy CDP312 control panel or a modern touchscreen running Panel Builder — the I/O channel remapping performed in DriveWindow must be reflected in the HMI tag database before the system is returned to service. Overlooking this step results in HMI displays showing incorrect process values, which can trigger unnecessary operator interventions during the post-retrofit trial run.

Finally, if the retrofit scope includes replacing the SDCS-CON-2 control board with the newer SDCS-CON-4 variant to gain access to expanded parameter sets and improved diagnostics, the SDCS-IOB-21 3BSE005176R1 is fully compatible with both control board generations, making it a future-proof choice for phased upgrade programs.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS 500 I/O board replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, the engineering team should complete the following: export and archive the full drive parameter set, document all field wiring terminations with photographs and a written schedule, confirm the replacement SDCS-IOB-21 3BSE005176R1 has been bench-tested and powered up in a workshop environment, and brief the operations team on the expected outage duration and restart sequence.

During the board swap, the original program logic stored in the SDCS-CON control board’s non-volatile memory is preserved — the SDCS-IOB-21 replacement does not erase drive parameters. However, any I/O channel assignments that differ between the old and new board revisions must be corrected in the parameter set before the drive is re-energized. Using DriveWindow to compare the pre-outage parameter export against the post-installation parameter read is the fastest method to identify and correct any discrepancies.

For critical production lines where even a brief unplanned stop carries significant financial consequences, maintaining a pre-configured spare SDCS-IOB-21 3BSE005176R1 in the site’s spare parts inventory is the most effective downtime mitigation strategy. A pre-configured spare — with I/O channel parameters already loaded and verified — can reduce the board swap and recommissioning time to under two hours in most DCS 500 installations, compared to four to eight hours for a cold-start commissioning from a factory-default board.

After the board is installed and the drive is re-energized, a structured functional test sequence should be executed before returning the drive to automatic control: verify all analog input readings against field instrument values, confirm digital input and output states match the control system’s expected logic states, perform a no-load speed reference ramp test, and check communication link status on the SDCS-COM-8 or equivalent fieldbus adapter. Only after all functional checks pass should the drive be handed back to the operations team for production restart.

Retrofit Support FAQ

Q: Is the SDCS-IOB-21 3BSE005176R1 a direct drop-in replacement for the SDCS-IOB-11 and SDCS-IOB-12?
A: The SDCS-IOB-21 is functionally compatible with DCS 500 drives that previously used the SDCS-IOB-11 or SDCS-IOB-12, but it is not a pin-for-pin electrical identical replacement. Technicians must audit the terminal wiring schedule and update I/O channel parameter assignments in DriveWindow before returning the drive to service. The physical connector and slot interface are compatible across all three board variants.

Q: What commissioning steps are required after installing the SDCS-IOB-21?
A: After physical installation, connect DriveWindow or DriveWindow Light to the drive’s RS-232 or USB service port. Restore the archived parameter set, verify I/O channel assignments against the field wiring schedule, perform a no-load functional test of all analog and digital channels, and confirm communication link status. Document the post-installation parameter set as the new baseline for future maintenance reference.

Q: Does the board ship tested, and what support terms coverage is provided?
A: Yes. Every SDCS-IOB-21 3BSE005176R1 unit is powered up and functionally tested before shipment. The board is covered by a support terms confirmed by quotation against manufacturing defects and functional failures under normal operating conditions. Support requests are supported by our technical team at admin@knmks.com.

Q: What is the typical lead time and inventory availability?
A: We maintain stock of the SDCS-IOB-21 3BSE005176R1 for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for domestic shipments. For urgent requirements or bulk orders, contact our team directly at admin@knmks.com or +86 18359268345 to confirm current inventory levels and expedited shipping options.
