ABB SDCS-FEX-2A Migration-Ready Field Excitation for Legacy Control Systems

Overview

ABB SDCS-FEX-2A Migration-Ready Field Excitation for Legacy Control Systems

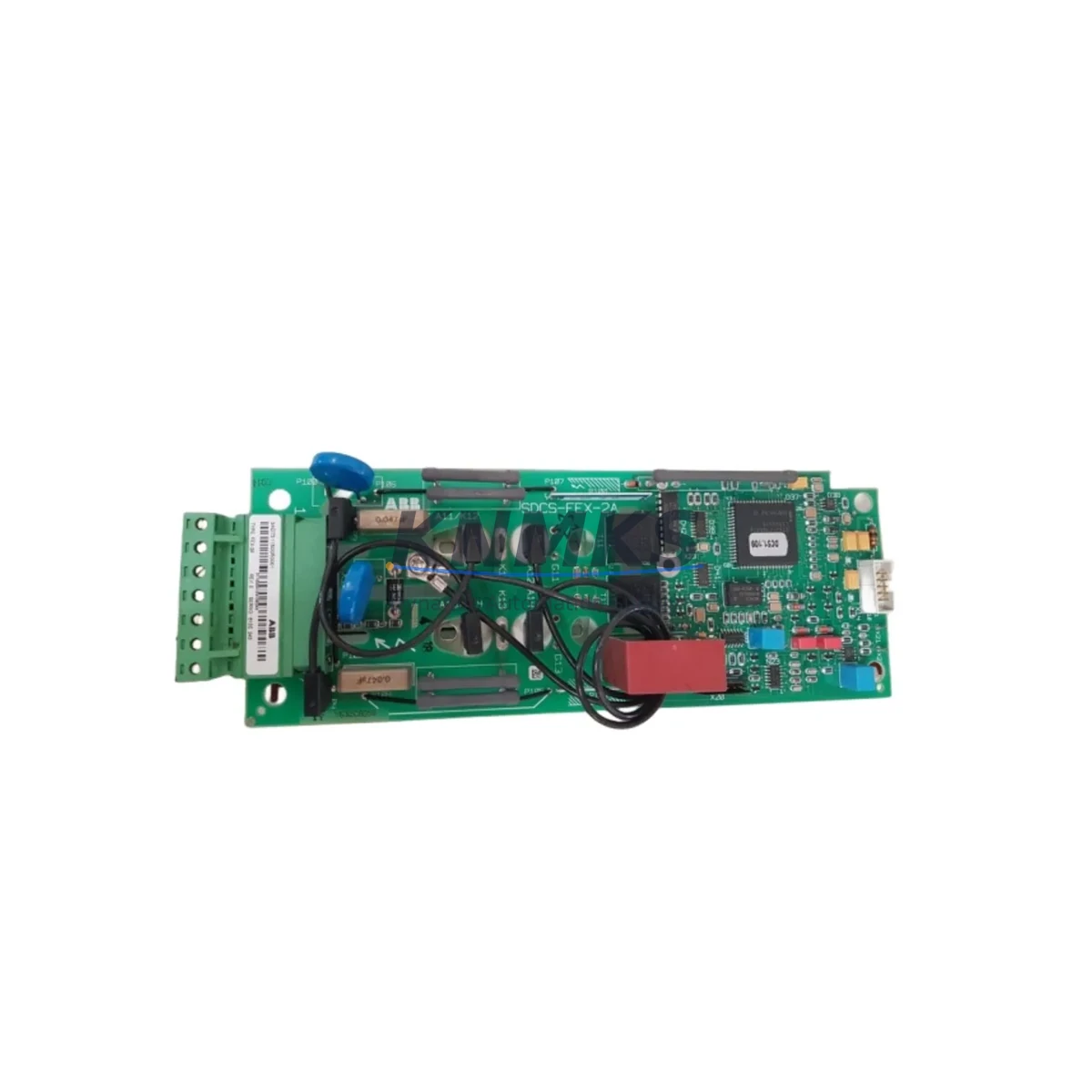

The ABB SDCS-FEX-2A (part number 3ADT311500R0001) is a field excitation board engineered for the DCS800 and DCS400 series DC drive platforms. As aging DC drive systems approach end-of-support milestones, the SDCS-FEX-2A has become a critical spare part and retrofit component for facilities operating legacy control cabinets in petrochemical plants, steel mills, paper mills, port crane systems, and continuous process lines where unplanned downtime carries significant operational cost.

This board governs the field current regulation of DC motors, directly influencing motor flux, speed stability, and torque response. In retrofit and upgrade scenarios, engineers must verify that the replacement SDCS-FEX-2A matches the original field voltage rating, field current range, and firing angle control logic of the host drive. The board interfaces with the SDCS-CON-2 or SDCS-CON-4 control boards via the internal backplane connector, and any mismatch in firmware revision between the excitation board and the main control board can result in field weakening errors or drive fault codes at startup.

Before installation, technicians should confirm the field winding resistance and inductance of the connected DC motor to ensure the SDCS-FEX-2A’s output current range is appropriate. Terminal block wiring for the field output (F+ / F−) must be re-verified against the original drive schematic, particularly in cases where the legacy system used an external field suppression resistor or a separate field contactor. In older DCS400 installations, the field excitation circuit was sometimes routed through an auxiliary relay panel; this external wiring must be preserved or adapted during the upgrade to avoid field loss faults.

For sites migrating from earlier ABB Mentor II or Eurotherm 590 DC drive platforms to the DCS800 architecture, the SDCS-FEX-2A is typically installed as part of a broader control board stack that includes the SDCS-CON-4 main control board, the SDCS-PIN-51 power interface board, and the SDCS-DSL-4 serial link board for DDCS fiber-optic communication. Ensuring that all boards in the stack share a compatible firmware baseline is essential before commissioning. The DriveWindow Light 2 software tool is used to upload and verify parameter sets, and engineers should back up the existing parameter file from the original drive before any board replacement begins.

In multi-drive systems where several DCS800 units share a common DC bus or are coordinated through an AC800M controller via PROFIBUS-DP or Modbus RTU, replacing the SDCS-FEX-2A requires careful attention to the drive’s node address settings and the master-follower configuration stored in parameter group 50. Failure to restore these settings after board replacement can disrupt coordinated speed or torque control across the drive line, leading to process upsets that extend well beyond the drive cabinet being serviced.

Installation space within the DCS800 cabinet is fixed, and the SDCS-FEX-2A is a direct plug-in replacement that does not require mechanical modification of the drive chassis. However, engineers working on older cabinets should inspect the backplane connector pins for corrosion or mechanical wear before seating the new board, as poor backplane contact is a common root cause of intermittent field excitation faults in drives that have been in service for more than ten years.

Each SDCS-FEX-2A unit supplied by KNMKS undergoes pre-shipment functional testing under load conditions to verify field current regulation accuracy, thermal performance, and fault detection response. Units are shipped with full anti-static packaging and are accompanied by a test report. A support terms confirmed by quotation cover all supplied boards against manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-FEX-2A retrofit begins with a full audit of the existing drive cabinet. Engineers should document the current firmware versions of the SDCS-CON-4 control board and the SDCS-PIN-51 power interface board before ordering the replacement excitation board. If the site is also upgrading the SDCS-CON board as part of the same maintenance window, both boards should be sourced together to ensure firmware compatibility and reduce the number of separate commissioning events.

In plants where the DCS800 communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, the drive’s node address and baud rate must be recorded and restored after the board swap. The SDCS-DSL-4 serial link board retains communication parameters in non-volatile memory, but a full parameter restore from the DriveWindow backup file is recommended to avoid any configuration drift. For sites using an ABB AC800M controller with a CI854 PROFIBUS interface module, the drive’s GSD file and hardware configuration in Control Builder M should be reviewed to confirm that the field excitation status signals are correctly mapped to the controller’s I/O database.

Where the legacy installation includes an external field suppression resistor connected across the F+ / F− terminals, this component must be retained during the retrofit. Removing it without adjusting the field current ramp-down parameters in the SDCS-FEX-2A can cause voltage spikes that damage the motor field winding insulation. Similarly, if the original system used a separate field contactor controlled by the drive’s digital output relay, the contactor wiring and the associated parameter settings in the DCS800 must be preserved.

For multi-motor systems where a single DCS800 master drive coordinates several follower drives via the DDCS fiber-optic link, the master-follower parameter group must be re-verified after any board replacement in the master drive. The SDCS-DSL-4 board in the master drive manages the DDCS link, and its configuration must be consistent with the follower drives’ SDCS-CON board settings to maintain coordinated torque or speed control across the drive line.

Downtime Control During System Migration

Minimizing downtime during an SDCS-FEX-2A replacement requires advance preparation. The replacement board should be on-site and pre-tested before the maintenance window begins. A full parameter backup from the existing drive should be completed using DriveWindow Light 2 and stored on a dedicated commissioning laptop that will be available at the time of the swap. The backup file should include all parameter groups, including the field excitation parameters in group 44 and the motor data in group 99.

During the board swap, the drive must be fully de-energized and locked out in accordance with site LOTO procedures. The field winding circuit should be discharged before disconnecting the F+ / F− terminals. After installing the new SDCS-FEX-2A, the parameter file should be restored before powering up the drive, and the field current should be verified at no-load before reconnecting the motor to the process. A controlled ramp-up sequence, starting at reduced speed and gradually increasing to full operating speed, allows the commissioning engineer to confirm stable field regulation before returning the drive to automatic control.

For critical process lines where even a brief interruption is costly, a hot-standby spare SDCS-FEX-2A board should be maintained in the site’s spare parts inventory. KNMKS maintains stock of the SDCS-FEX-2A and can support emergency shipment requirements for sites with urgent replacement needs. All boards are shipped from verified stock with pre-shipment test documentation, reducing the risk of receiving a non-functional unit during a critical maintenance event.

Retrofit Support FAQ

Q: Is the SDCS-FEX-2A a direct replacement for the original ABB field excitation board in the DCS800?
A: Yes. The SDCS-FEX-2A (3ADT311500R0001) is the standard field excitation board for the DCS800 and DCS400 series and is a direct plug-in replacement. No mechanical modification to the drive chassis is required. Firmware compatibility with the installed SDCS-CON board should be verified before commissioning.

Q: What commissioning steps are required after installing the SDCS-FEX-2A?
A: After installation, restore the full parameter set from a DriveWindow Light 2 backup file. Verify field current at no-load, confirm fault-free operation at reduced speed, and then ramp to full operating speed. Check that all field excitation status signals are correctly received by the supervisory PLC or DCS before returning the drive to automatic control.

Q: Can the SDCS-FEX-2A be used in a system migrating from an ABB Mentor II or Eurotherm 590 DC drive?
A: The SDCS-FEX-2A is specific to the DCS800 and DCS400 platforms. For migrations from Mentor II or Eurotherm 590 systems, the entire drive control board stack — including the SDCS-CON-4, SDCS-PIN-51, and SDCS-FEX-2A — must be installed as part of the platform upgrade. Terminal wiring and field circuit components from the legacy system must be adapted to the DCS800 wiring conventions.

Q: What support terms and testing documentation is provided with the SDCS-FEX-2A?
A: Each unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. A pre-shipment functional test report is included with every unit, confirming field current regulation accuracy, thermal performance, and fault detection response. Units are shipped in anti-static packaging suitable for long-distance transport.
