ABB SDCS-FEX-2A 3ADT311500R1 Fail-Safe Field Excitation: Critical Protection for Industrial DC Drive Reliability

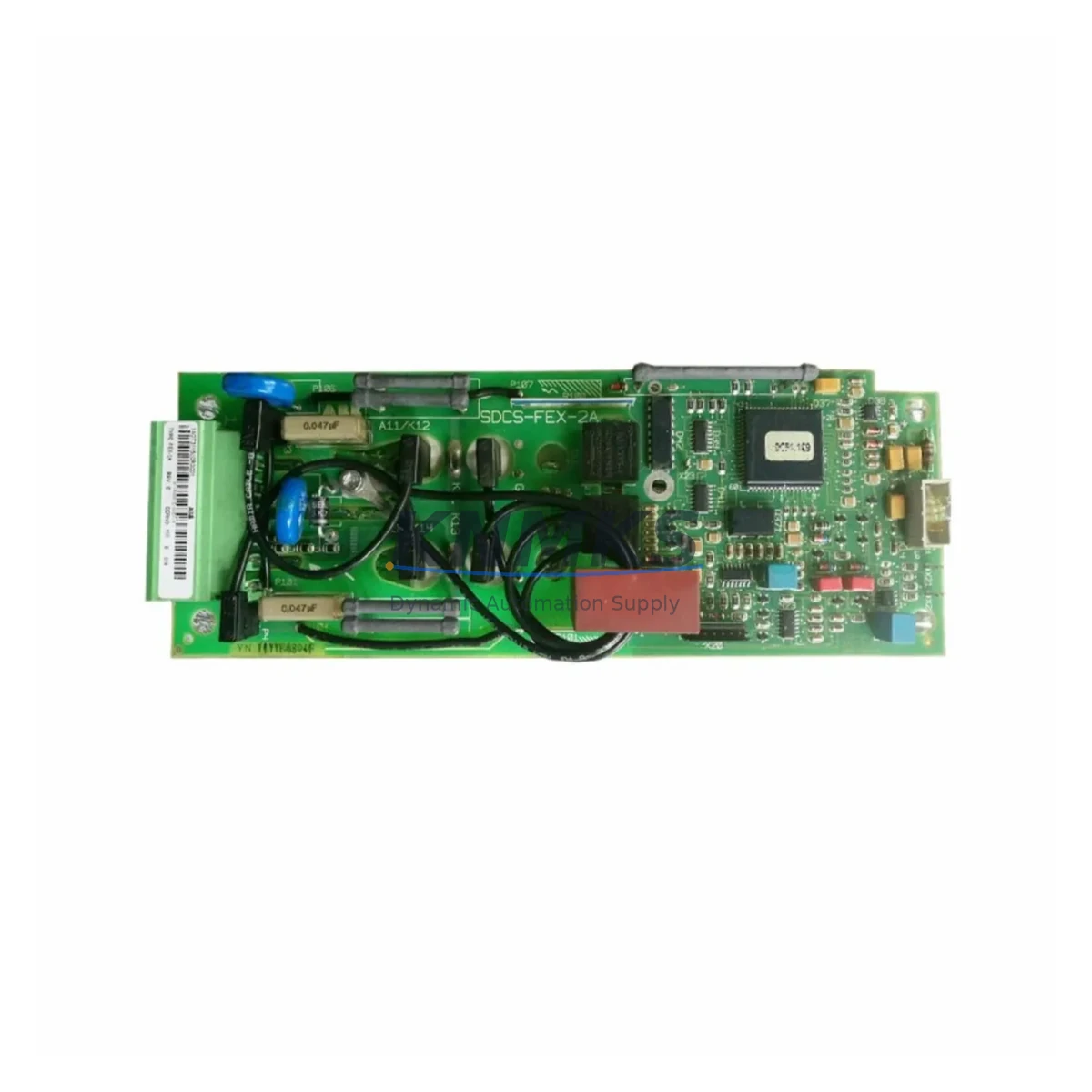

The ABB SDCS-FEX-2A (3ADT311500R1) is a precision-engineered field excitation module designed for ABB DCS800 series DC drives, delivering fail-safe armature and field current regulation in the most demanding continuous production environments. In heavy industrial settings — where unplanned downtime translates directly to production loss, safety incidents, and costly recovery — the SDCS-FEX-2A provides the control loop stability and fault-tolerant architecture that critical drive systems require.

Engineered to ABB’s industrial-grade standards, this module governs the field winding current of DC motors with high precision, ensuring stable torque output and preventing field loss events that can cause motor runaway, mechanical shock, or process interlock trips. Its robust design addresses the full spectrum of field-side failure modes: signal drift under thermal stress, surge transients from switching loads, communication anomalies in noisy cabinet environments, and degraded performance in high-humidity or dust-laden atmospheres.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected DCS800 drive cabinet, the SDCS-FEX-2A does not operate in isolation — it is one critical node in a coordinated protection architecture. The SDCS-PIN-48 power interface board provides the regulated auxiliary supply rails that the field excitation circuit depends on; any instability in that supply propagates directly to field current accuracy. Alongside it, the SDCS-CON-4 control board manages the closed-loop speed and torque algorithms, relying on accurate field feedback from the SDCS-FEX-2A to maintain dynamic response without overshoot or field weakening errors.

On the power input side, the SDCS-POW-4 power supply board conditions incoming AC to the stable DC rails required by the drive’s control electronics. In environments with significant voltage fluctuation or harmonic distortion — common in heavy industrial facilities with large motor loads — this upstream conditioning is essential to prevent the field excitation module from receiving corrupted supply that could cause field current instability or nuisance trips.

For communication integrity in multi-drive or PLC-integrated systems, the RDCO-03 DDCS fiber optic communication module isolates the DCS800’s control bus from ground loops and conducted EMI, protecting the field regulation loop from externally induced signal corruption. In safety-critical interlocks — such as emergency stop circuits in mining hoists, crane drives, or steel mill rolling lines — this communication isolation is not optional; it is a fundamental requirement for SIL-compliant control architecture.

Finally, where the drive cabinet is exposed to high ambient temperatures or restricted airflow, the SDCS-FEX-2A should be paired with verified thermal management components, including cabinet cooling units and temperature monitoring relays, to ensure the field excitation module operates within its rated thermal envelope and does not experience premature component aging that could lead to field loss during peak production cycles.

Critical Industrial Safety Applications

The SDCS-FEX-2A 3ADT311500R1 is deployed across the most demanding sectors of continuous and safety-critical industrial production:

Petrochemical & Refinery Plants: In hazardous area drive systems controlling compressors, pumps, and agitators, field loss is not merely a production event — it is a safety event. The SDCS-FEX-2A’s stable field regulation prevents uncontrolled motor deceleration that could trigger pressure surges or process upsets in closed-loop chemical processes.

Electric Power Generation & Transmission: Excitation control in auxiliary drive systems at power stations demands zero-drift field regulation. The SDCS-FEX-2A supports reliable operation of coal handling conveyors, cooling water pumps, and fuel feed systems where a field excitation fault can cascade into unit derating or forced outage.

Mining & Mineral Processing: Hoist drives, conveyor drives, and crusher drives in underground and open-cut mining operate under extreme mechanical shock and vibration. The SDCS-FEX-2A’s robust construction and surge-tolerant field circuit maintain reliable torque control even when the drive cabinet is subject to blast vibration or heavy equipment-induced ground movement.

Water & Wastewater Treatment: Pump drive systems in water treatment facilities run continuously, often unattended. Field excitation faults in these applications can cause pump runaway or loss of flow control, with direct consequences for treatment process integrity and regulatory compliance. The SDCS-FEX-2A’s fail-safe design minimizes unplanned stops in these critical utility systems.

Metallurgy & Steel Mills: Rolling mill main drives and coiler drives require precise field control to maintain strip tension and thickness tolerances. The SDCS-FEX-2A delivers the current regulation accuracy and thermal stability needed for multi-stand tandem mill applications where field excitation errors translate directly to product quality defects and scrap generation.

Port Cranes & Marine Applications: Container crane drives and ship propulsion auxiliary systems operate in high-humidity, salt-laden environments with significant EMI from power electronics. The SDCS-FEX-2A’s EMI-resistant design and corrosion-tolerant construction support reliable field excitation in these coastal and marine installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the SDCS-FEX-2A 3ADT311500R1?
Every SDCS-FEX-2A 3ADT311500R1 supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our support terms process is straightforward: contact [email protected] with your order reference and fault description, and we will arrange replacement or repair without unnecessary delay.

Q2: How is each unit tested before shipment?
All SDCS-FEX-2A modules undergo 100% pre-shipment functional testing before dispatch. Testing verifies field excitation output, current regulation accuracy, and communication interface integrity. Units that do not meet specification are quarantined and not shipped. You receive a tested, verified module — not a shelf-pulled untested spare.

Q3: Is this module a direct drop-in replacement for the original ABB SDCS-FEX-2A in DCS800 drives?
Yes. The SDCS-FEX-2A 3ADT311500R1 is the correct OEM part number for DCS800 series field excitation replacement. It is a direct mechanical and electrical replacement — same connector pinout, same mounting footprint, same firmware interface. No drive parameter changes are required for a like-for-like swap in a correctly configured DCS800 system.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated inventory of SDCS-FEX-2A 3ADT311500R1 to support planned maintenance programs, emergency breakdown response, and multi-site spare parts standardization. We support customers with standing purchase agreements and priority allocation for critical infrastructure operators. Contact [email protected] to discuss supply continuity arrangements for your maintenance program.
