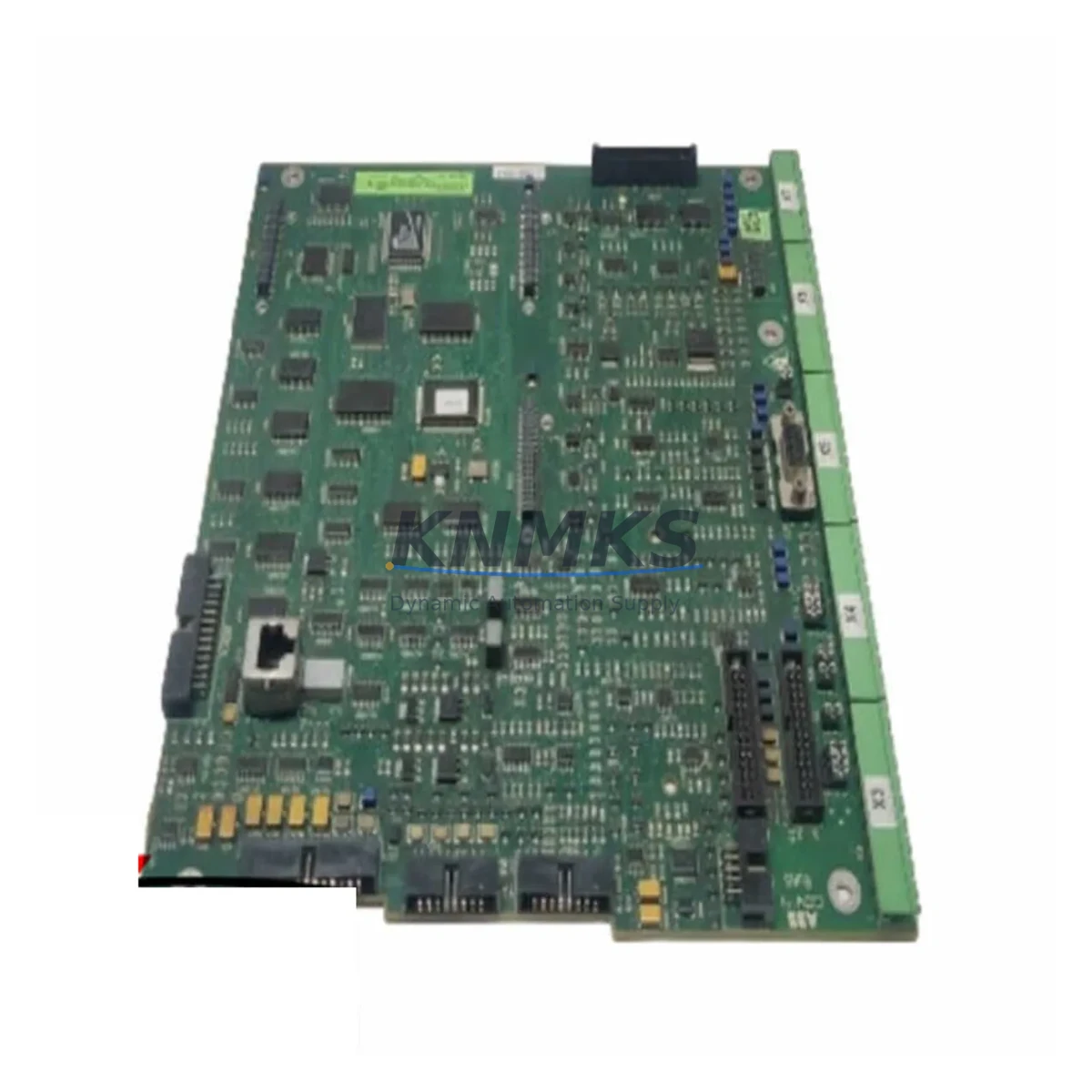

ABB SDCS-CON4 Migration-Ready DC Drive Control Board

Overview

ABB SDCS-CON4 Migration-Ready DC Drive Control Board: Legacy System Migration and Compatible Upgrade

The ABB SDCS-CON4 is a migration-ready DC drive control board engineered for direct replacement within the ABB DCS800 series DC drive platform. Designed to address the growing demand for legacy system modernization, this control board enables engineers and maintenance teams to restore full drive functionality without requiring a complete drive cabinet overhaul. Whether you are managing a planned retrofit or responding to an unplanned failure on a legacy DC drive line, the SDCS-CON4 provides a verified, drop-in compatible solution backed by support terms confirmed by quotation coverage and pre-shipment functional testing.

As industrial facilities continue to operate aging DC drive infrastructure — particularly systems built around the ABB DCS500, DCS600, and DCS800 series — the SDCS-CON4 serves as a critical spare part and upgrade path component. Its compatibility with the DCS800 control architecture means that existing terminal wiring, backplane connectors, and fieldbus communication links can be retained during the replacement process, significantly reducing downtime and re-commissioning effort on the plant floor.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the SDCS-CON4 into an existing DC drive system requires a structured retrofit plan that accounts for both hardware compatibility and software continuity. Before initiating the board swap, maintenance engineers should retrieve and back up the full parameter set from the existing DCS800 drive using the ABB Drive Composer or the CDP control panel. This ensures that motor tuning data, speed reference scaling, current limits, and protection thresholds are preserved and can be reloaded onto the replacement board without requiring a full recommissioning cycle from scratch.

On the hardware side, the SDCS-CON4 interfaces directly with the DCS800 backplane, meaning the existing SDCS-PIN-48 I/O terminal board and SDCS-FEX-2 field excitation board can remain in place during the control board replacement. This is a significant advantage in retrofit scenarios where cabinet space is constrained and rewiring would introduce additional risk. Engineers should inspect the SDCS-PIN-48 terminal connections for corrosion or loose terminations before reinstalling, as degraded signal integrity at the I/O layer can cause erratic behavior even with a new control board installed.

For drives operating within a larger automation network — for example, those receiving speed references from a Siemens S7-300 PLC or communicating status data to a SCADA system via Profibus — the communication adapter configuration must be verified post-swap. If the drive uses an RDCO-02 DDCS communication adapter or a RPBA-01 Profibus adapter, these option modules should be reseated and their node addresses confirmed against the network topology documentation. Failure to verify fieldbus node addressing is one of the most common causes of extended commissioning time during DC drive control board replacements.

In multi-drive systems where several DCS800 units share a common DC bus or operate in master-follower torque control configurations, the SDCS-CON4 replacement must be coordinated with the broader drive group. The master drive’s parameter set governs follower behavior, and any mismatch in firmware version or parameter structure between the replacement board and the remaining drives in the group can cause instability during startup. It is recommended to align firmware versions across all drives in the group before returning the system to production.

Signal isolators installed between the DCS800 and external PLC analog I/O cards should also be checked during the retrofit. Aging signal conditioning hardware can introduce offset errors that are masked by a faulty control board but become apparent once a new, properly functioning SDCS-CON4 is installed. Addressing these upstream signal quality issues during the planned retrofit window avoids secondary fault investigations after the system returns to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a DC drive control board in a live production environment. The SDCS-CON4 is pre-tested prior to shipment, which eliminates the risk of receiving a defective replacement unit and allows maintenance teams to proceed directly to installation without incoming inspection delays. Each unit is verified for basic functionality against DCS800 platform specifications before dispatch.

To further compress the replacement window, engineers should prepare a pre-swap checklist that includes: confirming the drive is fully de-energized and DC bus voltage has discharged to safe levels; photographing existing wiring and option module positions; backing up the parameter set via CDP panel or Drive Composer; and staging all required tools and ESD protection equipment at the work site before the maintenance window begins.

Once the SDCS-CON4 is installed and the drive is re-energized, the parameter restore sequence should follow ABB’s recommended procedure for the DCS800 platform: restore parameters, verify motor data, run the motor identification routine if required, and perform a no-load test run before reconnecting the mechanical load. This structured approach protects the original program logic, preserves HMI screen variable mappings, and ensures that the control system returns to its pre-fault operating state with minimal risk of process disruption.

For facilities operating continuous processes where even brief interruptions carry significant cost, maintaining a stocked spare SDCS-CON4 unit on-site is strongly recommended. Given the long lifecycle of DCS800 installations — many of which have been in service for 15 to 20 years — the availability of verified spare control boards is a key element of any spare parts lifecycle management program. KNMKS maintains global inventory of the SDCS-CON4 to support both planned maintenance schedules and emergency breakdown response.

Retrofit Support FAQ

Q: Is the SDCS-CON4 a direct replacement for the original ABB DCS800 control board?
A: Yes. The SDCS-CON4 is designed as a direct drop-in replacement for the DCS800 series control board slot. No mechanical modification to the drive cabinet is required. Existing terminal wiring, backplane connections, and option modules can be retained. Parameter backup and restore is required to return the drive to its original operating configuration.

Q: What commissioning steps are required after installing the SDCS-CON4?
A: After installation, restore the backed-up parameter set using the CDP panel or ABB Drive Composer. Verify motor data entries, confirm fieldbus node addresses if applicable, and perform a no-load test run before reconnecting the mechanical load. If a motor identification run was previously performed, it may need to be repeated depending on the firmware state of the replacement board.

Q: How is the SDCS-CON4 tested before shipment?
A: Each SDCS-CON4 unit undergoes pre-shipment functional testing to verify board-level operation against DCS800 platform specifications. This testing is designed to confirm that the unit is free from manufacturing defects and ready for installation upon receipt, reducing on-site commissioning risk and compressing the maintenance window.

Q: What support terms coverage is provided with the SDCS-CON4?
A: All SDCS-CON4 units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Support terms support includes technical assistance for installation and commissioning questions. Global stock availability ensures rapid dispatch to support both planned retrofit projects and emergency breakdown situations.
