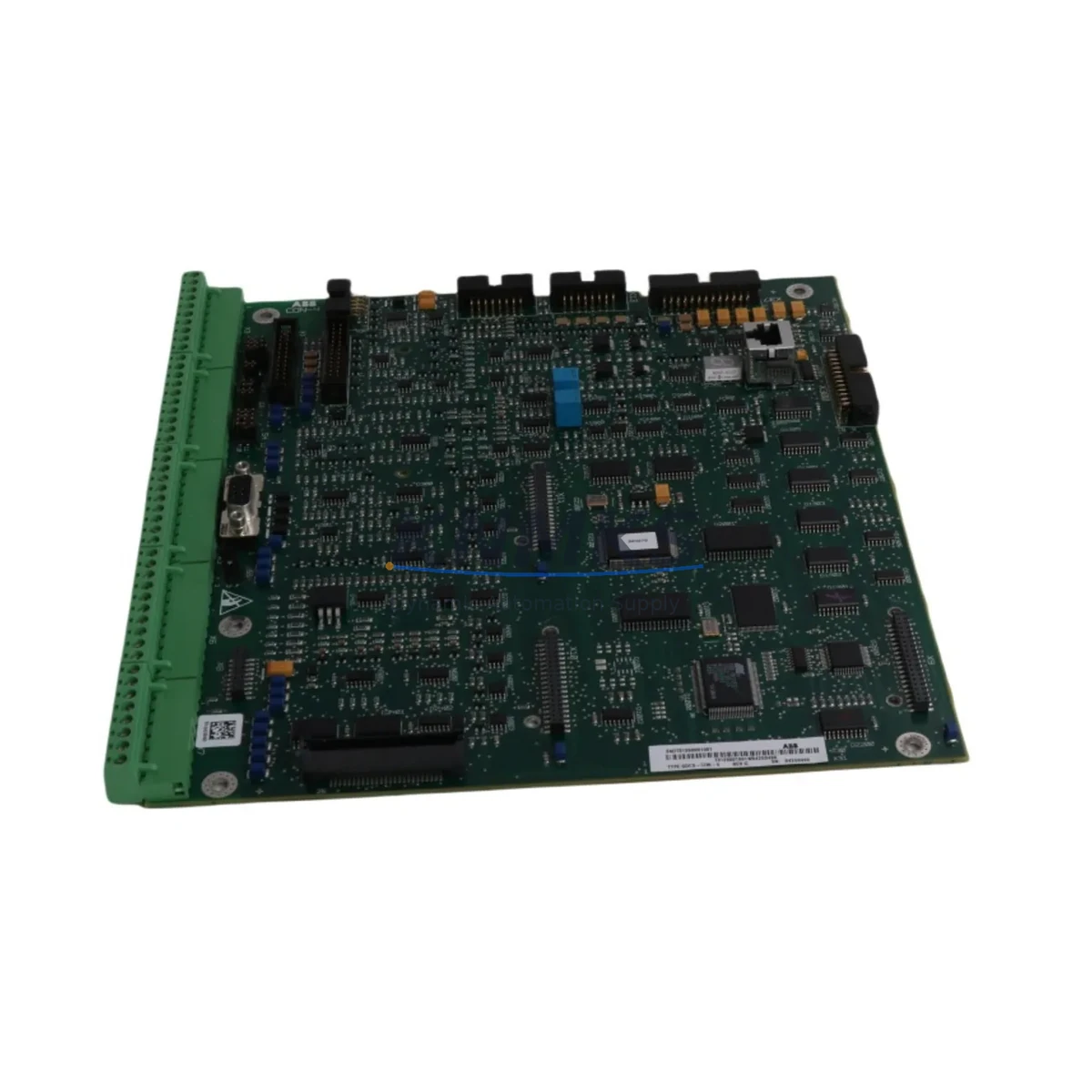

ABB SDCS-CON2B COAT Migration-Ready DC Drive Control Board

Overview

ABB SDCS-CON2B COAT Migration-Ready DC Drive Control Board for Legacy Control Systems

The ABB SDCS-CON2B COAT is a conformal-coated control board engineered for the DCS800 series of DC drives, one of ABB’s most widely deployed DC drive platforms in heavy industrial environments. As legacy DCS500 and DCS600 installations reach end-of-service milestones, the SDCS-CON2B COAT has become a critical migration component for engineers tasked with upgrading aging DC drive cabinets without full system replacement. Its conformal coating provides enhanced protection against humidity, dust, and corrosive atmospheres — a key requirement in steel mills, paper machines, marine propulsion systems, and chemical processing plants where environmental exposure accelerates board degradation.

KNMKS maintains verified in-stock inventory of the SDCS-CON2B COAT to support urgent retrofit projects and planned maintenance windows. Each unit is function-tested prior to shipment and covered by a support terms confirmed by quotation, giving maintenance teams the confidence to proceed with controlled replacement rather than emergency sourcing under production pressure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-CON2B COAT retrofit begins well before the physical board swap. Maintenance engineers should start by exporting the full parameter set from the existing DCS800 drive using DriveWindow Light 2 or DriveStudio. This backup preserves motor tuning data, speed reference scaling, torque limits, and fieldbus node addressing — all of which must be restored after the new board is seated and powered.

In multi-drive cabinet configurations, the SDCS-CON2B COAT typically operates alongside the SDCS-POW1 or SDCS-POW1C power supply board, which provides the regulated DC supply rails to the control board. Before replacement, verify that the power board is delivering correct voltages on the X1 connector; a degraded power board can cause repeated control board failures and should be inspected or replaced concurrently. Similarly, the SDCS-FEX2 field excitation board, where fitted, must be checked for compatibility with the replacement control board’s firmware revision.

For installations using PROFIBUS-DP communication, the SDCS-COM8 fieldbus adapter module connects to the control board’s option slot. During migration, confirm that the PROFIBUS master (typically a Siemens S7-300/400 PLC or equivalent) retains the correct GSD file and node address assignment for the DCS800 drive. If the site is migrating from a legacy DCS500 platform, the fieldbus configuration will require re-mapping, as DCS500 and DCS800 use different process data object (PDO) structures.

I/O wiring to the SDCS-CON2B COAT’s terminal blocks (X2 analog inputs, X3 digital inputs, X4 digital outputs) should be documented and photographed before disconnection. Analog speed reference signals (typically 0–10 V or 4–20 mA) and digital run/stop commands must be verified against the new board’s default I/O configuration. In some retrofit scenarios, signal isolators are inserted between the PLC output cards and the drive terminals to prevent ground loop interference — particularly relevant when the control cabinet is located at distance from the drive enclosure.

Where the existing installation includes an ABB Panel Bus or ACS/DCS HMI panel (such as the CDP312R or ACS-CP-C control panel), verify that the panel firmware is compatible with the DCS800 firmware version loaded on the replacement board. Panel communication is handled via the drive’s RS-485 panel link, and a firmware mismatch can prevent parameter access during commissioning. If the site uses a third-party SCADA or DCS historian connected via Modbus RTU, re-confirm the register map and polling interval after the board replacement to ensure data continuity.

Downtime Control During System Migration

Minimizing production downtime during a DC drive control board replacement requires a structured pre-outage preparation protocol. The most effective approach is to complete all parameter backup, wiring documentation, firmware verification, and spare parts staging during a planned maintenance window — ideally 48–72 hours before the scheduled outage — so that the physical swap can be completed within a single shift.

Before powering down the drive, record the current operating state: motor speed at rated load, field current setpoint, armature current limit, and any active fault codes. This baseline data is essential for post-replacement commissioning verification. If the drive is part of a coordinated multi-drive system (e.g., a winder/unwinder pair or a multi-motor line shaft), coordinate the outage with the process control team to ensure that upstream and downstream drives are placed in a safe hold state before isolation.

During the board swap, follow ABB’s ESD handling procedures — the SDCS-CON2B COAT contains sensitive CMOS components that can be damaged by electrostatic discharge. Use a grounded wrist strap and anti-static mat. After seating the new board, restore the parameter backup before applying power, then perform a no-load test run to verify speed reference response, I/O functionality, and fieldbus communication before reconnecting the motor load.

KNMKS pre-tests each SDCS-CON2B COAT unit under simulated drive conditions prior to shipment, reducing the risk of receiving a non-functional board and eliminating one variable from the commissioning process. The support terms confirmed by quotation cover any functional failure that emerges after installation under normal operating conditions, providing a safety net for the retrofit investment.

Retrofit Support FAQ

Q1: Is the SDCS-CON2B COAT a direct drop-in replacement for the non-coated SDCS-CON2B?
Yes. The SDCS-CON2B COAT is functionally identical to the standard SDCS-CON2B and fits the same DCS800 control board slot. The conformal coating adds environmental protection without changing the electrical interface, connector pinout, or firmware compatibility. No mechanical modification is required.

Q2: What firmware version should be loaded before commissioning the replacement board?
ABB recommends matching the firmware version to the existing drive configuration wherever possible to avoid parameter structure changes. Use DriveWindow Light 2 or DriveStudio to check the current firmware version before the outage, and source the matching firmware file from ABB’s drive firmware archive. If a firmware upgrade is planned as part of the retrofit, perform it as a separate step after verifying basic drive operation with the replacement board.

Q3: Can KNMKS confirm compatibility with my specific DCS800 drive serial number before I order?
Yes. Contact our technical team at [email protected] or +86 18359268345 with your drive serial number, nameplate data, and existing board part number. We will confirm compatibility and advise on any additional components (power board, fieldbus adapter, firmware) that should be replaced or updated as part of the retrofit.

Q4: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a unit fails within the confirmed support period, contact [email protected] with the order reference and a description of the fault. KNMKS will arrange inspection and, where the fault is confirmed as a manufacturing defect, provide a replacement unit or credit. Support terms does not cover damage caused by incorrect installation, overvoltage, ESD mishandling, or operation outside the rated environmental specifications.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-CON2B COAT
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-CON2B COAT
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
