ABB SDCS-CON-F01 Fail-Safe DC Drive Control for Industrial Reliability

Overview

ABB SDCS-CON-F01 Fail-Safe DC Drive Control for Industrial Reliability

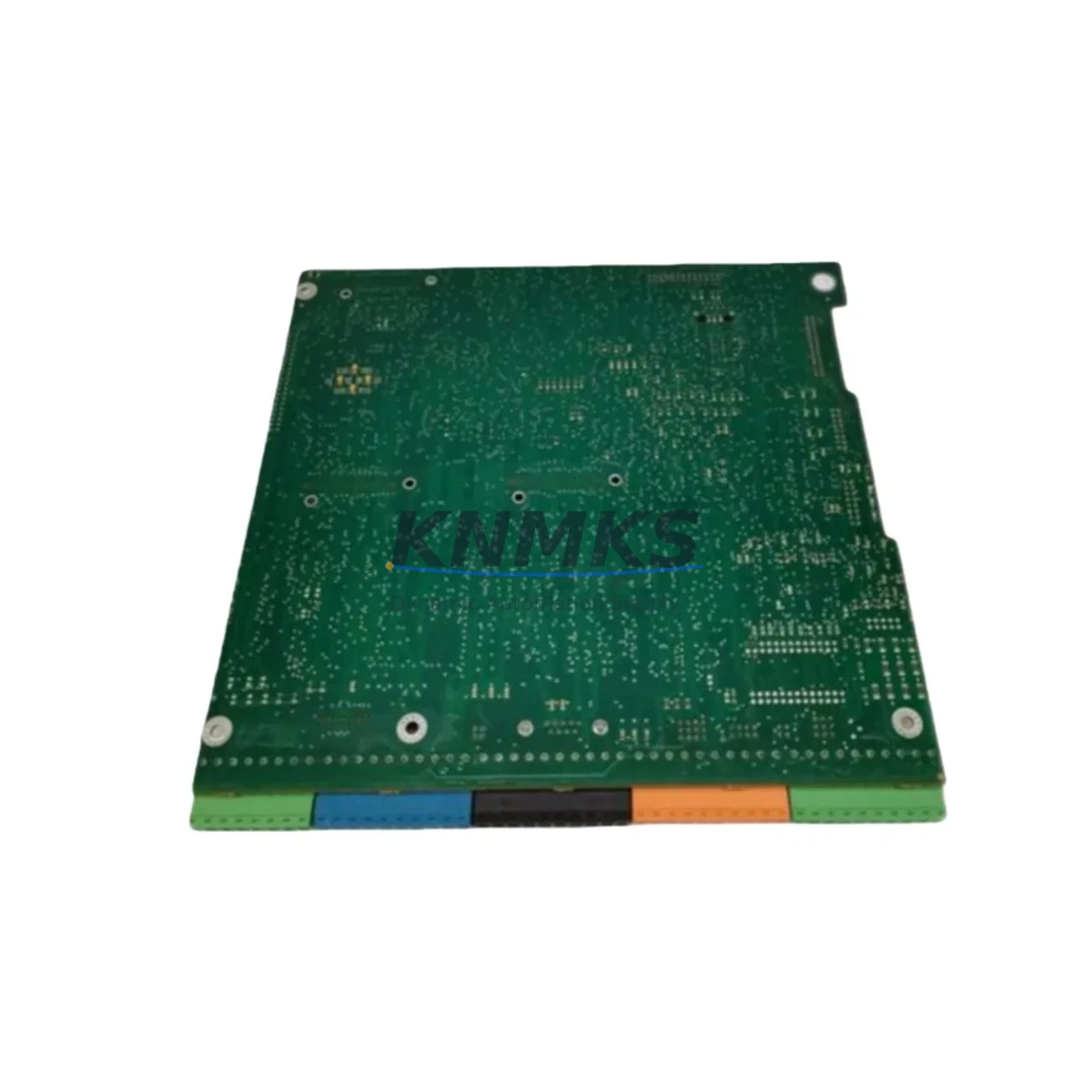

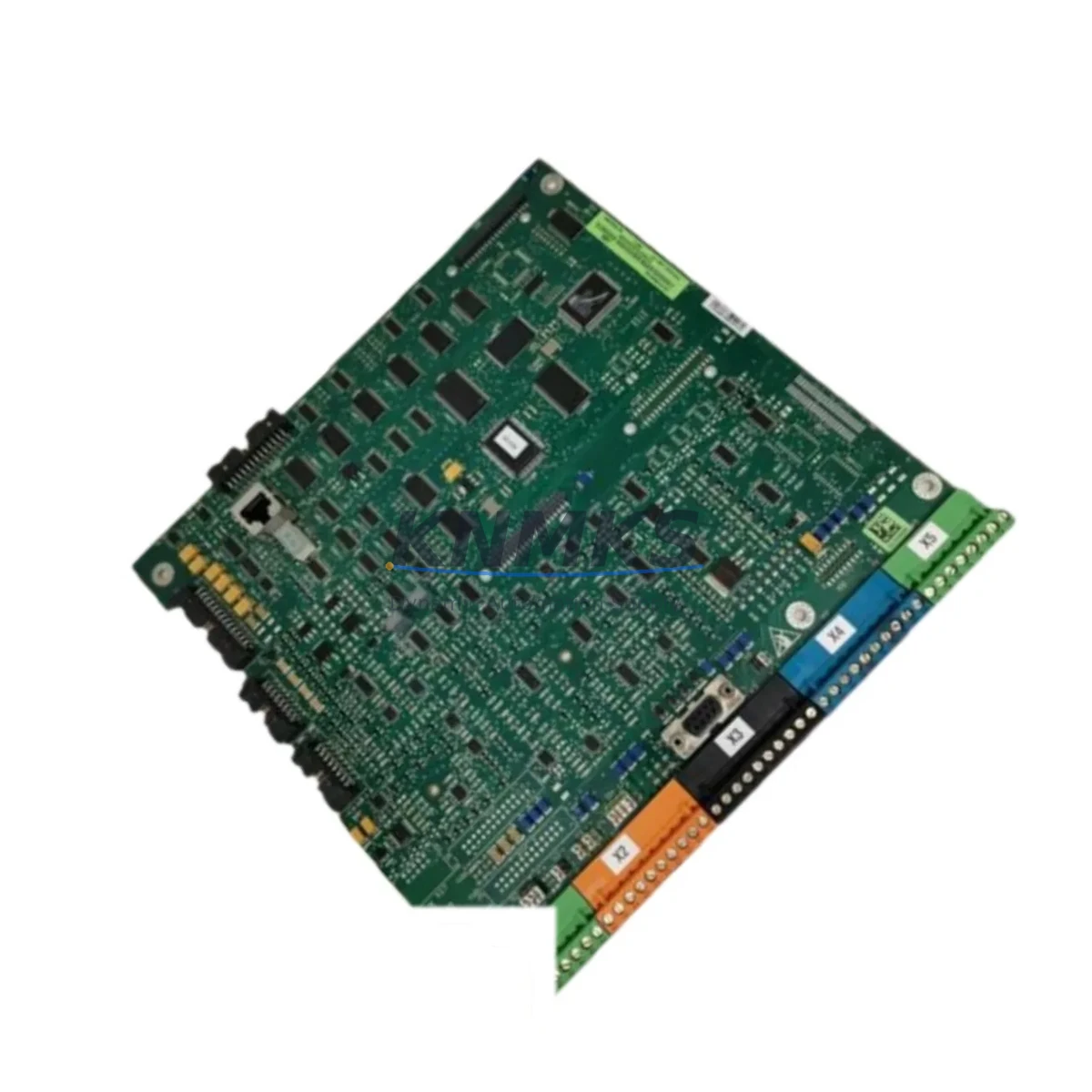

The ABB SDCS-CON-F01 (part number 3ADT316500R1501) is a high-reliability DC drive control board engineered for the ABB DCS550 series DC drive platform. Designed to meet the demanding requirements of continuous industrial production environments, this control module delivers fail-safe operation across a wide range of critical applications — from heavy-duty motor control in steel mills and mining operations to precision speed regulation in paper manufacturing and chemical processing plants.

In modern industrial facilities, unplanned downtime caused by control board failure can result in significant production losses, safety hazards, and costly emergency maintenance. The SDCS-CON-F01 addresses these risks through robust hardware design, comprehensive signal protection, and proven compatibility with the DCS550 drive family. Its architecture is optimized to maintain stable closed-loop control even under adverse conditions including high electromagnetic interference (EMI), power supply fluctuations, thermal stress, and mechanical vibration — all common challenges in real-world industrial cabinets.

The board integrates advanced surge suppression circuitry that protects sensitive control logic from transient voltage spikes on both the power supply rails and signal input lines. This is particularly critical in facilities where large motors, welding equipment, or variable frequency drives operate in close proximity, generating significant conducted and radiated interference. By maintaining signal integrity under these conditions, the SDCS-CON-F01 prevents the erroneous speed references, torque commands, and feedback signal drift that can trigger nuisance trips or, worse, uncontrolled drive behavior in safety-critical interlocks.

For control cabinet builders and system integrators, the SDCS-CON-F01 is a direct replacement for the original ABB DCS550 control board, maintaining full compatibility with the drive’s existing I/O wiring, fieldbus communication interfaces, and parameter sets. This plug-and-play replacement capability minimizes commissioning time during emergency repairs, reducing mean time to recovery (MTTR) in critical production lines. When paired with the ABB SDCS-POW-4 power supply board within the same DCS550 drive chassis, the system delivers a fully coordinated power and control architecture that further reduces the risk of control voltage dropout during mains disturbances.

In high-availability applications such as continuous casters in steel plants or kiln drives in cement production, the SDCS-CON-F01 is often deployed alongside ABB SDCS-IOB-3 I/O extension boards to expand the drive’s digital and analog I/O capacity for complex safety interlock schemes. The board’s communication interface supports integration with ABB SDCS-COM-8 fieldbus adapter modules, enabling seamless connectivity to PROFIBUS-DP, DeviceNet, or Modbus RTU networks — ensuring that the drive remains fully integrated into the plant’s distributed control system (DCS) or safety instrumented system (SIS) architecture without communication latency or data loss.

Thermal management is another key reliability factor addressed by the SDCS-CON-F01’s design. The board is rated for operation in ambient temperatures up to 55°C within the drive enclosure, and its conformal-coated PCB provides additional protection against moisture ingress and corrosive atmospheres — conditions frequently encountered in water treatment facilities, coastal port equipment, and chemical plant motor control centers. This environmental resilience reduces the risk of insulation breakdown, short circuits, and premature component failure that can compromise both equipment safety and production continuity.

For facilities maintaining spare parts inventories to support predictive maintenance programs, the SDCS-CON-F01 is available from stock with global delivery details confirmed by RFQ. Each unit undergoes pre-shipment functional testing to verify key parameters including control power regulation, analog signal accuracy, digital I/O response, and communication interface integrity — ensuring that the replacement board is ready for immediate installation without additional bench testing. This is especially valuable for remote sites or offshore platforms where access to qualified drive technicians is limited and every hour of downtime carries a premium cost.

The SDCS-CON-F01 is also commonly specified alongside ABB SDCS-FEX-2 field excitation boards in regenerative DC drive applications, where coordinated control of both the armature converter and field excitation circuit is essential for safe four-quadrant operation. In crane and hoist applications, for example, precise field weakening control during high-speed lowering operations is a critical safety function — and the reliable signal processing of the SDCS-CON-F01 ensures that field current commands are executed accurately and without delay.

All units supplied by KNMKS are sourced from authorized distribution channels or verified surplus stock, inspected upon receipt, and stored in ESD-safe, climate-controlled warehousing to preserve component integrity. A support terms confirmed by quotation is provided on every SDCS-CON-F01 unit, covering manufacturing defects and functional failures under normal operating conditions. Our technical team is available to support compatibility verification, installation guidance, and parameter backup consultation for DCS550 drive systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DC drive control cabinet for DCS550-based systems requires more than a single high-quality control board. The SDCS-CON-F01 operates as the central intelligence of the drive, but its long-term reliability in demanding industrial environments depends on the quality and coordination of surrounding components.

The ABB SDCS-POW-4 internal power supply board is the first line of defense against control voltage instability. It converts the incoming AC auxiliary supply into the regulated 24 VDC required by the SDCS-CON-F01 and other control electronics. In facilities with unstable mains supplies — common in heavy industry near large motor starters or arc furnaces — a well-maintained SDCS-POW-4 prevents the control voltage dropouts that can cause the drive to trip or lose its parameter memory.

For drives integrated into safety instrumented systems or complex interlock architectures, the ABB SDCS-IOB-3 I/O extension board expands the available digital and analog I/O channels, allowing the SDCS-CON-F01 to interface with emergency stop circuits, process interlocks, and external safety relays without signal crowding or wiring compromises. This is particularly important in chemical plant motor control centers where multiple safety functions must be hardwired in parallel with the drive’s normal control signals.

Fieldbus communication reliability is maintained through the ABB SDCS-COM-8 adapter, which provides a clean, isolated interface between the SDCS-CON-F01’s internal communication bus and the plant’s PROFIBUS-DP or Modbus RTU network. In high-EMI environments such as steel rolling mills or aluminum smelters, this isolation prevents communication errors that could cause the DCS to lose visibility of the drive’s status — a critical safety concern in processes where drive speed feedback is used as a process safety variable.

For regenerative DC drive applications, the ABB SDCS-FEX-2 field excitation board works in close coordination with the SDCS-CON-F01 to regulate armature and field currents independently. This coordination is essential in crane, hoist, and winder applications where controlled deceleration and regenerative braking are safety-critical functions. A failure in field excitation control can result in uncontrolled motor overspeed — a scenario that the SDCS-CON-F01 and SDCS-FEX-2 together are designed to prevent through coordinated closed-loop control.

Finally, cabinet-level surge protection devices (SPDs) installed on the incoming power supply lines provide the outermost layer of protection, preventing high-energy transients from reaching the SDCS-POW-4 and SDCS-CON-F01. When combined with proper cabinet grounding, EMC cable management, and regular preventive maintenance inspections, this layered protection strategy maximizes the operational lifespan of the SDCS-CON-F01 and minimizes the risk of unplanned drive failures in critical production processes.

Critical Industrial Safety Applications

The ABB SDCS-CON-F01 is deployed across a broad spectrum of critical industrial applications where DC drive reliability directly impacts process safety and production continuity.

In petrochemical and refinery facilities, the SDCS-CON-F01 controls DC motors driving compressors, pumps, and extruders in continuous process lines where an unplanned stop can trigger pressure upsets, product contamination, or hazardous material releases. The board’s robust EMI immunity ensures stable speed regulation even in the presence of high-frequency interference from variable speed drives and power electronics operating nearby.

In electric power generation and transmission facilities, DC drives controlled by the SDCS-CON-F01 are used for excitation systems, cooling fan drives, and auxiliary equipment in power stations. The board’s reliable closed-loop control ensures that these auxiliary systems remain operational during grid disturbances, supporting overall plant safety and availability.

In underground mining operations, DC drives equipped with SDCS-CON-F01 boards control conveyor belts, hoists, and ventilation fans in environments characterized by heavy dust, high humidity, vibration, and wide temperature swings. The conformal-coated PCB and surge-protected signal inputs are essential for maintaining reliable operation in these harsh conditions, where a drive failure can compromise both production and worker safety.

In municipal water treatment and pumping stations, the SDCS-CON-F01 provides precise speed control for large DC pump motors, ensuring consistent flow rates and pressure levels in water distribution networks. The board’s long-term reliability reduces the maintenance burden on water utility operators and minimizes the risk of supply interruptions to critical infrastructure.

In metallurgical and steel production facilities, the SDCS-CON-F01 is a proven solution for rolling mill main drives, where precise torque control and fast dynamic response are essential for product quality and equipment protection. The board’s ability to maintain stable control under the extreme EMI conditions generated by large thyristor converters and induction heating systems makes it a preferred choice for steel plant drive engineers.

In port and maritime applications, DC drives with SDCS-CON-F01 control boards are used in ship-to-shore cranes, bulk material handling equipment, and vessel propulsion systems. The board’s resistance to salt-laden humid air — supported by its conformal coating — ensures reliable operation in coastal and offshore environments where corrosion is a constant threat to electronic equipment.

Safety and Quality FAQ

Q1: What support terms is provided with the ABB SDCS-CON-F01?
Every SDCS-CON-F01 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects and functional failures under normal operating conditions. In the event of a support terms claim, we provide prompt replacement or repair support to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Each SDCS-CON-F01 undergoes a comprehensive functional test before shipment, including verification of control power regulation, analog signal input/output accuracy, digital I/O channel response, and communication interface integrity. This testing ensures that the board is fully operational upon arrival and ready for immediate installation in your DCS550 drive system.

Q3: Is the SDCS-CON-F01 compatible with all DCS550 drive variants?
The SDCS-CON-F01 (3ADT316500R1501) is designed as the main control board for the ABB DCS550 series DC drive. It is compatible with the full range of DCS550 drive ratings and supports all standard I/O configurations and fieldbus adapter options available for the DCS550 platform. If you require compatibility verification for a specific drive variant or firmware version, our technical team is available to assist.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
Yes. KNMKS maintains stock of the SDCS-CON-F01 and related DCS550 spare parts to support both planned maintenance programs and emergency replacement requirements. We offer global delivery details confirmed by RFQ with express options available for urgent requirements. Our team can also assist with parameter backup consultation and installation support to ensure a smooth and safe replacement process at your facility.
