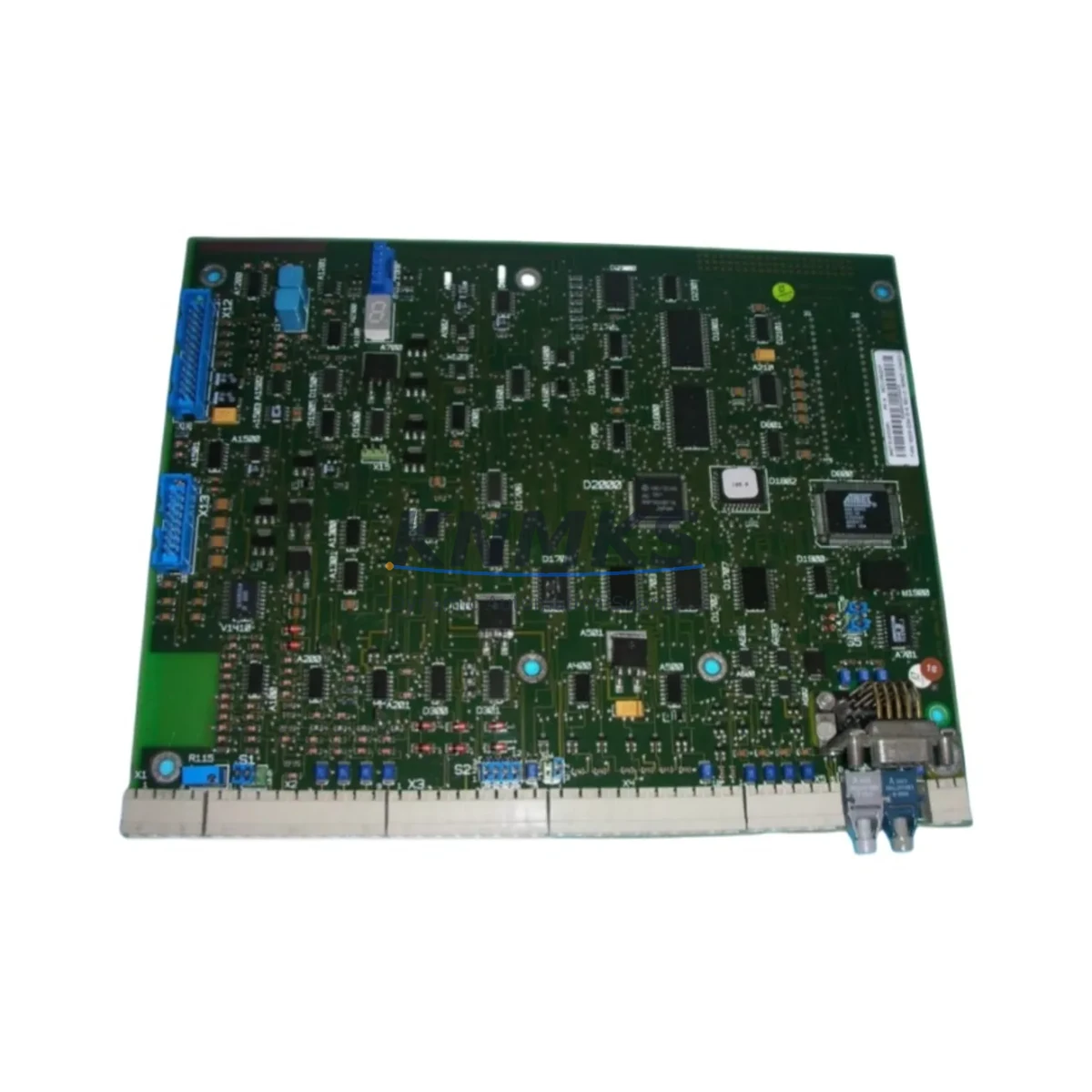

ABB SDCS-CON-81 3ADT314900R1002 Fail-Safe DC Drive Control

Overview

ABB SDCS-CON-81 3ADT314900R1002 Fail-Safe DC Drive Control: Fault Protection and Critical Industrial Field Reliability

The ABB SDCS-CON-81 (part number 3ADT314900R1002) is a precision-engineered DC drive control module designed for the ABB DCS800 series DC drive platform. In continuous production environments where an unplanned shutdown carries severe operational and financial consequences, this control module serves as the central intelligence layer governing armature current regulation, field excitation control, speed feedback processing, and closed-loop drive protection. Its fail-safe architecture ensures that even under adverse electrical or environmental conditions, the drive system maintains predictable, controlled behavior rather than entering an unsafe or undefined state.

Industrial facilities operating in petrochemical refining, electric power generation, mining extraction, water treatment, metallurgical processing, port logistics, and heavy continuous manufacturing depend on DC drive systems to maintain precise motor speed and torque under variable load conditions. The SDCS-CON-81 is the core control board that makes this precision possible. It interfaces directly with the SDCS-PIN-48 power interface board and the SDCS-FEX-2 field excitation unit within the DCS800 drive cabinet, forming a tightly integrated control architecture that minimizes signal latency and maximizes fault detection speed.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DC drive cabinet is never built around a single component. The SDCS-CON-81 operates at its highest reliability when integrated within a properly engineered control cabinet ecosystem. In DCS800-based installations, the SDCS-PIN-48 power interface board handles the gate pulse distribution and thyristor firing signals, working in direct coordination with the SDCS-CON-81 to ensure that armature current commands are executed with microsecond-level precision. Any degradation in the SDCS-PIN-48’s firing accuracy will manifest as torque ripple or overcurrent faults — conditions that the SDCS-CON-81’s protection logic is specifically designed to detect and respond to.

Field excitation stability is equally critical. The SDCS-FEX-2 field excitation unit regulates the motor field current, and its output directly influences the SDCS-CON-81’s field weakening calculations during high-speed operation. In applications such as winding machines, rolling mills, or mine hoists where speed range is wide and load transitions are abrupt, a mismatch between field excitation response and armature current control can cause dangerous overspeed or stall conditions. The SDCS-CON-81 monitors field current feedback and will initiate a controlled stop if field loss is detected.

Power supply integrity is another layer of cabinet protection. The SDCS-CON-81 operates from the DCS800’s internal 24 VDC auxiliary supply, and in high-EMI environments — such as those found near large variable frequency drives, arc furnaces, or high-current bus bars — it is standard practice to install a dedicated DIN-rail mounted 24 VDC SITOP or equivalent regulated power supply with surge suppression to isolate the control board from power rail noise. Additionally, the APBU-44C pulse encoder interface board is commonly installed alongside the SDCS-CON-81 in applications requiring high-resolution speed feedback from incremental encoders, ensuring that the speed control loop receives clean, debounced signals even in environments with significant electrical noise.

For installations requiring remote monitoring or integration with plant-level SCADA systems, the RDCO-03 DDCS communication adapter connects to the SDCS-CON-81’s fiber-optic port, enabling high-speed, galvanically isolated data exchange that eliminates ground loop interference — a common source of communication faults in large industrial facilities with multiple earthing points.

Critical Industrial Safety Applications

In petrochemical and refining facilities, DC drives controlled by the SDCS-CON-81 are used in extruder drives, compressor auxiliaries, and pump motor control where precise speed regulation under variable viscosity loads is essential for process safety. A control board failure in these environments can result in process upsets, pressure excursions, or emergency shutdowns that carry significant safety and financial consequences.

In electric power generation, the SDCS-CON-81 is found in excitation control systems and auxiliary motor drives where grid synchronization demands extremely stable speed references. Any signal drift or control board fault that causes speed instability can propagate into grid frequency disturbances.

In mining and mineral processing, hoist drives, conveyor drives, and crusher motor controls rely on the DCS800 platform with SDCS-CON-81 control boards to manage heavy, shock-loaded mechanical systems. The board’s robust fault detection logic — including overcurrent, overvoltage, field loss, and encoder fault monitoring — provides the multi-layer protection required in environments where a drive trip can strand personnel or damage expensive mechanical equipment.

In water and wastewater treatment, pump motor drives using the SDCS-CON-81 maintain precise flow control in filtration, aeration, and chemical dosing systems. Continuous operation is critical; even brief control interruptions can compromise treatment quality or trigger regulatory compliance issues.

In metallurgical and steel production, rolling mill main drives and coiler/uncoiler drives demand the highest levels of torque accuracy and speed stability. The SDCS-CON-81’s closed-loop current regulation and adaptive gain control make it well-suited for these demanding applications where material quality is directly tied to drive performance consistency.

In port and marine applications, crane hoist drives, winch controls, and ship propulsion auxiliaries benefit from the SDCS-CON-81’s ability to maintain stable control under rapidly changing load conditions, high ambient humidity, and salt-laden air — conditions that stress lesser control boards into premature failure.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SDCS-CON-81 3ADT314900R1002?
The support terms confirmed by quotation cover all manufacturing defects and functional failures occurring under normal operating conditions as specified in the ABB DCS800 technical documentation. It includes replacement or repair of the module at no additional cost. Damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling is excluded. Support requests are processed with full technical support to minimize your downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every SDCS-CON-81 unit undergoes a full functional verification test prior to dispatch, including power-on self-test confirmation, communication port integrity check, and visual inspection for component condition and connector integrity. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for critical spare part procurement processes.

Q3: Is this module compatible with all DCS800 drive variants, and can it replace an existing SDCS-CON-81 without parameter re-commissioning?
The SDCS-CON-81 3ADT314900R1002 is the standard control board for the ABB DCS800 series and is compatible across the DCS800 drive range. In most replacement scenarios, the drive’s parameter set stored in the SDCS-CON-81’s non-volatile memory can be backed up via the DriveWindow software tool prior to board replacement and restored to the new board, significantly reducing recommissioning time. For drives without an existing parameter backup, standard ABB commissioning procedures apply.

Q4: What is the long-term supply availability, and can blanket orders be arranged for maintenance programs?
We maintain dedicated stock of the SDCS-CON-81 3ADT314900R1002 to support both emergency replacement and planned maintenance programs. Blanket order arrangements are available for facilities managing multi-drive installations or operating under preventive maintenance schedules that require guaranteed spare part availability. Contact our sales team to discuss volume pricing, reserved stock agreements, and lead time commitments tailored to your maintenance program requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SDCS-CON-81 3ADT314900R1002
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SDCS-CON-81 3ADT314900R1002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
