ABB SDCS-CON-4-COAT 3ADT313900R1501 DCS550 Control Upgrade

Overview

ABB SDCS-CON-4-COAT 3ADT313900R1501 DCS550 Control Upgrade: Migration-Ready DC Drive Control for Legacy Control Systems

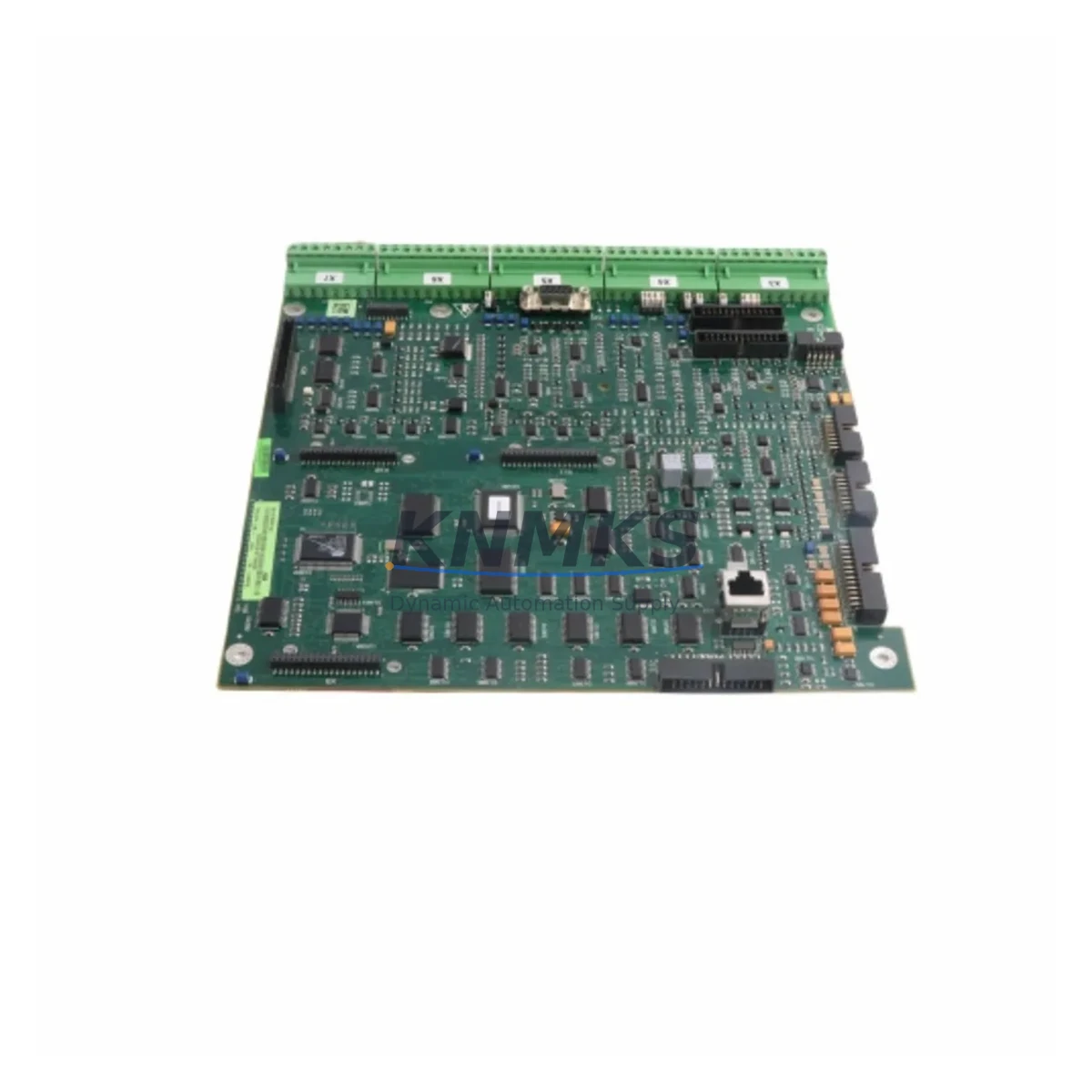

The ABB SDCS-CON-4-COAT (Part No. 3ADT313900R1501) is a conformal-coated control board engineered for the DCS550 series DC drive platform. As legacy DCS400 and DCS500 installations reach end-of-service milestones, the SDCS-CON-4-COAT provides a validated, stock-backed migration path that preserves existing motor wiring, field supply circuits, and control cabinet footprints while delivering the enhanced processing capability of the DCS550 architecture. For facilities running continuous processes in petrochemical, power generation, metals, or port operations, this board is a critical spare and a primary upgrade component for reducing unplanned downtime during drive modernization campaigns.

The SDCS-CON-4-COAT is the conformal-coated variant of the standard SDCS-CON-4, designed for harsh environments with elevated humidity, condensation, or airborne contaminants — conditions common in coastal installations, paper mills, and chemical processing plants. The conformal coating provides IEC 60721-3-3 Class 3C2 chemical resistance and significantly extends board service life in environments where standard boards would degrade within 18–24 months. Each unit shipped from our inventory undergoes pre-shipment functional verification against ABB DCS550 firmware compatibility parameters before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DCS550 retrofit using the SDCS-CON-4-COAT begins well before the scheduled maintenance window. Engineering teams should first audit the existing DCS400 or DCS500 drive chassis to confirm frame size compatibility and backplane slot count. In multi-drive installations — common in rolling mill lines or crane hoist systems — the SDCS-CON-4-COAT is typically deployed alongside the SDCS-POW-4 power supply board, which provides the regulated 24 VDC and ±15 VDC rails required by the CON-4 control section. Replacing the power board simultaneously eliminates a common failure point and avoids a second shutdown cycle.

For installations using Profibus DP fieldbus, the existing SDCS-COM-8 or SDCS-COM-9 communication adapter must be evaluated for DCS550 compatibility. In many cases, the RDCO-03 or RDCO-04 option module is required to bridge the DCS550 control board to the plant’s existing Profibus network, preserving the PLC-to-drive telegram structure without requiring changes to the Siemens S7 or Allen-Bradley ControlLogix program logic. This is a critical step — mismatched telegram configurations are the leading cause of extended commissioning time during drive retrofits.

Analog I/O signal conditioning is another area requiring careful pre-planning. Legacy DCS400/500 installations often use 4–20 mA speed reference signals routed through signal isolators such as the ABB AI523 or third-party DIN-rail isolators. When migrating to the DCS550 platform, verify that the SDCS-CON-4-COAT’s analog input scaling parameters (Group 13 in DriveStudio) match the existing signal ranges. If the control cabinet includes an ABB ACS880 or ACS580 as a companion drive for auxiliary motors, confirm that the shared fieldbus segment can accommodate the DCS550’s Modbus RTU polling cycle without introducing latency on the main drive speed loop.

HMI screen updates are frequently overlooked during drive retrofits. If the plant uses an ABB CP600 or Siemens TP700 panel connected to the legacy drive via serial RS-485, the DCS550’s parameter address map differs from the DCS400/500 structure. Plan for HMI tag remapping as part of the commissioning scope, and validate all speed, current, and fault status displays before returning the line to production. Where the existing HMI communicates via Profibus DP, the GSD file for the DCS550 must be imported into the PLC engineering tool and the hardware configuration updated accordingly.

Downtime Control During System Migration

Minimizing production downtime during a DC drive control board replacement requires a structured pre-commissioning approach. Before the scheduled shutdown, use DriveStudio or DriveWindow to export the complete parameter set from the existing DCS550 drive (if upgrading from a standard CON-4 to the coated variant) or document all DCS400/500 parameters manually for cross-reference during re-parameterization. Back up the motor nameplate data, field current setpoints, speed feedback encoder PPR values, and all application-specific macro settings.

During the physical swap, label all terminal connections on the X1 through X4 blocks before disconnecting. Photograph the existing wiring layout, particularly the tachometer feedback wiring and the field supply connections, as these are the most common sources of commissioning errors after a board replacement. The SDCS-CON-4-COAT uses the same physical terminal layout as the standard SDCS-CON-4, so no mechanical wiring changes are required when replacing within the DCS550 platform — only firmware and parameter restoration is needed.

After installation, perform a no-load motor run to verify speed feedback polarity, current regulator response, and field weakening behavior before reconnecting the mechanical load. This staged commissioning approach — no-load verification followed by loaded ramp testing — is the most effective method for confirming control board integrity without risking damage to the motor or driven equipment. Our pre-shipment testing protocol replicates this sequence on every SDCS-CON-4-COAT unit before dispatch, ensuring that the board arrives ready for installation without requiring bench testing on-site.

For facilities with strict change management requirements, we can provide a test report and configuration checklist with each shipment to support your internal MOC (Management of Change) documentation process. Stock availability is confirmed at time of order, and standard lead time for pre-tested units is 3–7 business days for international shipments.

Retrofit Support FAQ

Q1: Is the SDCS-CON-4-COAT 3ADT313900R1501 a direct replacement for the SDCS-CON-2 or SDCS-CON-3?
The SDCS-CON-4-COAT is the designated upgrade path for DCS550 series drives and is not a plug-in replacement for SDCS-CON-2 or SDCS-CON-3 boards used in DCS400/500 chassis. A platform migration from DCS400/500 to DCS550 is required. However, the motor wiring, field supply, and cabinet footprint are typically preserved, making this a cost-effective modernization rather than a full drive replacement. Contact our technical team to confirm compatibility with your specific drive frame and application.

Q2: What firmware version is required, and how is it loaded?
The SDCS-CON-4-COAT requires DCS550 firmware, loaded via ABB DriveStudio or DriveWindow over the USB service port or the RDCO option module. The correct firmware version depends on your drive frame size and any installed option modules (e.g., RDCO-03 for Profibus, RDNA-01 for EtherNet/IP). We recommend confirming the firmware version with ABB’s drive compatibility matrix before ordering. Units shipped from our stock are supplied without pre-loaded firmware to ensure compatibility with your specific application configuration.

Q3: How do I verify terminal wiring compatibility before installation?
Compare the X1–X4 terminal block assignments in the DCS550 hardware manual (3ADW000379) against your existing wiring documentation. Pay particular attention to the analog input channels (AI1–AI3), digital input assignments (DI1–DI6), and the relay output configuration (RO1–RO3). In most DCS550 installations, the speed reference, enable signal, and fault reset wiring can be retained without modification. Field supply and armature feedback connections should be verified against the motor nameplate and existing drive parameter settings.

Q4: What does the support terms confirmed by quotation cover, and is a test report available?
All SDCS-CON-4-COAT units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing, and a test report is available upon request for quality assurance and MOC documentation purposes. Support requests are processed within 5 business days of receipt of the returned unit. In-stock units are available for immediate dispatch; contact us to confirm current inventory levels and lead time for your region.
