ABB SDCS-CON-4 3ADT313900R1501 Maintenance-Proven Spare Part for Factory Uptime

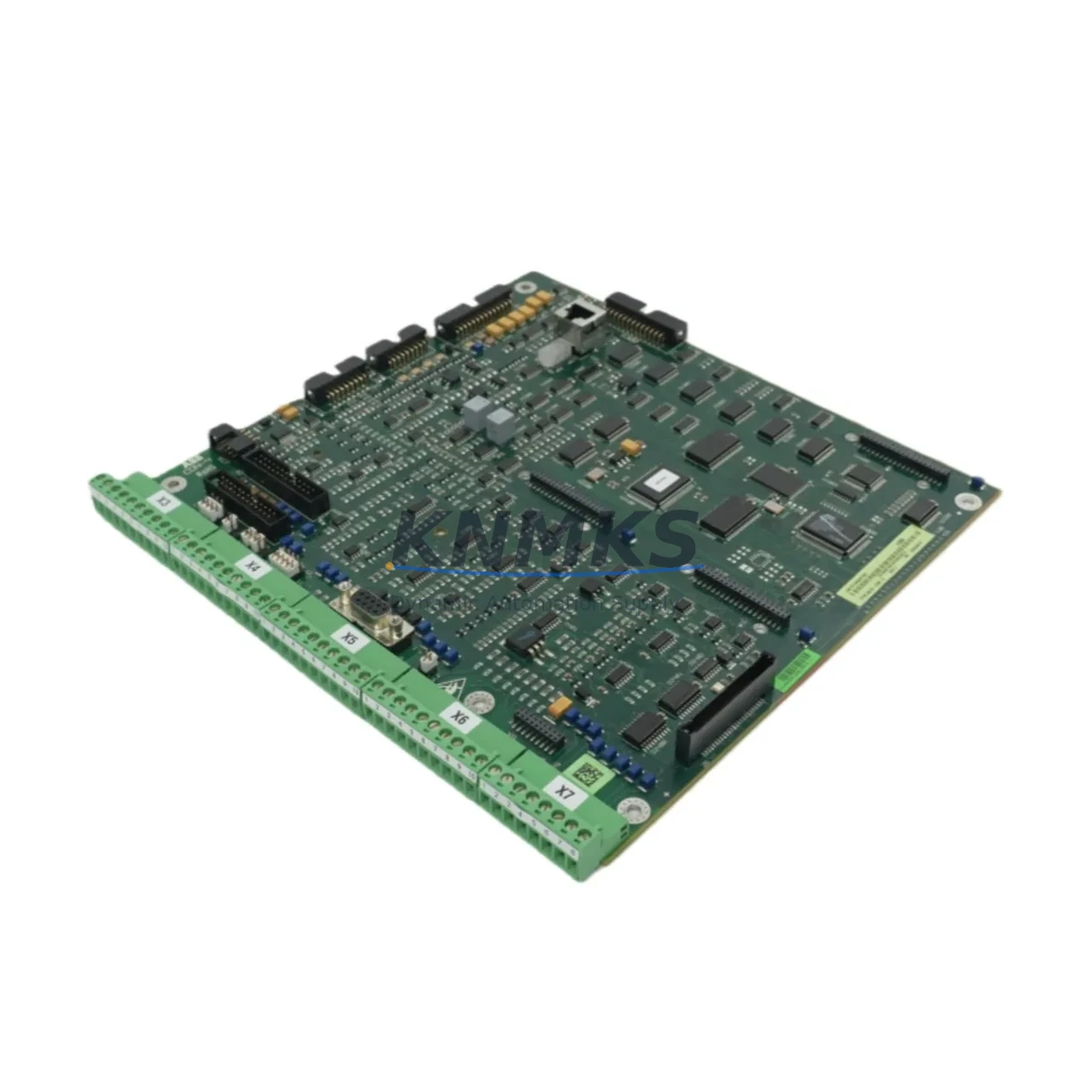

The ABB SDCS-CON-4 (part number 3ADT313900R1501) is the core control board of the ABB DCS400 and DCS500 DC drive series — a critical component in motor speed regulation, armature current control, and field excitation management across heavy industrial applications. For maintenance engineers managing aging DC drive systems in steel mills, paper machines, extruders, hoists, and process lines, keeping a verified spare of the SDCS-CON-4 on the shelf is a fundamental risk mitigation strategy. A single unplanned drive failure without a ready replacement can translate to hours or days of production loss. This listing provides a factory-tested, original ABB SDCS-CON-4 board with full support terms confirmed by quotation and long-term supply commitment from KNMKS.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The SDCS-CON-4 does not operate in isolation. When a DC drive trips or exhibits erratic speed control, the fault may originate in the control board itself — but experienced maintenance engineers know that a thorough site inspection must extend to the surrounding electrical circuit before any board swap is declared successful.

During a planned replacement of the SDCS-CON-4, the following components should be inspected or tested concurrently to prevent repeat failures and confirm system integrity:

Power Supply & Input Section: Verify the SDCS-PIN2 or equivalent power interface board for correct DC bus voltage and ripple levels. A degraded power supply feeding the control board is a common root cause of premature PCB failure. Check input fuses and AC line reactors for signs of thermal stress.

I/O Interface Boards: The SDCS-IOB-3 or SDCS-IOB-21 I/O expansion boards connect directly to the SDCS-CON-4 and carry analog speed references, digital enable signals, and feedback wiring. Inspect connector pins for oxidation, verify signal levels with a multimeter, and confirm that all shielded cables are properly grounded at one end to prevent noise injection into the control loop.

Fieldbus Communication Module: If the drive is integrated into a PROFIBUS, DeviceNet, or Modbus network via an SDCS-COM-8 or similar adapter, confirm that the communication module firmware is compatible with the replacement SDCS-CON-4 board revision. Mismatched firmware versions can cause parameter loss or communication faults after board swap.

Encoder & Tachometer Feedback: Speed feedback accuracy is essential for closed-loop DC drive performance. Inspect the pulse encoder or DC tachometer wiring for broken shields, loose terminals, or worn brushes. A faulty feedback signal will cause the new control board to hunt or trip immediately after commissioning.

Armature & Field Contactors: Check the main armature contactor and field supply contactor for contact wear, coil resistance, and auxiliary contact continuity. Worn contactors can cause voltage spikes that damage the replacement control board within weeks of installation.

Terminal Blocks & Wiring Harness: Inspect all DIN rail terminal blocks in the drive cabinet for loose screws, discolored insulation, or corroded connections. Re-torque all power and signal terminals to manufacturer specification before energizing the replacement board.

Maintaining a coordinated spare parts kit — including the SDCS-CON-4 alongside the SDCS-IOB-3, SDCS-PIN2, and relevant communication adapters — significantly reduces mean time to repair (MTTR) and supports a proactive maintenance culture rather than a reactive breakdown response.

Site Replacement Workflow

Replacing the SDCS-CON-4 in a DCS400 or DCS500 drive requires a structured approach to minimize downtime and ensure the system returns to full performance without secondary faults.

Step 1 — Pre-Replacement Documentation: Before powering down, record all drive parameters using the ABB DriveWindow software or the local keypad. The SDCS-CON-4 stores motor data, PID tuning values, speed ramp settings, and protection thresholds. Parameter backup prevents hours of re-commissioning after the board swap.

Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Isolate the AC supply, discharge the DC bus capacitors, and verify zero voltage with a calibrated meter before opening the drive cabinet. The SDCS-CON-4 is a live-circuit board — electrostatic discharge (ESD) precautions are mandatory during handling.

Step 3 — Board Removal & Visual Inspection: Remove the faulty SDCS-CON-4 and inspect it for burnt components, cracked solder joints, or damaged connectors. Document findings for root cause analysis. Compare the board revision number with the replacement unit to confirm compatibility.

Step 4 — Installation & Parameter Restore: Seat the replacement SDCS-CON-4 firmly into the drive backplane. Reconnect all ribbon cables and I/O connectors. Restore parameters from backup. Verify motor nameplate data matches the drive configuration before energizing.

Step 5 — Commissioning & Test Run: Power up in no-load condition first. Confirm that the drive initializes without fault codes. Run the motor at low speed and verify speed feedback, current limits, and field weakening behavior. Gradually increase to full load and monitor for thermal alarms or communication errors.

Step 6 — Documentation & Spare Replenishment: Log the replacement in the maintenance management system (CMMS). Immediately initiate a purchase order for a replacement SDCS-CON-4 spare to restore buffer stock. A single-unit spare strategy is insufficient for critical production lines — a minimum of two units is recommended for high-utilization drives.

Spare Parts Support FAQ

Q1: Is this SDCS-CON-4 (3ADT313900R1501) compatible with both DCS400 and DCS500 series drives?
Yes. The SDCS-CON-4 with part number 3ADT313900R1501 is designed for use across the ABB DCS400 and DCS500 DC drive platform. However, always verify the drive firmware version and board revision before installation, as sub-variants may exist for specific power ratings or regional configurations. KNMKS provides pre-shipment compatibility verification upon request.

Q2: How is the board tested before shipment?
Every SDCS-CON-4 unit dispatched by KNMKS undergoes functional testing on a compatible drive test bench. Key parameters including power-up initialization, I/O signal response, and communication interface handshake are verified. A test report is available upon request. All units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What is the support terms coverage and what does it include?
KNMKS provides a support terms confirmed by quotation from the date of delivery. The support terms covers manufacturing defects, component failure under normal operating conditions, and board-level functional faults. It does not cover damage caused by incorrect installation, overvoltage events, or failure to follow ABB’s commissioning guidelines. Support requests are processed with priority dispatch of a replacement unit to minimize customer downtime.

Q4: Can KNMKS support long-term supply for fleet maintenance programs?
Yes. KNMKS maintains stocked inventory of the SDCS-CON-4 and related ABB DCS series spare parts to support annual maintenance contracts, shutdown planning, and multi-site fleet programs. For procurement engineers managing 10+ drive installations, KNMKS offers volume pricing, reserved stock agreements, and scheduled delivery to align with planned maintenance windows. Contact admin@knmks.com to discuss a long-term supply arrangement.
