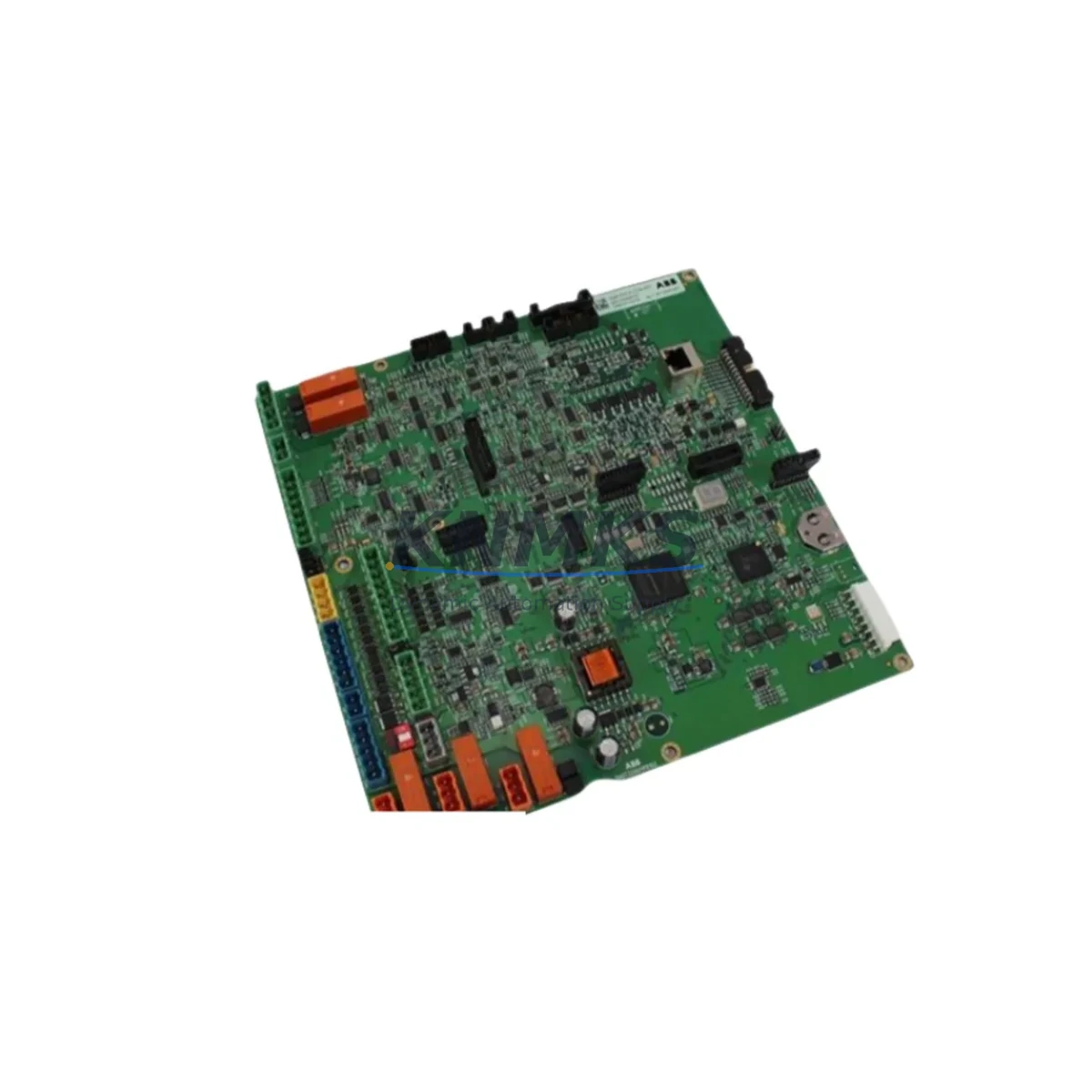

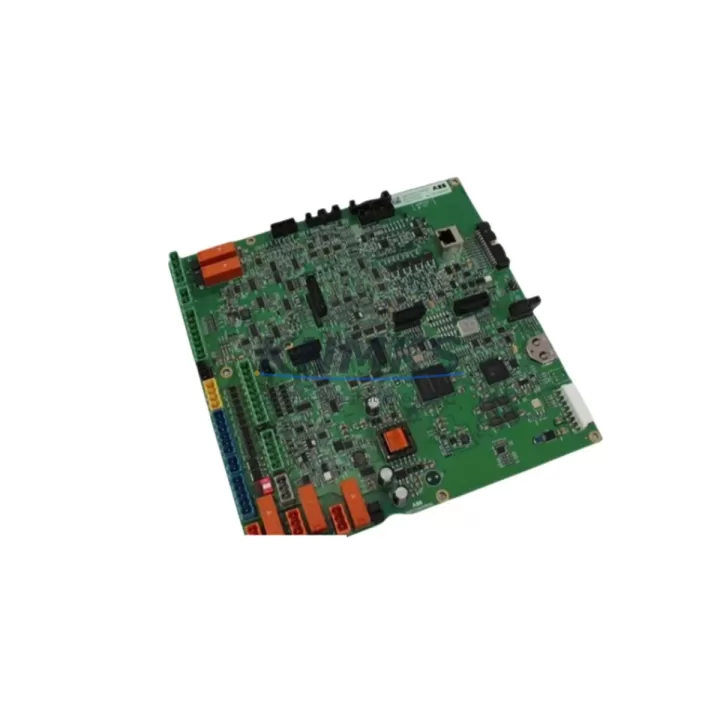

ABB SDCS-CON-3A Fail-Safe DC Drive Control Board

Overview

ABB SDCS-CON-3A Fail-Safe DC Drive Control Board: Fault Protection and Critical Industrial Reliability

The ABB SDCS-CON-3A is the core control board of the ABB DCS800 series DC drive platform, engineered to deliver uninterrupted, fail-safe motor control in the most demanding industrial environments. Designed for continuous production lines, critical interlock circuits, and heavy-duty control cabinets, the SDCS-CON-3A provides the processing backbone that governs speed regulation, torque control, field excitation management, and protective shutdown logic across a wide range of DC drive applications.

In facilities where unplanned downtime translates directly into production loss, safety incidents, or regulatory non-compliance, the SDCS-CON-3A’s robust fault-detection architecture becomes a frontline defense. Its onboard diagnostics continuously monitor control loop integrity, power supply stability, and communication bus health, triggering controlled safe-state transitions before a fault can cascade into equipment damage or personnel hazard. This makes it an essential component not only for standard motor control, but for safety-rated interlock systems in petrochemical plants, power generation facilities, mining operations, and metallurgical processing lines.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The SDCS-CON-3A does not operate in isolation — its reliability is amplified when integrated within a properly configured DCS800 control cabinet ecosystem. In high-risk installations, the control board works in concert with the SDCS-POW-3 power supply board, which provides the regulated 24 VDC logic supply essential for stable control board operation during mains voltage fluctuations. Voltage sags or transient surges that reach the logic supply rail without adequate filtering can cause spurious resets or parameter corruption on the SDCS-CON-3A; the SDCS-POW-3 acts as the first line of defense against such events.

For field excitation management, the SDCS-FEX-2 field excitation board interfaces directly with the SDCS-CON-3A to regulate motor field current with precision, preventing field loss trips that could result in uncontrolled motor runaway — a critical safety concern in hoisting, winding, and press applications. In installations requiring fieldbus connectivity, the SDCS-COM-8 PROFIBUS adapter integrates into the control board’s communication slot, enabling real-time supervisory control and fault reporting to the plant DCS or SCADA system without introducing signal latency that could delay protective responses.

Cabinet thermal management is equally critical. The SDCS-IOB-3 I/O extension board expands the analog and digital I/O capacity of the SDCS-CON-3A, allowing integration of cabinet temperature sensors, door interlock switches, and auxiliary fan control signals into the drive’s protective logic. In dusty, humid, or high-vibration environments — common in cement plants, paper mills, and offshore platforms — the SDCS-MEM-8 memory module ensures that parameter sets and fault logs are retained across power cycles, eliminating the risk of configuration loss after an emergency shutdown. Together, these components form a layered cabinet protection strategy that maximizes the SDCS-CON-3A’s inherent fail-safe capabilities.

Critical Industrial Safety Applications

The ABB SDCS-CON-3A is deployed across a broad spectrum of safety-critical industrial sectors where DC drive reliability is non-negotiable. In petrochemical and refinery operations, it controls compressor drives and pump motors within hazardous area control rooms, where any unplanned stop can trigger process upsets, pressure excursions, or flammable material releases. The board’s robust fault isolation logic ensures that a single component anomaly triggers a controlled ramp-down rather than an abrupt trip that could damage downstream equipment.

In power generation facilities — including coal-fired, hydroelectric, and combined-cycle plants — the SDCS-CON-3A governs exciter drives, coal feeder motors, and cooling water pump drives. Its ability to maintain stable closed-loop control under fluctuating grid conditions and high electromagnetic interference from large generators makes it a preferred choice for plant electrical engineers. Mining and mineral processing operations rely on the SDCS-CON-3A for conveyor drives, crusher motors, and hoist systems, where the board’s overload protection and field weakening control prevent mechanical stress during load surges that are common in ore handling.

In water and wastewater treatment plants, the SDCS-CON-3A drives aeration blowers and sludge pump motors in continuous 24/7 operation, where its low-maintenance design and long mean time between failures (MTBF) reduce the frequency of scheduled maintenance interventions. Metallurgical and steel mill applications — including rolling mill main drives and ladle crane hoists — demand the precise torque control and rapid fault response that the SDCS-CON-3A delivers, protecting both the mechanical drivetrain and the safety of personnel working in proximity to high-inertia loads. Port and marine terminal crane drives also benefit from the board’s vibration tolerance and wide operating temperature range, ensuring reliable performance in coastal humidity and salt-laden air environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the SDCS-CON-3A?
Every SDCS-CON-3A supplied by KNMKS carries a 12-month full functional support terms from the date of dispatch. This covers all control functions, communication interfaces, and protective relay outputs. In the event of a support terms claim, a replacement unit is dispatched with priority to minimize site downtime.

Q2: Is the SDCS-CON-3A tested before shipment?
Yes. Every unit undergoes 100% pre-shipment functional testing, including control loop verification, I/O channel checks, communication interface validation, and fault response simulation. Test records are available upon request for quality-audited procurement processes.

Q3: Is the SDCS-CON-3A compatible with existing DCS800 installations, and can it replace earlier SDCS-CON variants?
The SDCS-CON-3A is the current-generation control board for the ABB DCS800 platform and is compatible with all standard DCS800 power sections. It can replace the earlier SDCS-CON-2 and SDCS-CON-3 boards in most installations, subject to firmware version alignment and parameter backup/restore procedures. Our technical team can advise on compatibility verification for your specific drive configuration.

Q4: What is the long-term supply availability for the SDCS-CON-3A?
KNMKS maintains dedicated stock of the SDCS-CON-3A across multiple regional inventory locations to support emergency replacement, planned maintenance, and capital spares programs. Long-term supply agreements are available for customers requiring guaranteed stock reservation over 6–24 month horizons, ensuring continuity of supply for critical plant assets.
