ABB SDCS-BAB-F02 Fail-Safe DC Drive Adaptions Board

Overview

ABB SDCS-BAB-F02 Fail-Safe DC Drive Adaptions Board: Fault Protection & Critical Industrial Reliability

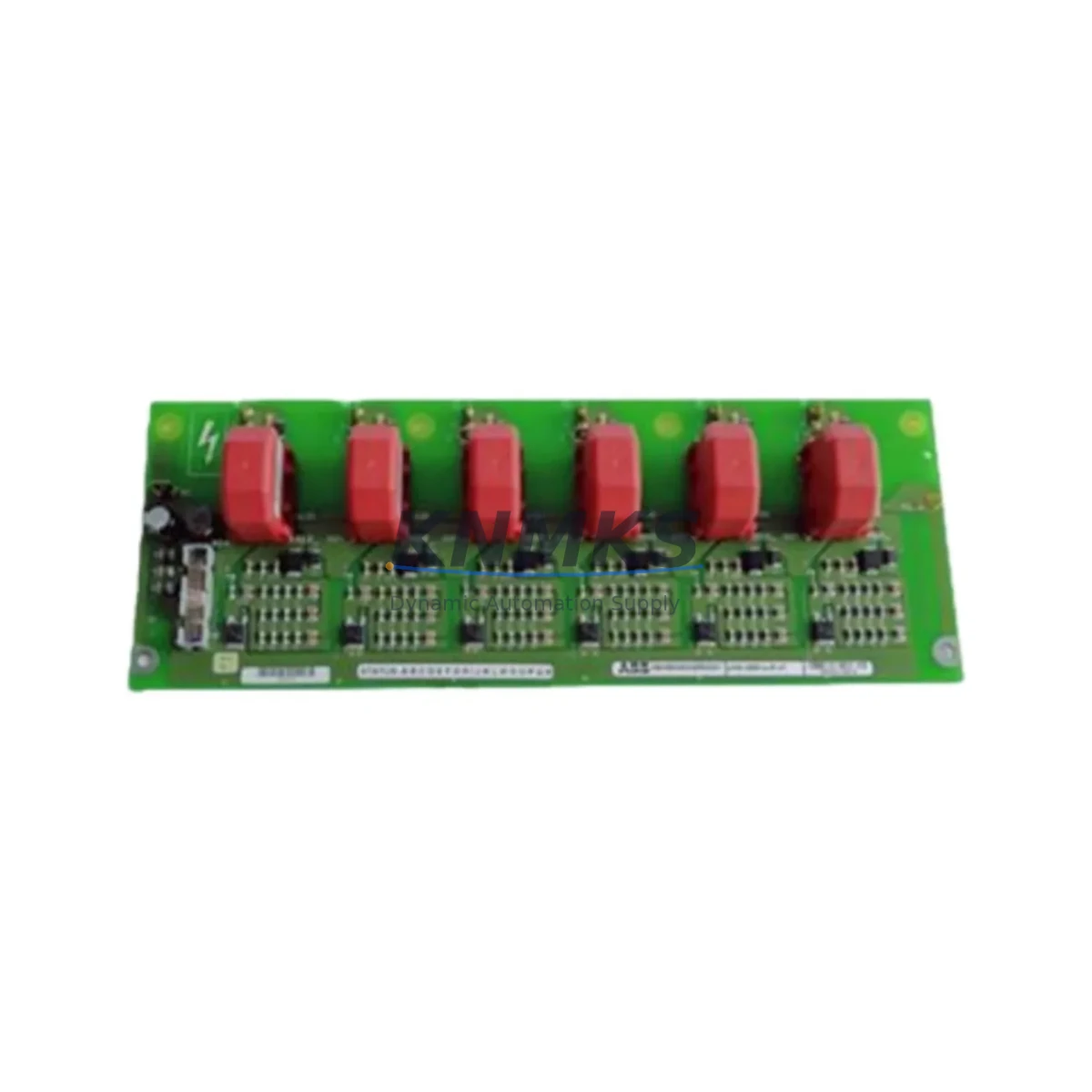

The ABB SDCS-BAB-F02 (Part No. 3ADT316400R0502) is a precision-engineered DC Drive Adaptions Board designed exclusively for the ABB DCS800 series DC drive platform. In continuous production environments where unplanned downtime carries severe operational and financial consequences, the SDCS-BAB-F02 delivers the fail-safe signal conditioning, robust fault isolation, and stable analog interface performance that modern industrial control cabinets demand. Whether deployed in high-electromagnetic-interference (EMI) environments, dusty and humid process areas, or high-vibration heavy-industry installations, this board is engineered to maintain control loop integrity under the most demanding field conditions.

At its core, the SDCS-BAB-F02 serves as the critical interface between the DCS800 drive’s control electronics and external field signals. It handles analog feedback conditioning, reference signal routing, and auxiliary I/O adaptation — functions that, if compromised, can lead to speed reference drift, torque instability, or complete drive trip events. By providing clean, isolated signal paths and surge-protected I/O terminals, the board actively reduces the risk of nuisance trips caused by ground loops, common-mode noise, or transient voltage spikes from adjacent high-power switching equipment such as the SDCS-POW-4 power supply board or large motor contactors within the same control cabinet.

In heavy-load DC drive applications — rolling mills, mine hoists, paper machine drives, port crane systems, and ship propulsion controls — the SDCS-BAB-F02 works in concert with the broader DCS800 hardware ecosystem. The SDCS-CON-4 control board relies on clean analog references delivered through the SDCS-BAB-F02 to execute precise speed and current regulation. Any signal degradation at the adaptation layer propagates directly into control loop instability, making the integrity of this board a prerequisite for safe, predictable drive behavior. Similarly, when the DCS800 is integrated into a safety-rated interlock circuit alongside external safety relays or a SDCS-FEX-2 field excitation controller, the SDCS-BAB-F02’s stable I/O performance ensures that safety commands are transmitted without delay or distortion.

The board’s design addresses the full spectrum of industrial hazard scenarios. In petrochemical and refinery environments, where explosive atmosphere zoning and strict process interlock requirements apply, signal integrity at the drive adaptation layer is non-negotiable. In power generation and grid-tied applications, where the DCS800 may drive large exciter or auxiliary systems, the SDCS-BAB-F02 must withstand high-frequency switching transients without introducing measurement errors into the feedback chain. In water treatment and municipal utility installations, where drives operate continuously for months without scheduled maintenance windows, the board’s robust construction and conformal-coating-compatible design support long mean-time-between-failure (MTBF) performance.

For control cabinet builders and system integrators, the SDCS-BAB-F02 simplifies the adaptation of non-standard analog signal ranges and encoder feedback types to the DCS800’s native input requirements. This flexibility reduces field wiring complexity and eliminates the need for external signal conditioners, which themselves represent additional failure points in the control loop. When paired with the SDCS-DSL-4 serial link board for fieldbus communication, the complete DCS800 hardware stack — anchored by the SDCS-BAB-F02 at the analog interface layer — provides a fully integrated, diagnostics-capable drive platform that supports predictive maintenance and remote fault analysis.

Every SDCS-BAB-F02 unit supplied by KNMKS undergoes pre-shipment functional verification against ABB DCS800 compatibility specifications. Boards are inspected for component integrity, connector condition, and signal path continuity before dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment, with technical support available for installation, commissioning, and fault diagnosis. KNMKS maintains ready stock of the SDCS-BAB-F02 and related DCS800 spare parts to support urgent breakdown replacement requirements, minimizing the window of production exposure when a drive fault occurs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DCS800 control cabinet is built on the coordinated performance of multiple hardware layers. The SDCS-BAB-F02 sits at the analog signal interface layer, but its effectiveness depends on — and contributes to — the health of the entire drive stack. The SDCS-CON-4 control board, which executes the core speed and current regulation algorithms, depends on the SDCS-BAB-F02 to deliver clean, drift-free analog references; any noise or offset introduced at the adaptation stage directly degrades closed-loop control accuracy. The SDCS-POW-4 power supply board provides the regulated DC voltages that power both the control board and the adaptation board, and its output quality directly affects the signal-to-noise performance of the SDCS-BAB-F02’s analog circuits.

In cabinets where field excitation control is required, the SDCS-FEX-2 field excitation controller operates in close coordination with the main drive, and the SDCS-BAB-F02 ensures that the analog feedback signals from the field circuit are correctly scaled and routed to the control layer. For applications requiring fieldbus integration — PROFIBUS, DeviceNet, or Modbus — the SDCS-DSL-4 serial link board extends the DCS800’s communication capability, while the SDCS-BAB-F02 continues to handle the real-time analog feedback that underpins closed-loop control regardless of network status. In safety-critical interlock applications, external safety relay modules and emergency stop circuits interface with the DCS800 through the I/O terminals conditioned by the SDCS-BAB-F02, making its signal integrity a direct contributor to the reliability of the safety function.

When planning a cabinet spare parts strategy, maintaining a ready stock of the SDCS-BAB-F02 alongside the SDCS-CON-4 and SDCS-POW-4 ensures that the most failure-prone signal and power interface layers can be restored rapidly, minimizing mean-time-to-repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

The ABB SDCS-BAB-F02 is deployed across a wide range of critical industrial sectors where DC drive reliability is directly linked to process safety and operational continuity.

In petrochemical and refinery facilities, the DCS800 drives large pumps, compressors, and agitators in continuous process trains. The SDCS-BAB-F02’s isolated analog interfaces prevent ground loop currents — common in large industrial plants with multiple earthing points — from introducing measurement errors that could cause the drive to misread process feedback and trigger unsafe operating conditions.

In power generation and grid support applications, DCS800 drives control exciter systems and auxiliary equipment where precise speed regulation is essential for grid stability. The SDCS-BAB-F02 ensures that speed and current feedback signals remain accurate under the high-frequency switching transients generated by large power conversion equipment in the same substation.

In mining and mineral processing, hoist drives, conveyor drives, and crusher drives operate under heavy cyclic loads with frequent starts and stops. The SDCS-BAB-F02’s robust construction and vibration tolerance support reliable operation in environments where mechanical shock and vibration are constant.

In water treatment and municipal utilities, drives operate continuously with minimal maintenance intervention. The SDCS-BAB-F02’s long-term signal stability reduces the risk of gradual feedback drift that could cause pump or blower drives to operate outside their safe operating envelope without triggering an alarm.

In metallurgy and steel production, rolling mill drives require extremely precise torque and speed control. The SDCS-BAB-F02’s high-accuracy analog adaptation ensures that the DCS800 can maintain the tight control tolerances required for product quality and equipment protection in these high-power, high-stakes applications.

In port and marine applications — crane drives, winch drives, and ship propulsion systems — the SDCS-BAB-F02 supports reliable drive operation in high-humidity, salt-laden environments where corrosion and condensation are persistent threats to electronic reliability.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the SDCS-BAB-F02?
All SDCS-BAB-F02 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides support for installation, commissioning, and fault diagnosis throughout the confirmed support period.

Q2: How is each unit tested before shipment?
Every SDCS-BAB-F02 undergoes pre-shipment functional verification, including inspection of component integrity, connector condition, and signal path continuity. Boards are verified against ABB DCS800 compatibility specifications to ensure they will perform correctly upon installation.

Q3: Is the SDCS-BAB-F02 compatible with all DCS800 variants?
The SDCS-BAB-F02 (3ADT316400R0502) is designed for the ABB DCS800 series DC drive platform. Compatibility with specific DCS800 variants and firmware versions should be confirmed against the ABB DCS800 hardware manual or by contacting our technical team with your drive nameplate details before ordering.

Q4: Can KNMKS support long-term and emergency spare parts supply?
Yes. KNMKS maintains ready stock of the SDCS-BAB-F02 and related DCS800 spare parts to support both planned maintenance programs and urgent breakdown replacement requirements. We offer global delivery details confirmed by RFQ with express options available for critical downtime situations. For long-term supply agreements or volume requirements, please contact our sales team directly.
