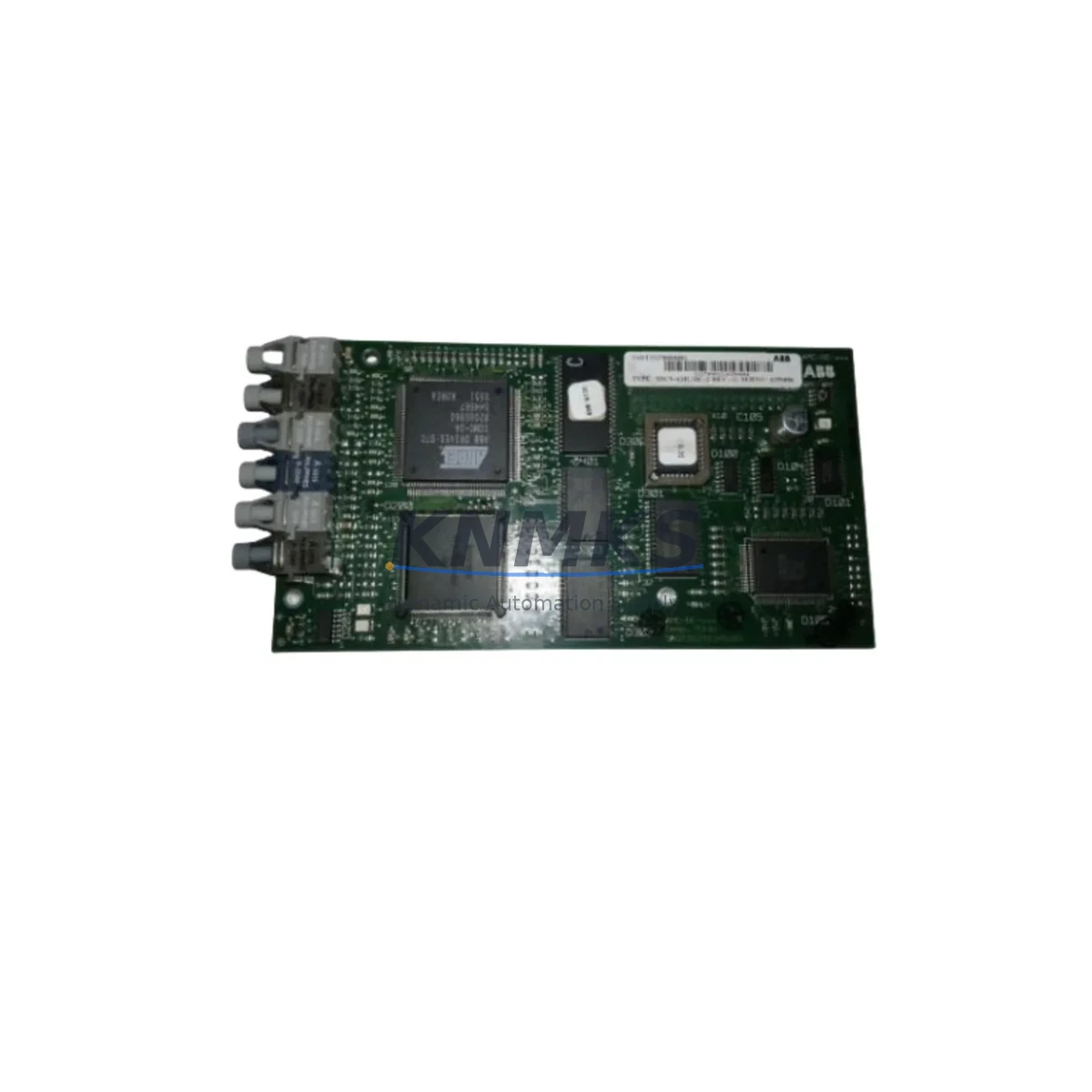

ABB SDCS-AMC-DC2 V31.602 Fail-Safe DC Drive Control Board

Overview

ABB SDCS-AMC-DC2 V31.602 Fail-Safe DC Drive Control Board: Fault Protection and Critical Industrial Field Reliability

The ABB SDCS-AMC-DC2 VERSION 31.602 is the core control intelligence of the ABB DCS800 series DC drive platform — a proven, safety-oriented solution engineered for continuous production environments where control interruption is not an option. Designed to operate reliably inside heavy-duty control cabinets exposed to high electromagnetic interference, voltage transients, thermal cycling, and mechanical vibration, this board delivers the fault-tolerant performance demanded by petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port cranes, and continuous manufacturing processes.

As the primary control board governing armature current regulation, speed feedback processing, and drive sequencing within the DCS800 platform, the SDCS-AMC-DC2 V31.602 directly determines whether a critical motor drive remains in safe, controlled operation or enters an unplanned fault state. Its firmware version 31.602 incorporates refined closed-loop control algorithms that minimize signal drift, reduce nuisance tripping, and maintain stable torque output even under fluctuating supply conditions — a key requirement in high-load applications such as rolling mill drives, large pump stations, and hoist control systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered DCS800 control cabinet, the SDCS-AMC-DC2 V31.602 does not operate in isolation. Its reliability is directly supported by the surrounding protection architecture. The SDCS-POW-1 power supply board provides regulated low-voltage DC to the control electronics, ensuring that transient surges on the main supply bus do not propagate into the sensitive control circuitry. Alongside it, the SDCS-FEX-2 field excitation board manages motor field current with precision, and any instability in field excitation will immediately compromise armature control — making the health of both boards interdependent.

For applications requiring fieldbus communication, the SDCS-COM-8 PROFIBUS adapter integrates directly with the AMC board, enabling real-time parameter monitoring, fault logging, and remote diagnostics from a central SCADA or DCS system. In high-vibration environments such as mining conveyors or port crane drives, the SDCS-IOB-3 I/O extension board provides additional analog and digital I/O channels with robust signal conditioning, reducing the risk of false trips caused by electrical noise on long cable runs.

Where power quality is a concern — particularly in facilities with large motor starts, arc furnaces, or variable-frequency loads on the same bus — the addition of a dedicated ABB RINT-5514C pulse encoder interface board ensures that speed feedback signals remain clean and accurate, preventing the speed loop from responding to phantom disturbances. For cabinet thermal management, ensuring that the DCS800 drive’s internal fan and the SDCS-AMC-DC2 board’s operating temperature remain within specification is critical; pairing the drive with an appropriately rated ABB ACS/DCS series cabinet cooling unit or door-mounted heat exchanger significantly extends the service life of all control boards in high-ambient-temperature installations.

Critical Industrial Safety Applications

The SDCS-AMC-DC2 V31.602 is a preferred spare and replacement component across a wide range of safety-critical industrial sectors:

Petrochemical and Refinery Plants: DC drives controlling compressor trains, boiler feed pumps, and crude transfer pumps in continuous process environments require zero-tolerance fault performance. The SDCS-AMC-DC2 supports the precise speed and torque regulation needed to maintain process stability, while its onboard diagnostics enable predictive maintenance before a fault escalates to a process shutdown.

Power Generation: In coal-fired, hydroelectric, and combined-cycle power stations, DC drives are used for induced draft fans, coal pulverizers, and exciter systems. The DCS800 platform with a healthy SDCS-AMC-DC2 board ensures that these auxiliary drives remain synchronized with plant control systems, reducing the risk of unit trips caused by drive faults.

Mining and Mineral Processing: Conveyor drives, ball mill drives, and hoist systems in underground and surface mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The SDCS-AMC-DC2’s robust design and firmware-level fault management make it a reliable choice for these demanding applications, where an unplanned drive failure can halt an entire production shift.

Water and Wastewater Treatment: Large pump station drives and aeration blower drives in municipal and industrial water treatment facilities operate continuously, often unmanned. The SDCS-AMC-DC2’s stable closed-loop control prevents the flow surges and pressure transients that can damage pipework and downstream equipment.

Metallurgy and Steel Production: Rolling mill main drives, coiler drives, and ladle crane hoists in steel plants demand the highest levels of dynamic torque control and fault tolerance. The DCS800 platform, anchored by the SDCS-AMC-DC2 control board, is a well-established solution in these environments, with a long installed base and proven field reliability.

Port and Marine Applications: Container crane drives, ship loader drives, and mooring winch systems in port environments require precise speed control under rapidly varying loads. The SDCS-AMC-DC2 supports the fast current loop response needed for smooth, safe load handling in these applications.

Safety and Quality FAQ

Q1: What support terms is provided with the SDCS-AMC-DC2 V31.602?
All units are supplied with a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning queries.

Q2: How is each board tested before shipment?
Every SDCS-AMC-DC2 V31.602 unit undergoes a full pre-shipment functional verification, including power-on testing, firmware version confirmation, and I/O channel checks. Units that do not pass verification are not dispatched. A test report is available upon request.

Q3: Is this board compatible with all DCS800 drive variants?
The SDCS-AMC-DC2 VERSION 31.602 is designed for the ABB DCS800 series. Compatibility depends on the specific DCS800 hardware revision and existing firmware configuration. We recommend confirming your drive’s existing AMC board part number and firmware version before ordering. Our technical team can assist with compatibility verification.

Q4: Can long-term spare parts supply be guaranteed?
Yes. We maintain dedicated stock of SDCS-AMC-DC2 and related DCS800 control boards to support long-term spare parts strategies for facilities with 12–36 month procurement cycles. Bulk orders and reserved stock arrangements are available for critical infrastructure operators who require guaranteed supply continuity.
