ABB SDCS-AMC-DC-2COAT Migration-Ready AMC for DCS800

Overview

ABB SDCS-AMC-DC-2COAT Migration-Ready AMC for DCS800 DC Drive Systems

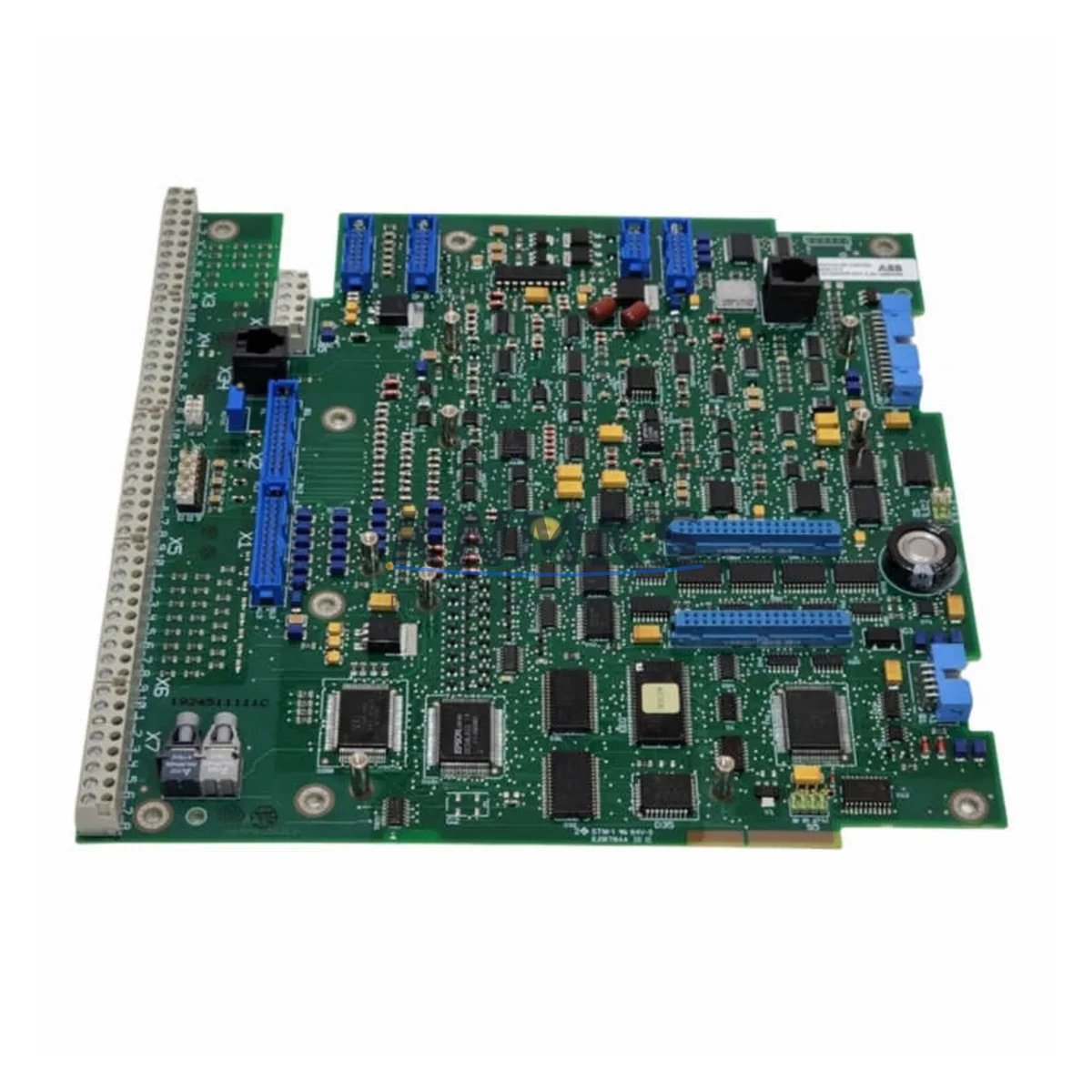

The ABB SDCS-AMC-DC-2COAT is the adaptive motor control (AMC) board designed for the DCS800 series DC drive platform. As legacy DC drive systems approach end-of-life and original spare parts become increasingly scarce, the SDCS-AMC-DC-2COAT serves as a critical replacement component for facilities running DCS800 drives in continuous production environments. Whether you are managing a planned retrofit, responding to an unplanned board failure, or building a long-term spare parts inventory for a multi-drive installation, this module provides a verified, drop-in compatible solution that minimizes engineering risk and reduces commissioning time on site.

The conformal-coated variant (2COAT) is specifically suited for industrial environments where moisture, dust, and airborne contaminants are present — common conditions in paper mills, metal processing lines, cement plants, and marine applications. The coating provides an additional layer of protection over the standard SDCS-AMC-DC board, extending service life in harsh ambient conditions without requiring additional enclosure upgrades.

When replacing a failed or degraded SDCS-AMC-DC-2COAT, engineers must verify several critical parameters before powering up the drive. First, confirm the firmware version currently loaded on the replacement board is compatible with the existing DCS800 control software and any connected SDCS-CON-F or SDCS-CON-2 control boards in the same drive stack. Mismatched firmware between the AMC and CON layers is a common source of commissioning faults that can delay restart by hours. Second, review the parameter backup from the original drive — if a DriveWindow or DriveWindow Light backup exists, restoring the parameter set to the new board significantly reduces tuning time and protects the original motor control logic. If no backup is available, the drive must be recommissioned from the motor nameplate data and the original application program.

Terminal wiring on the SDCS-AMC-DC-2COAT follows the standard DCS800 backplane interface, so no rewiring of the power stage or field supply connections is required for a direct board swap. However, engineers should inspect the SDCS-DSL-1 or SDCS-DSL-2 fiber optic links between the AMC and the gate driver boards, as these connections are sensitive to contamination and mechanical stress. A clean fiber interface is essential for reliable IGBT firing and accurate current feedback during the first test run after replacement.

For installations where the DCS800 drive is integrated into a larger automation architecture — for example, connected to an AC500 PLC via PROFIBUS-DP or Modbus RTU — the communication link must be verified after the board swap. The SDCS-AMC-DC-2COAT retains the same fieldbus interface as its predecessor, but the node address and baud rate settings stored in the drive parameters must be confirmed before reconnecting the PLC. In systems using an RPBA-01 PROFIBUS adapter or an RMBA-01 Modbus adapter mounted on the drive, these adapter modules should be inspected for firmware compatibility with the replacement AMC board.

HMI screens connected to the DCS800 via the drive’s panel bus — typically using a CDP312R or ACS-CP-C control panel — will resume normal operation after the parameter set is restored. If the HMI displays drive-specific parameter values or fault history, these should be cleared and re-validated against the new board’s initial commissioning data. In multi-drive systems where a master DCS800 coordinates speed references to follower drives via the DDCS fiber ring, the master-follower configuration parameters must be re-entered and tested under no-load conditions before resuming production.

Power supply capacity is another factor that requires attention during a board-level retrofit. The SDCS-AMC-DC-2COAT draws its logic supply from the drive’s internal SDCS-POW-1 or SDCS-POW-4 power supply board. If the existing power supply shows signs of aging — indicated by voltage ripple on the 24 VDC rail or intermittent undervoltage faults — it is advisable to replace the power supply board at the same time as the AMC board to avoid a repeat failure shortly after restart. Combining both replacements in a single planned maintenance window reduces total downtime compared to two separate interventions.

Installation space within the DCS800 cabinet is fixed by the drive’s standard backplane, so no mechanical modifications are required for the SDCS-AMC-DC-2COAT replacement. The board mounts directly onto the backplane connector and is secured with the original fasteners. Before insertion, inspect the backplane connector pins for corrosion or mechanical damage, as a poor backplane connection can cause intermittent faults that are difficult to diagnose after the drive is returned to service.

All SDCS-AMC-DC-2COAT units supplied by KNMKS are pre-shipment tested under simulated drive operating conditions. Each board is verified for correct power-up sequence, parameter read/write function, and communication interface integrity before dispatch. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch to support both planned maintenance schedules and emergency breakdown situations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-AMC-DC-2COAT retrofit requires a structured approach that accounts for all interdependent components in the DCS800 drive stack and the wider automation system. Begin by auditing the existing drive cabinet to identify the current revision of the SDCS-CON-F or SDCS-CON-2 control board, as the AMC and CON boards must operate on compatible firmware branches. If the CON board is also showing signs of wear — evidenced by erratic speed regulation or intermittent communication faults — replacing both boards in the same maintenance window is the most efficient approach.

Next, assess the condition of the SDCS-POW-1 or SDCS-POW-4 power supply board. A degraded power supply is frequently the root cause of AMC board failures, and replacing the AMC without addressing the power supply can result in a repeat failure within months. Similarly, inspect the SDCS-DSL-1 fiber optic link boards that carry gate firing signals between the AMC and the drive’s thyristor or IGBT power stage. Damaged or contaminated fiber connectors are a common source of nuisance trips after a board replacement.

For drives connected to a PROFIBUS-DP network via an RPBA-01 adapter, confirm that the GSD file loaded in the PLC’s hardware configuration matches the drive’s current firmware version. An outdated GSD file can prevent the PLC from establishing a valid data exchange with the drive after the AMC board is replaced. In systems using Modbus RTU via an RMBA-01 adapter, verify the register map and baud rate settings in both the drive parameters and the PLC program before restarting the communication link.

If the DCS800 is part of a multi-drive system using the DDCS fiber ring for master-follower speed coordination, the ring topology must be re-verified after the board swap. A single incorrectly configured node address can disrupt speed synchronization across the entire drive line, causing production quality issues that may not be immediately obvious during initial no-load testing. Always perform a loaded test run at reduced speed before returning the system to full production rate.

HMI integration should also be validated as part of the retrofit plan. If the drive communicates with a panel-mounted CDP312R or an ACS-CP-C operator panel, confirm that the panel firmware is compatible with the replacement AMC board. In larger SCADA systems where the DCS800 drive status is monitored via OPC or a dedicated drive monitoring tool such as DriveWindow, re-establish the monitoring connection and verify that all drive signals are being read correctly before signing off on the retrofit.

Downtime Control During System Migration

Minimizing downtime during a DCS800 AMC board replacement requires preparation that begins well before the maintenance window opens. The single most effective step is to create a full parameter backup using DriveWindow or DriveWindow Light before the old board is removed. This backup captures all motor control parameters, application-specific settings, and communication configuration in a single file that can be restored to the replacement board in minutes, eliminating the need for manual parameter entry and reducing the risk of transcription errors.

Where a parameter backup is not available — for example, in cases of sudden board failure with no prior maintenance record — the recommissioning process must be built from the motor nameplate data and any available original commissioning documentation. In these situations, having the motor’s rated voltage, current, speed, and field current data readily available is essential. If the original application program was developed in DriveApplication Programmer, a copy of the program file should be stored off-drive in the plant’s document management system to allow rapid reload after a board replacement.

Physical preparation of the replacement board before the maintenance window also reduces downtime. Confirm that the replacement SDCS-AMC-DC-2COAT is on-site and has passed pre-shipment testing before scheduling the maintenance window. Prepare all required tools — including fiber optic cleaning kits for the SDCS-DSL connections, ESD protection equipment, and a laptop with DriveWindow installed — so that the board swap and parameter restore can be completed without interruption.

During the board swap, follow a structured sequence: isolate the drive from the supply, discharge the DC bus, remove the failed AMC board, inspect the backplane connector, insert the replacement board, restore the parameter backup, verify communication links, and perform a no-load test run before reconnecting the load. This sequence, when followed consistently, typically allows a DCS800 AMC board replacement to be completed within a two-to-four hour maintenance window, even in complex multi-drive installations.

Post-replacement, monitor the drive closely during the first 24 hours of production operation. Pay particular attention to current regulation stability, speed reference tracking, and any new fault codes that may indicate a firmware mismatch or a marginal backplane connection. Early detection of these issues allows corrective action before they develop into a second unplanned outage.

Retrofit Support FAQ

Q: Is the SDCS-AMC-DC-2COAT a direct drop-in replacement for the standard SDCS-AMC-DC board?
A: Yes. The SDCS-AMC-DC-2COAT is functionally identical to the SDCS-AMC-DC and uses the same backplane interface and firmware. The 2COAT designation indicates the addition of conformal coating for enhanced environmental protection. No hardware or wiring modifications are required for the substitution.

Q: What firmware version should the replacement board be running?
A: The replacement board must run a firmware version compatible with the SDCS-CON-F or SDCS-CON-2 board installed in the same drive. Check the firmware version of the existing CON board using DriveWindow before ordering the replacement AMC board. KNMKS can advise on firmware compatibility based on your drive’s serial number and current CON board revision.

Q: Are units pre-tested before shipment?
A: Yes. Every SDCS-AMC-DC-2COAT unit supplied by KNMKS undergoes pre-shipment functional testing covering power-up sequence, parameter read/write interface, and communication integrity. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains stock of the SDCS-AMC-DC-2COAT for immediate dispatch to support both planned maintenance and emergency breakdown requirements. Standard orders are dispatched within 1–3 business days. For large-quantity orders or long-term supply agreements covering 12–36 months of planned consumption, contact [email protected] to discuss dedicated stock allocation and pricing.
