ABB SDCS-AMC-DC-2 Migration-Ready Control Board for DCS800

Overview

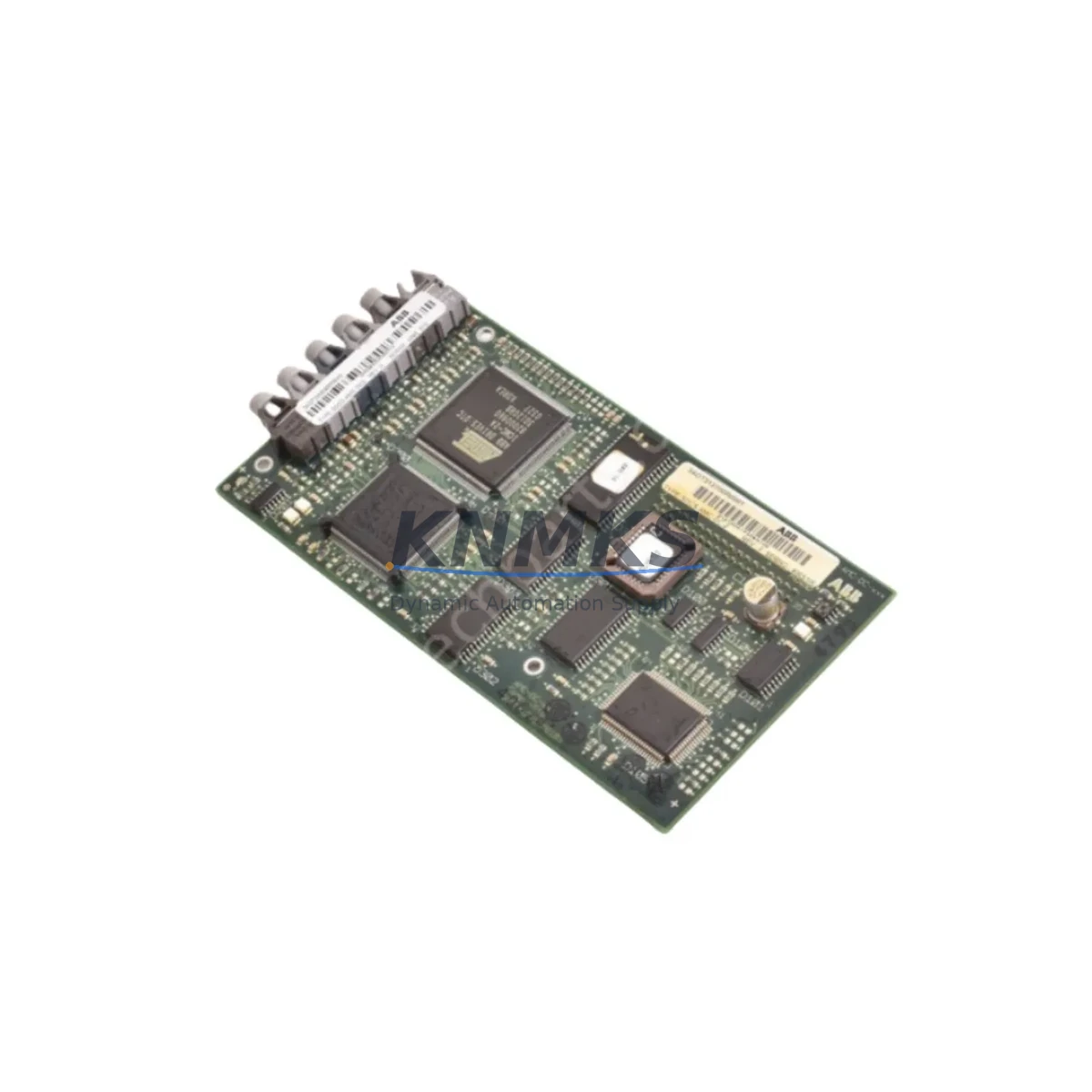

ABB SDCS-AMC-DC-2 Migration-Ready Control Board for Legacy DCS800 DC Drive Systems

The ABB SDCS-AMC-DC-2 (Part No. 3ADT312700R0001) is a retrofit-ready control board engineered for direct replacement in ABB DCS800 series DC drives. As legacy DCS500 and DCS400 platforms reach end-of-life and spare parts become increasingly scarce, the SDCS-AMC-DC-2 provides a validated migration path that preserves existing motor wiring, field circuit connections, and control logic without requiring a full drive replacement. This board serves as the central processing and regulation unit within the DCS800 control architecture, managing armature current regulation, field excitation control, speed feedback processing, and serial communications — making it a critical component in any planned or emergency retrofit scenario.

For maintenance engineers managing aging DC drive installations, the SDCS-AMC-DC-2 addresses the most common failure modes encountered during long-term operation: firmware corruption, communication faults, analog signal drift, and power supply degradation on the control board layer. Each unit supplied by KNMKS undergoes pre-shipment functional testing covering power-on initialization, parameter memory integrity, and I/O channel verification, backed by a support terms confirmed by quotation from the date of dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-AMC-DC-2 replacement begins well before the board is physically swapped. The first step is a full parameter export using ABB DriveWindow Light or the DCS800 panel keypad — this preserves motor nameplate data, speed controller tuning, current limits, and all application-specific settings that would otherwise be lost during a board change. Engineers should also confirm the firmware version currently running on the drive, as the SDCS-AMC-DC-2 must be loaded with a compatible firmware revision to avoid initialization errors on first power-up.

In installations where the DCS800 communicates with a PLC or DCS via PROFIBUS DP, the RDCO-02 or RDCO-04 fiber optic communication adapter board must be inspected and reseated after the control board swap, as communication link re-initialization is required. Similarly, if the drive is integrated into an ABB AC800M or S800 I/O system via DDCS, the master controller’s node address table should be verified to confirm the drive re-appears correctly on the network after restart.

For control cabinets housing multiple DCS800 drives — common in steel rolling mills, paper machine drives, and crane hoist applications — it is advisable to replace the SDCS-AMC-DC-2 during a planned maintenance window rather than under emergency conditions. This allows time to verify the SDCS-CON-F control terminal board connections, inspect the SDCS-POW-1 power supply board for signs of capacitor aging, and confirm that the SDCS-FEX-2 field excitation module is operating within specification. In multi-drive systems, the SDCS-AMC-DC-2 in each drive unit should be treated as a scheduled replacement item with a defined service interval, particularly in high-cycle or high-ambient-temperature environments.

Where the original installation used an older SDCS-AMC-DC-1 board, engineers should note that the DC-2 revision introduces enhanced diagnostic logging and improved EMC filtering on the analog input channels — a meaningful upgrade for installations experiencing intermittent speed reference noise or unexplained fault trips. The physical connector layout is identical, making the swap straightforward, but a firmware re-flash is recommended to take full advantage of the DC-2’s expanded fault history buffer.

Downtime Control During System Migration

Minimizing production downtime during a DCS800 control board replacement requires a structured approach. Before any hardware is touched, the existing program logic and parameter set must be fully backed up and stored off-drive — ideally on both a laptop running DriveWindow and a USB memory device connected to the DCS800 panel. This dual-backup practice ensures that even if the parameter restore process encounters an error, a secondary copy is immediately available without requiring a network connection.

The physical board swap itself typically takes under 30 minutes for a trained technician familiar with the DCS800 control section layout. The SDCS-AMC-DC-2 is secured by a single retaining latch and connects via a dedicated backplane interface — no soldering, no jumper reconfiguration, and no changes to the SDCS-CON terminal wiring are required. After installation, the parameter set is restored via DriveWindow or the keypad, and the drive is powered up in open-loop mode for initial verification before the motor is reconnected to the load.

For critical production lines where even a brief unplanned stop carries significant cost, KNMKS recommends holding a pre-tested SDCS-AMC-DC-2 as a dedicated on-site spare. This eliminates the lead time variable entirely and allows the maintenance team to execute a board swap within a single shift, restoring full production capability without waiting for international shipment. Each unit supplied is pre-tested and shipped in anti-static packaging with a serialized test record, supporting your site’s maintenance documentation requirements.

Retrofit Support FAQ

Q: Can the SDCS-AMC-DC-2 directly replace an SDCS-AMC-DC-1 without any wiring changes?
A: Yes. The connector interface and mounting position are identical between DC-1 and DC-2 revisions. No wiring changes to the SDCS-CON terminal board are required. A firmware update to a DC-2 compatible version is recommended after installation to access the full feature set of the DC-2 board.

Q: What parameter backup procedure is required before replacing the control board?
A: Export all parameters using ABB DriveWindow Light (free download from ABB) or save to the DCS800 control panel memory. Record the firmware version currently installed. After fitting the SDCS-AMC-DC-2, restore the parameter file and verify motor nameplate data, current limits, and speed reference scaling before running the drive under load.

Q: Is the SDCS-AMC-DC-2 compatible with PROFIBUS DP and Modbus RTU fieldbus configurations?
A: Yes, fieldbus communication is handled by the RDCO or RPBA adapter boards which remain in place during the control board swap. After replacement, the fieldbus link will require re-initialization from the master PLC or DCS. Verify node address and baud rate settings match the original configuration.

Q: What does the support terms confirmed by quotation cover, and how is pre-shipment testing documented?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of dispatch. Each SDCS-AMC-DC-2 unit is tested for power-on initialization, I/O channel integrity, and parameter memory function before shipment. A serialized test record accompanies each unit. For support requests or technical support, contact [email protected].
