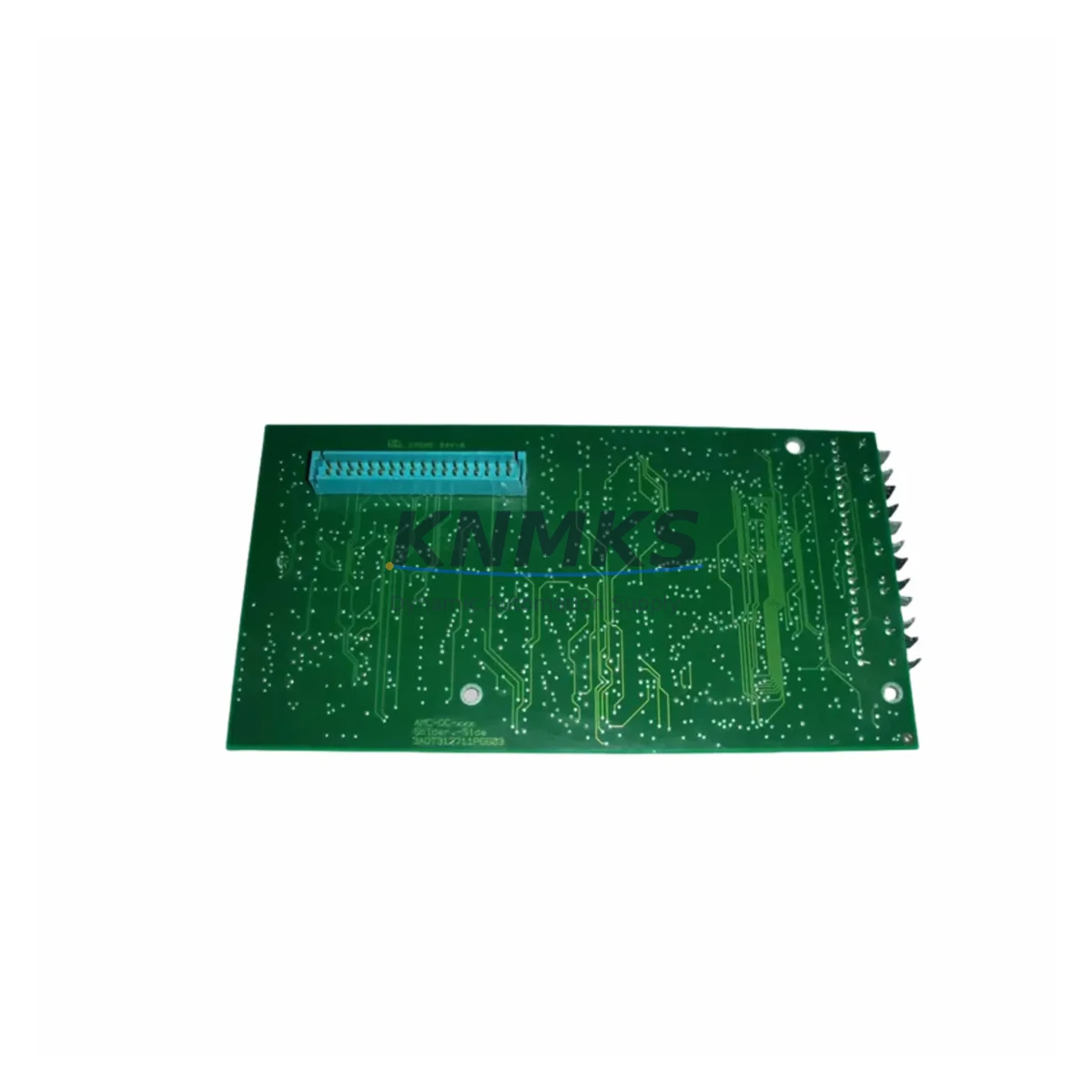

ABB SDCS-AMC-DC-2 Migration-Ready AMC Board for Legacy DC Drives

Overview

ABB SDCS-AMC-DC-2 Migration-Ready AMC Board for Legacy DC Drives

The ABB SDCS-AMC-DC-2 is the Advanced Motor Control (AMC) board at the heart of the DCS800 series DC drive platform. As legacy DC drive installations age beyond their design lifecycle, the SDCS-AMC-DC-2 has become one of the most critical spare parts for engineers managing retrofit projects, emergency replacements, and phased control system upgrades. Whether you are replacing a failed board in an existing DCS800 cabinet or migrating from an older DCS500 or Mentor II drive platform, this module provides the processing backbone required to restore full drive functionality with minimal downtime.

The SDCS-AMC-DC-2 handles all core control functions within the DCS800 drive: speed regulation, current loop control, field excitation management, and communication interface coordination. It interfaces directly with the SDCS-POW-1 power supply board and the SDCS-IOB-3 I/O expansion board, forming the essential control stack for the DCS800 architecture. When replacing this board, engineers must verify that the firmware version loaded on the replacement unit is compatible with the existing SDCS-CON-F control panel and any connected DDCS fiber-optic communication links. Mismatched firmware between the AMC board and the drive’s parameter set can cause initialization faults and prevent the drive from entering run mode.

For sites migrating from DCS500 to DCS800, the SDCS-AMC-DC-2 replacement is typically part of a broader cabinet retrofit that also involves updating the SDCS-FEX-2 field excitation module and reconfiguring the SDCS-IOB-3 terminal assignments to match the new I/O mapping. Engineers should document all existing parameter groups — particularly group 1 (speed reference), group 3 (current limits), and group 7 (fault functions) — before removing the original board, as these values must be re-entered or uploaded via the DriveWindow Light commissioning tool after the new AMC board is installed.

Backplane connector alignment is a common source of installation errors during AMC board replacement. The SDCS-AMC-DC-2 seats into the DCS800 control section via a multi-pin edge connector; any contamination, bent pins, or misalignment will result in intermittent communication faults between the AMC board and the SDCS-POW-1. Before insertion, inspect the backplane connector on both the board and the drive chassis, and ensure the board is fully seated and secured with the retaining screws before powering up. Installation space within the DCS800 cabinet is fixed, and the SDCS-AMC-DC-2 is a direct form-factor replacement — no mechanical modification is required.

For sites operating DCS800 drives in a DDCS network alongside ACS800 AC drives or other ABB drives using the RDCO-02 or RDCO-04 communication adapters, the AMC board replacement must be followed by a DDCS node address verification step. Each drive node on the fiber ring must retain its unique address to prevent communication conflicts with the master controller — typically an AC800M or AC500 PLC managing the drive network. If the site uses a Profibus DP interface via the RPBA-01 adapter, the GSD file configuration in the PLC project must also be verified against the new AMC board’s firmware revision to ensure correct process data mapping.

All SDCS-AMC-DC-2 units supplied by KNMKS are sourced from verified industrial channels, subjected to pre-shipment functional testing under simulated drive load conditions, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures. Stock is maintained across multiple regional warehouses to support emergency dispatch requirements, with same-day shipping available for in-stock units. Each board is individually packaged in anti-static ESD shielding and accompanied by a test report confirming key functional parameters prior to dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SDCS-AMC-DC-2 retrofit begins well before the board is physically removed from the drive. The first step is a full parameter backup using DriveWindow Light, capturing all drive groups including speed references, current limits, ramp times, and fault response settings. This backup serves as the restoration baseline and must be stored on a separate device — not on the drive itself — before any hardware is disturbed.

Engineers should also audit the condition of the SDCS-POW-1 power supply board during the same maintenance window. A degraded SDCS-POW-1 supplying marginal voltage to the AMC board is a common root cause of repeated AMC board failures; replacing the AMC board without addressing a failing power supply will result in premature failure of the new unit. Similarly, the SDCS-IOB-3 I/O expansion board should be inspected for terminal corrosion, loose wiring, and correct 24 VDC auxiliary supply voltage before the new AMC board is commissioned.

For drives connected to an HMI via the SDCS-CON-F control panel, the panel firmware version must be checked against the replacement AMC board’s firmware. Incompatible panel firmware can cause display errors, incorrect fault code reporting, and loss of local control functionality. In multi-drive installations where the DCS800 is networked with other drives via DDCS, the RDCO-02 or RDCO-04 fiber-optic communication adapter must be re-initialized after the AMC board swap to re-establish the node address and dataset configuration.

Where the retrofit involves a migration from an older DCS500 platform, the SDCS-FEX-2 field excitation module may also require reconfiguration to match the new AMC board’s field current reference scaling. Terminal wiring from the existing armature circuit and field circuit must be verified against the DCS800 wiring diagram before power-up, as terminal designations differ between DCS500 and DCS800 generations. Signal isolators on analog speed reference inputs should also be checked to confirm that the reference signal range (typically 0–10 V or 4–20 mA) is correctly scaled for the new AMC board’s input parameters.

Downtime Control During System Migration

Minimizing downtime during an AMC board replacement requires a structured pre-outage preparation protocol. Before the planned maintenance window, the engineering team should complete the parameter backup, prepare the replacement SDCS-AMC-DC-2 with the correct firmware version pre-loaded, and verify that all required tools — including a fiber-optic test set for DDCS link verification and a calibrated multimeter for terminal voltage checks — are on-site and ready.

During the outage, the sequence should follow: safe isolation of the drive (following local LOTO procedures), parameter backup confirmation, physical board replacement, terminal and backplane inspection, board re-seating, power restoration, firmware version confirmation via the SDCS-CON-F panel, parameter upload from backup, and a controlled no-load test run before returning the drive to production. This structured sequence protects the original program logic, prevents parameter loss, and ensures that the drive returns to service with the same control behavior as before the failure.

For critical production lines where even a brief unplanned outage carries significant cost, KNMKS recommends maintaining a pre-tested SDCS-AMC-DC-2 spare on-site as part of a proactive spare parts strategy. A pre-tested spare — already verified against the site’s firmware version and parameter set — can reduce the active repair window to under two hours, compared to the four-to-eight-hour window typical of an unplanned failure with no spare on hand. All units supplied by KNMKS are pre-shipment tested and include a test report, allowing the spare to be placed directly into service without additional bench testing on arrival.

Retrofit Support FAQ

Q: Is the SDCS-AMC-DC-2 a direct drop-in replacement for the existing board in my DCS800 drive?
A: Yes, the SDCS-AMC-DC-2 is a direct form-factor replacement for the AMC board in all DCS800 frame sizes. No mechanical modification to the drive cabinet is required. However, firmware version compatibility with the existing SDCS-CON-F panel and drive parameter set must be verified before commissioning. KNMKS can supply units pre-loaded with a specified firmware version on request.

Q: What commissioning steps are required after installing the replacement board?
A: After physical installation, connect the DriveWindow Light 2 tool via the drive’s RS-232 or USB service port, confirm the firmware version, upload the pre-saved parameter backup, verify DDCS node address (if applicable), and perform a no-load test run to confirm speed reference response and fault-free operation. For Profibus DP-connected drives, verify process data mapping against the PLC’s GSD configuration before returning to automatic mode.

Q: Can the SDCS-AMC-DC-2 be used to migrate from a DCS500 platform to DCS800?
A: The SDCS-AMC-DC-2 is native to the DCS800 platform and is not a plug-in replacement for DCS500 AMC boards. A DCS500-to-DCS800 migration requires a full drive replacement, with the SDCS-AMC-DC-2 being the control board within the new DCS800 unit. Terminal wiring, field excitation scaling (SDCS-FEX-2), and communication protocol configuration must all be re-engineered as part of the migration project.

Q: What support terms and testing does KNMKS provide with the SDCS-AMC-DC-2?
A: Every SDCS-AMC-DC-2 supplied by KNMKS is pre-shipment tested under simulated drive load conditions and ships with a test report. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and operational failures under normal operating conditions. In-stock units are available for same-day dispatch from regional warehouses to support emergency replacement requirements.
