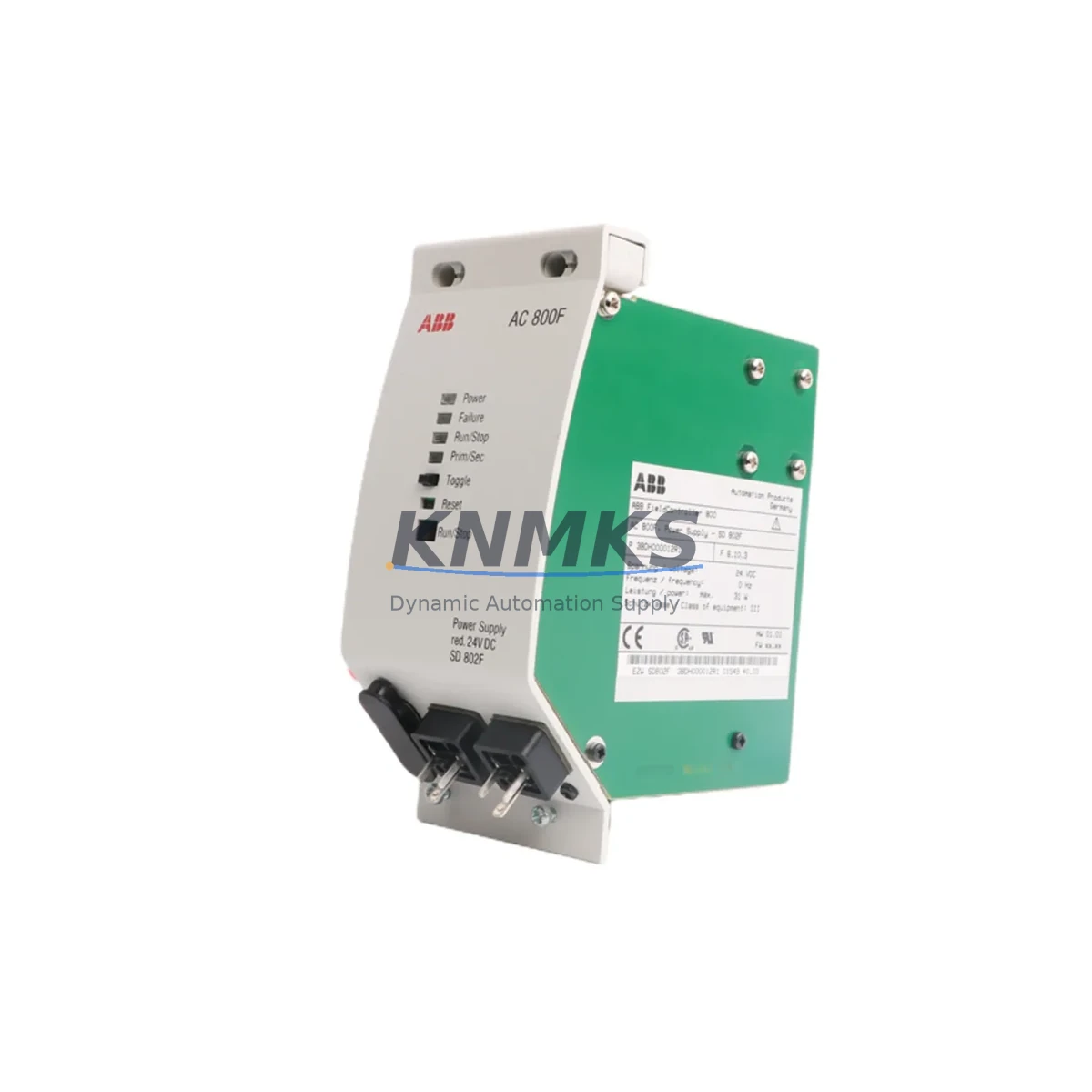

ABB SD802F 3BDH000012R1 Migration-Ready Power Supply for Legacy DCS

Overview

ABB SD802F 3BDH000012R1 Migration-Ready Power Supply for Legacy DCS

The ABB SD802F (3BDH000012R1) is a redundant power supply module designed for the ABB AC800M Distributed Control System platform. As legacy DCS installations age and original spare parts reach end-of-life, the SD802F remains one of the most critical components to source for system continuity. Whether you are executing a planned control system upgrade, responding to an unplanned module failure, or extending the operational life of an existing AC800M cabinet, the SD802F provides the power backbone that keeps your process running without interruption.

This module delivers regulated DC power to the AC800M controller rack, supporting redundant power configurations that eliminate single points of failure in mission-critical environments. It is fully compatible with the PM861A, PM864A, and PM866A processor modules, and integrates directly into the S800 I/O system architecture. Engineers migrating from earlier ABB Advant OCS or MOD 300 platforms will find the SD802F a reliable anchor point when consolidating legacy control infrastructure onto the AC800M platform.

Before installing the SD802F as a replacement unit, field engineers should verify several key parameters to ensure a seamless transition. Power capacity must be confirmed against the total load of all installed modules in the rack — including CI854A or CI857 communication interface modules, AI810 and AO810 analog I/O modules, and any DI810 or DO810 digital I/O modules drawing power from the same backplane. Overloading the power bus during a hot-swap replacement is a common cause of secondary failures during retrofit operations.

Terminal wiring on the incoming AC supply side must be inspected and re-torqued to manufacturer specification. Loose connections on aged terminal blocks are a frequent source of intermittent power faults that can be misdiagnosed as module failures. If the existing cabinet uses TB820 or TB825 termination boards, confirm that the wiring gauge and insulation rating remain within specification for the SD802F input voltage range.

Backplane interface compatibility should be verified against the rack generation. The SD802F is designed for the AC800M rack family, but installations that have undergone partial upgrades may include mixed-generation backplanes. Confirm the rack serial number and firmware baseline before insertion. Module address assignment is handled automatically by the AC800M system, but the Control Builder M engineering tool should be used to verify that the replacement module is recognized correctly in the hardware configuration tree before returning the system to automatic control.

Program logic compatibility is not affected by a power supply replacement, as the SD802F does not participate in the application execution layer. However, if the replacement is performed during a broader migration that includes upgrading the PM861A to a PM864A or PM866A processor, the Control Builder M project file must be re-compiled and downloaded after hardware changes are confirmed. HMI screens connected via OPC DA or OPC UA to the AC800M should be validated post-migration to confirm that all tag references remain intact and that alarm states are correctly reflected.

Communication link integrity should be checked after power restoration. The AC800M platform supports PROFIBUS DP via CI840A modules and Modbus TCP via CI854A modules. After a power cycle, confirm that all fieldbus segments re-establish communication within the expected timeout window and that no spurious alarms are generated on the DCS historian or SCADA layer.

Installation space in the control cabinet should be measured before ordering. The SD802F occupies a standard AC800M module slot and requires adequate clearance for airflow on both sides. In retrofit scenarios where the cabinet has been modified over time, verify that no cable bundles or conduit runs obstruct the module insertion path or the ventilation slots on the rack chassis.

Firmware version compatibility is not a concern for the SD802F itself, as it is a power supply module without embedded firmware. However, if the replacement is part of a broader system update that includes upgrading the AC800M firmware baseline, ensure that all modules in the rack — including the SD802F — are sourced from a compatible production batch. Our team can advise on batch compatibility based on your existing system version.

All SD802F units supplied by KNMKS are tested prior to shipment using functional load testing procedures. Each unit is verified for output voltage stability, redundancy switchover response, and thermal performance under rated load. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SD802F retrofit begins with a complete audit of the existing AC800M cabinet. Start by documenting all installed modules: processor units such as the PM864A, communication interfaces such as the CI854A for Modbus TCP or the CI840A for PROFIBUS DP, and the full complement of S800 I/O modules including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output modules. Calculate the total power draw of all installed modules and compare against the SD802F rated output to confirm headroom.

If the retrofit is part of a broader control system modernization — for example, migrating from an ABB Advant OCS Master Station to an AC800M-based architecture — the SD802F will typically be installed alongside new PM866A processors, updated CI857 PROFINET communication modules, and refreshed TB825 termination boards. In these scenarios, the power supply is often the first module installed, as it establishes the power rail that all other modules depend on during commissioning.

Signal isolation requirements should be reviewed during retrofit planning. If the existing installation uses external signal isolators between field instruments and the I/O modules, confirm that the isolator power supply ratings remain compatible with the updated cabinet layout. In some legacy installations, signal isolators were powered from the same 24 VDC rail as the AC800M rack — a practice that can cause ground loop issues if not addressed during modernization.

Programming cable access should be confirmed before the retrofit window begins. Control Builder M requires a direct Ethernet connection to the PM processor for firmware downloads and hardware configuration updates. Ensure that the engineering workstation has network access to the AC800M controller before the maintenance window opens, and that the project file backup is current and verified.

Downtime Control During System Migration

Minimizing downtime during an SD802F replacement requires preparation before the maintenance window opens. If the AC800M is configured with redundant power supplies, the replacement can be performed as a hot-swap with the process remaining in automatic control — provided the second SD802F is confirmed healthy and carrying full load before the failed unit is removed. Never initiate a hot-swap if the redundant unit is in a degraded or alarm state.

For single power supply configurations, a planned shutdown is required. Before de-energizing the rack, confirm that all field devices connected to the AC800M I/O are in a safe state — either in manual control at the field level or held at their last output value by the DCS. Document the current output states of all AO810 and DO810 modules before shutdown so that the process can be restored to the correct state after power restoration.

After installing the replacement SD802F and restoring power, allow the AC800M to complete its self-test sequence before returning the system to automatic control. Monitor the Control Builder M hardware status view to confirm that all modules report healthy status. Check the system event log for any startup alarms that may indicate a configuration mismatch or communication fault introduced during the maintenance window.

Original program logic is preserved in the PM processor’s non-volatile memory and is not affected by a power supply replacement. However, if the processor was also replaced during the same maintenance window, the Control Builder M project must be downloaded to the new processor before automatic control is restored. Confirm that the downloaded project version matches the approved revision in your document control system before releasing the system to operations.

Retrofit Support FAQ

Q: Is the SD802F 3BDH000012R1 a direct drop-in replacement for all SD802F variants?
A: The SD802F 3BDH000012R1 is the standard production variant for the AC800M platform. Most SD802F suffix variants are functionally equivalent, but we recommend confirming the full part number including the R1 suffix against your existing unit before ordering. Our technical team can assist with cross-reference verification.

Q: Can the SD802F be replaced without shutting down the AC800M controller?
A: Yes, if the AC800M is configured with redundant power supplies and the second unit is healthy and carrying full load. In single power supply configurations, a planned shutdown is required. Always verify redundant unit health before initiating a hot-swap.

Q: What pre-shipment testing is performed on SD802F units?
A: Each unit undergoes functional load testing to verify output voltage stability, redundancy switchover response, and thermal performance. A test report is available on request. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains stock of the SD802F 3BDH000012R1 for immediate dispatch. Lead time for in-stock units is typically 3–5 business days for international shipments. Contact [email protected] or +86 18359268345 to confirm current stock levels and arrange expedited shipping if required.
