ABB SCDCS-CON-4 Migration-Ready DC Drive Control for DCS800: Legacy System Migration and Compatible Upgrade

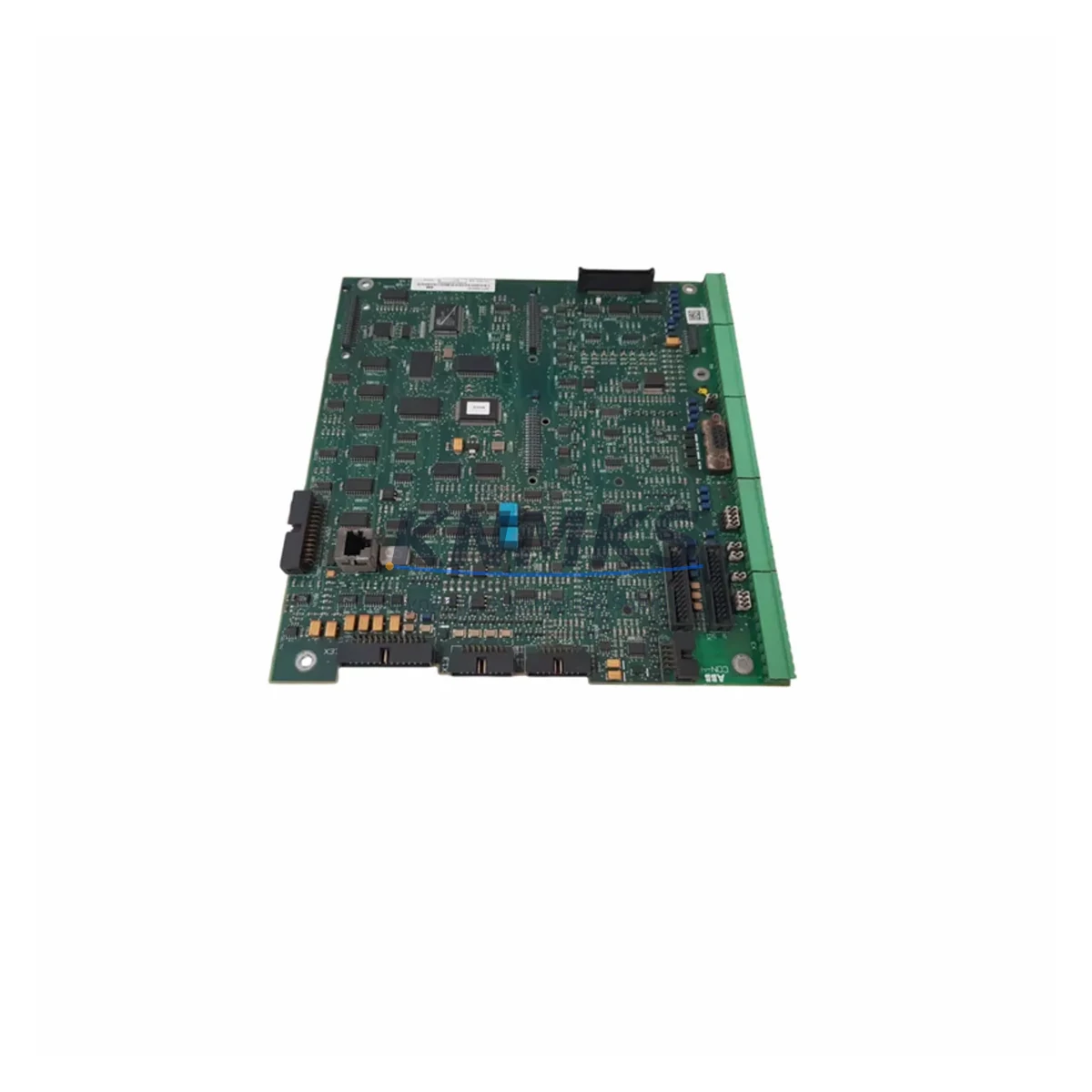

The ABB SCDCS-CON-4 is a migration-ready DC drive control board engineered for the DCS800 series of DC drives, one of ABB’s most widely deployed platforms in heavy industrial environments including steel mills, paper machines, extruders, and crane systems. As legacy DCS500 and older DCS600 installations approach end-of-service milestones, the SCDCS-CON-4 has become a critical component in planned retrofit programs and emergency spare part strategies alike. This board governs the core armature current regulation, field excitation control, and firing pulse generation that define the DCS800’s performance envelope — making it a non-negotiable element in any drive restoration or upgrade project.

When a DCS800 drive trips on a control board fault or exhibits erratic speed regulation, the SCDCS-CON-4 is typically the first board targeted for replacement. Engineers undertaking a retrofit must verify several parameters before swapping the board: the existing firmware revision loaded on the SDCS-CON-4 (predecessor designation used in some documentation), the drive’s rated armature current and field current settings stored in parameter group 99, and the configuration of the SDCS-IOB-3 I/O extension board if analog or digital I/O expansion is in use. Mismatches between the replacement board’s factory firmware and the drive’s parameter set can cause immediate overcurrent trips or field weakening errors on first power-up.

For sites migrating from DCS500 to DCS800 architecture, the SCDCS-CON-4 is part of a broader hardware transition that typically also involves replacing the SDCS-POW-4 power supply board, re-terminating the SDCS-IOB-3 I/O board wiring to match the new terminal layout, and updating the DDCS fiber-optic communication link to the plant’s DCS or SCADA layer. If the existing control system communicates via Profibus DP, the NPBA-12 Profibus adapter module must be confirmed compatible with the DCS800 firmware version running on the replacement SCDCS-CON-4. Fieldbus parameter mapping — particularly process data words PD1 through PD3 — must be re-verified after board replacement to ensure the supervisory system receives correct speed feedback and torque reference signals.

Panel space and backplane compatibility are equally important. The SCDCS-CON-4 mounts directly onto the DCS800 control section backplane using the standard connector interface; however, engineers should confirm that the drive’s control section housing has not been modified to accommodate a non-standard I/O configuration. In retrofit scenarios where the original drive cabinet has been repurposed or partially upgraded, the physical clearance around the board’s fiber-optic DDCS connectors must be checked to avoid signal degradation from bent cables. The SCDCS-CON-4 also interfaces with the SDCS-FEX-2 field exciter board in applications requiring separate field control, and the exciter’s current reference scaling must be re-entered after board replacement.

All SCDCS-CON-4 units supplied by KNMKS undergo pre-shipment functional testing under simulated load conditions, verifying firing pulse symmetry, current regulator response, and communication link integrity before dispatch. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Stock is maintained across multiple regional warehouses to support emergency dispatch requirements, with same-day shipping available for confirmed in-stock orders placed before the daily cutoff.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DCS800 retrofit built around the SCDCS-CON-4 requires a structured approach to hardware sequencing. The typical bill of materials for a full control section restoration includes the SCDCS-CON-4 control board itself, the SDCS-POW-4 internal power supply board (which provides the regulated voltages the control board depends on), and the SDCS-IOB-3 I/O extension board if the application uses more than the base analog and digital I/O channels. In crane and hoist applications, the SDCS-FEX-2 field exciter board is almost always part of the same replacement cycle, since field exciter failures frequently accompany or precede control board degradation in high-cycle-count environments.

For sites running Profibus DP networks, the NPBA-12 Profibus adapter module must be inspected and its firmware version confirmed compatible with the replacement SCDCS-CON-4 before the drive is returned to service. In older installations where the Profibus adapter has been in continuous service for more than a decade, proactive replacement of the NPBA-12 alongside the control board is a common recommendation to avoid a secondary communication fault shortly after the primary repair. Engineers should also verify the DDCS fiber-optic cable condition — brittle or yellowed fiber jackets are a reliable indicator of impending signal loss and should be replaced during the same maintenance window.

Panel wiring adaptation is another area requiring careful pre-planning. The SCDCS-CON-4’s terminal assignments for analog speed reference, enable signals, and fault relay outputs must be cross-referenced against the existing cabinet wiring diagram. In cases where the original wiring was documented against a DCS500-era terminal layout, a terminal-by-terminal mapping exercise is required before the replacement board is powered. This is particularly important for applications where the drive’s enable chain includes safety relay contacts or emergency stop circuits that must remain functional throughout the commissioning process.

Downtime Control During System Migration

Minimizing production downtime during a DCS800 control board replacement requires advance preparation that begins well before the maintenance window opens. The most effective approach is to perform a full parameter backup using the DriveWindow or DriveStudio software tool while the drive is still operational, capturing all parameter groups including the motor data set in group 99, the speed controller tuning in group 23, and the fieldbus configuration in group 51. This backup becomes the restoration baseline after the SCDCS-CON-4 is replaced and the drive is powered up for the first time.

During the physical replacement, the original program logic and parameter set remain intact in the backup file — the replacement board itself ships without application-specific parameters, so the restore step is mandatory before any test run. Engineers should plan for a minimum of two to four hours for the full sequence: board swap, parameter restore, fieldbus re-commissioning, and a no-load test run before reconnecting the mechanical load. In applications where the drive controls a process with tight speed regulation requirements — such as a winder or extruder — a supervised ramp-up under partial load is recommended before returning the drive to full automatic control.

For sites that cannot tolerate extended downtime, maintaining a pre-configured spare SCDCS-CON-4 with the parameter set already loaded is the most reliable strategy. KNMKS can supply boards with customer-specified firmware versions to reduce on-site configuration time. The support terms confirmed by quotation applies from the date of shipment regardless of when the board is placed into service, supporting a keep-warm spare strategy without support terms penalty.

Retrofit Support FAQ

Q: Is the SCDCS-CON-4 a direct drop-in replacement for the SDCS-CON-4 used in DCS500 drives?
A: The SCDCS-CON-4 is designed for the DCS800 platform and is not a direct plug-in replacement for the DCS500’s SDCS-CON-4. A DCS500-to-DCS800 migration requires replacing the full control section and verifying backplane, I/O, and fieldbus compatibility. For DCS800-to-DCS800 replacements, the SCDCS-CON-4 is a direct substitute provided firmware versions are matched.

Q: What commissioning steps are required after installing a replacement SCDCS-CON-4?
A: After physical installation, restore the parameter backup via DriveWindow or DriveStudio, verify parameter group 99 motor data, re-map fieldbus process data words if Profibus or DeviceNet is in use, confirm field current scaling on the SDCS-FEX-2 if applicable, and perform a supervised no-load test run before returning the drive to production.

Q: Are units pre-tested before shipment, and what does the support terms confirmed by quotation cover?
A: Yes. Every SCDCS-CON-4 unit undergoes pre-shipment functional testing covering firing pulse symmetry, current regulator response, and DDCS communication link integrity. The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions from the date of shipment.

Q: What is the typical lead time, and is emergency stock available?
A: Stock is maintained across multiple regional warehouses. In-stock orders confirmed before the daily shipping cutoff qualify for same-day dispatch. Lead times for non-stock configurations are confirmed at the time of order. Contact the sales team for urgent requirements.
