ABB SAMC11POW Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SAMC11POW Maintenance-Proven Spare Part for Factory Uptime

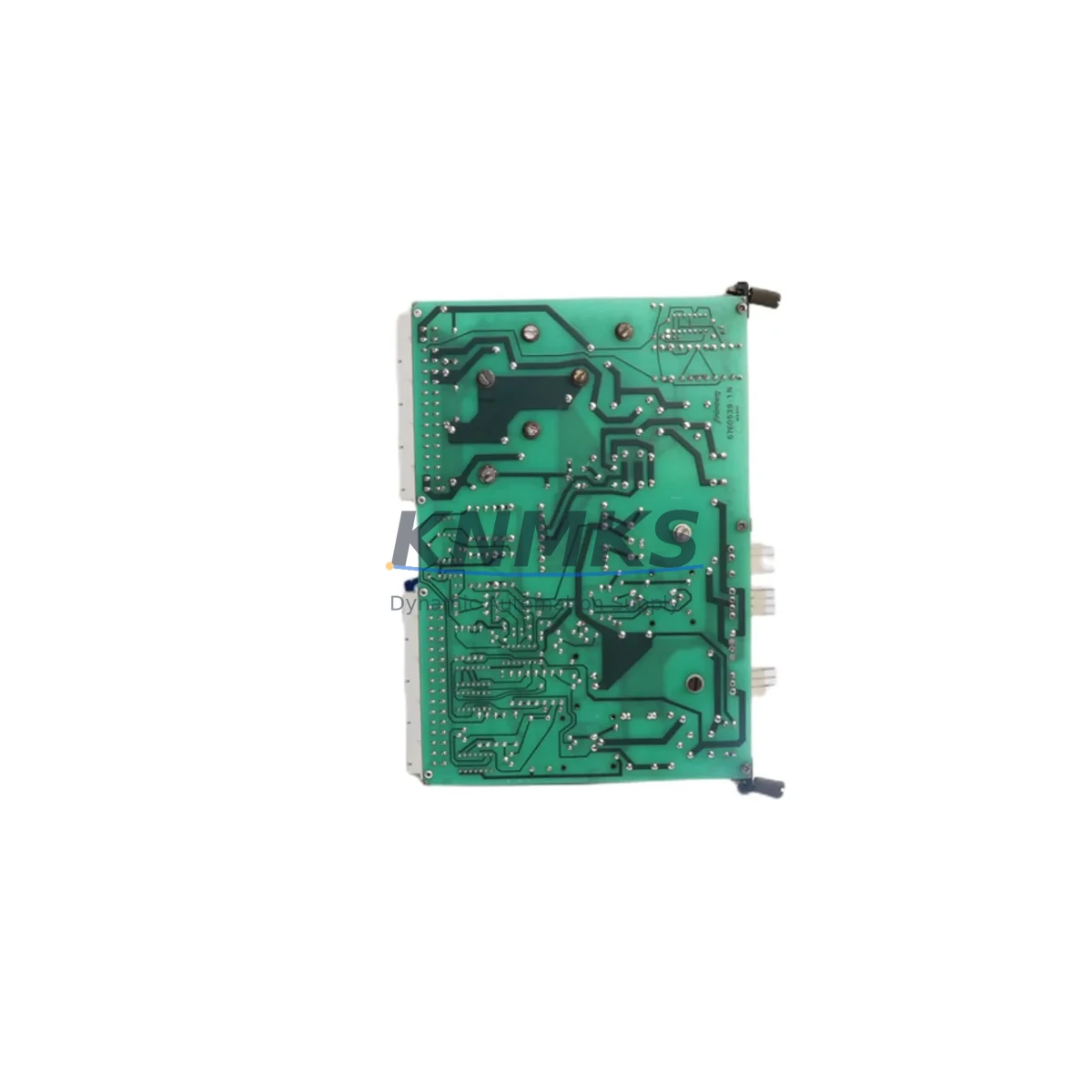

The ABB SAMC11POW (part number 57171847) is the original drive control power supply board designed for the ABB SAMC 11 series automation drives. As a critical internal power regulation component, the SAMC11POW supplies stable, conditioned DC voltage rails to the drive’s control circuitry, gate driver logic, and communication interfaces. Its failure is one of the most common root causes of unexpected drive shutdown, fault code escalation, and unplanned production downtime in facilities running ABB SAMC 11 series variable frequency drives.

For maintenance engineers managing aging drive cabinets, and for procurement engineers building resilient spare parts inventories, the SAMC11POW represents a high-priority stocking item. A single failed power supply board can render an entire drive inoperable, halting conveyor lines, pump stations, compressor banks, or HVAC systems. Holding a verified original spare on-site eliminates the lead time risk and allows same-shift restoration of full drive functionality.

Every unit we supply is sourced from authorized channels, individually tested prior to shipment, and covered by a support terms confirmed by quotation. We support long-term supply continuity for facilities that depend on SAMC 11 series drives across multi-year maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a drive control power supply board such as the SAMC11POW is identified as the fault source during a drive inspection or post-trip analysis, experienced maintenance engineers know that the power supply board rarely fails in isolation. A thorough cabinet inspection and system-level review is essential before returning the drive to service.

Begin by verifying the incoming AC supply quality to the drive. Voltage sags, phase imbalance, or transient overvoltages are frequent contributors to premature power supply board degradation. Check the ABB SAMC 11 input rectifier module and DC bus capacitor bank for signs of thermal stress or electrolytic aging — these components share the same power path as the SAMC11POW and should be evaluated concurrently.

Inspect the SAMC 11 gate driver board and IGBT power module. A shorted or degraded IGBT can cause reverse stress on the control power supply, and replacing the SAMC11POW without addressing a damaged power stage will result in repeat failure. Similarly, review the SAMC 11 control board (SAMC11CON or equivalent) for fault history logs and parameter integrity — a corrupted parameter set after a power event can mimic hardware failure.

For drives integrated into networked control architectures, inspect the SAMC 11 fieldbus communication module (PROFIBUS, PROFINET, or Modbus variant as applicable). Communication module power is typically derived from the control power supply rail; a marginal SAMC11POW may cause intermittent fieldbus dropouts before complete failure occurs.

Review the cabinet’s 24 VDC auxiliary power supply feeding control relays, safety circuits, and I/O terminals. Shared ground faults or leakage currents between the auxiliary supply and the drive’s internal power rails can accelerate board-level component wear. Inspect terminal blocks, cable shields, and PE bonding conductors throughout the cabinet.

For facilities operating multiple SAMC 11 drives, a proactive spare parts strategy should include not only the SAMC11POW but also the SAMC 11 fan assembly for thermal management continuity and the SAMC 11 keypad or HMI panel for parameter backup and on-site diagnostics capability. Maintaining a documented spare parts list aligned to each drive’s installation age and duty cycle is the most effective way to prevent unplanned downtime from escalating into extended production loss.

Site Replacement Workflow

Replacing the ABB SAMC11POW on-site is a structured process that, when executed correctly, restores full drive functionality within a single maintenance window. The following workflow is recommended for maintenance engineers performing the replacement in an industrial environment:

1. Pre-Replacement Preparation: Obtain the drive’s parameter backup using the SAMC 11 keypad or a connected PC tool (ABB Drive Composer or equivalent). Document all active fault codes and the drive’s last known operating parameters. Confirm the replacement SAMC11POW part number matches 57171847 and inspect the unit for shipping damage before opening the drive cabinet.

2. Safe Isolation: Isolate the drive from the AC supply using the upstream isolator or circuit breaker. Allow a minimum of 5 minutes for the DC bus to discharge to safe levels. Verify zero voltage on the DC bus terminals using a calibrated multimeter before proceeding. Follow site-specific LOTO (Lockout/Tagout) procedures throughout.

3. Board Removal and Installation: Disconnect all ribbon cables, signal connectors, and power harnesses from the existing SAMC11POW in sequence, photographing connector positions before removal. Remove the board using the appropriate tooling per the SAMC 11 service manual. Install the replacement SAMC11POW, reconnect all connectors in reverse order, and verify secure seating of all connections.

4. Commissioning and Verification: Restore AC power and perform a controlled power-up sequence. Verify that the drive initializes without fault codes related to internal power supply or control board undervoltage. Restore parameters from backup and perform a no-load test run before returning the drive to production duty. Document the replacement in the site maintenance log with the new board’s serial number and installation date.

This workflow minimizes re-work risk, supports support terms validation, and ensures the drive is returned to service in a fully verified state — reducing the probability of repeat failure and protecting production continuity.

Spare Parts Support FAQ

Q1: How do I confirm the SAMC11POW is compatible with my specific SAMC 11 drive variant?
Cross-reference the part number 57171847 against your drive’s nameplate data and the SAMC 11 series spare parts list in the ABB service documentation. If you are uncertain, provide us with your drive’s full model code and serial number — our technical team will verify compatibility before shipment.

Q2: Is the SAMC11POW tested before shipment, and what does the support terms confirmed by quotation cover?
Yes. Every SAMC11POW unit undergoes functional testing prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and component failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or failure to follow ABB’s recommended maintenance procedures.

Q3: Can I stock multiple units for a fleet of SAMC 11 drives, and do you support long-term supply?
Yes. We support multi-unit procurement for facilities operating multiple SAMC 11 drives and can provide long-term supply agreements to support annual maintenance planning cycles. Contact our sales team to discuss volume pricing and scheduled delivery arrangements.

Q4: What is the recommended spare parts holding strategy for SAMC 11 drives in critical applications?
For drives in continuous-duty or critical process applications, we recommend holding at minimum one SAMC11POW per three to five drives installed, reviewed annually against drive age and fault history. Drives older than seven years or operating in high-ambient-temperature environments should be prioritized for proactive spare stocking. Pair the SAMC11POW with a control board spare and a fan assembly to cover the most common failure modes in a single maintenance kit.
