ABB SAFT185TBC Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB SAFT185TBC Maintenance-Proven Spare Part for Factory Uptime

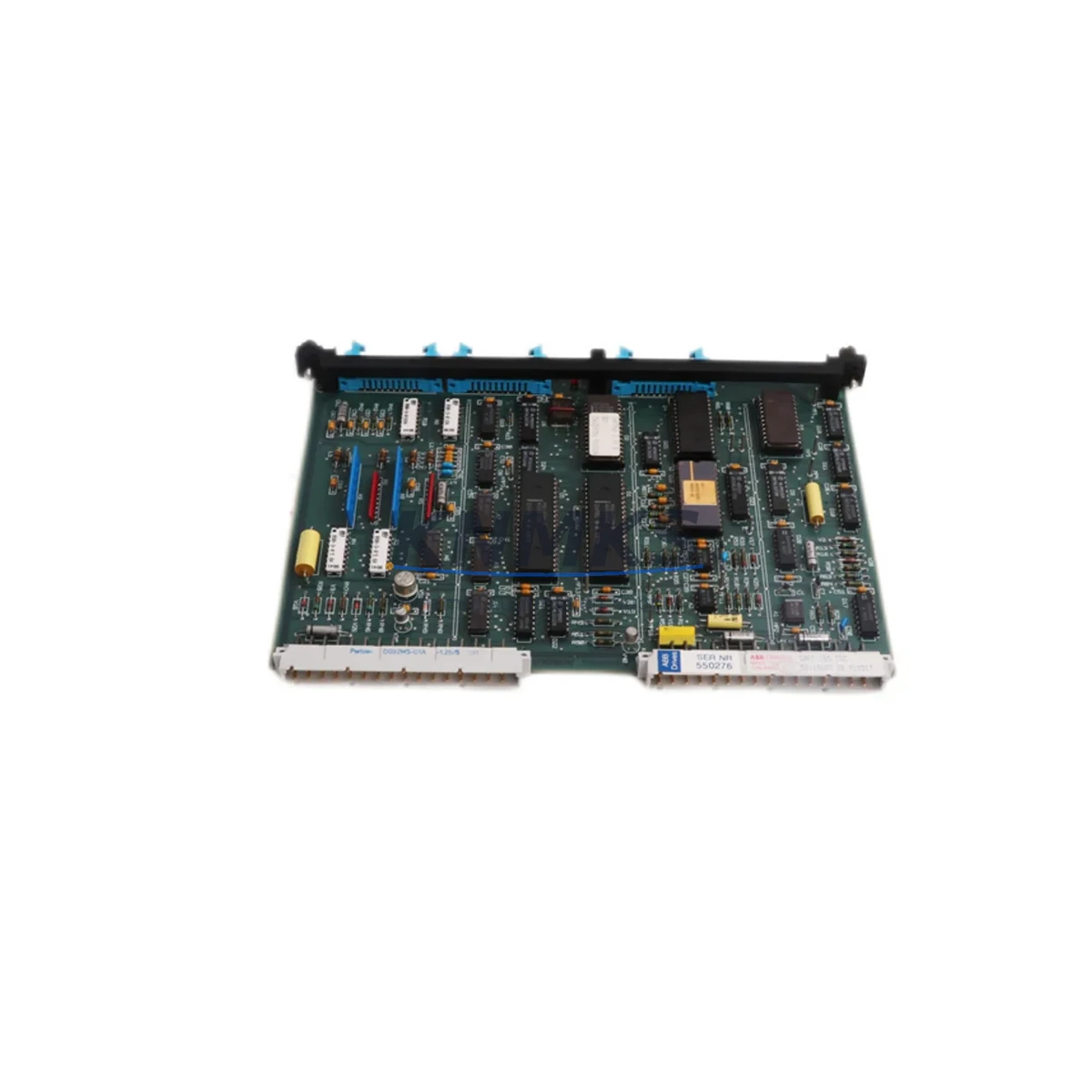

The ABB SAFT185TBC is a drive control board engineered for the ACS600 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families in process automation, pump control, fan regulation, and conveyor systems. As a maintenance-proven original spare part, the SAFT185TBC plays a central role in keeping ACS600 drives operational across demanding factory environments where unplanned downtime translates directly into production loss and costly emergency interventions.

For maintenance engineers managing aging ACS600 installations, the SAFT185TBC is a critical component to stock. Drive control boards are among the highest-failure-risk assemblies in a VFD system, subject to thermal cycling, voltage transients, and cumulative wear from years of continuous operation. When a control board fault is flagged — whether through a drive fault code, erratic speed response, or complete drive lockout — having a verified replacement on the shelf means the difference between a 30-minute swap and a multi-day procurement delay.

Procurement engineers sourcing SAFT185TBC replacements should prioritize suppliers who can confirm original ABB manufacture, provide pre-shipment functional testing documentation, and offer a minimum support terms confirmed by quotation. KNMKS supplies the SAFT185TBC with full traceability, tested before dispatch, and backed by a 12-month quality support terms — supporting both emergency replacement orders and planned annual maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the SAFT185TBC in an ACS600 drive is rarely an isolated task. A thorough site maintenance plan should treat the control board replacement as an opportunity to inspect and verify the condition of all associated components in the same drive cabinet and electrical circuit.

Begin with the AINT board (SAFT185AIN) — the analog input/output interface board that works in close coordination with the SAFT185TBC. Faults in the AINT board can mimic control board failures and vice versa, so both should be inspected simultaneously. Similarly, the DINT digital input board and any installed RDCO communication option modules (used for DDCS fiber-optic fieldbus connectivity) should be checked for physical damage, loose connectors, and firmware compatibility with the replacement control board.

On the power side, verify the condition of the ACS600 DC bus capacitor bank and the OINT optocoupler interface board, which handles gate drive signals between the control board and the IGBT power modules. A degraded OINT board can cause recurring control board faults even after a successful SAFT185TBC replacement. Inspect all ribbon cable and fiber-optic connections between boards — these are common failure points in drives that have been in service for more than five years.

For the incoming power circuit, check the main contactor, input fuses, and EMC filter upstream of the drive. Voltage transients from a poorly maintained supply network are a leading cause of premature control board failure. If the ACS600 is connected to a fieldbus network (Profibus, Modbus, or DeviceNet via an option module), verify that the communication module firmware is compatible with the replacement SAFT185TBC before commissioning.

Finally, review the ACS600 cooling fan assembly and heatsink condition. Overtemperature events accelerate control board degradation — a clean, fully functional cooling system is essential to maximizing the service life of any replacement spare.

Site Replacement Workflow

Before beginning the SAFT185TBC replacement, record all drive parameters using the ACS600 keypad or DriveWindow software. Parameter backup is critical — the replacement board will require full parameter restoration to match the original drive configuration, including motor data, control mode, and I/O assignments.

Power down the ACS600 drive and follow the full lockout/tagout procedure. Wait a minimum of five minutes after power-off before opening the drive cabinet to allow DC bus capacitors to discharge. Verify zero voltage on the DC bus terminals with a calibrated multimeter before touching any internal components.

Remove the SAFT185TBC by disconnecting all ribbon cables, fiber-optic links, and the 24VDC control power connector in sequence. Note the orientation and routing of all cables before removal — photograph the installation if possible. Install the replacement SAFT185TBC, reconnect all cables in reverse order, and verify that all connectors are fully seated.

Restore drive parameters from backup, then perform a no-load test run before reconnecting the motor load. Monitor the drive for fault codes during the first 30 minutes of operation. This workflow minimizes commissioning risk and ensures the replacement spare performs identically to the original, maintaining full system compatibility and reducing the risk of secondary faults.

Spare Parts Support FAQ

Q: Is the SAFT185TBC compatible with all ACS600 drive variants?
A: The SAFT185TBC is designed for the ACS600 series, but compatibility depends on the specific ACS600 model and firmware version. Always cross-reference the drive’s type designation and existing board revision before ordering. KNMKS can assist with compatibility verification — contact admin@knmks.com with your drive nameplate data.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Each SAFT185TBC unit is tested before shipment. Support requests are supported with replacement or refund — contact KNMKS within the confirmed support period with fault documentation.

Q: Can KNMKS supply SAFT185TBC for long-term maintenance contracts?
A: Yes. KNMKS supports both emergency single-unit orders and long-term spare parts supply agreements for maintenance teams managing multiple ACS600 installations. Bulk pricing and reserved stock arrangements are available — contact admin@knmks.com for details.

Q: How is the SAFT185TBC tested before shipment?
A: Each unit undergoes functional verification prior to dispatch, including board-level power-on testing and visual inspection for physical defects. Test documentation is available on request. KNMKS does not ship untested boards.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SAFT185TBC

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB SAFT185TBC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
