ABB SAFT167APC Migration-Ready Power Connector for Legacy Control Systems

Overview

ABB SAFT167APC Migration-Ready Power Connector for Legacy Control Systems

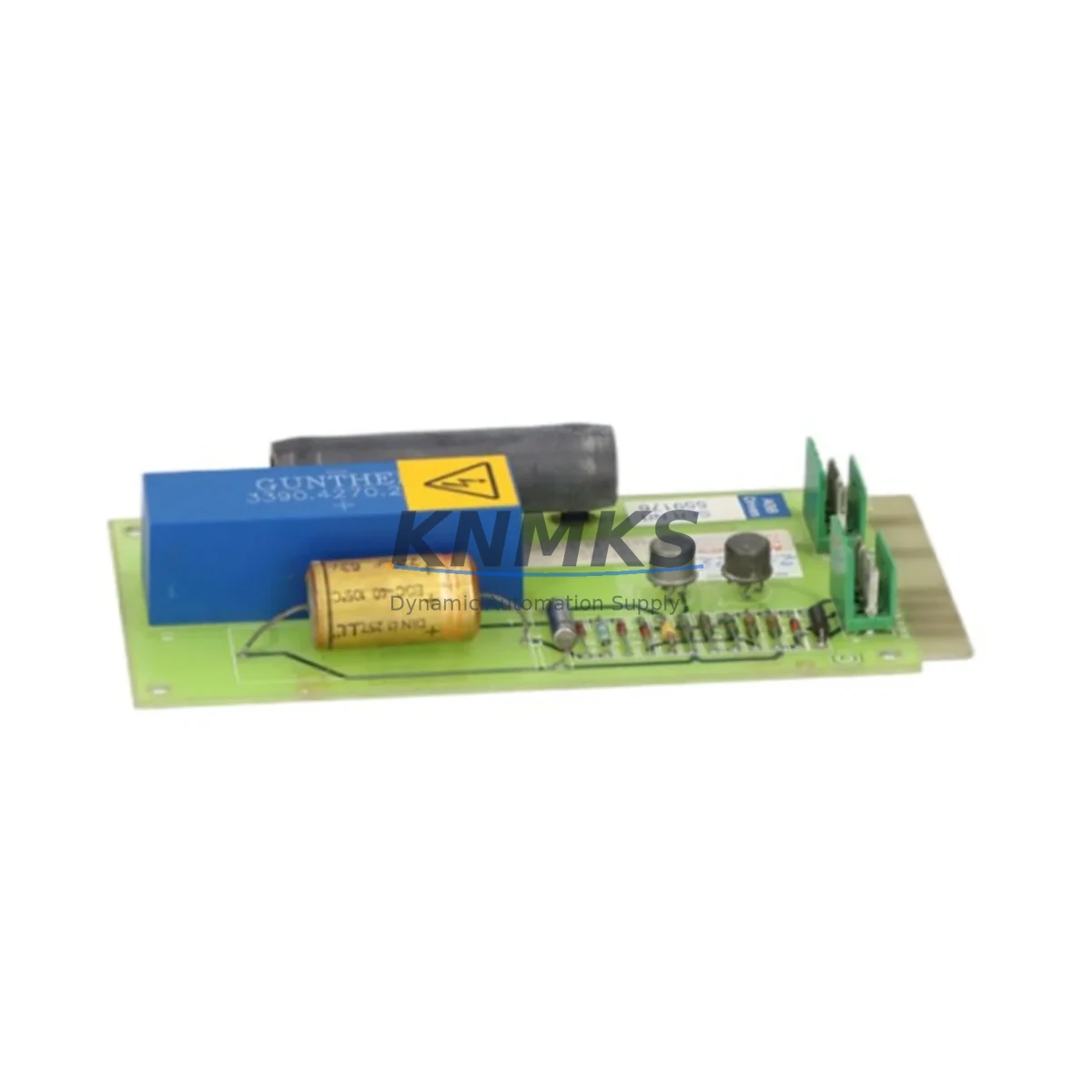

The ABB SAFT167APC is a migration-ready power connector board designed for the ABB SAFT series AC variable-speed drives, including the widely deployed SAMI GS and SAMI Star platforms. As these legacy drive systems approach end-of-life and original spare parts become increasingly scarce, the SAFT167APC serves as a verified drop-in replacement that allows maintenance engineers and system integrators to extend the operational life of existing control cabinets without committing to a full drive replacement. This component is particularly valuable in industries where unplanned downtime carries significant operational and financial risk — including pulp and paper, water treatment, mining, and heavy manufacturing.

The SAFT167APC interfaces directly with the SAFT drive’s internal power bus and backplane connector system. Before installation, engineers should confirm that the host drive’s DC bus voltage rating, gate drive signal levels, and terminal block pinout are compatible with the replacement board. In most SAMI GS and SAMI Star installations, the SAFT167APC is a direct mechanical and electrical fit, but firmware version alignment on the main control board — typically the SAFT188A or SAFT189A — should be verified to ensure correct PWM signal interpretation and fault-handling behavior.

When planning a retrofit around the SAFT167APC, the power supply module feeding the drive’s control section — often an SAFT110A or equivalent auxiliary power card — must be evaluated for output stability. A degraded auxiliary supply is a common root cause of power connector failures in aging SAFT installations, and replacing the SAFT167APC without addressing upstream supply issues may result in repeat failures. Similarly, the SAFT188A main control board and any installed SAFT121A or SAFT122A I/O expansion modules should be inspected for capacitor aging and corrosion on the backplane connectors before commissioning the replacement.

For sites running SAMI GS drives integrated with legacy PROFIBUS DP or Modbus RTU communication networks, the SAFT167APC replacement does not affect the communication adapter layer — typically an NPBA-12 PROFIBUS adapter or NMBA-01 Modbus module mounted in the drive’s option slot. However, after power connector replacement, it is standard practice to perform a full communication link verification, confirming that the drive’s node address, baud rate, and telegram configuration remain intact and that the PLC or DCS — whether a Siemens S5/S7, Allen-Bradley SLC 500, or ABB Advant OCS — correctly re-establishes the drive’s process data exchange.

In control cabinet upgrade projects where the SAFT167APC is being replaced as part of a broader modernization effort, engineers frequently address the HMI interface at the same time. Legacy operator panels connected via the drive’s CDP (Control Drive Panel) port should be tested for display continuity after the power connector swap, as intermittent CDP communication faults are sometimes misdiagnosed as power connector failures. If the CDP panel or its cable assembly is also being replaced, ensure the new panel firmware is compatible with the drive’s software version before closing the cabinet.

Installation space within the original drive enclosure is typically sufficient for a direct SAFT167APC swap, as the board dimensions and mounting hole pattern conform to the SAFT series mechanical standard. No enclosure modification is required in standard configurations. However, in retrofit projects where additional signal isolation — such as a Phoenix Contact or Weidmüller signal isolator — has been added to the I/O wiring, verify that the revised wiring layout does not create clearance issues around the power connector’s terminal block area.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SAFT167APC retrofit begins well before the maintenance window opens. Start by pulling the drive’s fault history log from the SAFT188A control board using the CDP panel or a compatible programming cable — this log will reveal whether the power connector failure was isolated or symptomatic of a broader power quality issue in the cabinet. If the fault log shows recurring overcurrent or DC bus overvoltage trips, inspect the DC bus capacitor bank and the gate driver section before proceeding.

During the retrofit, it is advisable to simultaneously inspect and, where necessary, replace the SAFT110A auxiliary power card, the SAFT121A digital I/O module, and any SAFT122A analog I/O expansion boards installed in the drive rack. These components share the same backplane power rails as the SAFT167APC and are subject to the same aging mechanisms. Replacing them during the same maintenance window eliminates the risk of a secondary failure shortly after the primary repair, which is a common and costly outcome in deferred-maintenance scenarios.

For drives integrated into larger control systems — such as an ABB Advant OCS, a Siemens S7-300 PLC network, or an Allen-Bradley SLC 500 rack — coordinate the retrofit schedule with the control system team to ensure that the drive’s absence from the network during the swap does not trigger cascading faults in the PLC program. In many installations, the PLC’s drive-fault handling routine will latch an alarm that must be manually cleared after the drive is recommissioned. Confirm this procedure with the site’s automation engineer before starting work.

Downtime Control During System Migration

Minimizing downtime during a SAFT167APC replacement requires a structured pre-outage preparation protocol. Before the maintenance window, obtain a full parameter backup from the SAFT188A control board using the CDP panel’s parameter copy function or a compatible PC tool. This backup preserves all motor tuning data, ramp settings, PID parameters, and communication configuration, and allows the drive to be restored to its pre-fault operating state within minutes of the power connector replacement.

During the swap, maintain control continuity by keeping the PLC or DCS in manual override mode for the affected drive loop. This prevents the control system from issuing automatic start commands to the drive before recommissioning is complete. After installing the SAFT167APC, restore the parameter backup, verify the communication link, and perform a no-load test run before returning the drive to automatic control. This sequence typically allows a complete SAFT167APC replacement to be completed within a two-to-four-hour planned maintenance window, even in complex multi-drive installations.

All units supplied by KNMKS are functionally tested prior to shipment and covered by a support terms confirmed by quotation. In-stock availability means that emergency orders can typically be dispatched within 24 hours, further reducing the risk of extended unplanned downtime.

Retrofit Support FAQ

Q: Is the SAFT167APC a direct replacement for the original ABB part?
A: Yes. The SAFT167APC supplied by KNMKS is a verified equivalent to the original ABB SAFT167APC, with identical form factor, connector pinout, and electrical ratings. It is compatible with SAMI GS and SAMI Star drives without modification.

Q: What pre-installation checks are required before fitting the SAFT167APC?
A: Verify DC bus voltage is within specification, confirm the auxiliary power supply output is stable, inspect the backplane connector for corrosion or mechanical damage, and back up all drive parameters from the SAFT188A control board before beginning work.

Q: Will replacing the SAFT167APC affect the drive’s PROFIBUS or Modbus communication configuration?
A: The power connector replacement does not alter the communication adapter or its configuration. However, a full communication link test — including node address, baud rate, and process data verification — is recommended after recommissioning to confirm that the PLC or DCS has correctly re-established the drive’s data exchange.

Q: What support terms and testing does KNMKS provide with the SAFT167APC?
A: Every SAFT167APC unit is functionally tested before shipment and backed by a support terms confirmed by quotation. In-stock units are available for same-day or next-day dispatch to support urgent maintenance requirements.
