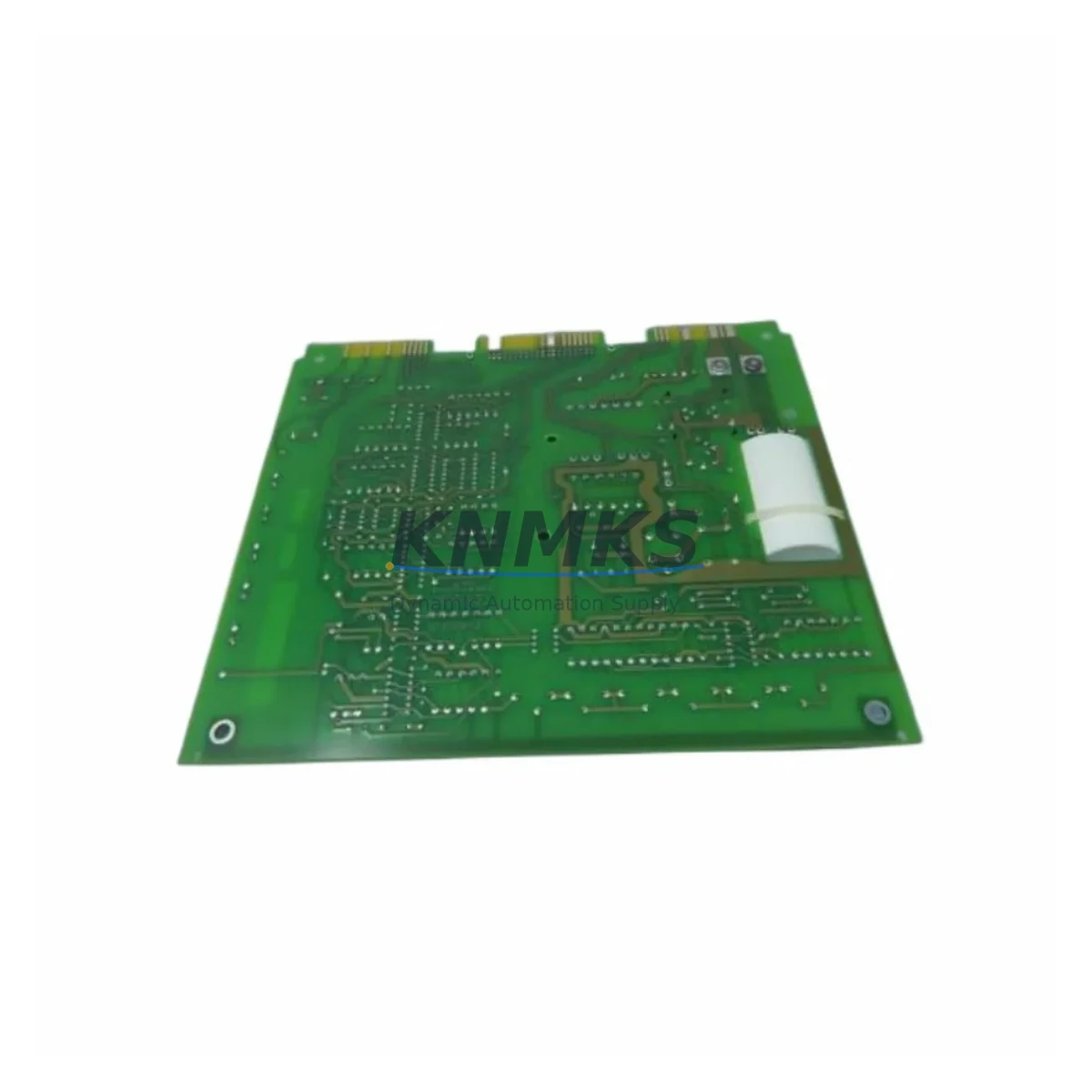

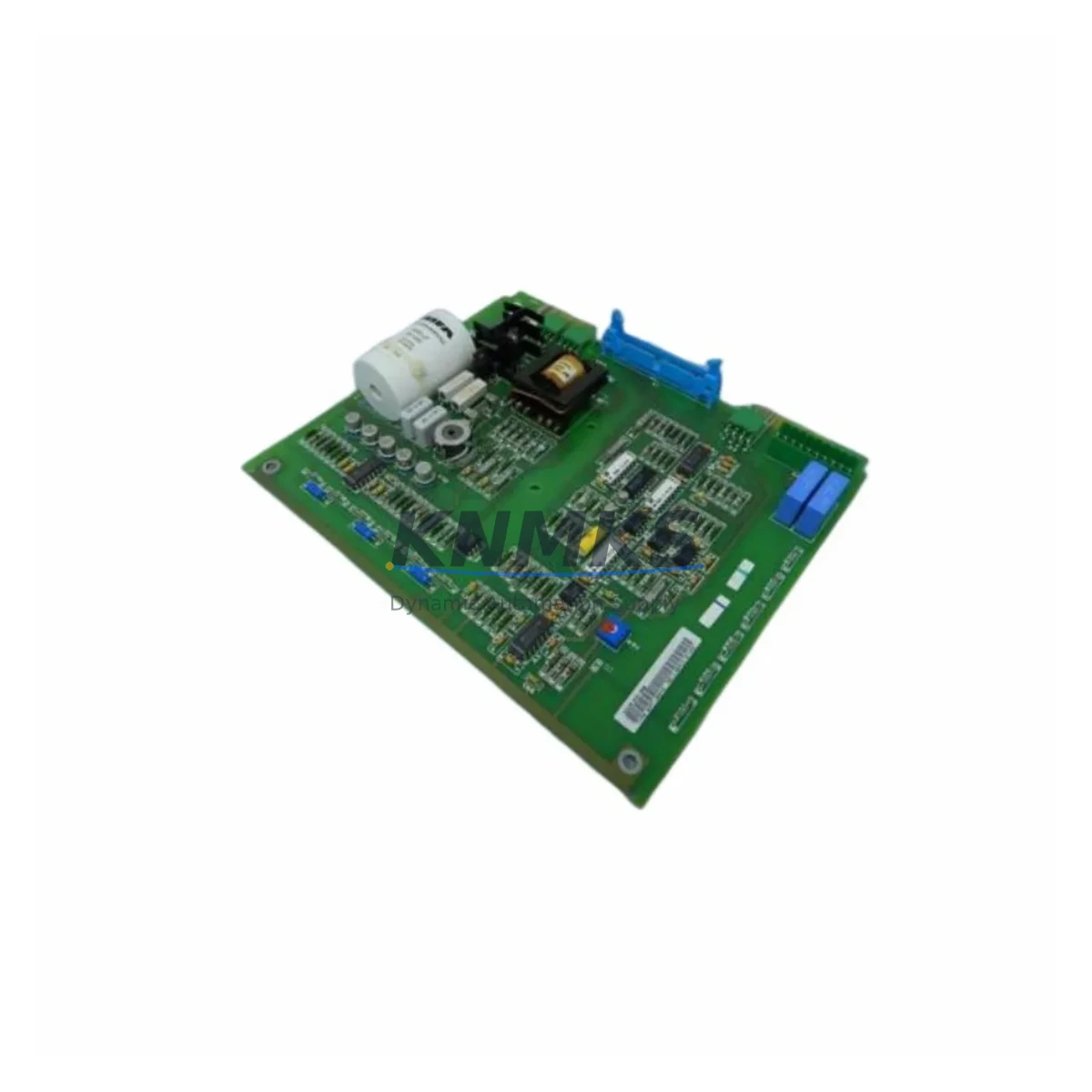

ABB SAFT125CHC Fail-Safe Chopper Control for Industrial Reliability

Overview

ABB SAFT125CHC Fail-Safe Chopper Control for Industrial Reliability

The ABB SAFT125CHC (SAFT 125 CHC) is a precision-engineered chopper control module designed for DC braking drive systems in demanding industrial environments. Built to ABB’s exacting standards for the SAMI and SAFT drive series, this module delivers fail-safe braking energy management, protecting both the drive system and connected machinery from uncontrolled deceleration, voltage spikes, and thermal runaway events. In continuous production facilities — where unplanned downtime translates directly to lost output and safety incidents — the SAFT125CHC provides the control-loop stability and fault-tolerance that critical operations demand.

Industrial sites operating heavy-duty conveyors, hoists, centrifuges, compressors, and process pumps rely on dynamic braking circuits to safely absorb regenerative energy during motor deceleration. Without a robust chopper control module, excess DC bus voltage can trigger drive trips, damage power semiconductors, or cause uncontrolled motor rundown — all of which represent serious safety and reliability risks. The SAFT125CHC addresses these failure modes directly, clamping DC bus overvoltage and dissipating braking energy through the braking resistor circuit with precision switching control.

In high electromagnetic interference (EMI) environments such as arc furnace control rooms, variable-speed pump stations, and heavy rolling mill drives, signal integrity is paramount. The SAFT125CHC’s robust hardware design maintains stable chopper switching thresholds even under severe conducted and radiated interference, preventing nuisance trips and false braking activations that could compromise process continuity or operator safety. Its compatibility with the ABB SDCS-CON-2 and SDCS-POW-4 control and power boards ensures seamless integration into existing ABB DCS 400 and DCS 600 drive architectures without requiring additional signal conditioning.

For installations in dusty, humid, or high-temperature environments — including cement plants, mining headframes, port crane drives, and offshore platform motor control centres — the SAFT125CHC’s conformal-coated PCB construction and wide operating temperature tolerance provide long-term protection against corrosion, condensation, and thermal degradation. When paired with ABB’s SAFT189POW power supply board and SAFT121POW auxiliary power modules, the complete drive stack maintains operational integrity across the full range of industrial ambient conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DC drive control cabinet is a system — not a single component. The SAFT125CHC performs its fail-safe braking function most effectively when the surrounding cabinet architecture is equally robust. In critical interlock circuits and continuous-process drive panels, the chopper control module works in concert with the ABB SDCS-CON-2 control board, which manages speed regulation, current limiting, and fault diagnostics for the entire drive. The SDCS-POW-4 power supply board provides stable auxiliary voltages to the control electronics, ensuring that chopper switching commands are executed accurately even during mains disturbances or momentary power dips.

For cabinet-level surge and transient protection, the SAFT125CHC is typically deployed alongside ABB SAFT189POW power interface boards and dedicated DC bus capacitor banks that buffer regenerative energy peaks. In high-vibration installations such as mining crushers or ship propulsion control panels, the ABB SAFT121POW auxiliary power module provides additional supply decoupling, preventing voltage ripple from propagating into the chopper control logic. Where communication integrity is critical — for example, in DCS-integrated drive systems reporting to a Honeywell Experion or Siemens PCS 7 supervisory layer — the SAFT125CHC’s stable operation prevents spurious fault signals that could trigger unnecessary process shutdowns.

Cabinet thermal management is equally important: the SAFT125CHC dissipates braking energy through external braking resistors, keeping internal cabinet temperatures within safe limits. When combined with properly rated ABB SAFT-series gate driver boards and correctly sized braking resistor assemblies, the complete chopper circuit provides a fully coordinated, fail-safe energy management solution for the most demanding industrial drive applications.

Critical Industrial Safety Applications

The ABB SAFT125CHC is deployed across a wide range of safety-critical and continuous-process industrial sectors where controlled motor deceleration is non-negotiable:

Petrochemical & Refinery: Compressor and pump drives in hazardous-area motor control centres require precise braking control to prevent process upsets during emergency stops. The SAFT125CHC ensures that DC bus overvoltage does not propagate into the drive’s power stage during rapid deceleration of high-inertia loads.

Electric Power Generation: Auxiliary drive systems for boiler feed pumps, induced draft fans, and cooling water pumps in thermal power stations depend on reliable chopper control to manage regenerative braking energy during load shedding and controlled shutdowns.

Mining & Minerals Processing: Hoist drives, conveyor belt drives, and crusher motor controls in underground and surface mining operations operate in extreme dust, vibration, and temperature conditions. The SAFT125CHC’s robust construction and conformal coating make it a proven choice for these harsh-site applications.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment plants require smooth, controlled deceleration to prevent water hammer and pipeline surge. The SAFT125CHC provides the braking energy management needed to protect both the drive and the hydraulic system.

Metallurgy & Steel: Rolling mill main drives and coiler/uncoiler drives generate significant regenerative energy during deceleration. The SAFT125CHC’s high-frequency chopper switching efficiently manages this energy, protecting the DC bus and maintaining drive availability in continuous casting and hot rolling operations.

Port & Marine: Crane hoist and travel drives in port terminals and on offshore vessels require fail-safe braking to prevent load drop and structural overload. The SAFT125CHC’s reliable operation in high-humidity, salt-air environments makes it suitable for these demanding marine and port applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the SAFT125CHC?
The support terms confirmed by quotation cover all functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified chopper control function within the confirmed support period, we will provide a replacement or documented resolution support. The support terms does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: How is the SAFT125CHC tested before shipment?
Every SAFT125CHC unit undergoes a 100% functional verification process prior to shipment. This includes power-on testing, chopper switching threshold verification, and visual inspection for component condition and PCB integrity. Units that do not pass all test criteria are not shipped.

Q3: Is the SAFT125CHC compatible with my existing ABB DCS 400 or DCS 600 drive?
Yes. The SAFT125CHC is a direct board-level replacement for the chopper control function in ABB SAMI and SAFT series DC drives, including DCS 400 and DCS 600 architectures. It interfaces directly with the SDCS-CON-2 control board and SDCS-POW-4 power board without requiring firmware changes or additional adapters. Always verify your drive’s exact hardware revision against the module’s compatibility data before installation.

Q4: Can you guarantee long-term supply and replacement support for the SAFT125CHC?
We maintain dedicated inventory of ABB SAFT-series drive components, including the SAFT125CHC, to support ongoing maintenance, spare-parts programs, and emergency replacement requirements. Our sourcing network covers both new and tested-surplus stock, ensuring supply continuity even for legacy drive systems that are no longer in ABB’s active production catalog. Contact our technical sales team for volume pricing and long-term supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

SAFT 125 CHC SAFT125CHC

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB SAFT 125 CHC SAFT125CHC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
