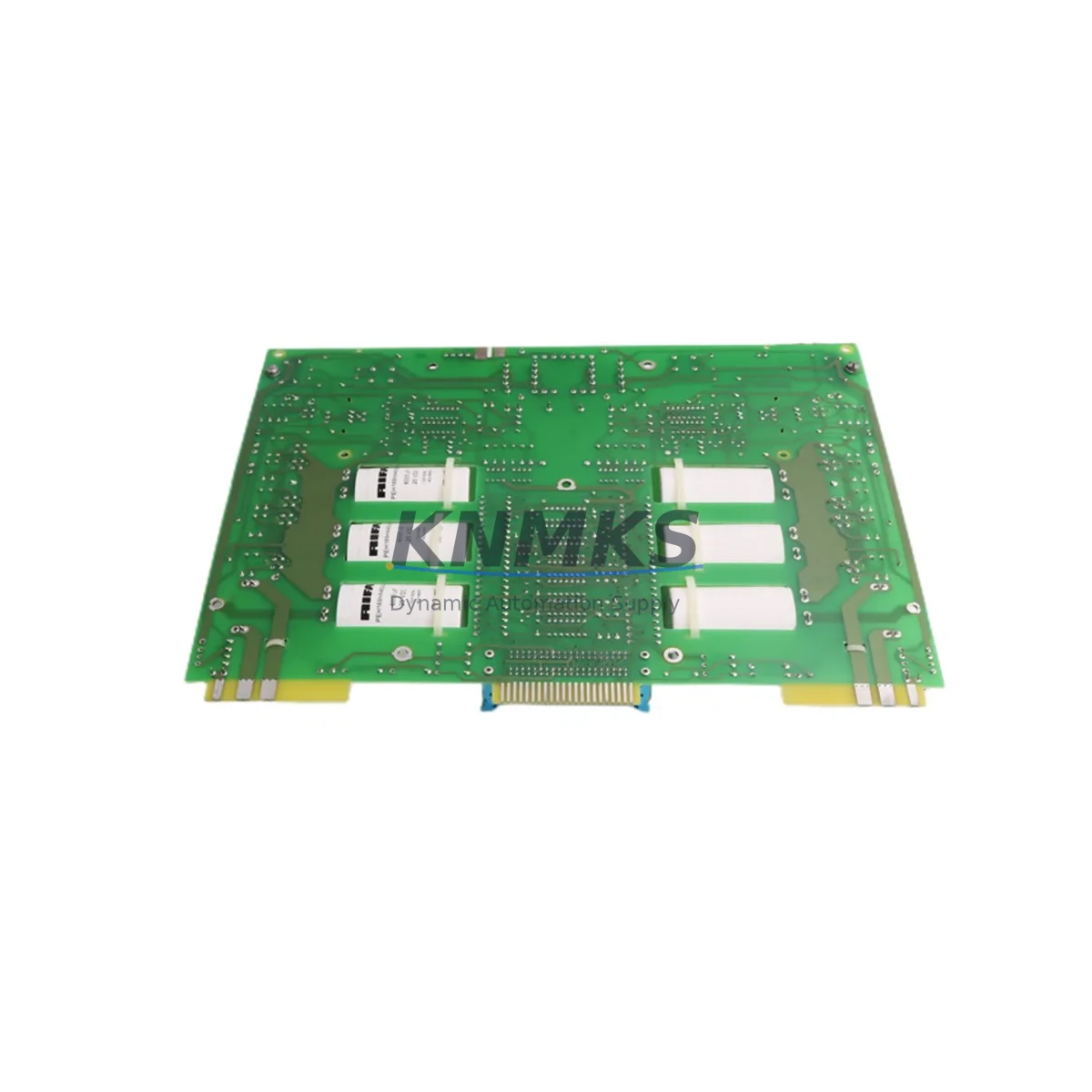

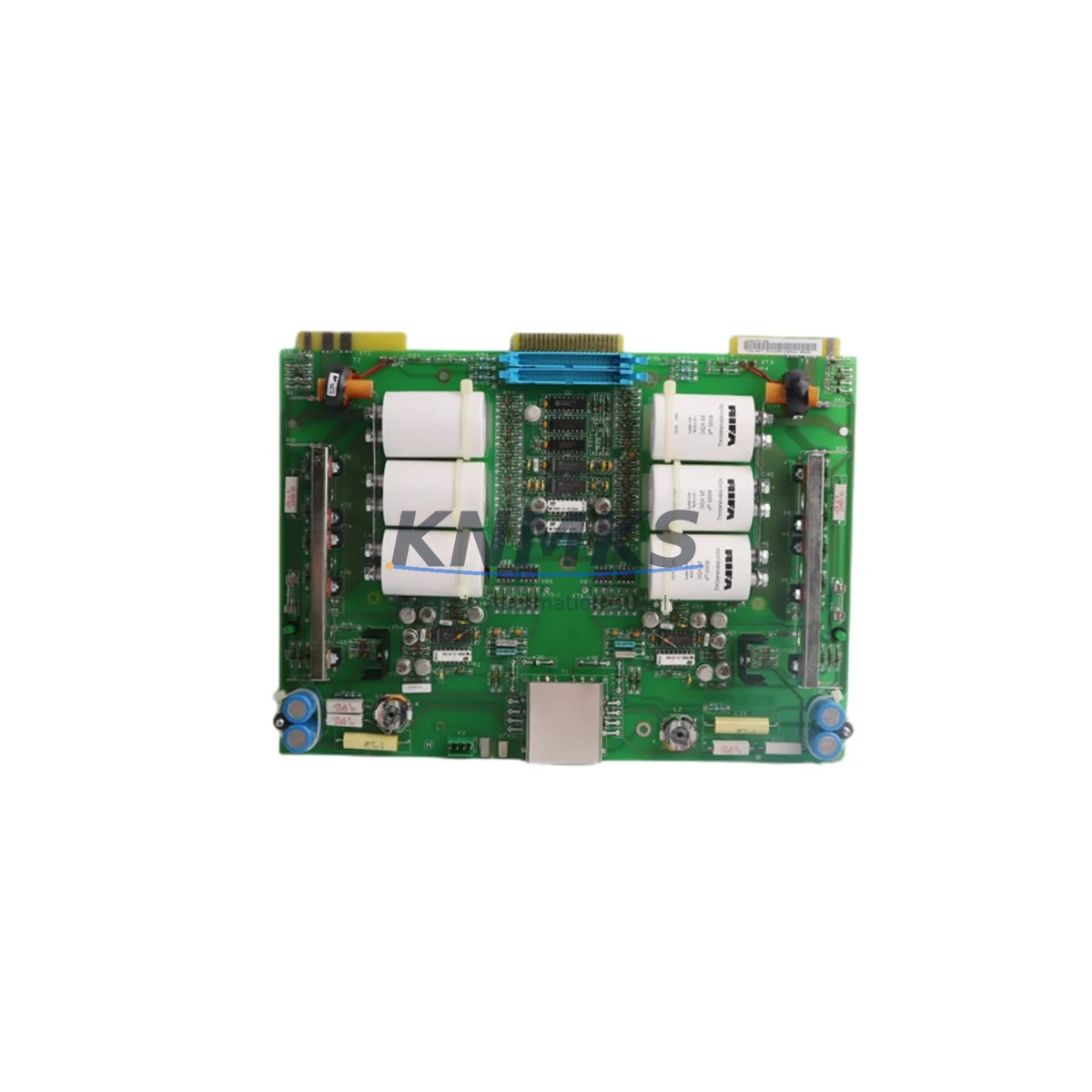

ABB SAFT123PAC Migration-Ready Pulse Board for DC Drives

Overview

ABB SAFT123PAC Migration-Ready Pulse Board for Legacy DC Drive Systems

The ABB SAFT123PAC is an amplifier pulse board engineered for the DCS 600 and DRIVET series DC drive platforms — two of ABB’s most widely deployed legacy drive families in industrial automation environments. As these platforms approach end-of-life and original spare parts become increasingly scarce, the SAFT123PAC remains one of the most critical replacement components for engineers managing aging control cabinets, retrofit projects, and production line continuity programs.

This board serves as the interface between the drive controller and the thyristor firing circuit, generating and amplifying gate pulses to regulate DC motor speed and torque. In legacy systems where the original SAFT123PAC has failed or degraded, replacement without a verified, tested unit risks uncontrolled motor behavior, drive faults, and unplanned production shutdowns. Our SAFT123PAC units are sourced from authorized channels, individually tested prior to shipment, and backed by a support terms confirmed by quotation covering manufacturing defects and functional failures.

For engineers planning a controlled migration from DCS 600 or DRIVET-based systems to modern drive platforms, the SAFT123PAC is frequently the bridge component that keeps legacy lines operational during phased upgrade programs — buying time for full system redesign without forcing emergency shutdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SAFT123PAC replacement within a DCS 600 or DRIVET drive system requires careful pre-installation planning across several interdependent subsystems. Before removing the failed board, engineers should document the existing wiring layout at the terminal strip, photograph connector positions, and record any drive parameter settings stored in the SDCS-CON-2 or SDCS-CON-4 control boards — the primary control modules that interface directly with the SAFT123PAC in most DCS 600 configurations.

Power supply integrity is a critical pre-check. The SAFT123PAC draws its operating voltage from the drive’s internal auxiliary power rail. Before installation, verify that the SDCS-POW-1 or equivalent power supply board is delivering stable voltage within specification. A degraded power supply board is a common root cause of repeated pulse board failures and must be ruled out before committing to a replacement cycle.

For systems where the DCS 600 drive communicates with a supervisory PLC or DCS via a fieldbus adapter — such as the RDCO-02 DDCS fiber optic communication module or an RPBA-01 PROFIBUS adapter — engineers should confirm that the communication link remains intact after board replacement and that the drive’s node address and baud rate settings are preserved. In some retrofit scenarios, the fieldbus adapter configuration must be re-entered manually after a board swap if the drive’s memory has been cleared.

I/O signal mapping is another area requiring attention. The SAFT123PAC interfaces with the drive’s analog and digital I/O through the backplane. If the retrofit involves upgrading surrounding I/O modules or expanding the control cabinet with additional signal conditioning hardware — such as signal isolators for 4–20 mA feedback loops from DC motor tachometers — these changes must be reflected in the drive’s parameter set and, where applicable, in the HMI screen configurations used by operators on the plant floor.

In multi-drive installations where several DCS 600 units share a common control cabinet and communicate via a master-follower architecture, replacing the SAFT123PAC in one drive requires verifying that the master-follower synchronization signals are re-established correctly after restart. Failure to do so can result in torque imbalance between drives controlling a common mechanical load.

For sites planning a longer-term migration from DCS 600 to a modern drive platform such as the ABB DCS880, the SAFT123PAC replacement serves as a stabilization measure during the transition period. The DCS880 uses a fundamentally different control architecture and does not accept DCS 600 boards directly, but maintaining the legacy system in reliable operation while the migration is planned and executed is essential for production continuity. During this period, maintaining a small buffer stock of SAFT123PAC units alongside SDCS-CON-2 control boards and SDCS-POW-1 power supply boards is a standard risk mitigation practice recommended for sites with critical DC drive dependencies.

Downtime Control During System Migration

Unplanned downtime during a pulse board failure in a DC drive system can be measured in hours or days depending on spare parts availability and on-site engineering resources. The SAFT123PAC is a single-point-of-failure component in the DCS 600 firing circuit — when it fails, the drive cannot generate gate pulses, the thyristors remain uncontrolled, and the DC motor stops. Recovery time is directly determined by how quickly a verified replacement board can be installed and commissioned.

To minimize downtime risk, the most effective strategy is pre-positioning a tested SAFT123PAC unit at the site before failure occurs. Our units are shipped with pre-shipment functional test documentation, reducing the on-site verification burden. Upon arrival, the replacement procedure for an experienced drive engineer typically requires less than two hours, including board swap, wiring verification, parameter check, and no-load commissioning test.

For sites where the DCS 600 drive controls a critical process — such as a rolling mill, extruder, winder, or crane hoist — the commissioning sequence should include a controlled ramp-up test at reduced load before returning the drive to full production duty. This confirms that the gate pulse timing is correct, the motor current feedback loop is stable, and the speed regulation is within the original control parameters. If the site uses a DDCS-based master controller or a PLC with closed-loop speed control over the drive, the control loop response should be verified against the original tuning records.

Protecting the original program logic during a board replacement is straightforward for the SAFT123PAC since it does not store drive parameters — all parameter data resides in the SDCS-CON control board. However, if the retrofit involves replacing multiple boards simultaneously, parameter backup using the ABB DriveWindow or equivalent drive configuration tool should be completed before any hardware changes are made. This ensures that the original control logic, speed references, current limits, and protection thresholds can be restored exactly if a parameter reset occurs during the replacement process.

Retrofit Support FAQ

Q: Is the SAFT123PAC a direct replacement for the original ABB DCS 600 pulse board?
A: Yes. The SAFT123PAC is a direct board-level replacement for the original pulse board in DCS 600 and DRIVET series DC drives. It matches the original connector layout, terminal wiring, and backplane interface. No hardware modification or parameter reconfiguration is required for a like-for-like replacement in the same drive model.

Q: What commissioning steps are required after installing the SAFT123PAC?
A: After installation, verify all connector seating and terminal wiring against the original documentation. Power up the drive and check for fault codes on the drive display or SDCS-CON control board. Run a no-load motor test to confirm gate pulse generation and motor rotation direction. If the drive is part of a master-follower or fieldbus-connected system, verify communication link status and re-establish synchronization signals before returning to production.

Q: How do I confirm compatibility if my drive model is a DRIVET variant rather than a standard DCS 600?
A: The SAFT123PAC is used across multiple variants within the DCS 600 and DRIVET product families. Confirm compatibility by cross-referencing the board part number printed on the original failed unit with the SAFT123PAC designation. If the original board carries the SAFT123PAC marking, the replacement is compatible. For variant-specific confirmation, provide your drive’s full type code and serial number when placing your order and our technical team will verify compatibility before shipment.

Q: What support terms and pre-shipment testing is included?
A: Every SAFT123PAC unit is functionally tested prior to shipment and covered by a support terms confirmed by quotation from the date of delivery. The support terms covers manufacturing defects and functional failures under normal operating conditions. Pre-shipment test documentation is available upon request. In-stock units are available for immediate dispatch to minimize site downtime.
