ABB RTAC-01 Migration-Ready Encoder Feedback for Legacy Drives

Overview

ABB RTAC-01 Migration-Ready Encoder Feedback for Legacy Drives

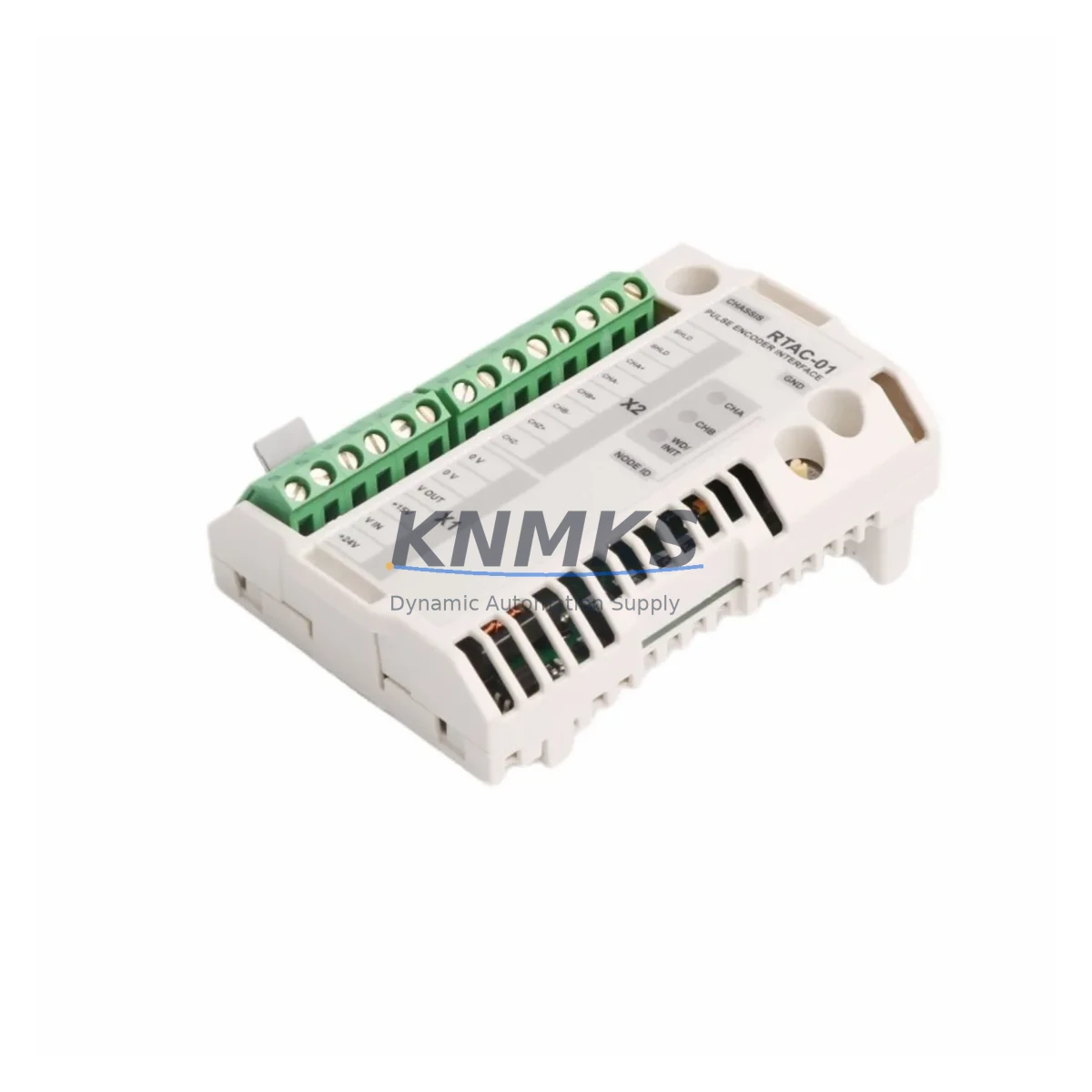

The ABB RTAC-01 is a dedicated encoder feedback option module engineered for the ACS600 series AC drives. As industrial facilities accelerate legacy control system modernization programs, the RTAC-01 has become a critical component in retrofit projects where closed-loop speed control must be preserved without redesigning the entire drive cabinet. Whether you are replacing a failed unit on an aging production line or executing a planned migration from an obsolete drive platform, the RTAC-01 provides a verified, drop-in compatible solution that minimizes engineering risk and reduces commissioning time on the plant floor.

Before installing the RTAC-01 into an existing ACS600 drive, retrofit engineers should confirm several key parameters. First, verify the encoder supply voltage — the RTAC-01 supports TTL-level incremental encoders operating at 5 VDC, and mismatched encoder supply voltage is one of the most common causes of feedback signal errors during initial commissioning. Second, inspect the option slot assignment on the ACS600 drive unit: the RTAC-01 must be seated in the correct option slot (typically Slot 1 or Slot 2 depending on the drive frame size), and the drive firmware must be configured to recognize the feedback source from that slot address. Third, review the pulse-per-revolution (PPR) setting in the drive parameters — this value must match the encoder specification exactly, or speed regulation accuracy will be compromised.

In legacy system migration projects, the RTAC-01 is frequently deployed alongside the RDCO-02 DeviceNet communication module or the RPBA-01 PROFIBUS-DP adapter, both of which occupy separate option slots on the ACS600 backplane. When multiple option modules are installed simultaneously, engineers must audit the total option slot capacity of the drive frame and confirm that the backplane communication bus is not overloaded. For drives being migrated from a standalone control architecture to a networked PLC environment — for example, integrating with an ABB AC500 PLC or a Siemens S7-300 controller via PROFIBUS — the RTAC-01 encoder feedback data is typically mapped into the drive’s process data words and made available to the PLC over the fieldbus, eliminating the need for a separate encoder input card at the PLC level.

Wiring adaptation is another area that demands careful attention during retrofit. The RTAC-01 uses a dedicated encoder terminal block on the module face. If the existing installation used a different encoder interface card — such as the older RTAC-00 or a third-party encoder interface — the terminal pinout may differ, and a wiring adapter or re-termination will be required. Document the existing wiring before removal, and verify continuity on all encoder signal lines (A, /A, B, /B, Z, /Z) after re-termination. Shield grounding should follow ABB’s recommended single-point grounding practice to prevent common-mode noise from corrupting the feedback signal, particularly in environments with variable frequency drives generating significant EMI.

For facilities managing a broader drive cabinet upgrade, the RTAC-01 retrofit is often executed in parallel with replacement of the AINT-02 or AINT-12 inverter control boards, the APOW-01 power supply module, and the AIMA-01 I/O extension module. Coordinating these replacements within a single planned maintenance window is strongly recommended to avoid multiple partial shutdowns. When the ACS600 drive is part of a coordinated motion system — for example, a winder, extruder, or crane hoist — the encoder feedback tuning parameters (speed controller gain, integration time, and filter time constants) should be re-verified after module replacement, as mechanical coupling changes or encoder replacement may shift the optimal tuning point.

All RTAC-01 units supplied by KNMKS are sourced from verified industrial supply channels, functionally tested prior to dispatch, and covered by a support terms confirmed by quotation against manufacturing defects. Stock is maintained for immediate shipment to minimize unplanned downtime on critical production assets.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RTAC-01 retrofit begins with a thorough audit of the existing drive cabinet. Identify the current option module population: if an RDCO-02 DeviceNet module or RPBA-01 PROFIBUS adapter is already installed, confirm that the target slot for the RTAC-01 is physically available and that the ACS600 firmware revision supports simultaneous operation of the encoder feedback module alongside the active communication adapter. In multi-drive systems, the APOW-01 auxiliary power supply module should be checked to ensure it can sustain the additional load introduced by the RTAC-01 without triggering undervoltage faults on the option module bus.

For systems where the ACS600 drive communicates with an upstream PLC — whether an ABB AC500, a Siemens S7-300/S7-400, or an Allen-Bradley ControlLogix — the encoder feedback data mapped through the RTAC-01 must be correctly reflected in the PLC’s drive parameter read list. If the HMI displays speed feedback sourced from the drive’s process data, the HMI screen tags should be verified after commissioning to confirm that the displayed value matches the actual motor speed. In some legacy SCADA integrations, the speed feedback source tag may need to be remapped if the previous encoder interface used a different process data word assignment.

Where the retrofit involves replacing not just the RTAC-01 but also the AIMA-01 I/O extension module or the AINT-02 inverter control board, the sequence of replacement matters: always restore the drive’s basic control functionality first, then add option modules, and perform a full parameter restore from a saved backup before enabling closed-loop speed control. This sequence prevents parameter conflicts that can arise when option modules are detected in a different order than the original configuration.

Downtime Control During System Migration

Minimizing unplanned downtime during an RTAC-01 replacement requires preparation before the maintenance window opens. Back up all ACS600 drive parameters using the drive’s panel or a PC tool (DriveWindow or Drive Composer) before removing any hardware. This backup preserves the speed controller tuning, encoder PPR settings, option slot assignments, and all application-specific parameter customizations — data that would otherwise require hours of re-commissioning to reconstruct from scratch.

During the physical swap, power down the drive fully and discharge the DC bus before accessing the option module compartment. The RTAC-01 module seats into the option slot with a positive mechanical click; verify seating before re-energizing. After power-up, confirm that the drive firmware recognizes the RTAC-01 in the assigned slot (check the option module identification parameter in the drive’s parameter list). Restore the parameter backup, then perform a no-load test run to verify encoder signal integrity before reconnecting the mechanical load. This staged approach — parameter backup, hardware swap, parameter restore, no-load verification, loaded test — is the most reliable method for containing the retrofit within a single shift and returning the asset to production with confidence.

For critical continuous-process applications where even a brief unplanned stop carries significant cost, consider pre-staging a fully configured spare ACS600 drive with the RTAC-01 already installed and parameters pre-loaded, enabling a complete drive swap rather than an in-cabinet module replacement. This approach reduces the in-process maintenance window to the time required for mechanical disconnection and reconnection, typically under two hours for most frame sizes.

Retrofit Support FAQ

Q: Is the RTAC-01 a direct replacement for the RTAC-00?
A: The RTAC-01 is the successor to the RTAC-00 and is designed for the same ACS600 option slot. In most installations it is a direct mechanical and electrical replacement. However, the encoder terminal pinout and the drive parameter for encoder feedback source should be verified against the RTAC-01 hardware manual before assuming full drop-in compatibility, as minor wiring differences may exist depending on the encoder model in use.

Q: What pre-shipment testing is performed on RTAC-01 units?
A: Each RTAC-01 unit supplied by KNMKS undergoes functional verification prior to dispatch, including option module bus communication check and encoder signal path continuity test. Units are shipped with protective packaging to prevent ESD damage and physical shock during transit.

Q: Can the RTAC-01 be used with encoders other than TTL incremental types?
A: The RTAC-01 is designed specifically for TTL-level incremental encoders with differential signal outputs. It does not natively support HTL (push-pull), SSI, EnDat, or absolute encoder protocols. If your application uses a non-TTL encoder, an external signal converter or a different ABB encoder interface module may be required.

Q: What is the support terms coverage and what does it include?
A: All RTAC-01 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, ESD, or physical impact. For support requests or technical support, contact KNMKS directly.
