ABB RMIO-12C Migration-Ready I/O Board for ACS800

Overview

ABB RMIO-12C Migration-Ready I/O Board for Legacy ACS800 Drive Systems

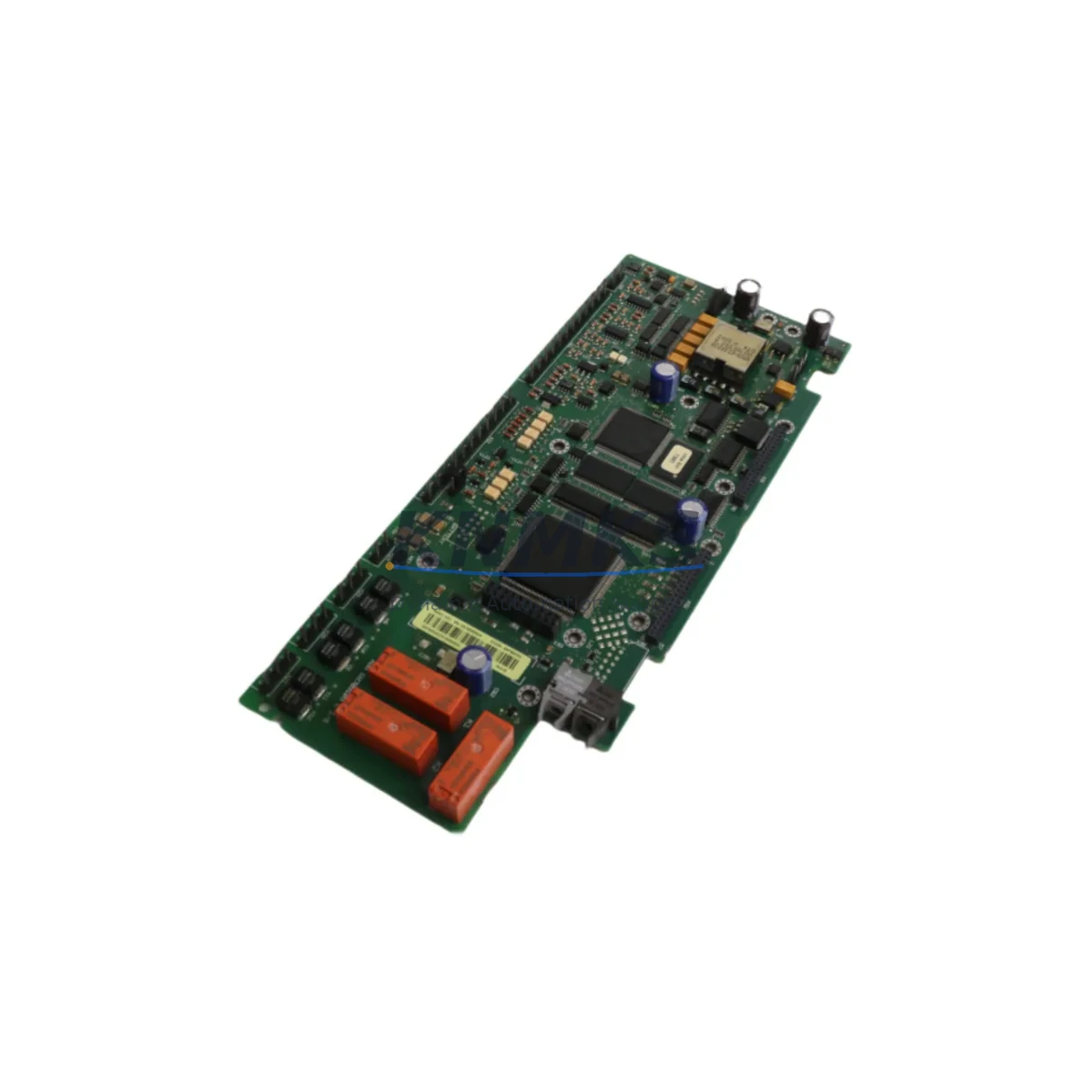

The ABB RMIO-12C is the standard I/O and control interface board for the ACS800 series variable frequency drive platform. As legacy ACS800 installations approach end-of-service milestones, the RMIO-12C has become a critical spare part for maintenance engineers managing retrofit projects, unplanned drive failures, and phased control system upgrades. This board governs the drive’s digital and analog I/O signal routing, fieldbus communication interface, and internal control logic — making it the single most important replaceable module in an ACS800 control section.

Each RMIO-12C unit supplied by KNMKS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Units are held in regional warehouse stock to support urgent dispatch requirements across Asia-Pacific, Europe, and the Americas.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the RMIO-12C in a live production environment requires a structured approach that accounts for the full control architecture of the ACS800 installation. Before initiating the swap, maintenance teams should retrieve a full parameter backup using DriveWindow Light or the CDP312R control panel. This backup captures all application-specific tuning — acceleration ramps, current limits, PID setpoints, and I/O function assignments — that would otherwise require manual re-entry after board replacement.

Terminal wiring on the RMIO-12C follows the standard ACS800 X1 and X2 connector layout. In most retrofit scenarios, the existing field cable harness can be disconnected as a single loom and reconnected to the replacement board without re-labeling, provided the original wiring documentation is available. Where wiring records are incomplete, each terminal should be photographed and mapped before disconnection.

For drives communicating over PROFIBUS-DP or Modbus RTU, the fieldbus adapter — typically an RDCO-01 or RDCO-02 DDCS communication module — connects to the RMIO-12C via the fiber-optic DDCS port. This adapter should be removed from the failed board and transferred to the replacement unit, preserving the existing network node address and baud rate configuration. If the RDCO module itself is suspect, a replacement RDCO-02 should be staged alongside the RMIO-12C to avoid a second intervention.

In multi-drive installations where several ACS800 units share a common DC bus or are coordinated through an ABB AC800M controller or a Siemens S7-300 PLC via PROFIBUS, the replacement board must be confirmed at the correct drive node address before the system is returned to automatic mode. HMI screens built on ABB Panel Builder or WinCC that display drive status via fieldbus tags will resume normal operation once the communication link is re-established and the drive is in remote control mode.

Where the ACS800 drives I/O-intensive processes — such as coordinated conveyor systems, pump stations with multiple analog feedback loops, or winder applications using encoder feedback via an RTAC-01 pulse encoder interface module — additional verification steps are required. Analog input scaling, encoder pulse counts, and torque reference channels should be confirmed against the original commissioning records before the drive is released to production. The RMIO-12C’s analog I/O channels support both voltage and current signal modes, selectable via onboard jumpers; confirm jumper positions match the original board configuration before powering up.

For installations where the ACS800 is housed in a common MCC or control cabinet alongside SNAT 601 power supply modules, AINT-02 inverter control boards, or APBU-44 branching units, the retrofit window should be coordinated to allow inspection of adjacent modules. Capacitor aging in the power supply section and thermal stress on the AINT board are common co-failure modes in drives that have been in service for more than ten years.

Downtime Control During System Migration

Minimizing production downtime during an RMIO-12C replacement depends on three factors: pre-staged spare availability, a complete parameter backup, and a verified commissioning checklist prepared before the maintenance window opens.

With a replacement board on-site and a parameter backup file confirmed readable in DriveWindow, the physical swap can typically be completed in under 30 minutes. The critical path is parameter restore and I/O verification — not the mechanical exchange. Teams that attempt board replacement without a prior parameter backup face the risk of extended downtime while application parameters are reconstructed from commissioning records or, in worst cases, from memory.

For processes where even brief interruptions are costly — continuous casting lines, paper machine drives, or chemical dosing systems — a cold standby strategy is recommended: a pre-configured RMIO-12C with parameters loaded and I/O verified in a bench test rig, ready for immediate installation. This approach reduces mean time to repair (MTTR) to the time required for physical installation and a single functional test cycle.

Where the ACS800 is integrated into a safety-rated system using an AGPS-21C gate driver board or external safety relays, the safety function must be re-validated after any control board replacement. This step is non-negotiable and should be included in the maintenance work order before the drive is returned to service.

KNMKS maintains buffer stock of the RMIO-12C specifically to support emergency dispatch scenarios. Orders confirmed before the daily cut-off are processed for same-day shipment, with express freight options available to most industrial regions. Each shipment includes a test report and a certificate of conformity to support maintenance documentation requirements.

Retrofit Support FAQ

Q1: Is the RMIO-12C a direct drop-in replacement for the RMIO-11C?
The RMIO-12C is the current production revision and is mechanically and electrically compatible with the ACS800 control section slot previously occupied by the RMIO-11C. Terminal assignments and DDCS port location are identical. Firmware on the replacement board should be confirmed compatible with the installed ACS800 application program version using ABB’s firmware compatibility matrix before installation.

Q2: What commissioning steps are required after replacing the RMIO-12C?
After physical installation, restore the parameter backup via DriveWindow or the CDP312R panel. Verify all digital input and output functions by cycling each field signal. Confirm analog input scaling against process instrumentation readings. Re-establish fieldbus communication and confirm the drive responds correctly to remote start/stop and speed reference commands from the PLC or DCS before releasing to production.

Q3: Does KNMKS test the RMIO-12C before shipment?
Yes. Each unit undergoes a pre-shipment functional test covering power-on self-test, I/O channel verification, and communication port integrity check. A test report is included with every shipment. Units that do not pass all test criteria are not dispatched.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures under normal industrial service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated environmental specifications. Support requests are processed directly through KNMKS with a target response time of one business day.
