ABB RMIO-11C Migration-Ready Drive Control for ACS800

Overview

ABB RMIO-11C Migration-Ready Drive Control for ACS800: Legacy System Retrofit & Compatibility Upgrade

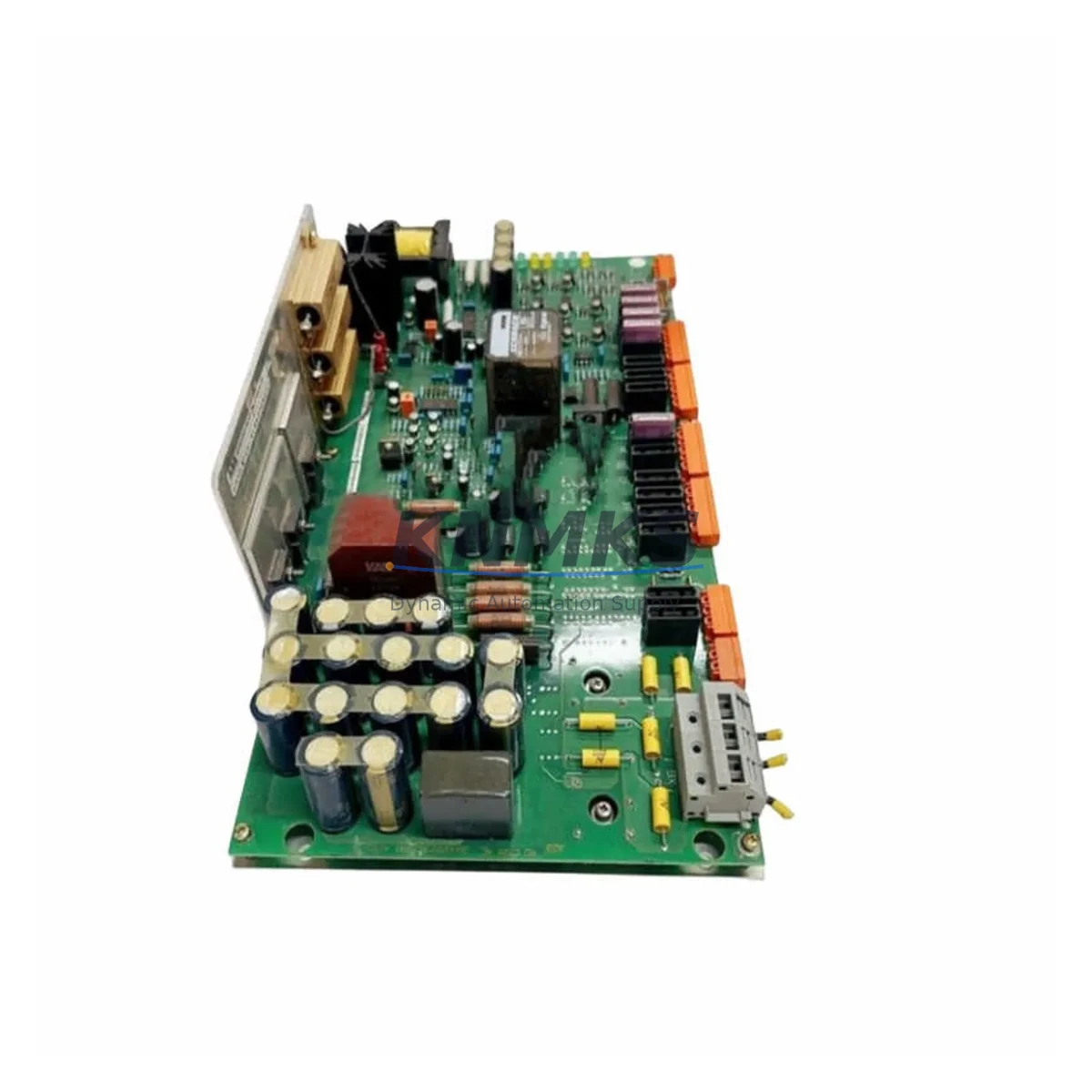

The ABB RMIO-11C is a mission-critical drive control board engineered for the ACS800 series of industrial AC drives. As aging ACS800 installations approach end-of-service milestones, the RMIO-11C has become one of the most sought-after retrofit components for engineers tasked with extending the operational life of existing drive systems without committing to a full platform migration. Whether you are managing a petrochemical plant, a water treatment facility, a mining conveyor system, or a port crane installation, the RMIO-11C provides a validated, drop-in upgrade path that preserves your existing control architecture while restoring full drive functionality.

The RMIO-11C serves as the main control board within the ACS800 drive, handling all core functions including motor control algorithms, I/O signal processing, fieldbus communication interfacing, and fault diagnostics. When an ACS800 drive experiences control board failure — whether due to component aging, voltage transients, or environmental stress — replacing the RMIO-11C is typically the most cost-effective and time-efficient recovery strategy compared to full drive replacement. Each unit supplied by KNMKS undergoes pre-shipment functional verification to confirm firmware integrity, I/O channel response, and communication link readiness before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful RMIO-11C replacement requires a structured pre-outage planning process. Before scheduling the maintenance window, engineers should retrieve the existing parameter backup using DriveWindow or DriveStudio software connected via the RDCO-02 or RDCO-03 fiber optic communication adapter. This backup captures all application-specific tuning values, motor nameplate data, speed reference scaling, and I/O function assignments that must be restored to the replacement board after installation.

Terminal wiring on the RMIO-11C follows the standard ACS800 X1 and X2 connector layout. Technicians should photograph or document the existing wiring configuration before disconnecting any signal cables, particularly for analog input channels used for speed reference or process feedback signals. If the drive is integrated with a Profibus DP network via an RPBA-01 adapter module or a RETA-01 Ethernet adapter, the adapter module itself typically does not require replacement — only the RMIO-11C host board needs to be swapped, and the adapter will re-initialize automatically once the new board is powered and the DDCS link is re-established.

For installations where the ACS800 drive is part of a larger multidrive system sharing a common DC bus, the RMIO-11C in each inverter unit must be individually verified. The NDBU-95 or NDBU-85 branching unit manages DDCS communication across multiple inverter modules, and each RMIO-11C address must be correctly set via the hardware DIP switches on the board to avoid address conflicts on the fiber optic ring. Confirm node addresses before powering the system to prevent communication faults that could trigger emergency stops across the entire drive line.

Power supply integrity is another critical checkpoint. The RMIO-11C draws its logic supply from the drive’s internal APOW-01 or equivalent power supply board. Before installing the replacement RMIO-11C, verify that the auxiliary power supply output voltages are within specification — typically +24 VDC and +5 VDC rails — using a calibrated multimeter. A degraded power supply board can cause premature failure of a newly installed control board, so addressing power supply health before the swap protects your investment and avoids repeat downtime.

Downtime Control During System Migration

Minimizing production interruption during an RMIO-11C replacement depends on preparation quality. The most effective approach is to pre-configure the replacement board offline before the maintenance window begins. Using DriveWindow connected to a bench power supply, load the parameter backup file onto the new RMIO-11C and verify that all parameters are correctly restored. This offline pre-loading step can reduce on-site commissioning time from several hours to under 30 minutes in most cases.

During the physical swap, follow a strict lockout/tagout procedure and allow the DC bus capacitors to fully discharge before touching any internal components — typically a minimum of 5 minutes after main power isolation, confirmed by measuring DC bus voltage at the capacitor terminals. Remove the RMIO-11C by releasing the board retaining clips and carefully disconnecting the ribbon cable connectors and fiber optic DDCS cables. Install the pre-configured replacement board, reconnect all cables in reverse order, and restore power.

After power-up, confirm that the drive’s control panel or HMI display shows the correct drive type and firmware version. If the installation uses an ACS-CP-C or ACS-CP-D control panel, the panel will automatically read parameters from the RMIO-11C and display the drive status. Perform a full I/O loop check to verify that all digital input signals from the PLC or DCS are correctly received, and that analog output signals for speed feedback are within the expected range. Complete the commissioning with a no-load motor ID run before returning the drive to production service.

For sites where continuous process operation is required, consider staging a pre-tested spare RMIO-11C in the control room as a hot standby. KNMKS maintains stock of verified RMIO-11C units with support terms confirmed by quotation coverage, enabling rapid dispatch to minimize the gap between fault occurrence and system restoration.

Retrofit Support FAQ

Q1: Is the RMIO-11C a direct drop-in replacement for all ACS800 variants?
The RMIO-11C is compatible with the majority of ACS800 single-drive and cabinet-built variants across R2 to R8 frame sizes. However, some early production ACS800 units used the RMIO-01C or RMIO-11 (without the C suffix), which have slightly different firmware and hardware revisions. Always confirm the existing board part number and firmware version before ordering to ensure full compatibility. KNMKS technical support can assist with cross-reference verification.

Q2: Can I restore my existing drive parameters to the replacement RMIO-11C?
Yes. Parameter backup and restore is performed using ABB DriveWindow or DriveStudio software via the RDCO fiber optic adapter or the drive’s front panel RS-232 port. A complete parameter backup should be taken from the existing board before removal if the board is still partially functional. If the original board has failed completely, KNMKS can advise on default parameter reconstruction based on motor nameplate data and application type.

Q3: What pre-shipment testing does KNMKS perform on the RMIO-11C?
Every RMIO-11C unit is powered up and functionally tested prior to shipment. Testing covers firmware boot verification, I/O channel continuity, DDCS communication link initialization, and visual inspection for component condition. Units that do not pass all test criteria are not dispatched. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: How quickly can KNMKS ship an RMIO-11C for an emergency breakdown?
KNMKS maintains ready stock of RMIO-11C units to support emergency breakdown scenarios. Standard dispatch is within 1–2 business days from order confirmation. Express international shipping options are available for critical sites requiring fastest possible delivery. Contact the sales team directly to confirm current stock availability and arrange priority dispatch.
