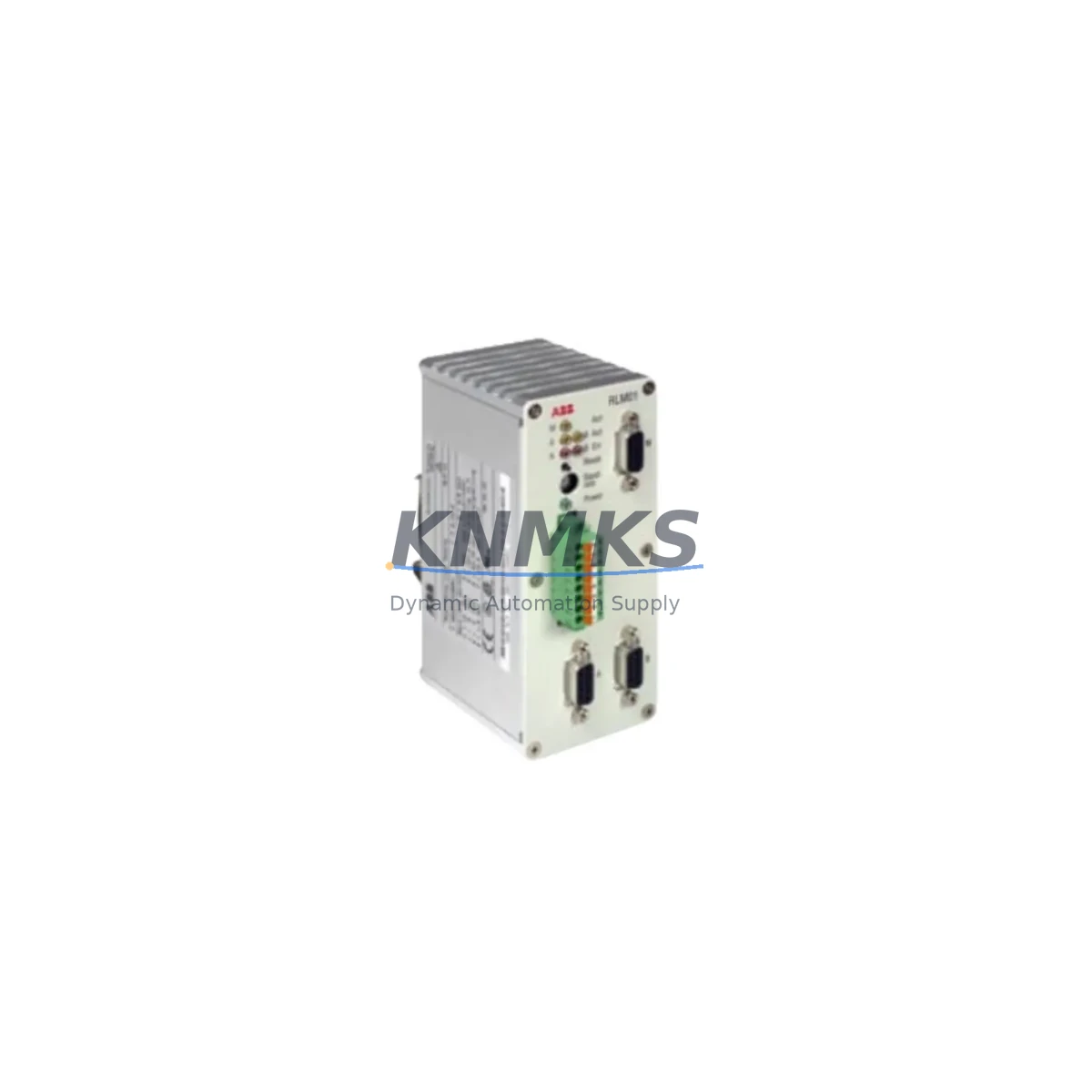

ABB RLM01 Fail-Safe Redundancy Module for AC500 PLC

Overview

ABB RLM01 Fail-Safe Redundancy Module for AC500 PLC: Fault Protection and Critical Industrial Reliability

The ABB RLM01 is a dedicated redundancy link module engineered for the AC500 PLC platform, purpose-built to eliminate single points of failure in safety-critical industrial control architectures. In continuous production environments — where an unplanned shutdown can cost tens of thousands of dollars per hour — the RLM01 delivers hot-standby CPU synchronization that ensures seamless bumpless transfer between primary and backup controllers without process interruption. Its deterministic switchover behavior is essential for applications where control interruption, signal drift, or communication anomalies cannot be tolerated.

Designed for deployment inside heavy-duty control cabinets operating under high electromagnetic interference, the RLM01 maintains synchronization integrity even in environments with variable-frequency drives, high-power contactors, and dense I/O wiring. The module’s robust surge protection circuitry guards against transient voltage spikes that commonly propagate through power supply rails in industrial panels, protecting both the redundancy link and the connected AC500 CPUs from damage caused by switching surges or lightning-induced transients.

In harsh field conditions — including dusty mineral processing plants, humid water treatment facilities, high-vibration marine and port installations, and high-temperature metallurgical furnace control rooms — the RLM01 maintains stable operation across its full rated temperature and humidity range. Its compact DIN-rail form factor integrates directly into standard AC500 system racks alongside modules such as the PM573 and PM591 CPUs, DC532 and DC552 digital I/O modules, and AI523 analog input modules, enabling a fully redundant control node within a single cabinet footprint.

The RLM01 is particularly effective in safety interlock architectures where the primary CPU must remain synchronized with its standby counterpart at all times. In petrochemical emergency shutdown systems, power generation protection loops, and mining conveyor safety circuits, any gap in CPU state synchronization can result in unsafe process states upon failover. The RLM01 eliminates this risk by maintaining continuous, real-time data mirroring across the redundancy link, ensuring that the standby CPU is always ready to assume control with full process state awareness.

For control cabinet designers working with AC500 redundant systems, the RLM01 pairs naturally with the TK501 fiber optic cable set for electrically isolated, EMI-immune redundancy link connections — a critical consideration in high-voltage switchgear rooms and variable-speed drive enclosures where copper-based communication links are susceptible to induced noise. When combined with a properly sized CP-E power supply module providing clean, regulated 24 VDC to the CPU rack, the complete redundant system achieves the power stability and communication integrity required for SIL-rated safety functions.

Every RLM01 unit shipped by KNMKS undergoes pre-shipment functional testing to verify redundancy link establishment, switchover timing, and communication integrity before dispatch. Units are sourced from authorized distribution channels and carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In-stock inventory is maintained to support urgent maintenance replacements and spare parts programs for facilities operating AC500 redundant systems across multiple production lines.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC500 redundant control system depends on more than the RLM01 alone. In a well-engineered control cabinet, the RLM01 operates alongside the PM591 or PM595 CPU modules as the primary and standby controllers, with the redundancy link providing continuous state synchronization. Digital output modules such as the DC532 handle field device switching, while AI523 analog input modules feed process variables into both CPUs simultaneously, ensuring that the standby controller has identical process data at all times.

Power supply integrity is equally critical. A CP-E 24VDC/10A power supply module with active power factor correction and output overvoltage protection ensures that both the primary and standby CPU racks receive stable, clean power even during upstream grid disturbances. In facilities with frequent voltage sags or harmonic distortion from large motor loads, an additional surge protection device on the incoming 24 VDC bus prevents transient energy from reaching the CPU rack and disrupting the redundancy link synchronization managed by the RLM01.

For communication-intensive architectures, the CM589-PNIO PROFINET communication module provides deterministic fieldbus connectivity to distributed I/O and field instruments, while the RLM01 ensures that the active PROFINET master role transfers cleanly to the standby CPU during a switchover event — maintaining fieldbus communication continuity without requiring a network re-initialization cycle.

Critical Industrial Safety Applications

The ABB RLM01 is deployed across a wide range of safety-critical and continuous-process industries where control system availability is a fundamental operational requirement. In petrochemical and refinery facilities, redundant AC500 systems with RLM01 modules manage emergency shutdown logic, burner management sequences, and compressor protection interlocks — applications where a control system failure can trigger a full plant shutdown or, in worst-case scenarios, a safety incident. The hot-standby architecture ensures that a CPU fault results in a seamless transfer to the standby controller, maintaining the safety function without process disruption.

In electric power generation and grid substation automation, the RLM01 supports redundant protection relay coordination and generator excitation control systems, where millisecond-level response times and continuous availability are mandated by grid codes and safety standards. Mining and mineral processing operations rely on redundant AC500 systems for conveyor belt protection, crusher interlock management, and ventilation control in underground environments where maintenance access is limited and unplanned downtime carries significant safety and financial consequences.

Water and wastewater treatment plants use redundant PLC architectures to manage pump station control, chemical dosing interlocks, and SCADA communication gateways — systems that must operate continuously to meet environmental compliance obligations. In port and marine applications, the RLM01 supports redundant control of ship-to-shore crane drives, mooring winch safety circuits, and vessel management systems operating in high-humidity, salt-laden environments where component reliability is paramount.

Safety and Quality FAQ

Q: What support terms coverage does the ABB RLM01 carry when purchased from KNMKS?
A: Every RLM01 unit is covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed directly through KNMKS with replacement or repair support provided within agreed lead times.

Q: Is pre-shipment testing performed on each RLM01 unit?
A: Yes. Each unit undergoes functional pre-shipment testing that verifies redundancy link establishment, communication integrity, and switchover timing before dispatch. Test records are available upon request for quality-critical procurement processes.

Q: Which AC500 CPU modules are compatible with the RLM01?
A: The RLM01 is compatible with AC500 CPUs that support the redundancy function, including the PM573-ETH, PM591-ETH, and PM595 series. Compatibility should be confirmed against the specific firmware version and AC500 system configuration in use. KNMKS technical support can assist with compatibility verification prior to order placement.

Q: Can KNMKS support long-term spare parts supply for AC500 redundant systems?
A: Yes. KNMKS maintains in-stock inventory of RLM01 and related AC500 system components to support ongoing spare parts programs for facilities operating redundant control architectures. Long-term supply agreements and scheduled replenishment programs are available for maintenance teams managing multi-line or multi-site AC500 installations. Contact [email protected] to discuss your spare parts requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

RLM01
AC500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB RLM01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
