ABB RINT-6621C 6830696F Maintenance Spare for ACS800 Uptime

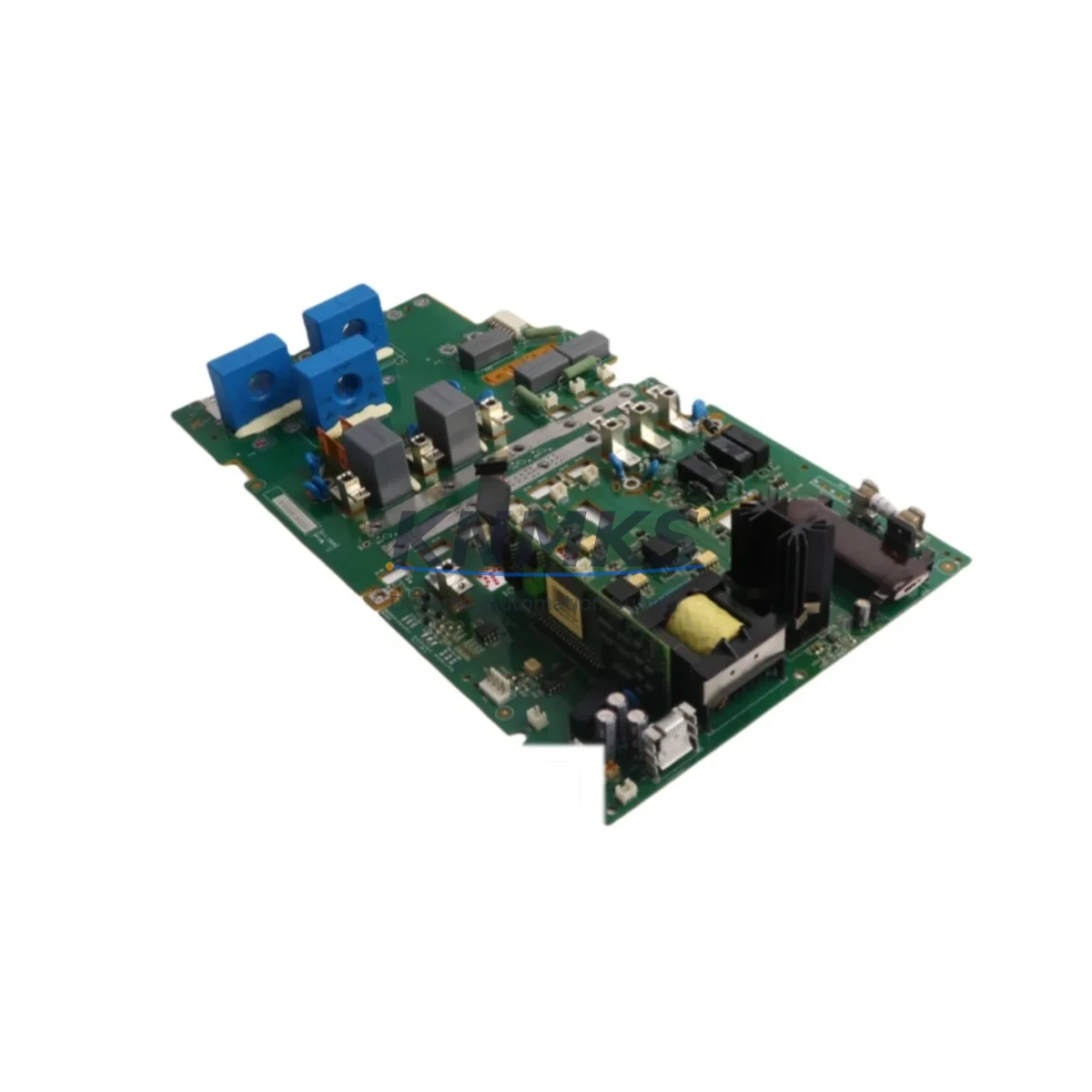

The ABB RINT-6621C (part number 6830696F) is an original drive interface board engineered for the ABB ACS800 series variable frequency drive platform. In industrial environments where continuous motor control is non-negotiable — from paper mills and cement plants to water treatment facilities and steel rolling lines — this interface board serves as the critical communication bridge between the ACS800 drive control unit and its power stage. When this board fails, the entire drive goes offline. Having a verified, tested replacement in your spare parts inventory is the single most effective strategy for minimizing unplanned downtime and protecting production continuity.

Maintenance engineers working with ACS800 drives know that the RINT-6621C is not a commodity component. It carries firmware-level compatibility requirements tied to the specific ACS800 hardware revision and software version in use. Sourcing a counterfeit or incompatible substitute risks secondary failures across the drive stack. Every RINT-6621C 6830696F unit shipped from KNMKS is original ABB stock, pre-tested under load simulation, and dispatched with full inspection documentation. Our support terms confirmed by quotation cover both the component and the confidence that it will perform to ABB factory specification from day one of installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for any ACS800 installation must extend beyond the RINT-6621C itself. The interface board operates within a tightly integrated drive architecture, and a failure event — whether caused by overvoltage, thermal stress, or firmware incompatibility — typically warrants a broader inspection of the surrounding components before the drive is returned to service.

Start with the ACS800 RMIO control board, which works in direct coordination with the RINT-6621C to manage drive logic, I/O processing, and fieldbus communication. If the interface board has failed due to a DC bus transient, the RMIO board should be checked for latent damage before reinstallation. Similarly, the AINT-02C or AINT-14C auxiliary interface boards used in multi-drive ACS800 cabinets should be inspected for connector integrity and signal continuity.

On the power side, verify the condition of the ACS800 APOW power supply board, which provides the regulated 24 VDC logic supply to the interface board. A degraded APOW board can cause intermittent RINT-6621C faults that are misdiagnosed as interface board failures. Fuse integrity on the DC bus and the auxiliary supply rail should be confirmed using a calibrated multimeter before the replacement board is energized.

For drives connected to a fieldbus network — Profibus, Modbus RTU, or DDCS fiber — inspect the RDCO-02C or RDCO-04C communication option boards mounted in the ACS800 option slot. Communication board faults can cascade into interface board errors in certain ACS800 firmware versions. If the drive is part of a multi-drive system using the DDCS fiber ring, check all fiber connectors and the NDBU-95C branching unit for signal integrity.

Finally, review the ACS800 IOEC I/O extension modules connected to the drive’s I/O bus. Loose terminal connections or failed IOEC modules can generate fault codes that appear to originate from the interface board. A complete terminal torque check and I/O signal verification should be part of any RINT-6621C replacement workflow to prevent repeat failures after the new board is installed.

Site Replacement Workflow

Replacing the RINT-6621C 6830696F on-site is a straightforward procedure for a qualified drive technician, but it requires careful sequencing to avoid secondary damage and to ensure the replacement board initializes correctly within the ACS800 firmware environment.

Step 1 — Safe Isolation: De-energize the ACS800 drive and wait a minimum of 5 minutes for the DC bus capacitors to discharge below 50 VDC. Verify with a calibrated voltage meter before opening the drive cabinet. Do not rely solely on the drive’s internal discharge indicator.

Step 2 — Document the Existing Configuration: Before removing the failed RINT-6621C, photograph the board orientation, connector positions, and any visible fault indicators (LED status, thermal marks). Record the ACS800 firmware version and drive parameter set from the CDP control panel or DriveWindow software if accessible.

Step 3 — Board Removal: Disconnect the interface board connectors in sequence — fiber optic cables first, then the flat ribbon connectors to the RMIO board, then the gate drive connectors to the IGBT module. Handle the board by its edges and place it in an ESD-safe bag immediately.

Step 4 — Replacement Installation: Install the RINT-6621C 6830696F replacement in reverse order. Ensure all connectors are fully seated and latched. Reconnect fiber optic cables with the correct TX/RX orientation. Do not overtighten any connector screws.

Step 5 — Power-Up and Verification: Re-energize the drive and monitor the startup sequence via the CDP panel. Confirm that no fault codes related to the interface board (e.g., FF52, FF53, FF6A in ACS800 fault history) are present. Run a no-load motor test before returning the drive to full production load.

This workflow reduces mean time to repair (MTTR) and eliminates the most common reinstallation errors that cause repeat failures within the first 48 hours of operation.

Spare Parts Support FAQ

Q1: Is the RINT-6621C 6830696F compatible with all ACS800 drive frame sizes?
The RINT-6621C is designed for specific ACS800 frame sizes and power ratings. Compatibility depends on the drive’s hardware revision and the IGBT module type installed. KNMKS technical support can verify compatibility against your drive’s nameplate data and serial number before shipment. Contact us with your ACS800 type code to confirm fitment.

Q2: How is each RINT-6621C tested before shipment?
Every unit undergoes a pre-shipment functional test that includes logic supply voltage verification, gate drive signal output check, and connector integrity inspection. Units that do not pass all test criteria are not shipped. A test report is available upon request for critical applications.

Q3: What is the recommended stock quantity for a plant operating multiple ACS800 drives?
For facilities with 5 or more ACS800 drives in continuous operation, we recommend maintaining a minimum of one RINT-6621C 6830696F in on-site spare stock. Plants with 10 or more drives or those operating in high-vibration or high-temperature environments should consider a two-unit buffer to cover simultaneous failure scenarios during peak production periods.

Q4: What does the support terms confirmed by quotation cover, and what is the long-term supply outlook?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. KNMKS maintains long-term stock of ACS800 series spare parts to support legacy system operators. We actively source original ABB inventory to ensure supply continuity for drives that are no longer in active ABB production.
