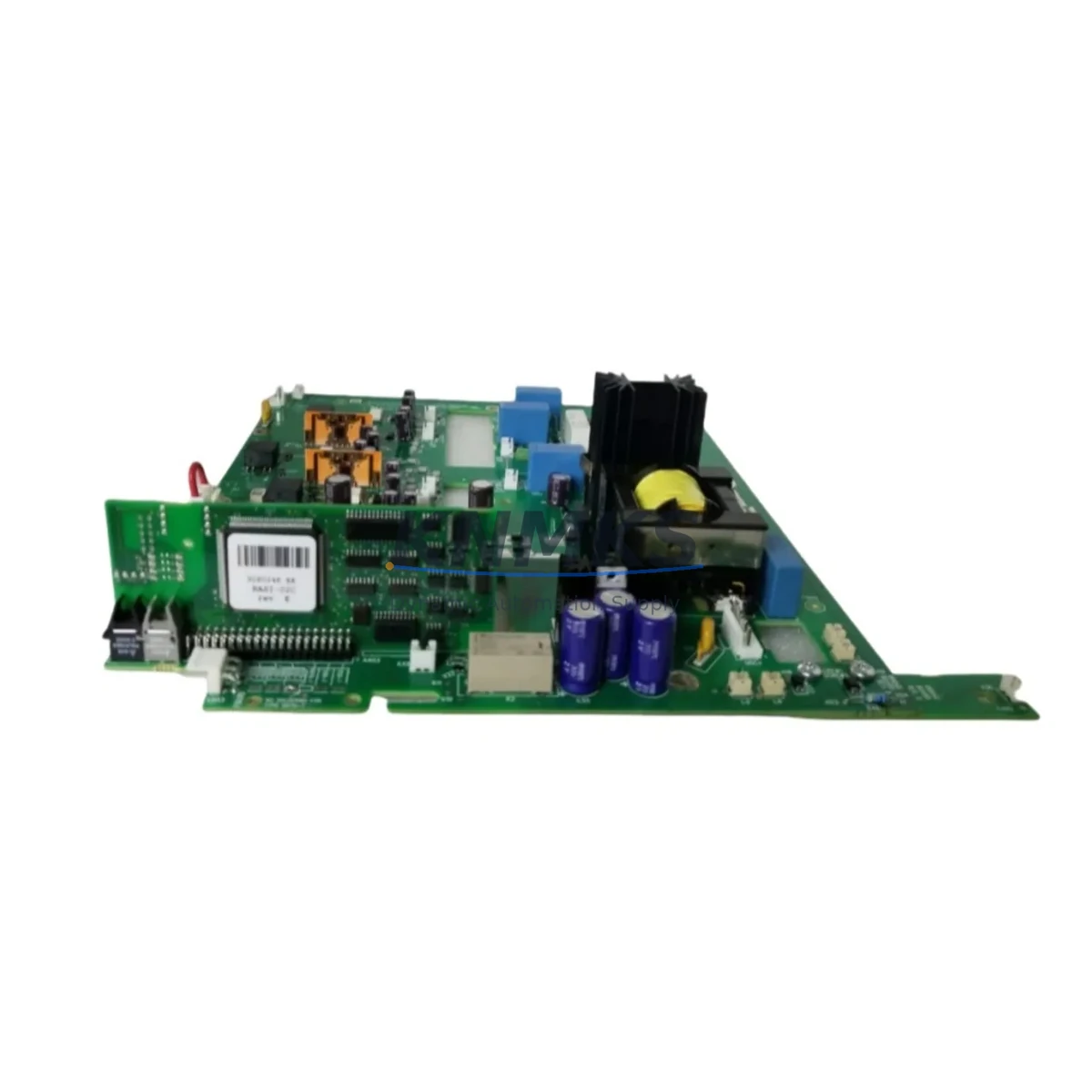

ABB RINT-6621C 6830691F Fail-Safe Gate Drive Interface

Overview

ABB RINT-6621C 6830691F Fail-Safe Gate Drive Interface: Fault-Protected Industrial Control Reliability

The ABB RINT-6621C 6830691F is a precision-engineered gate drive interface module designed for ABB ACS800 series variable frequency drives. In continuous production environments — petrochemical plants, power generation facilities, mining operations, and heavy metallurgical lines — unplanned drive shutdowns translate directly into safety incidents, production losses, and costly emergency maintenance. The RINT-6621C 6830691F addresses this risk at the hardware level, providing a fail-safe signal pathway between the drive control board and IGBT power modules that is robust against the most demanding field conditions.

Engineered to operate within the ACS800 drive architecture, this gate drive interface module ensures precise, low-latency firing pulses to the IGBT bridge under full load. Its isolated signal design suppresses common-mode noise and high-frequency EMI generated by adjacent inverter stages, motor cables, and bus bars — a critical advantage in high-density control cabinets where multiple drives, PLCs, and safety relays share confined enclosure space. Signal drift and spurious triggering, two of the most insidious causes of nuisance trips and motor runaway in VFD-controlled systems, are effectively mitigated by the module’s differential signal architecture and onboard protection circuitry.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered ACS800 control cabinet, the RINT-6621C 6830691F does not operate in isolation — it is one node in a layered protection architecture. The drive’s AINT-02C auxiliary interface board manages the communication backbone between the main control unit and peripheral I/O, while the RDCU-02C drive control unit executes the core speed and torque regulation algorithms that depend on clean gate firing signals from the RINT module. Any degradation in the gate drive interface directly compromises the accuracy of these control loops, making the RINT-6621C 6830691F a first-priority spare in any ACS800 maintenance inventory.

On the power supply side, the APOW-01C power supply board provides regulated DC rails to the drive’s internal electronics. Voltage ripple or transient spikes on these rails — common in facilities with large motor starts or capacitor bank switching — can propagate into the gate drive circuitry if the interface module lacks adequate transient suppression. The RINT-6621C 6830691F’s onboard filtering and clamping circuits provide a secondary line of defense against surge-induced misfiring.

For drives operating in safety-critical interlocking circuits — emergency stop loops, fire and gas system interfaces, or SIL-rated shutdown sequences — the integrity of the gate drive interface is non-negotiable. Facilities that have standardized on the ABB DDCS fiber optic communication link for drive-to-drive and drive-to-PLC communication benefit from the RINT module’s compatibility with this architecture, ensuring that safety commands transmitted over the fiber backbone are executed with the sub-millisecond response times that critical interlock applications demand. Similarly, the RMIO-11C motor control board relies on the gate drive interface to translate its PWM output into precise IGBT switching events — a relationship that makes the RINT-6621C 6830691F indispensable to the drive’s overall functional safety posture.

In high-temperature environments such as steel mill drive rooms or cement plant motor control centers, cabinet thermal management becomes a parallel concern. Pairing the RINT-6621C 6830691F replacement with an inspection of the drive’s cooling fan assembly (e.g., NINT-41C or equivalent frame-specific fan unit) ensures that the restored gate drive interface operates within its rated thermal envelope, preventing premature failure of the newly installed module.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation columns, compressor trains, and pump stations — ACS800 drives controlled by the RINT-6621C 6830691F manage critical rotating equipment that cannot tolerate uncontrolled stops. A gate drive fault in this environment can trigger emergency depressurization sequences, flare system activation, and extended production outages. Maintaining a verified spare RINT-6621C 6830691F on-site is standard practice in facilities operating under IEC 61511 functional safety management frameworks.

Power Generation and Substation Auxiliaries: Boiler feed pumps, induced draft fans, and cooling water systems in thermal power plants rely on ACS800 VFDs for precise flow control. The RINT-6621C 6830691F’s fault detection capability — including desaturation protection that prevents IGBT thermal runaway — is directly relevant to the high-availability requirements of generation auxiliaries, where a single drive failure can force a unit derating or emergency shutdown.

Mining and Mineral Processing: Conveyor drives, ball mill drives, and slurry pump systems in underground and open-pit mining operations are exposed to extreme dust loading, vibration, and humidity. The RINT-6621C 6830691F’s tolerance for these conditions, combined with its robust signal isolation, makes it a reliable choice for mine site drive maintenance programs where replacement lead times from OEM channels can extend to weeks.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operating large centrifugal pumps and aeration blowers on ACS800 drives depend on uninterrupted motor control for regulatory compliance and public safety. The RINT-6621C 6830691F supports the continuous, low-maintenance operation these applications require, with a support terms confirmed by quotation that aligns with typical annual maintenance inspection cycles.

Port and Marine Applications: Ship-to-shore crane drives, bulk material handling systems, and vessel propulsion auxiliaries operating in salt-laden, high-humidity coastal environments place exceptional demands on drive electronics. The RINT-6621C 6830691F’s galvanic isolation and EMI rejection characteristics are well-suited to these environments, where corrosion and electromagnetic interference from radar and communication systems are persistent threats to drive reliability.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the RINT-6621C 6830691F?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified gate drive interface function within the confirmed support period due to a component or assembly defect, KNMKS will provide a replacement unit. The support terms does not cover damage resulting from incorrect installation, overvoltage events beyond the module’s rated tolerance, or physical mishandling.

Q: What pre-shipment testing is performed on each RINT-6621C 6830691F unit?
Every RINT-6621C 6830691F unit undergoes a full functional verification test and electrical continuity check before dispatch. This includes signal isolation integrity verification and visual inspection for physical damage. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q: Is the RINT-6621C 6830691F compatible with all ACS800 drive frame sizes?
The RINT-6621C 6830691F is designed for specific ACS800 frame configurations. Compatibility depends on the drive’s frame size, IGBT module type, and firmware version. Customers are advised to confirm their drive’s exact model and frame designation before ordering. KNMKS technical support can assist with compatibility verification based on the drive nameplate data.

Q: Can KNMKS support long-term or blanket order supply for the RINT-6621C 6830691F?
Yes. KNMKS maintains multi-region inventory of the RINT-6621C 6830691F to support both immediate replacement needs and planned maintenance programs. Blanket purchase orders and scheduled delivery arrangements are available for facilities that require guaranteed spare part availability over 12-month or multi-year maintenance cycles. Contact our sales team to discuss volume pricing and supply agreements.
