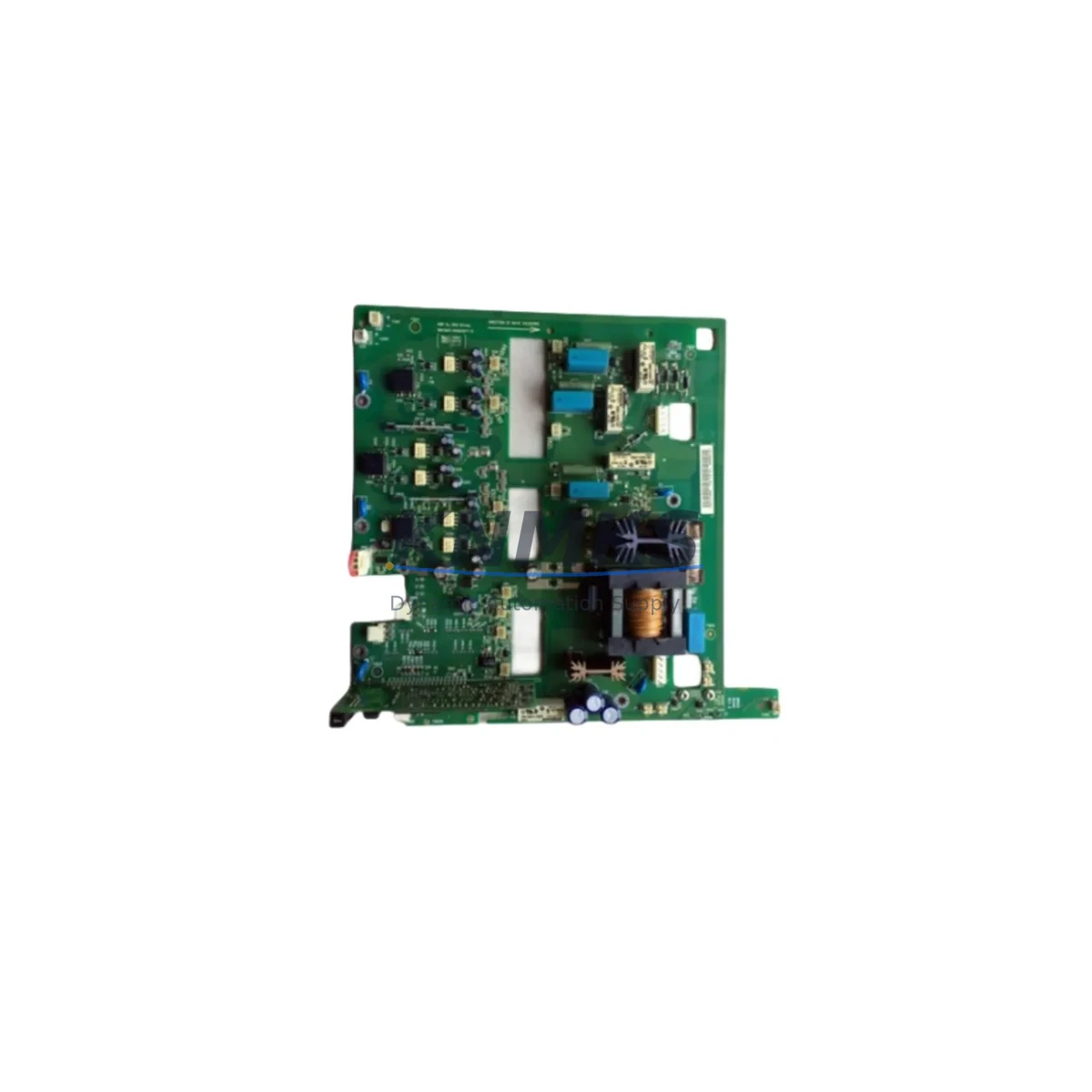

ABB RINT-6611C Migration-Ready Gate Driver for ACS800

Overview

ABB RINT-6611C Migration-Ready Gate Driver for Legacy ACS800 Control Systems

The ABB RINT-6611C is an IGBT gate driver board engineered for the ACS800 series of AC drives, one of ABB’s most widely deployed variable frequency drive platforms across heavy industry, pulp and paper, metals, marine, and process automation sectors. As the ACS800 platform ages and original spare parts become increasingly difficult to source through standard distribution channels, the RINT-6611C has become a critical component in both emergency breakdown recovery and planned retrofit programs. This board governs the firing signals to the IGBT power module stack, making it a direct determinant of drive reliability, switching accuracy, and thermal protection response. A failed or degraded gate driver is one of the most common root causes of ACS800 overcurrent trips, IGBT fault codes, and uncontrolled shutdown events.

For maintenance engineers managing aging ACS800 installations, the RINT-6611C replacement process requires careful attention to several pre-installation checkpoints. Before swapping the board, technicians should verify the DC bus voltage has fully discharged, confirm the IGBT module type and voltage class match the replacement driver’s gate signal specifications, and inspect the fiber optic connections between the RINT-6611C and the AINT or RDCU control boards for contamination or mechanical damage. The board interfaces with the ACS800 inverter section via a defined backplane connector arrangement, and incorrect seating can result in asymmetric gate pulses that stress the IGBT stack unevenly. Firmware compatibility between the RINT-6611C and the installed RDCU-02C or RDCU-12C control unit should also be confirmed prior to commissioning, as mismatched firmware revisions have been known to cause erratic fault behavior during initial power-up sequences.

In retrofit scenarios where the ACS800 is being integrated into a modernized control architecture — for example, migrating supervisory control from a legacy ABB AC500 PLC to a newer AC500-S safety-rated platform — the gate driver board itself typically does not require replacement unless it shows signs of degradation. However, when the broader drive cabinet is being upgraded and the RINT-6611C is found to be a revision that predates a known ABB service bulletin, proactive replacement during the planned outage window is strongly recommended to avoid unscheduled downtime after the system returns to production. Pairing the RINT-6611C replacement with a simultaneous inspection of the APOW-01C power supply board and the AINT-02C auxiliary interface board allows the maintenance team to address the full set of wear-prone components in a single intervention.

Communication protocol continuity is another key consideration during ACS800 retrofit projects. Many legacy installations rely on DDCS fiber optic links between the ACS800 and upstream controllers, and the RINT-6611C’s role in maintaining stable inverter operation directly affects the integrity of drive status feedback transmitted over these links. When migrating from DDCS to PROFIBUS-DP or Modbus RTU using an RPBA-01 or RMBA-01 fieldbus adapter, the gate driver board must be confirmed operational before the new communication layer is validated, as drive fault states triggered by a marginal RINT-6611C can be misdiagnosed as fieldbus configuration errors during commissioning.

I/O expansion and signal isolation requirements should also be reviewed when the RINT-6611C is replaced as part of a broader control cabinet upgrade. In installations where analog speed references or torque limit signals pass through signal isolators before reaching the AINT board, any ground loop introduced during the gate driver replacement can corrupt reference signals and produce unstable speed control behavior. Verifying PE bonding continuity across the drive cabinet chassis before and after the RINT-6611C installation is a straightforward step that prevents this class of post-maintenance fault. Where the ACS800 is mounted in a multi-drive cabinet alongside other ABB drives sharing a common DC bus, the gate driver replacement sequence should be coordinated to ensure no adjacent drive is energized during the intervention.

All RINT-6611C units supplied by KNMKS are sourced from verified industrial channels, subjected to pre-shipment functional testing on ACS800-compatible test rigs, and covered by a support terms confirmed by quotation against manufacturing defects and premature failure. Stock is maintained to support both emergency single-unit orders and planned multi-unit procurement for scheduled maintenance programs. Global shipping is available with lead times confirmed at order placement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 gate driver retrofit begins well before the maintenance window opens. The first step is a full audit of the drive cabinet’s component revision levels. In a typical ACS800 installation, the RINT-6611C works in close coordination with the APOW-01C auxiliary power supply board, which provides the isolated gate drive supply voltages. If the APOW-01C shows signs of capacitor aging — evidenced by increased ripple on the gate supply rails — replacing it alongside the RINT-6611C eliminates a common source of intermittent gate drive faults that can be difficult to diagnose under load. Similarly, the AINT-02C auxiliary interface board, which handles analog and digital I/O routing between the drive and the plant control system, should be inspected for corrosion on its terminal blocks and connector pins, particularly in humid or chemically aggressive environments.

For drives operating in multi-axis or coordinated motion applications, the RDCU-02C or RDCU-12C control unit’s parameter backup should be completed and verified before any hardware intervention. The RDCU stores all application-specific tuning parameters, motor model data, and fault history logs. A confirmed parameter backup protects against data loss if the control unit requires reseating or replacement during the gate driver swap. In installations where the ACS800 communicates with an ABB AC500 PLC or a third-party DCS via the RPBA-01 PROFIBUS adapter, the fieldbus node address and baud rate settings stored in the RDCU must be preserved and restored accurately to avoid communication faults after the drive returns to service.

Where the retrofit scope extends to the HMI layer — for example, updating ABB Panel Builder 600 screens that display ACS800 drive status — the gate driver replacement is an appropriate trigger point to also verify that all drive status word bit mappings in the HMI project remain consistent with the installed firmware version. Discrepancies between the HMI’s expected status word structure and the drive’s actual output can cause misleading fault displays that complicate post-maintenance verification. Confirming HMI screen accuracy before the drive returns to automatic operation is a low-cost step that significantly reduces the risk of operator confusion during the first production run after the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during an ACS800 gate driver replacement requires a structured approach to pre-staging, execution, and post-installation verification. The most effective strategy is to pre-stage the replacement RINT-6611C board in the maintenance workshop before the production line is taken offline, confirming its physical condition, connector integrity, and revision marking against the drive’s service documentation. Having the replacement board ready at the point of intervention eliminates the delay associated with on-site inspection and reduces the total maintenance window duration.

During the replacement itself, the original program logic stored in the RDCU control unit is not affected by the gate driver swap, provided the control unit remains powered and seated throughout the intervention. In installations where a controlled shutdown sequence is required to protect process equipment — for example, in pump or compressor applications where an abrupt stop can cause water hammer or pressure surge — the shutdown should be executed through the normal drive stop command before the cabinet is de-energized, rather than through an emergency stop that bypasses the drive’s deceleration ramp. This preserves the integrity of the process and reduces mechanical stress on connected equipment.

Post-installation verification should follow a defined sequence: confirm DC bus discharge, seat the RINT-6611C and torque all connectors to specification, restore cabinet power, verify gate supply voltages on the APOW-01C test points, perform a no-load test run to confirm IGBT firing symmetry, and then return the drive to closed-loop operation under load. Documenting each step in the site maintenance log provides a traceable record that supports support requests and future fault diagnosis. KNMKS provides technical support for commissioning queries associated with supplied components throughout the support terms confirmed by quotation period.

Retrofit Support FAQ

Q: Is the RINT-6611C a direct drop-in replacement for all ACS800 variants?
A: The RINT-6611C is compatible with the ACS800 single drive and multi-drive cabinet configurations that use the corresponding IGBT module voltage class and backplane interface. Compatibility should be confirmed against the drive’s type designation and hardware revision before ordering. KNMKS can assist with compatibility verification based on the drive nameplate data.

Q: What pre-shipment testing is performed on each RINT-6611C unit?
A: Each unit undergoes functional testing on an ACS800-compatible test rig to verify gate signal output, fiber optic interface integrity, and power supply rail performance before dispatch. Test results are available on request for quality-critical procurement programs.

Q: How should the RINT-6611C be handled to prevent ESD damage during installation?
A: The board should be handled using a grounded wrist strap and placed on an ESD-safe mat during installation. The drive cabinet chassis should be confirmed grounded before the board is removed from its anti-static packaging. Avoid touching the gate driver output traces or fiber optic transceiver components directly.

Q: What support terms and after-sales support does KNMKS provide?
A: All RINT-6611C units are covered by a support terms confirmed by quotation from the shipment date against manufacturing defects and premature failure. KNMKS provides technical support for installation and commissioning queries throughout the confirmed support period. Replacement or refund is available for confirmed support requests with documented fault evidence.
