ABB RINT-6512C Maintenance-Proven Spare Part for Factory Uptime

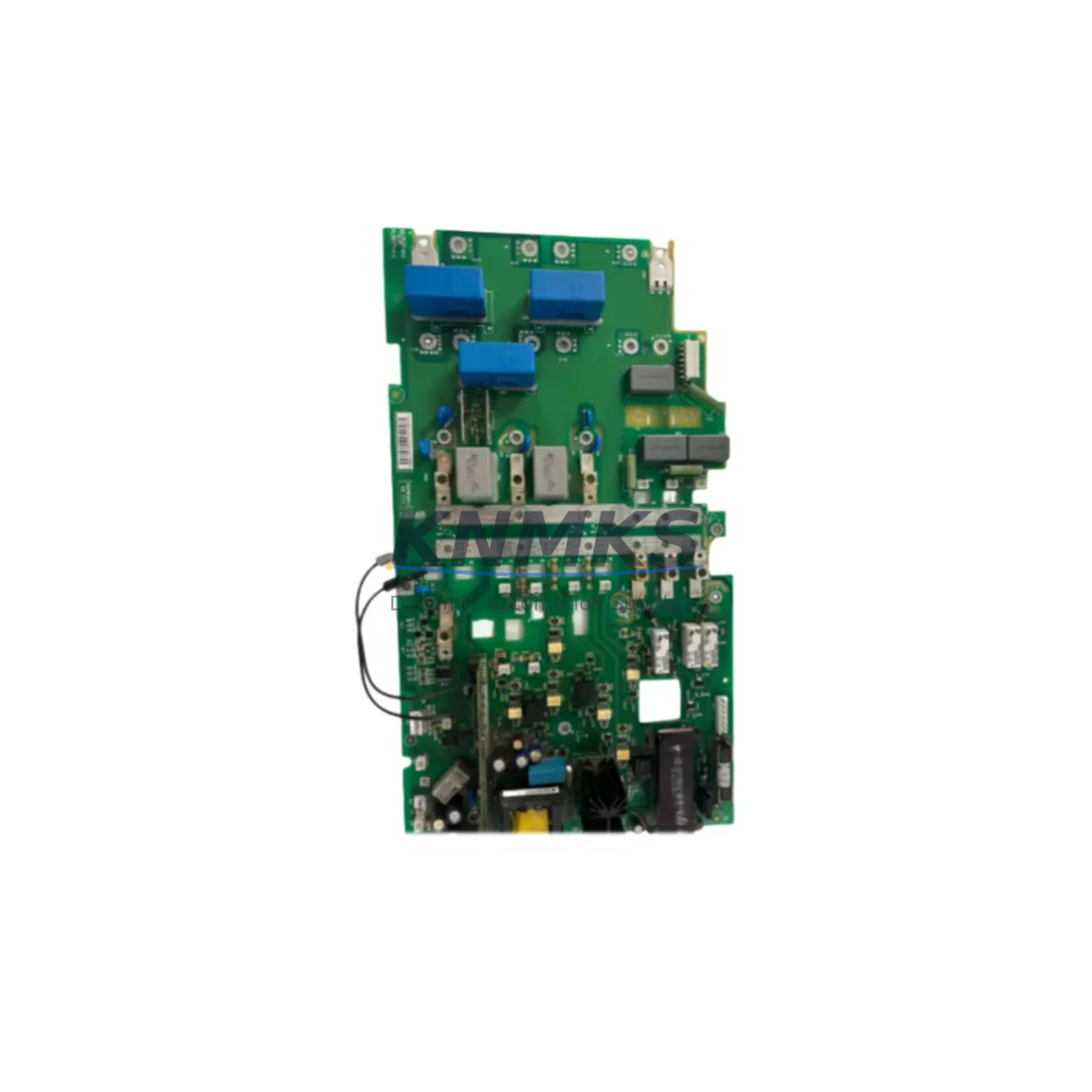

The ABB RINT-6512C is a drive circuit interface board engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp and paper, metals, oil and gas, water treatment, and heavy manufacturing. As a critical signal-routing and gate-drive interface component, the RINT-6512C sits at the heart of the ACS800 power conversion chain, managing IGBT gate signals, fault feedback, and DC bus monitoring between the control board and the inverter bridge. When this board fails, the drive goes offline immediately — making a verified, tested replacement unit the single fastest path to restoring production continuity.

KNMKS stocks the RINT-6512C as a maintenance-proven spare, sourced from original ABB manufacturing channels and subjected to pre-shipment functional verification. Each unit ships with a support terms confirmed by quotation covering component-level defects and operational failures under normal industrial service conditions. Whether you are responding to an unplanned trip, executing a scheduled annual overhaul, or building a regional spare parts buffer for a multi-drive installation, the RINT-6512C is available for immediate dispatch with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The RINT-6512C does not operate in isolation. In a healthy ACS800 drive cabinet, it works in close coordination with several other components that maintenance engineers should inspect and, where appropriate, replace concurrently to avoid repeat failures and secondary downtime events.

The AINT-02C or AINT-12C auxiliary interface board handles I/O signal conditioning upstream of the RINT-6512C; a degraded auxiliary board can produce intermittent gate faults that are misdiagnosed as RINT failures. The APOW-01C power supply board provides the regulated low-voltage rails that the RINT-6512C depends on — a marginal power supply will cause erratic gate timing and should be replaced as a paired item during any RINT-6512C swap. The RDCO-01C or RDCO-04C fiber optic communication module connects the ACS800 to the plant DCS or SCADA network; if the drive has been offline due to a RINT fault, verify fiber continuity and module integrity before returning the drive to service.

At the I/O level, inspect the RAIO-01C analog I/O extension module and any RDIO-01C digital I/O extension modules fitted to the drive. Loose terminal connections or moisture ingress at these modules can generate fault codes that cascade into RINT-6512C stress events. For drives operating in high-vibration or high-humidity environments, check the condition of the ACS800 main control board (RMIO-11C or RMIO-12C) — corrosion on the board-to-board connectors between the RMIO and RINT is a documented failure mode in older installations. Finally, verify the integrity of the DC bus capacitor bank and associated pre-charge resistors; a capacitor bank approaching end-of-life will produce voltage spikes that accelerate RINT-6512C gate driver degradation.

For sites running multiple ACS800 units, a structured spare parts holding that includes at least one RINT-6512C, one APOW-01C, and one RMIO control board per drive family significantly reduces mean time to repair and eliminates the extended lead times associated with emergency procurement of discontinued or allocation-constrained ABB drive components.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the ACS800 drive and follow your site LOTO procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive cabinet. Verify bus voltage with a calibrated meter before touching any internal components.

Step 2 — Fault code documentation: Before removing the RINT-6512C, record all active and historical fault codes from the ACS800 panel or connected DCS. Fault history provides diagnostic context and may reveal whether the RINT failure was primary or secondary to another component fault.

Step 3 — Board removal: Disconnect all ribbon cables and fiber optic connections to the RINT-6512C. Note connector orientation and cable routing before removal. The RINT-6512C is secured by standard PCB standoffs — remove carefully to avoid stressing adjacent board connectors.

Step 4 — Replacement installation: Install the replacement RINT-6512C, reconnect all cables in the documented sequence, and verify that fiber optic connectors are fully seated. Inspect the APOW-01C power supply output voltages before powering the drive.

Step 5 — Commissioning verification: Power up the drive in local control mode and verify that no fault codes are active. Run the drive at low speed under no-load conditions before returning to process control. Confirm DCS or SCADA communication is restored via the RDCO module.

Step 6 — Documentation: Record the replacement in your maintenance management system, including the new unit serial number, installation date, and pre-shipment test certificate reference. Update your spare parts inventory to trigger reorder of a replacement RINT-6512C for your buffer stock.

Spare Parts Support FAQ

Q1: Is the RINT-6512C a direct drop-in replacement for earlier RINT series revisions fitted to ACS800 drives?
Yes. The RINT-6512C is backward compatible with earlier RINT board revisions used in the ACS800 platform. No firmware changes or parameter adjustments are required for a like-for-like swap. If your drive was originally fitted with an earlier revision, the RINT-6512C will restore full functionality without additional commissioning steps.

Q2: What pre-shipment testing does KNMKS perform on the RINT-6512C before dispatch?
Every RINT-6512C unit undergoes functional verification prior to shipment, including gate signal output checks and power rail integrity testing. Units that do not pass verification are not dispatched. A test record is available on request and can be provided with the shipment documentation for your incoming inspection records.

Q3: How should the RINT-6512C be stored if purchased as a buffer spare?
Store the RINT-6512C in its original anti-static packaging in a dry, temperature-controlled environment (recommended: 10–40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Under these conditions, the board can be stored for up to 24 months without degradation of soldered joints or component integrity. The support terms confirmed by quotation period begins from the date of shipment, not the date of installation.

Q4: Can KNMKS support long-term supply of the RINT-6512C for multi-site maintenance programs?
Yes. KNMKS maintains regional stock positions and can support blanket order arrangements for customers operating multiple ACS800 installations. Long-term supply agreements provide price stability, guaranteed allocation, and priority dispatch for emergency requirements. Contact our technical sales team to discuss volume requirements and delivery scheduling for your maintenance program.
