ABB RINT-5521C Migration-Ready Circuit Interface for ACS800

Overview

ABB RINT-5521C Migration-Ready Circuit Interface for ACS800: Legacy System Retrofit & Compatibility Upgrade

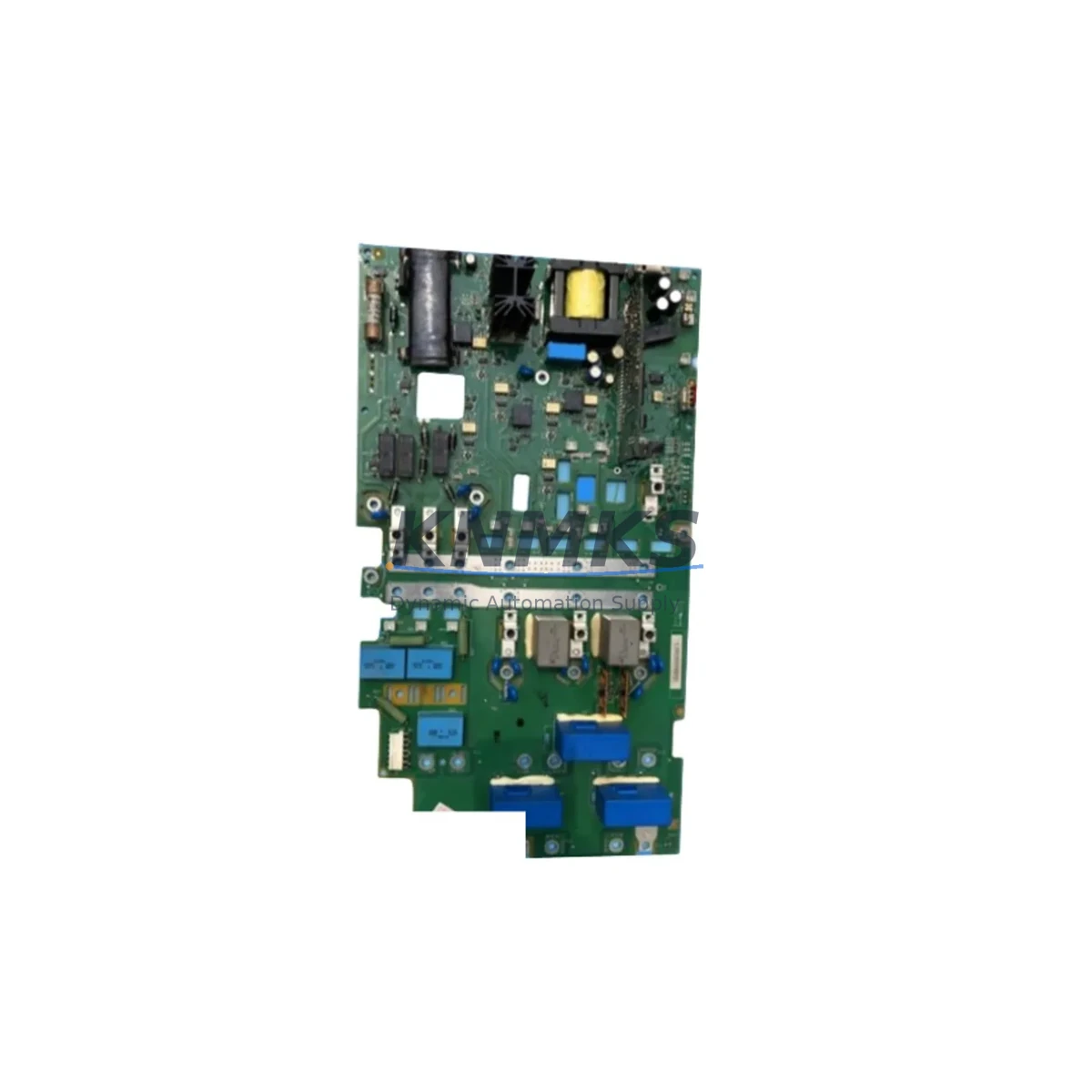

The ABB RINT-5521C is a critical circuit interface board designed for the ACS800 series variable frequency drive platform. As industrial facilities worldwide face the challenge of maintaining aging automation infrastructure, the RINT-5521C has become one of the most sought-after spare parts for engineers tasked with keeping legacy ACS800 drive systems operational. Whether you are managing a planned retrofit, responding to an unplanned drive failure, or executing a phased control system modernization, the RINT-5521C provides a verified, drop-in compatible solution that minimizes engineering risk and reduces total downtime.

The ACS800 drive family has been widely deployed across pulp and paper, mining, oil and gas, water treatment, and heavy manufacturing sectors. Many of these installations are now operating well beyond their original design lifecycle, and sourcing genuine replacement interface boards has become increasingly difficult through standard distribution channels. KNMKS maintains dedicated inventory of the RINT-5521C (part reference 3AUA0000016016E) to support both emergency breakdown response and long-term spare parts agreements covering 12 to 36 months of forward supply.

Every RINT-5521C unit shipped by KNMKS undergoes pre-shipment functional testing and is covered by a support terms confirmed by quotation from the date of delivery. This testing protocol verifies signal integrity, connector condition, and board-level functionality before dispatch, giving maintenance engineers confidence that the replacement part will perform correctly upon installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the RINT-5521C into an existing ACS800 installation requires a structured pre-replacement assessment. Before removing the failed board, maintenance teams should document the current drive parameter set using DriveWindow or DriveStudio software connected via the RUSB-02 USB-to-panel link or the RDCO fiber optic adapter. Retaining a full parameter backup eliminates the risk of losing motor tuning data, application macro settings, and fieldbus configuration during the board swap.

The RINT-5521C interfaces directly with the RMIO-01 or RMIO-02 main control board, which manages the drive’s I/O processing, speed reference handling, and fault logic. When planning the retrofit, engineers should inspect the RMIO board for signs of capacitor aging or corrosion on the D-sub connectors, as a degraded RMIO board can cause recurring faults even after the RINT-5521C is replaced. In multi-drive cabinet configurations using the ACS800-104 or ACS800-304 architecture, the interface board also interacts with the APBU-44C or APBU-12C branching unit, and the fiber optic connections between these components should be cleaned and verified for signal loss before commissioning the replacement board.

For facilities running PROFIBUS DP or Modbus RTU fieldbus networks, the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter mounted on the RMIO board must remain undisturbed during the RINT-5521C replacement. These communication modules retain their node address and baud rate settings independently, so fieldbus network continuity is maintained as long as the adapters are not removed or powered down for extended periods. Engineers should confirm that the PLC or DCS master — whether a Siemens S7-300, Allen-Bradley ControlLogix, or Schneider Modicon M340 — continues to receive valid drive status words within the expected scan cycle after the board replacement is complete.

Power supply capacity within the control cabinet should also be verified before installation. The RINT-5521C draws its operating power from the ACS800 internal SPSU (switch-mode power supply unit). If the SPSU has been operating under marginal conditions — a common issue in drives that have experienced repeated overvoltage or undervoltage events — it may not deliver stable 24 VDC to the replacement board. Measuring the SPSU output voltage under load before installing the new RINT-5521C is a recommended step that can prevent misdiagnosis of a secondary fault as a board defect.

Physical installation space within the ACS800 cabinet is generally not a constraint for the RINT-5521C, as it is a direct form-factor replacement. However, in retrofit scenarios where the original drive enclosure has been modified to accommodate additional I/O modules, RDIO-01 digital I/O extension boards, or RAIO-01 analog I/O extension boards, engineers should confirm that cable routing to the interface board connectors has not been obstructed by aftermarket additions.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 circuit interface board replacement requires preparation that begins before the maintenance window opens. The most effective approach is to pre-stage the replacement RINT-5521C alongside a printed copy of the current drive parameter list, a fiber optic cleaning kit for the DDCS connections, and a laptop loaded with DriveWindow or DriveStudio with the last known parameter backup file.

During the replacement window, the recommended sequence is: isolate and lock out the drive, discharge DC bus capacitors per ABB safety procedure, photograph all connector positions and cable routing before disconnection, remove the failed RINT-5521C, install the replacement board, reconnect all cables in the documented sequence, restore power, verify SPSU output, upload the parameter backup, and perform a no-load test run before returning the drive to production. Following this sequence consistently reduces the risk of wiring errors and parameter loss, which are the two most common causes of extended downtime during interface board replacements.

For critical production lines where even a brief interruption is unacceptable, KNMKS recommends maintaining at least one RINT-5521C as an on-site cold spare. Given the extended lead times now associated with legacy ABB ACS800 spare parts through standard channels, holding a pre-tested spare on the shelf is a significantly lower-cost risk mitigation strategy than sourcing a replacement under emergency conditions. KNMKS supports long-term spare parts supply agreements that provide guaranteed inventory allocation for 12 to 36 months, with fixed pricing and priority dispatch for agreement customers.

Original program logic stored in the connected PLC or DCS is not affected by the RINT-5521C replacement, as the drive’s application program resides on the RMIO control board, not on the interface board itself. This means that the PLC ladder logic, function block diagrams, and HMI screen configurations associated with the drive remain intact throughout the replacement process, and no PLC reprogramming or HMI screen updates are required after the board swap.

Retrofit Support FAQ

Q: Is the RINT-5521C a direct replacement for all ACS800 variants?
A: The RINT-5521C is compatible with the standard ACS800 single-drive series. For ACS800 multi-drive configurations (ACS800-104, ACS800-304) or specialized crane and winder application variants, please confirm the exact drive type code with KNMKS before ordering. Our technical team can cross-reference the drive type code against the correct interface board variant to ensure compatibility.

Q: What pre-shipment testing does KNMKS perform on the RINT-5521C?
A: Every unit undergoes functional board-level testing prior to dispatch. Testing covers power rail integrity, connector pin continuity, and signal path verification. Units that do not pass testing are not shipped. A support terms confirmed by quotation is provided on all shipped units, covering defects in materials and workmanship under normal operating conditions.

Q: Can I install the RINT-5521C without re-commissioning the drive?
A: In most cases, yes. Because the RINT-5521C does not store drive parameters, a replacement board installation does not require a full re-commissioning if the RMIO board and its parameter memory are intact. However, ABB recommends verifying parameter group 98 settings and performing a motor ID run if any uncertainty exists about the integrity of the stored motor model data.

Q: What is the typical lead time and inventory availability?
A: KNMKS maintains stock of the RINT-5521C and can typically dispatch within 1–3 business days for in-stock orders. For customers requiring guaranteed forward supply, long-term spare parts agreements with 12–36 month inventory allocation are available. Contact [email protected] or call +86 18359268345 to discuss availability and agreement terms.
